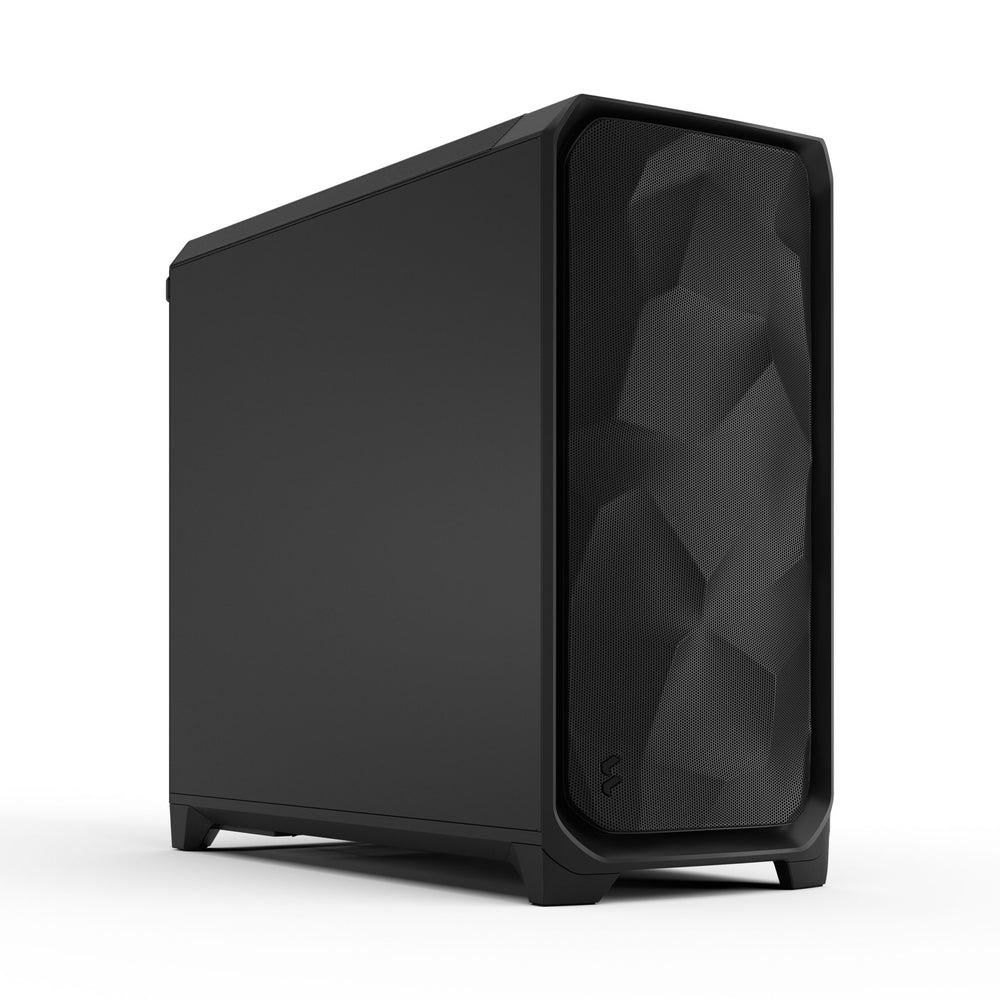

Fractal Design Meshify 3 XL Black Solid E-ATX Full Tower High Airflow PC Case
Technical specification
E-ATX / SSI-EEB Full Tower — High-Airflow Rockface Mesh Front, 3x Momentum 14 Fans Included, Solid Steel Side Panel, Supports E-ATX / EE-ATX / SSI-EEB / SSI-CEB / ATX / mATX / Mini‑ITX, Up to 420mm Top & 360mm Front/Side Radiators, 512mm GPU.
The Fractal Design Meshify 3 XL Black Solid is a spacious, high-airflow full tower engineered for advanced gaming rigs, workstations and custom liquid-cooling loops. Its aerodynamic, rockface-inspired mesh front, fully ventilated top panel and internal air guide provide excellent airflow over high-end GPUs and CPUs, while the solid steel side panel keeps your build visually stealthy and helps contain light spill.[web:896][web:940][web:941]
With support for E‑ATX and larger EE‑ATX / SSI‑EEB motherboards, graphics cards up to 512 mm long, CPU coolers up to 182 mm tall and multi‑radiator layouts (up to 420 mm at the top and 360 mm at the front and side), Meshify 3 XL Black Solid is ideal for enthusiast‑level custom loop builds and heavy workstation setups. Three included Momentum 14 140 mm fans deliver strong, quiet airflow out of the box, and the generous interior plus 37.5 mm cable-routing space make building and cable management straightforward.[web:896][web:940][web:942]
-
>Solid side panel, stealth look — Industrial steel solid left side panel is perfect for non‑RGB or low‑profile setups and can help reduce visible light leakage.[web:896][web:940]
>Spacious full-tower interior — Designed for large motherboards (up to EE‑ATX / SSI‑EEB) and multiple GPUs, with plenty of space for custom water‑cooling hardware.[web:896][web:940][web:941]
>Rockface mesh front — High‑airflow, rockface-inspired mesh front delivers strong intake performance while forming the signature Meshify aesthetic.[web:896][web:941]
>Three Momentum 14 fans included — Comes with 3x 140 mm Momentum 14 fans using advanced blade geometry and FDB bearings for high airflow and low noise.[web:896][web:940][web:942]
>Advanced airflow and air guide — An internal air guide helps direct air towards the GPU region, improving cooling for high‑power graphics cards.[web:896][web:940][web:941]
>Extensive radiator support — Supports 420/360 mm radiators at the top, 360/280 mm in the front and up to 360 mm on the side, enabling complex multi‑radiator custom loops.[web:896][web:940][web:942]
>Huge GPU & PSU clearance — Fits graphics cards up to 512 mm in length and PSUs up to 230 mm, giving you freedom with flagship GPUs and large power supplies.[web:896][web:941][web:942]
>Multi-platform motherboard support — Compatible with E‑ATX, EE‑ATX, SSI‑EEB, SSI‑CEB, ATX, Micro‑ATX and Mini‑ITX boards.[web:896][web:940][web:941]
>Generous cable management — 37.5 mm of routing space behind the motherboard tray, plus cable cover, three hook‑and‑loop straps and three cable aligners help keep wiring neat.[web:896][web:940]
>Tool-less access — Push‑to‑lock side panels, front panel, top panel and bottom PSU filter, plus captive thumbscrews on radiator brackets and PSU bracket for easy servicing.[web:896][web:940]
>Modern front/top I/O — Front/top I/O includes 1 x USB Type‑C 20 Gbps, 2 x USB Type‑A 5 Gbps and a 3.5 mm combo audio jack, plus power button.[web:896][web:940][web:942]
>Fan capacity — Supports up to 10 x 140 mm or 7 x 120 mm fans across front, top, rear and side positions for extreme air‑cooled setups.[web:896][web:940]
>Dust management — Bottom PSU dust filter is easily removable for cleaning; mesh front and other vents are designed for easy maintenance and airflow.[web:896][web:940][web:942]
>2‑year warranty — Backed by a 2‑year manufacturer warranty from Fractal Design.[web:896][web:940]
| Spec | Detail |
|---|---|
| Model | Fractal Design Meshify 3 XL Black Solid |
| Product code (SKU) | FD-C-MES3X-01 |
| Cabinet type | E‑ATX / EE‑ATX High-Airflow Full Tower |
| Color | Black (solid side panel) |
| Motherboard support | E‑ATX, ATX, Micro‑ATX, Mini‑ITX, EE‑ATX, SSI‑EEB, SSI‑CEB |
| Side panels | Left: Industrial steel (Solid); Right: Steel |
| Pre-installed fans | 3 x 140 mm Momentum 14 fans (front/top positions, varies by region) |
| Total fan mounts | Up to 10 x 140 mm or 7 x 120 mm fans |
| Radiator support | Top: up to 360/420 mm; Front: up to 280/360 mm; Side: up to 360 mm (with brackets); Rear: 120/140 mm |
| Max GPU length | 512 mm |
| Max CPU cooler height | 182 mm |
| Max PSU length | 230 mm |
| Cable routing space | 37.5 mm behind motherboard tray |
| Front / top I/O | 1 x USB Type‑C 20 Gbps, 2 x USB Type‑A 5 Gbps, 1 x audio combo jack, power button |
| Dust filters | Bottom (PSU); mesh front provides filtered intake |
| Tool-less features | Push‑to‑lock both side panels, bottom filter, front panel, top panel |
| Case dimensions (L x W x H) | 575 x 245 x 515 mm |
| Dimensions w/o feet/protrusions | 565 x 245 x 515 mm |
| Package dimensions | 596 x 350 x 550 mm |
| Net weight | 10.5 kg (Solid) |
| Gross weight | 12.4 kg (Solid) |
| EAN | 7340172707219 |
| Warranty | 2 Years |
