Cabinet // Fractal Design

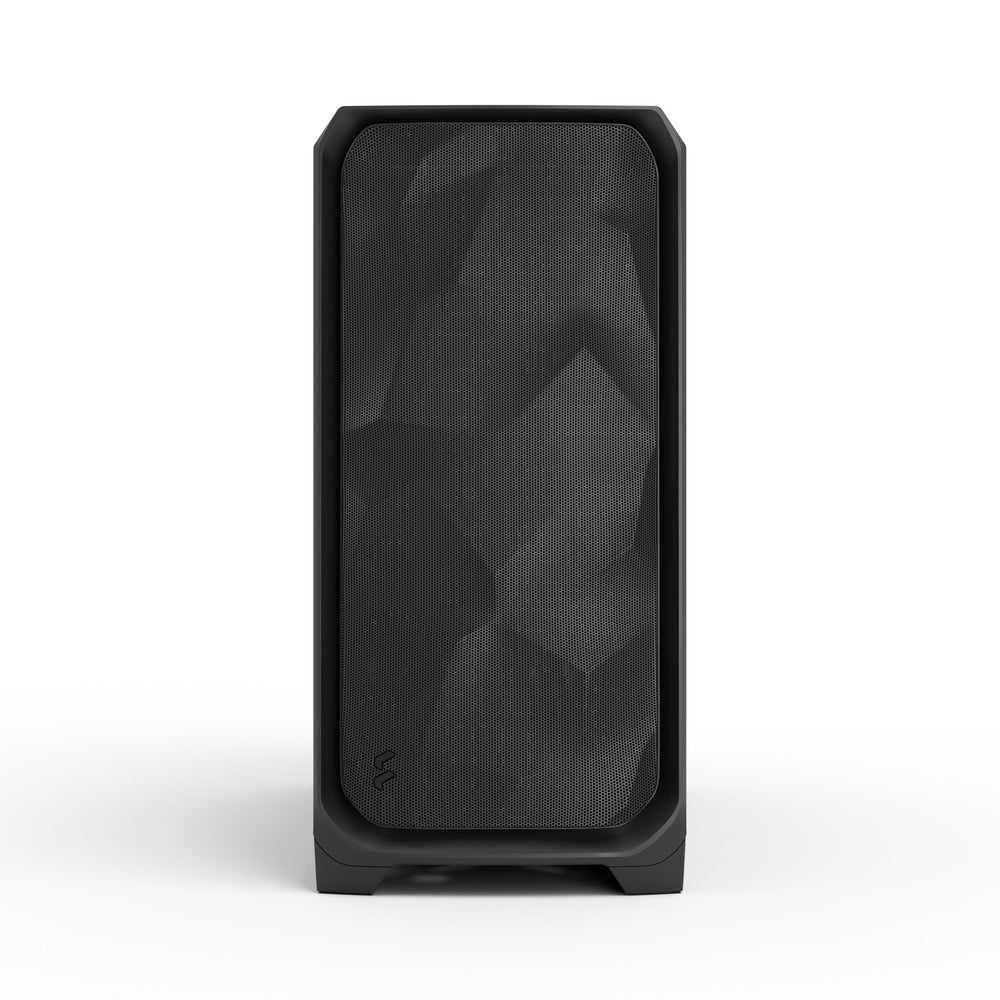

Fractal Design Meshify 3 XL Black TG Light Tint E-ATX Full Tower High Airflow PC Case
Technical specification
E-ATX / SSI-EEB Full Tower — High-Airflow Rockface Mesh Front, 3x Momentum 14 Fans Included, Light-Tinted Tempered Glass Side Panel, Supports E-ATX / EE-ATX / SSI-EEB / SSI-CEB / ATX / mATX / Mini‑ITX, Up to 420mm Top & 360mm Front/Side Radiators, 512mm GPU.
The Fractal Design Meshify 3 XL Black TG Light Tint is a spacious, high-airflow full tower designed for enthusiast gaming rigs, workstations and complex custom liquid-cooling loops. Its aerodynamic, rockface-inspired mesh front and fully ventilated top panel work with an internal air guide to deliver strong airflow over high-end GPUs and CPUs, while the light-tinted tempered glass side panel showcases your hardware and lighting.
With support for large motherboards (including E‑ATX, EE‑ATX and SSI‑EEB), graphics cards up to 512 mm long, CPU coolers up to 182 mm tall and multiple large radiators (up to 420 mm in the top and 360 mm in the front and side), Meshify 3 XL Black TG Light Tint is built for serious custom-loop and high-power builds. Three included Momentum 14 140 mm fans provide quiet, high-performance airflow out of the box, and generous 37.5 mm cable-routing space plus tool‑less panels make building and maintenance straightforward.
-
>Light-tinted tempered glass side — Light-tint TG left panel offers a clear view of your components and lighting with a subtle smoke effect that suits the stealthy black exterior.[web:896][web:940]
>Spacious full-tower interior — Supports large boards up to EE‑ATX / SSI‑EEB alongside multi‑GPU or oversized GPU layouts and extensive liquid-cooling hardware.[web:896][web:940][web:942]
>Rockface mesh front — High‑airflow rockface-inspired mesh front panel enhances intake performance while maintaining the signature Meshify look.[web:896][web:941]
>Three Momentum 14 fans included — Equipped with 3x 140 mm Momentum 14 fans using advanced blade geometry and FDB bearings for strong, quiet airflow.[web:896][web:940][web:942]
>Advanced airflow & air guide — Internal air guide channels fresh air towards the GPU area for improved gaming thermals under heavy loads.[web:896][web:940][web:941]
>Extreme radiator support — Top support up to 420/360 mm radiators, front support up to 360/280 mm and side support up to 360 mm allow multi‑radiator custom loops; rear supports 120/140 mm.[web:896][web:940][web:952]
>Huge GPU & PSU clearance — Fits graphics cards up to 512 mm long and power supplies up to 230 mm, ideal for flagship GPUs and large PSUs.[web:896][web:942][web:953]
>Extensive motherboard support — Compatible with E‑ATX, EE‑ATX, SSI‑EEB, SSI‑CEB, ATX, Micro‑ATX and Mini‑ITX.[web:896][web:940][web:941]
>Generous cable management — 37.5 mm of space behind the motherboard tray, cable cover, Velcro straps and cable aligners help maintain a clean interior.[web:896][web:940]
>Tool-less access — Push‑to‑lock side panels, front and top panels, bottom filter and PSU bracket, plus captive screws on radiator brackets simplify building and servicing.[web:896][web:940]
>Modern front/top I/O — Front/top I/O offers 1 x USB Type‑C 20 Gbps, 2 x USB Type‑A 5 Gbps and a 3.5 mm combo audio jack alongside the power button.[web:896][web:940][web:952]
>Fan capacity — Supports up to 10 x 140 mm or 7 x 120 mm fans across front, top, rear and side positions for extreme air‑cooled setups.[web:896][web:940]
>Dust management — Removable bottom PSU dust filter plus mesh front and other intake areas are designed for easy cleaning and airflow.[web:896][web:940][web:952]
>2‑year warranty — Backed by a 2‑year manufacturer warranty from Fractal Design.[web:896][web:940]
| Spec | Detail |
|---|---|
| Model | Fractal Design Meshify 3 XL Black TG Light Tint |
| Product code (SKU) | FD-C-MES3X-02 |
| Cabinet type | E‑ATX / EE‑ATX High-Airflow Full Tower |
| Color | Black (light-tinted tempered glass side) |
| Motherboard support | E‑ATX, EE‑ATX, SSI‑EEB, SSI‑CEB, ATX, Micro‑ATX, Mini‑ITX |
| Side panels | Left: Tempered glass light tint; Right: Steel |
| Pre-installed fans | 3 x 140 mm Momentum 14 fans |
| Total fan mounts | Up to 10 x 140 mm or 7 x 120 mm fans |
| Radiator support | Top: up to 360/420 mm; Front: up to 280/360 mm; Side: up to 360 mm; Rear: 120/140 mm |
| Max GPU length | 512 mm |
| Max CPU cooler height | 182 mm |
| Max PSU length | 230 mm |
| Cable routing space | 37.5 mm behind motherboard tray |
| Front / top I/O | 1 x USB Type‑C 20 Gbps, 2 x USB Type‑A 5 Gbps, 1 x combo audio jack, power button |
| Dust filters | Bottom (PSU); front mesh provides filtered intake |
| Tool-less features | Push‑to‑lock side panels, front & top panels, bottom filter, PSU bracket |
| Case dimensions (L x W x H) | 575 x 245 x 515 mm |
| Dimensions w/o feet/protrusions | 565 x 245 x 515 mm |
| Package dimensions | 596 x 350 x 550 mm |
| Net weight | 11.0 kg (TG) |
| Gross weight | 13.0 kg (TG) |
| EAN | 7340172707226 |
| Warranty | 2 Years |
