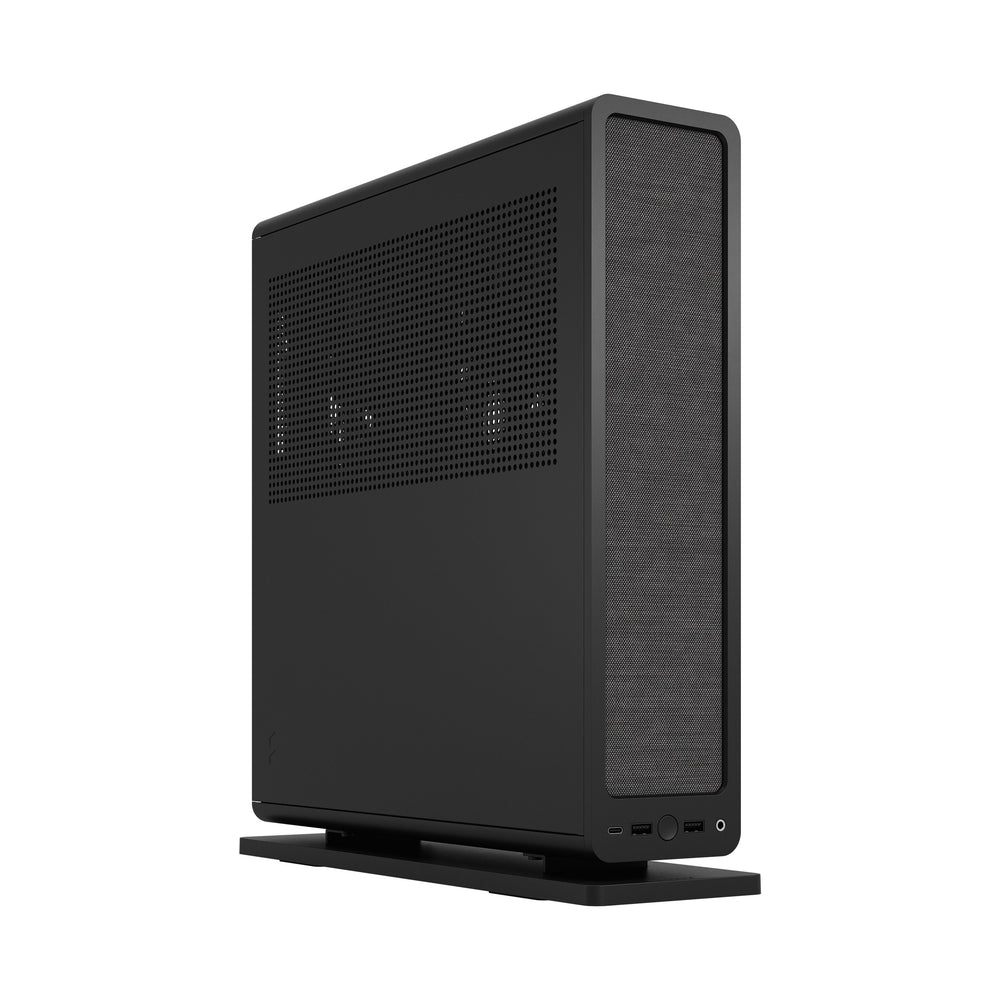

Fractal Design Ridge Black ITX PCIe 4.0 Slim Small Form Factor PC Case

Mini-ITX PCIe 4.0 SFF Case — 12.6 L Console-Style Chassis, Included PCIe 4.0 Riser Card, Supports GPUs up to 335 mm, SFX / SFX-L PSU, Horizontal or Vertical Orientation, 2x 140mm PWM Fans Included.

The Fractal Design Ridge Black ITX PCIe 4.0 is a premium slim small form factor (SFF) case designed to blend into living rooms and compact gaming setups while still supporting powerful hardware. With a 12.6 L footprint and console-style design, Ridge supports full‑length graphics cards up to 335 mm via the included PCIe 4.0 riser card and an SFX or SFX‑L power supply, making it ideal for high‑end mini‑ITX builds.[web:1044][web:1046][web:1048]

All external panels are removable for easy access, and multiple feet configurations allow Ridge to be placed horizontally like a console under a TV, or vertically as a slim tower on a desk. The front I/O provides USB‑C 20 Gbps, dual USB 3.0 and a combo audio jack, while the side panel supports up to 2x 120/140 mm fans or a 240/280 mm radiator to keep modern GPUs cool. Two Fractal Aspect 14 PWM 140 mm fans come pre‑installed for balanced airflow out of the box.[web:1044][web:1046][web:1051]

This PCIe 4.0 version (SKU FD‑C‑RID1N‑11) ships with Fractal’s updated 4.0 riser card designed for full‑speed PCIe Gen 4 graphics, with backward compatibility to PCIe 3.0. For best stability on PCIe 5.0 platforms, Fractal recommends forcing the primary PCIe slot to Gen 4 in BIOS.[web:1044][web:1049]

• Console-style 12.6 L SFF design — Slim mini‑ITX chassis with a volume around 12.6 litres, ideal for living room setups, desks and tight spaces.[web:1044][web:1051]
• PCIe 4.0 riser included — Ships with an updated PCIe 4.0 x16 riser cable for modern GPUs, pre‑installed and routed to the three‑slot vertical GPU chamber.[web:1044][web:1048][web:1049]
• GPU support up to 335 mm — Supports full‑length graphics cards up to 335 mm long and up to 57 mm thick with side fans installed, or up to 82 mm without side fans.[web:1044][web:1046]
• Horizontal or vertical orientation — Multiple foot options included for both horizontal console‑style placement and vertical tower use.[web:1044][web:1046]
• Removable panels for access — All external panels (top, sides, front) are removable, maximising accessibility for building and maintenance in the tight SFF interior.[web:1044][web:1058]
• Included 140 mm PWM fans — Comes with 2x Fractal Aspect 14 PWM 140 mm side fans pre‑installed for efficient, quiet cooling.[web:1046][web:1051]
• Radiator & fan support — Side: up to 2x 120/140 mm fans or up to 240/280 mm radiator; Top: up to 3x 80 mm slim fans for additional exhaust if needed.[web:1044][web:1046][web:1051]
• Mini‑ITX focused layout — Supports mini‑ITX motherboards only, with three expansion slots via the riser and no wasted ATX space.[web:1044][web:1048]
• CPU cooler clearance — Supports low‑profile CPU coolers up to 70 mm in height, ideal for compact tower or top‑down coolers.[web:1044][web:1051]
• SFX / SFX‑L PSU support — Dedicated PSU bay fits SFX and SFX‑L power supplies for high‑wattage SFF builds.[web:1044][web:1046]
• Front I/O with USB‑C — 1 x USB 3.2 Gen 2x2 Type‑C (20 Gbps), 2 x USB 3.0 Type‑A and a combo audio jack, plus power button and discreet power LED bar on the fabric front.[web:1044][web:1046]
• Stylish fabric & aluminium front — Fabric front with CNC‑machined aluminium frame gives a clean, home‑friendly appearance.[web:1044][web:1045]
• Storage support — Up to 4 x 2.5" drives
