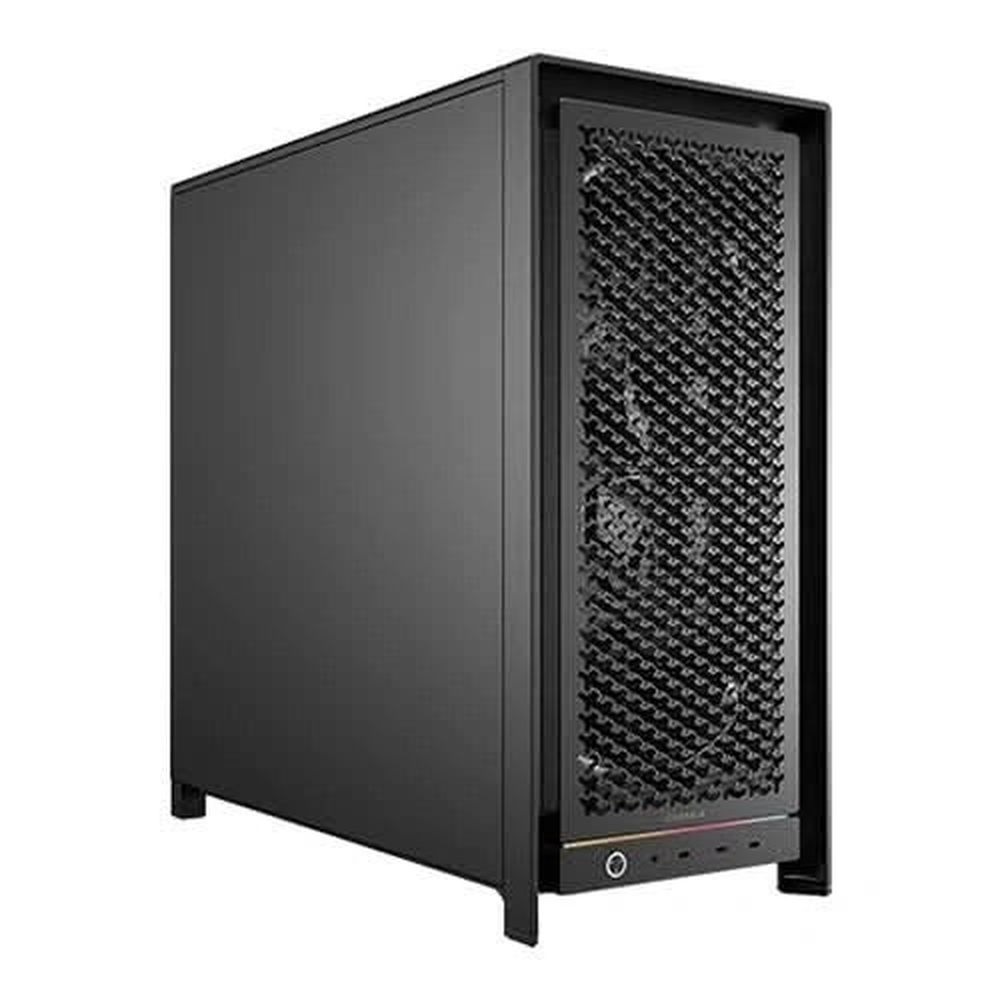

FRAME 5000D Workstation RS Mid-Tower Case, Black

The Corsair FRAME 5000D Workstation RS Black is a professional-grade mid-tower PC case designed specifically for workstation builds featuring the innovative InfiniRail™ Fan Mounting System, RapidRoute 2.0 cable management, four pre-installed RS140 fans, and full compatibility with SSI-CEB and SSI-EEB workstation motherboards in addition to standard consumer motherboards. With triple 360mm radiator support, GPU anti-sag stabilization, and a fully modular design, this high-airflow case delivers exceptional cooling performance for demanding professional workloads.

Key Features:

>SSI-CEB and SSI-EEB workstation motherboard support for professional builds >4x RS140 PWM fans pre-installed (3 front intake, 1 rear exhaust) for powerful cooling >InfiniRail™ Fan Mounting System allows flexible fan placement anywhere along the rail >Triple 360mm radiator support (front, side, top) for extreme liquid cooling >Top-mounted 420mm radiator support for maximum cooling potential >RapidRoute 2.0 pegboard motherboard tray and cable looms for organized cable management >Fully modular internal design with removable side panel/cable cover or fan mounting option >3D-Y Airflow front panel with optimized mesh pattern for maximum intake airflow >Compatible with reverse-connector motherboards (ASUS BTF, MSI Project Zero, GIGABYTE Project Stealth) >Tempered glass side panel showcases professional workstation components >Modern front I/O panel with 1x USB 3.2 Gen 2 Type-C, 4x USB 3.2 Gen 1 Type-A >Supports Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm), SSI-CEB, SSI-EEB motherboards >Accommodates graphics cards up to 450mm in length (professional GPUs like NVIDIA RTX A-series) >CPU cooler clearance up to 175mm height >PSU support up to 250mm length with captive thumbscrews >Integrated GPU anti-sag stabilization arm for heavy professional graphics cards >Extensive storage options: 6x 2.5" SSD, 2x 3.5" HDD for workstation data needs >8 horizontal or 3 vertical expansion slots for multi-GPU and professional add-in cards >Dust filtration on front, top, and PSU shroud >Tool-free tempered glass side panel removal

Technical Specifications:

Model Number	CC-9011308-WW
Brand	Corsair
Series	FRAME 5000D Workstation RS
Form Factor	Mid-Tower Workstation
Color	Black
Materials	Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic
Included Fans	4x RS140 PWM Fans (140mm, non-RGB)
Fan Mounting System	InfiniRail™ (flexible positioning)
Fan Mounting Locations	Front: 3x 120mm or 2x 140mm, Top: 3x 120mm or 140mm, Side: 3x 120mm or 2x 140mm, Rear: 1x 120mm or 140mm, PSU Shroud: 2x 120mm
Radiator Support - Front	360mm, 280mm, 240mm
Radiator Support - Top	420mm, 360mm, 280mm, 240mm
Radiator Support - Side	360mm, 280mm, 240mm
Motherboard Compatibility	Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm), SSI-CEB, SSI-EEB
Reverse-Connector Compatible	Yes (ASUS BTF, MSI Project Zero, GIGABYTE Project Stealth)
Expansion Slots	8 Horizontal or 3 Vertical
Maximum GPU Length	450 mm
Maximum CPU Cooler Height	175 mm
Maximum PSU Length	250 mm
PSU Type	ATX (not included)
Drive Bays	6x 2.5" SSD, 2x 3.5" HDD
Front I/O	1x USB 3.2 Gen 2 Type-C, 4x USB 3.2 Gen 1 Type-A, 1x Audio/Mic Combo Jack
Front I/O Motherboard Connections	1x HD Audio, 1x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type-E, 1x F_PANEL
Side Panel	Tempered Glass (Left)
Dust Filtration	Front, Top, PSU Shroud
Dimensions (H x D x W)	542 x 556 x 250 mm / 21.3 x 21.9 x 9.8 inches
Weight	15.48 kg / 34.1 lbs
Warranty	2 Years

Package Contents:

>FRAME 5000D Workstation RS Case (Black) >4x RS140 PWM Fans (pre-installed) >Tempered Glass Side Panel >Mounting Hardware and Screws >Cable Ties >User Manual

Note: Power supply (PSU) not included.

Perfect for 3D rendering professionals, CAD engineers, video editors, scientific computing researchers, AI/ML practitioners, and workstation builders who require SSI-CEB or SSI-EEB motherboard support for high-core-count processors like AMD Threadripper PRO, Intel Xeon W, or EPYC processors. The FRAME 5000D Workstation RS Black is specifically designed to accommodate professional workstation motherboards with the larger SSI-CEB (12" x 10.5") and SSI-EEB (12" x 13") form factors that feature dual-socket CPU configurations, extensive PCIe expansion slots, and massive RAM capacities required for demanding professional applications. Unlike consumer cases that only support ATX and E-ATX, the Workstation RS provides the mounting points and interior space necessary for these larger professional boards. The revolutionary InfiniRail™ Fan Mounting System eliminates traditional fixed fan mounting holes, allowing you to slide 120mm or 140mm fans to any position along continuous rails—critical for workstation builds where radiator and component placement flexibility is essential. Out of the box, you get four high-performance RS140 PWM fans (140mm, non-RGB) pre-installed—three in the front for intake and one in the rear for exhaust—providing powerful, quiet cooling without distracting RGB lighting that's inappropriate for professional environments. Cooling potential is exceptional with support for triple 360mm radiators simultaneously (front, side, top) or a massive 420mm radiator on top—perfect for cooling high-TDP workstation CPUs like Threadripper PRO 7995WX (96 cores, 350W TDP) combined with professional GPUs like NVIDIA RTX 6000 Ada. The fully modular internal design with removable panels enables custom configurations tailored to your workflow. RapidRoute 2.0 cable management features a pegboard-style motherboard tray with multiple cable routing cutouts and strategically placed tie-down points that organize the extensive cabling required for workstation builds. Spacious interior accommodates professional graphics cards up to 450mm (like NVIDIA RTX A-series or AMD Radeon PRO cards), tower CPU coolers up to 175mm, and PSUs up to 250mm. The integrated GPU anti-sag stabilization arm is essential for supporting heavy professional graphics cards. With 8 horizontal expansion slots, you can install multiple GPUs, 10GbE network cards, NVMe RAID controllers, Thunderbolt cards, and other professional add-in cards required for specialized workflows. Extensive storage support (6x 2.5" SSD + 2x 3.5" HDD) accommodates project drives, scratch disks, and RAID configurations. Build your professional workstation with reliable cooling, clean cable management, and full SSI motherboard support in the Corsair FRAME 5000D Workstation RS.
