Description
GALAX RTX 5060 Ti 1-Click OC Classic — 4608 CUDA Cores, 8GB GDDR7 128-bit 28Gbps, PCIe 5.0 x16, Boost 2587MHz / 1-Click OC 2602MHz, 220W TDP, 1x 16-pin (12VHPWR), 3x DP 2.1b + 1x HDMI 2.1b, 600W PSU Recommended.

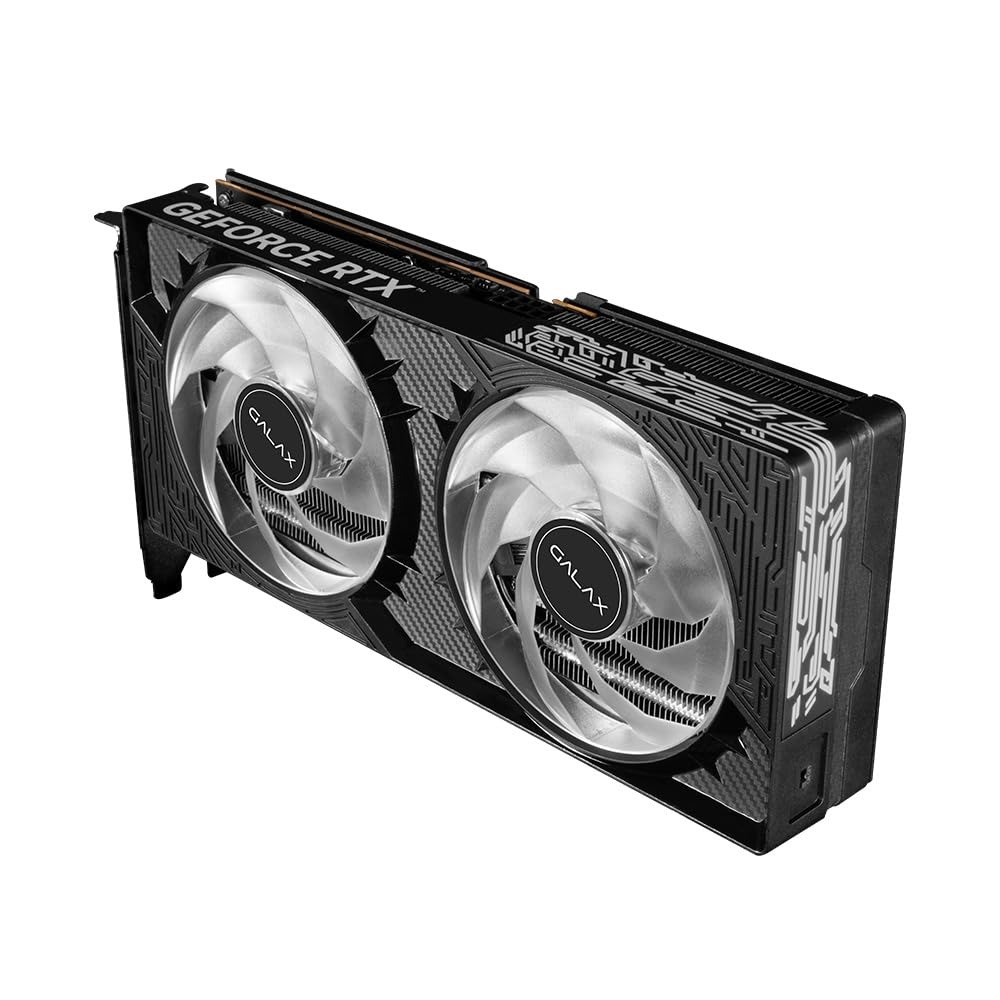

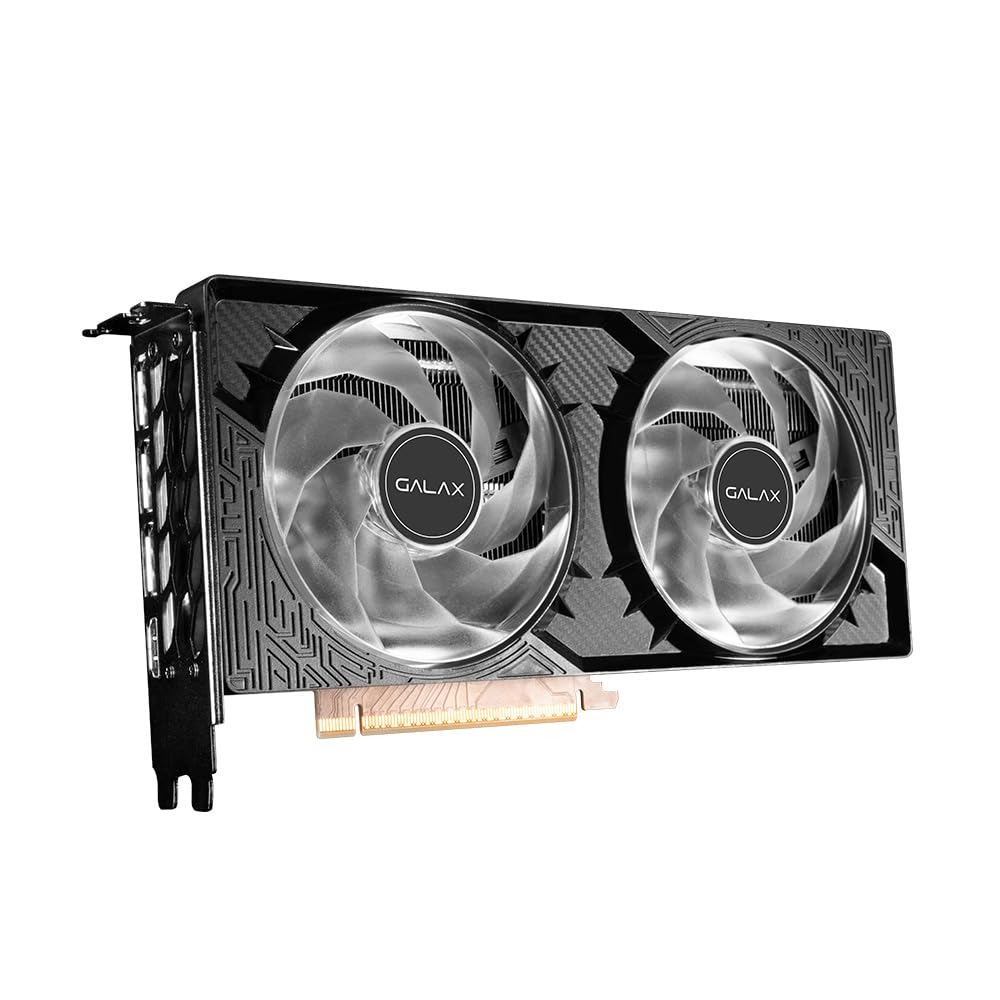

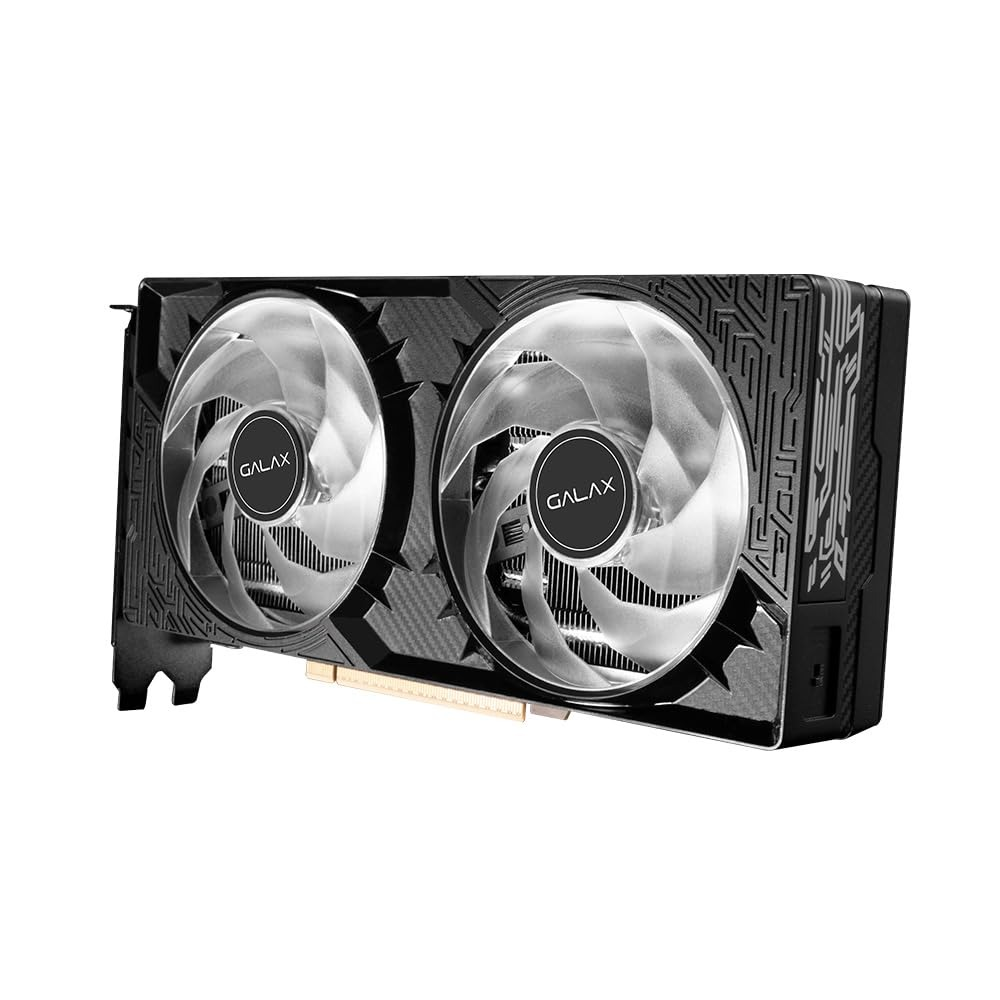

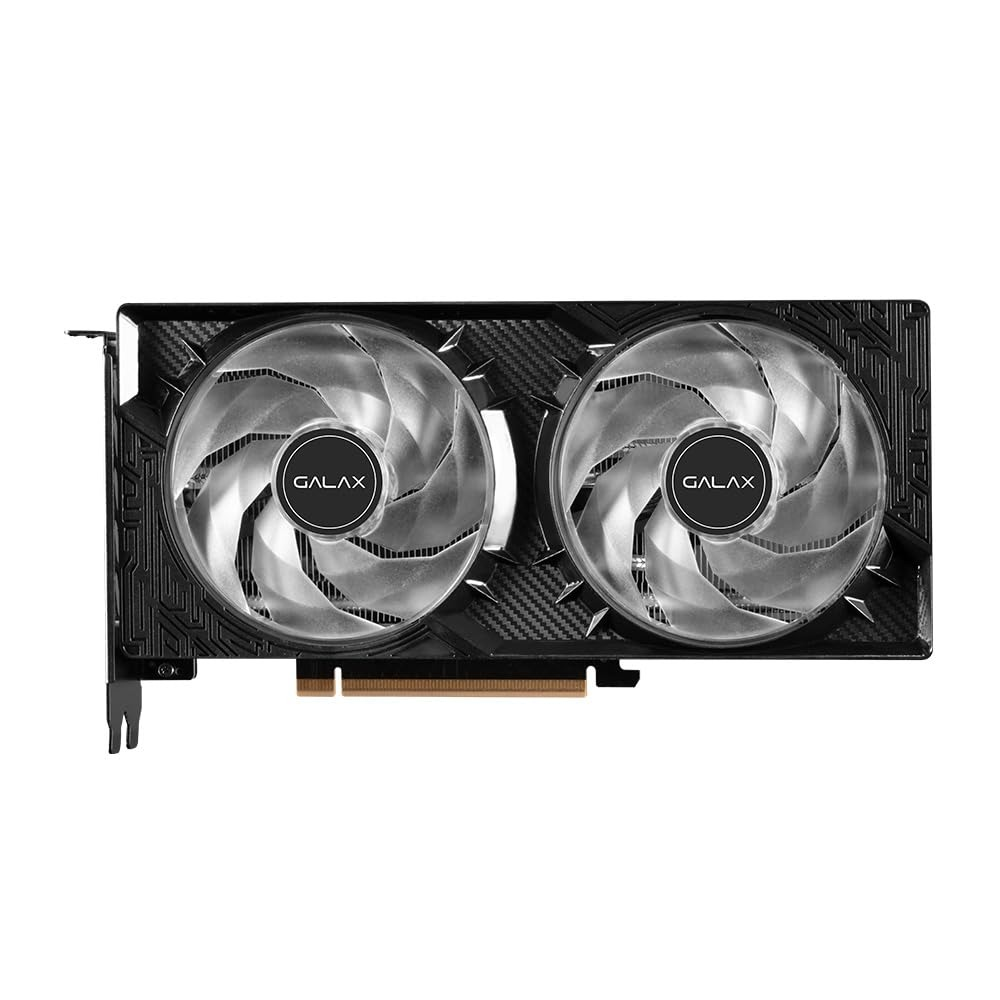

The GALAX GeForce RTX 5060 Ti 1-Click OC Classic 8GB GDDR7 is a high-performance RTX 50-series GPU built on NVIDIA’s Blackwell architecture, tuned for ultra-smooth 1440p and capable 4K gaming. With 4608 CUDA cores, fast 8GB GDDR7 memory at 28Gbps, and DLSS 4, it delivers serious ray tracing and AI-accelerated performance in modern titles. The Classic dual-fan cooler with WINGS 3.0 92mm fans, metal backplate, and top RGB lighting keeps the card cool and stylish, while 1-Click OC in Xtreme Tuner Plus lets you unlock extra performance effortlessly.
-
>NVIDIA Blackwell RTX 5060 Ti GPU — 4608 CUDA Cores, DLSS 4, 4th-gen RT Cores, 5th-gen Tensor Cores
>8GB GDDR7 — 128-bit, 28Gbps, 448 GB/s bandwidth for high FPS at 1440p with ray tracing
>Boost Clock: 2587 MHz, 1-Click OC Clock: 2602 MHz (via Xtreme Tuner Plus)

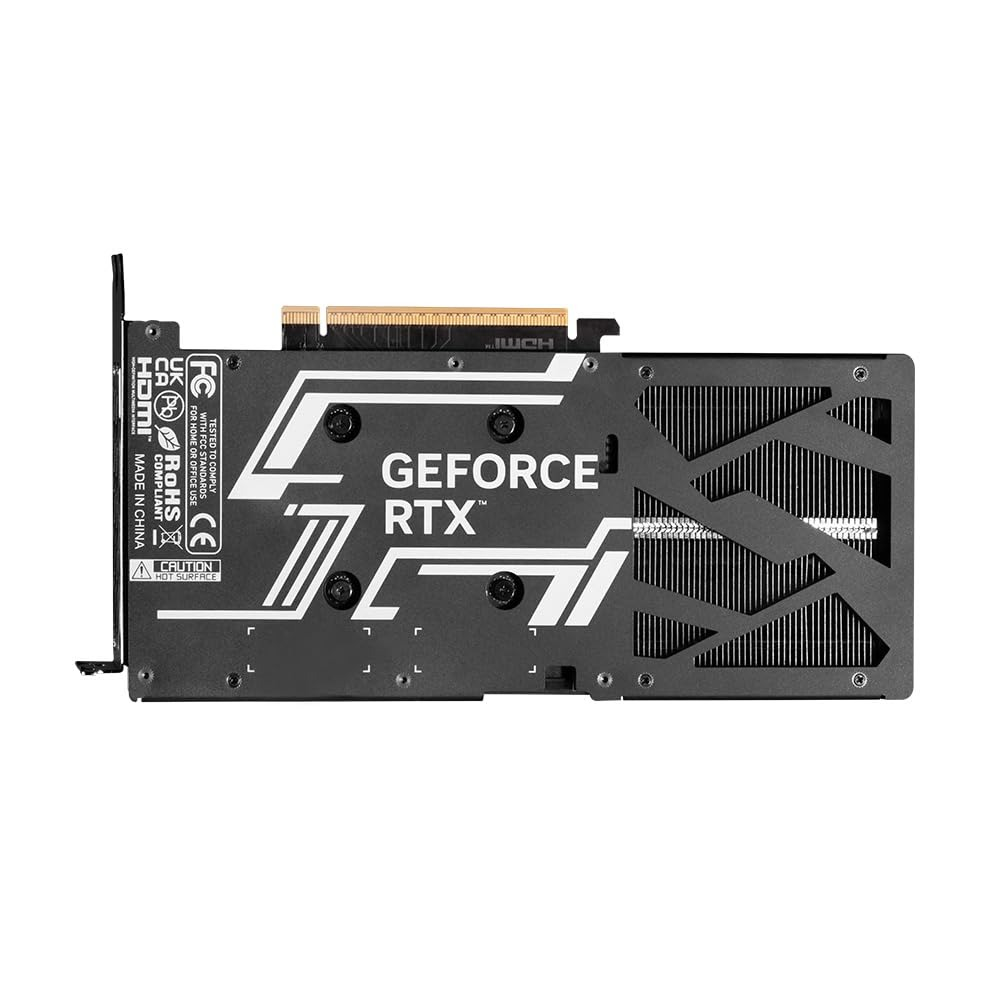

>Cooling: Dual 92mm WINGS 3.0 fans, large heatsink, metal backplate, and fan stop at idle
>220W TDP — 1x 16-pin 12VHPWR connector, 600W PSU recommended
>Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b — ready for high-refresh 1440p and 4K/8K setups
>Ideal for: competitive 1440p gaming, ray-traced AAA titles, and creator workloads
| Spec | Detail |
|---|---|
| Brand | GALAX |
| Series | GeForce RTX 5060 Ti 1-Click OC Classic |
| GPU | NVIDIA GeForce RTX 5060 Ti (Blackwell) |
| CUDA Cores | 4608 |
| Boost Clock | 2587 MHz |
| 1-Click OC Clock | 2602 MHz (Xtreme Tuner Plus) |
| Memory | 8GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Bus | 128-bit |
| Memory Bandwidth | 448 GB/s |
| Interface | PCI Express 5.0 x16 |
| Display Outputs | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
| Power Consumption | 220W TDP |
| Power Connector | 1x 16-pin (12VHPWR) |
| Recommended PSU | 600W |
| Cooling | Dual 92mm WINGS 3.0 fans, metal backplate, fan-stop at idle |
| Lighting | Top white LED / subtle RGB (on/off switch, model dependent) |
| DirectX | 12 Ultimate |
| OS Support | Windows 11 64-bit |
