GALAX RTX 5070 EX Gamer 1-Click OC — 6144 CUDA Cores, 12GB GDDR7 192-bit 28Gbps, PCIe 4.0 x16, Boost 2557MHz / 1-Click OC 2572MHz, 220W TDP, 1x 16-pin (12VHPWR), 3x DP 2.1b + 1x HDMI 2.1b, 650W PSU Recommended.

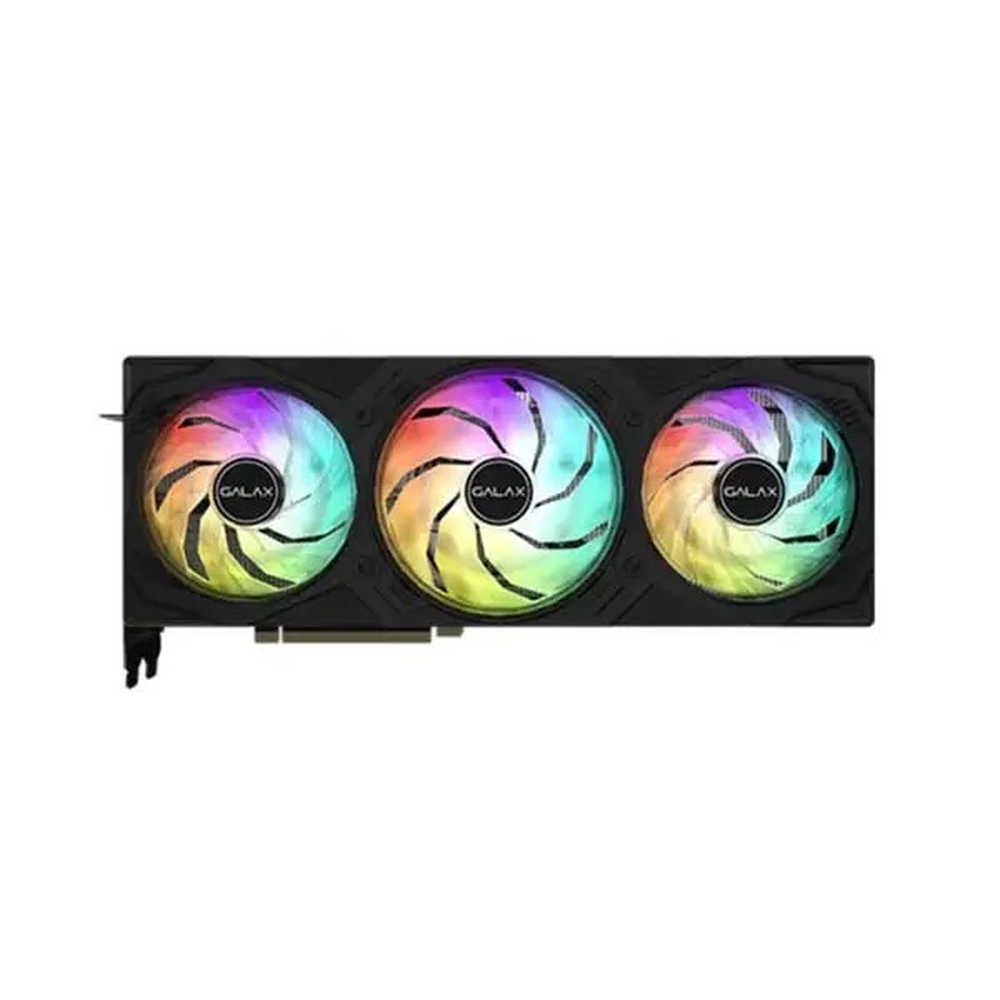

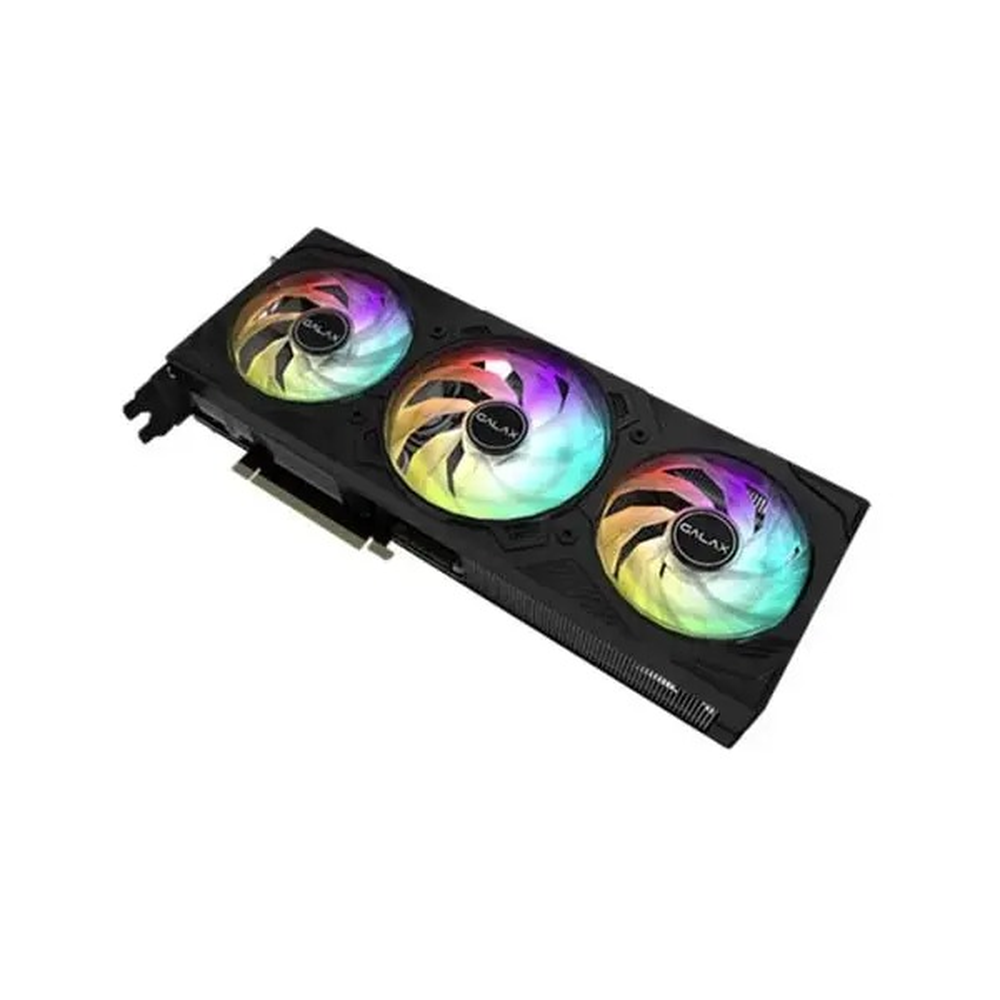

The GALAX GeForce RTX 5070 EX Gamer 1-Click OC 12GB GDDR7 is a premium dual-slot, triple-fan RTX 50-series GPU based on NVIDIA’s Blackwell architecture, built for high-refresh 1440p and strong 4K gaming. With 6144 CUDA cores, 12GB of ultra-fast GDDR7 on a 192-bit bus, and DLSS 4, it delivers excellent ray-traced performance and AI-accelerated rendering for both gamers and creators. The EX Gamer cooler features three WINGS 3.0 fans, a chunky heatsink, metal backplate, and ARGB lighting, while 1-Click OC via Xtreme Tuner Plus pushes clocks even higher with a single click.
- NVIDIA Blackwell RTX 5070 GPU — 6144 CUDA Cores, 4th-gen RT Cores, 5th-gen Tensor Cores, DLSS 4 support
- 12GB GDDR7 — 192-bit, 28Gbps, 672 GB/s bandwidth for demanding 1440p/4K gaming and creator workloads
- Core Clocks: Boost 2557 MHz, 1-Click OC Clock 2572 MHz (via GALAX Xtreme Tuner Plus)
- EX Gamer triple-fan cooler — 3x WINGS 3.0 fans, large fin-stack heatsink, metal backplate, and 0dB fan-stop at idle
- 220W TDP — 1x 16-pin (12VHPWR) connector, 650W PSU recommended
- Display Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b — ready for high-refresh 1440p and 4K multi-monitor setups
- Perfect for: competitive 1440p, ray-traced AAA titles, streaming, video editing, and 3D content creation
| Spec | Detail |
|---|---|
| Brand | GALAX |
| Series | GeForce RTX 5070 EX Gamer 1-Click OC |
| GPU | NVIDIA GeForce RTX 5070 (Blackwell) |
| CUDA Cores | 6144 |
| Boost Clock | 2557 MHz |
| 1-Click OC Clock | 2572 MHz |
| Memory | 12GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Bus | 192-bit |
| Memory Bandwidth | 672 GB/s |
| Interface | PCI Express 4.0 x16 |
| Display Outputs | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
| Power Consumption | 220W TDP |
| Power Connector | 1x 16-pin (12VHPWR) |
| Recommended PSU | 650W |
| Cooling | Triple WINGS 3.0 fans, fin-stack heatsink, metal backplate, fan-stop at idle |
| Lighting | ARGB on shroud and backplate (controllable via software) |
| DirectX | 12 Ultimate |
| OS Support | Windows 11 64-bit |
| Part ID | 57NON7MDBUEX |
