Computer Case Fans // GAMDIAS

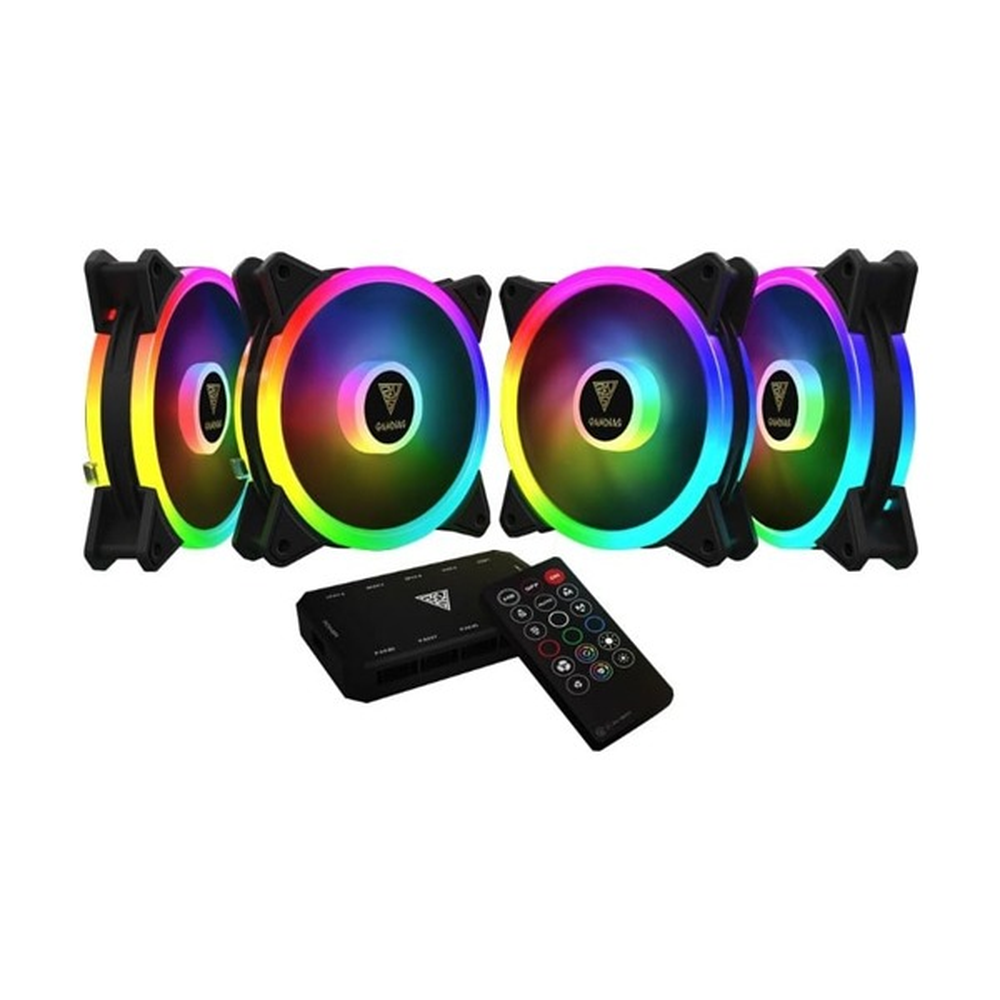

GAMDIAS Aeolus M2-1204R 120mm ARGB Case Fan
Technical specification
The GAMDIAS Aeolus M2-1204R 120mm ARGB Case Fan is a trio‑ring ARGB fan with 22 addressable LEDs, hydraulic bearings and support for 5 V ARGB motherboard sync. It is ideal as a replacement or expansion fan for AEOLUS M2‑1204R kits or as a standalone ARGB case fan with a compatible controller. [web:1363][web:1364][web:1326]
-
>Trio‑ring ARGB lighting: Three fully addressable RGB rings around the front, rear and hub deliver a 360° lighting effect. [web:1363][web:1326]
>22 ARGB LEDs: Densely packed 22 LEDs per fan provide smooth, vivid lighting animations. [web:1363][web:1364]
>Hydraulic bearing: Premium hydraulic bearing minimizes friction, lowering noise while extending fan lifespan. [web:1363][web:1326][web:1364]
>ARGB sync support: Supports 5 V 3‑pin addressable RGB headers (digital only) via AEOLUS Box or compatible ARGB controller. [web:1363][web:1326]
>Balanced airflow: Up to 56 CFM airflow and 1.95 mmH2O static pressure at 600–1500 RPM ±10%, suitable for case airflow and light radiator use. [web:1363][web:1364]
| Specification | Detail |
|---|---|
| Brand | GAMDIAS [web:1336][web:1363] |
| Model | Aeolus M2-1204R 120mm ARGB Fan [web:1363][web:1364] |
| Type | 120 mm ARGB case / radiator fan (single fan) [web:1363][web:1364] |
| Dimensions | 120 × 120 × 25 mm [web:1326][web:1363] |
| Fan Speed | 600 – 1500 RPM ±10% [web:1326][web:1363][web:1364] |
| Airflow | 56 CFM [web:1326][web:1363][web:1364] |
| Static Pressure | 1.95 mmH2O [web:1326][web:1363][web:1364] |
| Noise Level | ~24–28 dBA (typical) [web:1331][web:1363] |
| LED Type | 22 × addressable RGB LEDs, trio‑ring [web:1326][web:1363][web:1364] |
| Bearing | Hydraulic bearing [web:1326][web:1363][web:1364] |
| Rated Voltage | Fan 12 V, LED 5 V [web:1326][web:1363] |
| Connector | 6‑pin (or 8‑pin in kit) proprietary AEOLUS connector to controller/hub [web:1363][web:1364][web:1326] |
| RGB Header Support | 5 V 3‑pin addressable RGB via AEOLUS Box; no 12 V RGB support [web:1326][web:1330][web:1363] |
| Lighting Effects | Up to 30–55 built‑in effects when used with AEOLUS Box & remote [web:1326][web:1330][web:1362] |
| Package Contents | Fan × 1, mounting screws × 4 (controller not included) [web:1364][web:1365] |
| Warranty | 1 Year (region‑dependent) [web:1363][web:1364] |
Ideal For: Expanding an existing AEOLUS M2‑1204R kit or adding a trio‑ring 120 mm ARGB fan to builds that already have a compatible 5 V ARGB controller or AEOLUS Box. [web:1363][web:1326][web:1331]
