Description

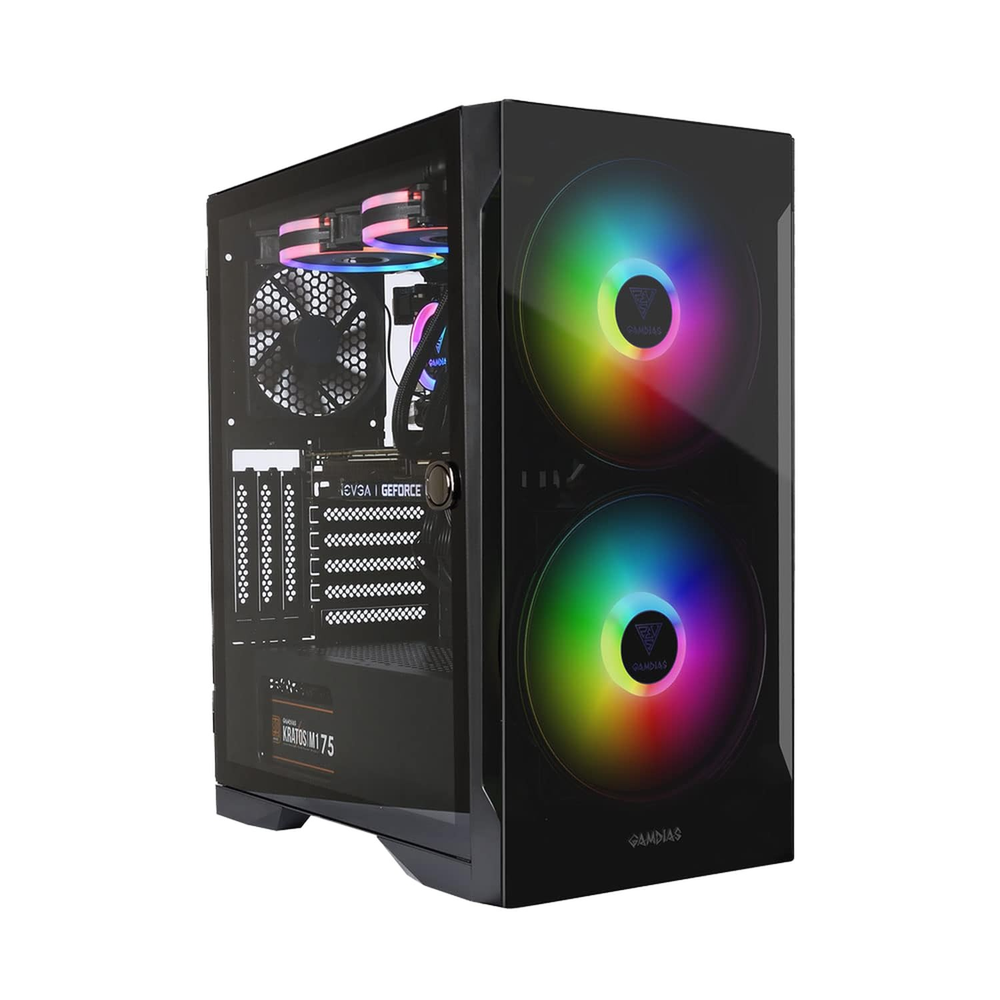

The GAMDIAS Apollo E2 Elite is a mid‑tower ATX gaming case with a seamless tempered glass front panel and dual 200 mm ARGB intake fans for high airflow and bold aesthetics. It features a trapezoidal tempered glass swing door, 5 V ARGB motherboard sync, a PSU shroud and support for up to 360 mm radiators and 340 mm GPUs, making it ideal for modern RGB gaming builds. [web:1448][web:1451][web:1460]
- Seamless tempered glass front: Clean full‑glass front hides the dual 200 mm ARGB fans while still allowing strong airflow and a premium look. [web:1450][web:1451][web:1460]

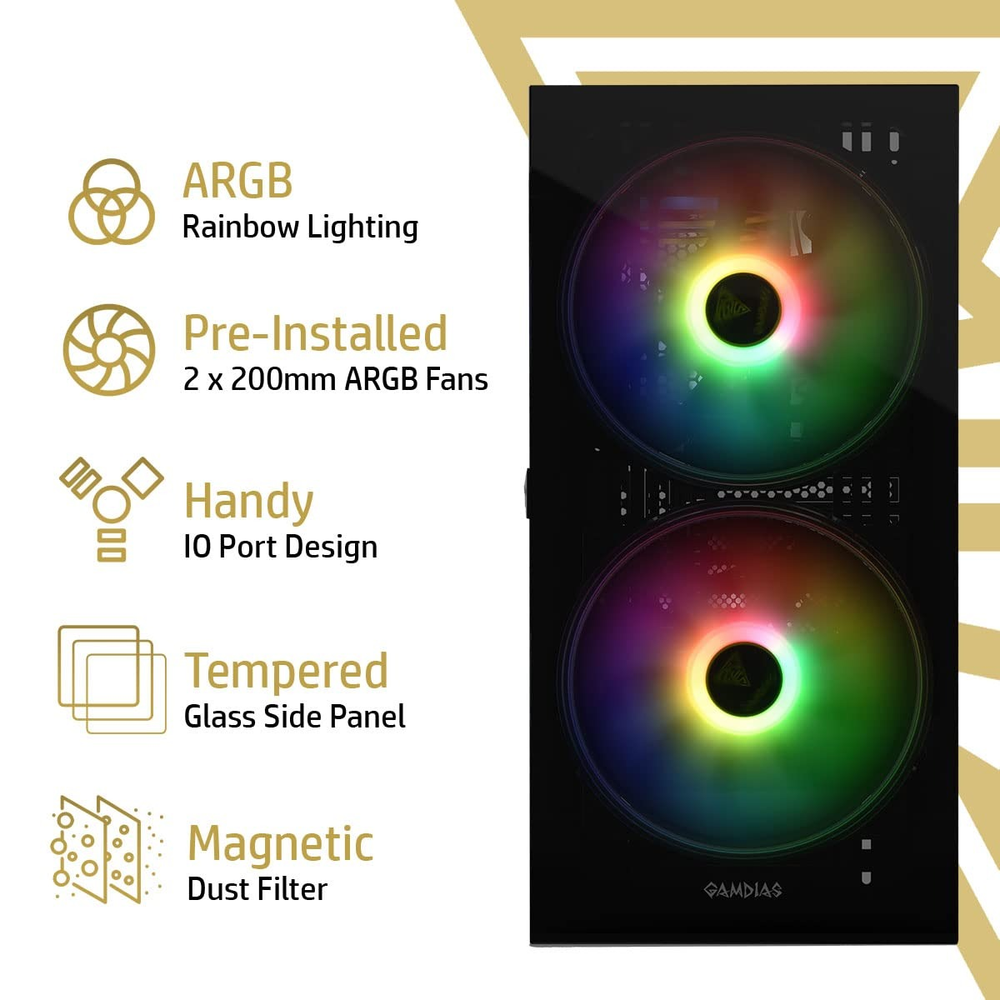

- Dual 200 mm ARGB intake fans: Two pre‑installed 200 mm ARGB front fans plus a 120 mm rear fan provide strong, quiet airflow out of the box. [web:1451][web:1453][web:1459]
- Tempered glass swing door: Trapezoidal tempered glass side panel with swing‑door and magnetic closing design for easy tool‑free access. [web:1451][web:1453][web:1455]
- 5 V ARGB motherboard sync: 5 V 3‑pin ARGB header support lets you sync the front fans and lighting with motherboard RGB software via a single touch‑button or ARGB sync. [web:1451][web:1456][web:1460]
- Roomy mid‑tower layout: Supports ATX, Micro‑ATX and Mini‑ITX boards, 190 mm CPU coolers, 340 mm GPUs and 180 mm PSUs with a full‑length PSU shroud for clean builds. [web:1451][web:1456][web:1455]
| Specification | Detail |
|---|---|
| Brand | GAMDIAS [web:1448][web:1451] |
| Model | Apollo E2 Elite [web:1448][web:1450][web:1451] |
| Case Type | Mid Tower [web:1451][web:1455][web:1461] |
| Color | Black [web:1451][web:1460] |
| Dimensions (Case) | 392 × 230 × 467 mm (L × W × H) [web:1455][web:1460] |
| Dimensions (Chassis) | 350 × 230 × 445 mm (L × W × H) [web:1455] |
| Weight | Approx. 5 kg [web:1460][web:1455] |
| Motherboard Support | ATX, Micro‑ATX, Mini‑ITX [web:1451][web:1455][web:1461] |
| Expansion Slots | 7 horizontal + 3 vertical (7+3) [web:1451][web:1461] |
| Materials | SPCC steel, ABS, tempered glass [web:1451][web:1455][web:1460] |
| Side/Front Window | Front & left tempered glass (swing door side panel) [web:1451][web:1453][web:1461] |
| Pre‑installed Fans | Front: 2 × 200 mm ARGB / Rear: 1 × 120 mm black fan [web:1451][web:1453][web:1459] |
| Fan Support – Front | 3 × 120 mm or 2 × 140 mm or 2 × 200 mm [web:1451][web:1453] |
| Fan Support – Top | 2 × 120 mm or 2 × 140 mm [web:1451][web:1453][web:1459] |
| Fan Support – Rear | 1 × 120 mm or 1 × 140 mm [web:1451][web:1453][web:1459] |
| Radiator Support – Front | 360 mm or 280 mm [web:1451][web:1453][web:1461] |
| Radiator Support – Top | 240 mm [web:1451][web:1453][web:1461] |
| Radiator Support – Rear | 140 mm or 120 mm [web:1451][web:1453][web:1461] |
| Drive Bays | HDD cage: 2 × 3.5″ or 1 × 3.5″ + 1 × 2.5″ / SSD: 3 × 2.5″ [web:1451][web:1461] |

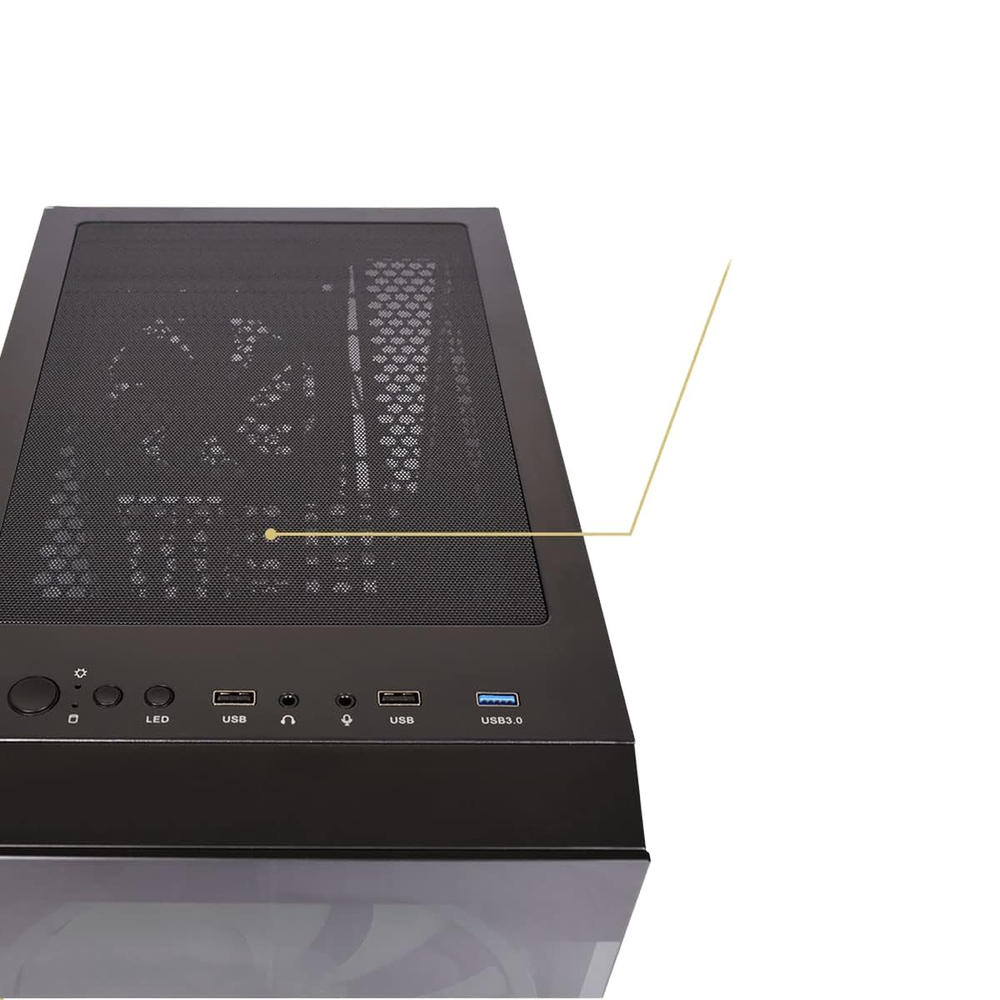

| Front I/O Ports | 1 × USB 3.0, 2 × USB 2.0, HD Audio, RGB / LED button, Power [web:1451][web:1453] |
| ARGB Sync | 5 V 3‑pin addressable header support [web:1451][web:1456][web:1461] |
| Max GPU Length | 340 mm [web:1456][web:1455] |
| Max CPU Cooler Height | 190 mm [web:1456] |
| Max PSU Length | 180 mm (with PSU shroud) [web:1456] |
Ideal For: RGB‑heavy mid‑tower builds that want huge 200 mm ARGB front intake, tempered glass presentation and support for full‑size GPUs and 360 mm AIOs in a stylish but affordable chassis. [web:1451][web:1453][web:1461]
