Description

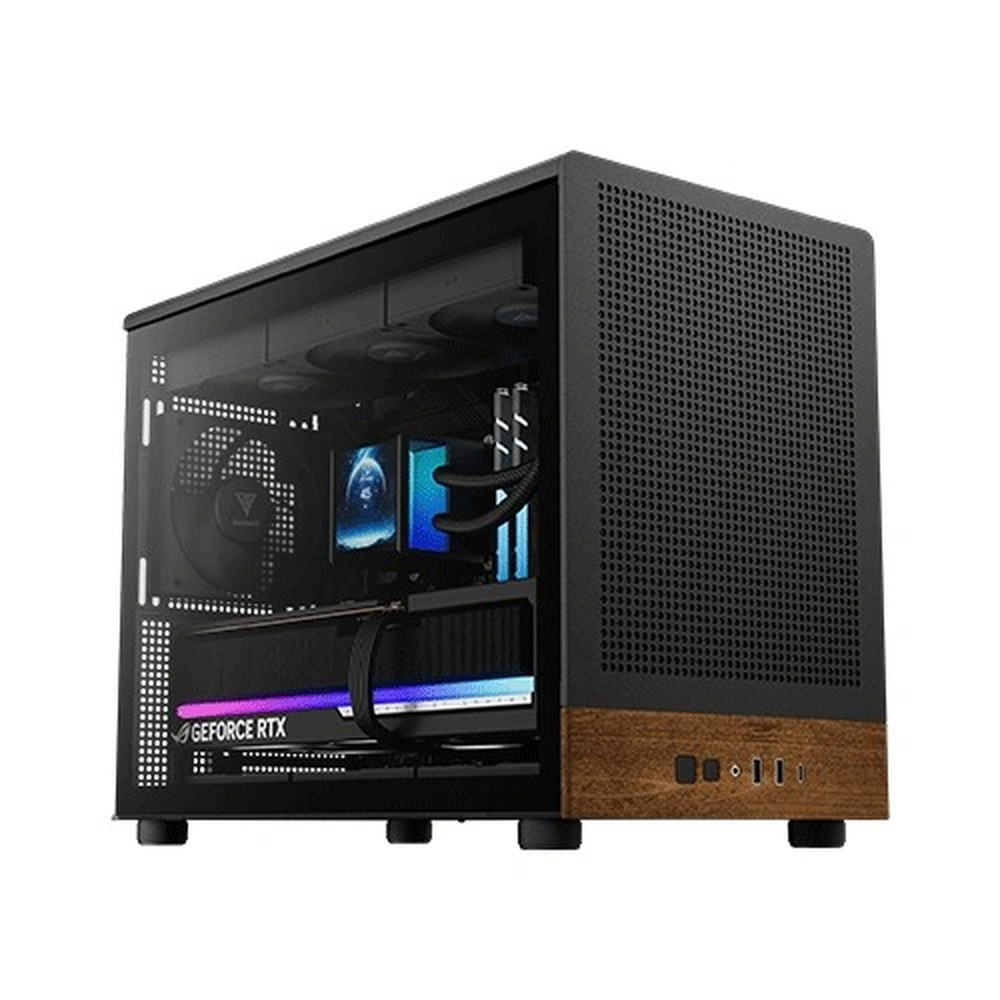

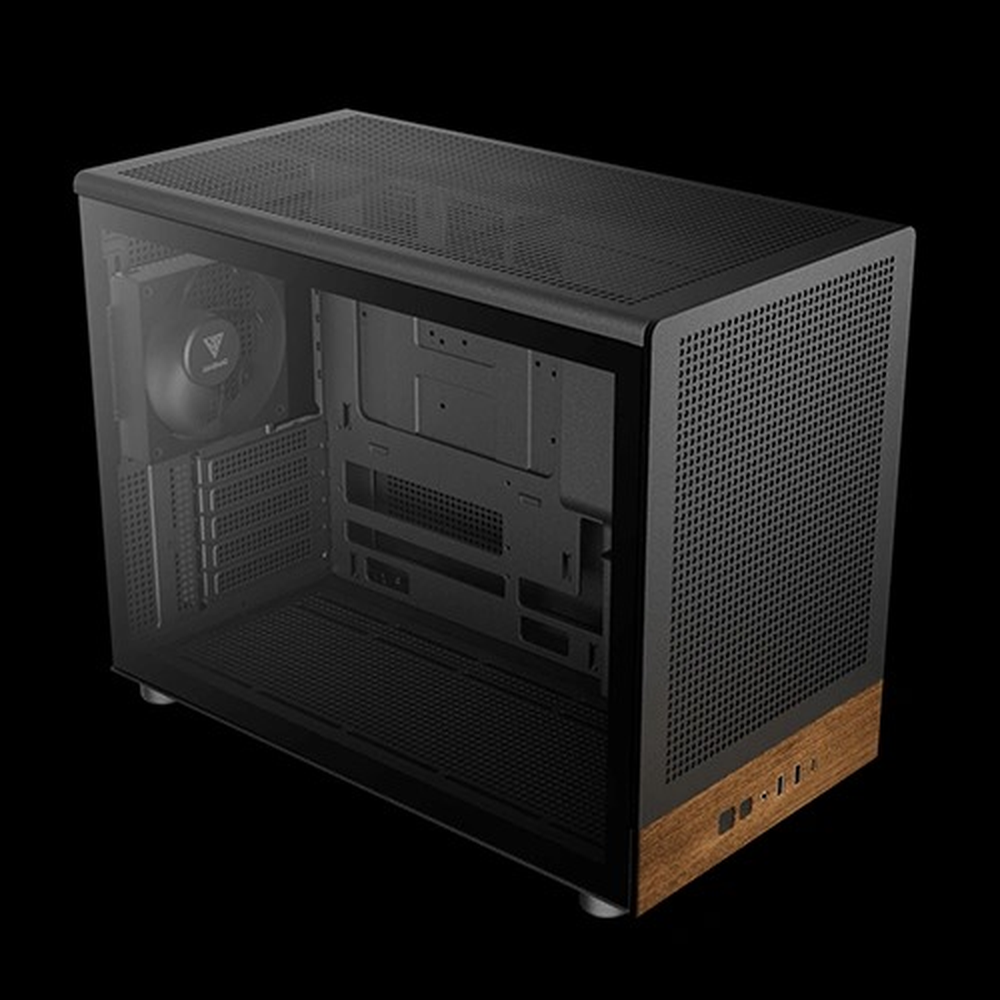

The GAMDIAS ATHENA M4M WOOD is a compact micro-tower case for Micro-ATX and Mini-ITX builds that blends natural wood aesthetics with strong airflow and modern features. A real wood front accent, perforated mesh panels and a tempered glass side panel highlight your components, while support for dual 360 mm radiators, GPUs up to 395 mm long and up to 9 fans makes it surprisingly capable for high-performance small-form builds. With three pre-installed 120 mm fans, dust filters on almost every side and front I/O that includes USB 3.0 and USB Type‑C, the ATHENA M4M WOOD is ideal for stylish, airflow-focused compact PCs. [web:2563][web:2564][web:2567][web:2569][web:2571]
-
>Wood + mesh front design: Real wood lower front panel combined with mesh ventilation gives the case a unique natural look while maintaining high airflow. [web:2563][web:2565][web:2567]
>Compact micro-tower with S-tier support: Supports Micro-ATX and Mini-ITX motherboards, GPUs up to 395 mm long and dual 360 mm radiators in a space-efficient layout. [web:2564][web:2569][web:2571]
>Three pre-installed 120 mm fans: Ships with 3 × 120 mm NOTUS M1 style fans (2 front, 1 rear) providing balanced intake and exhaust out of the box. [web:2569][web:2571]
>Up to 9 fan mounts: Flexible fan layout with mounts at front, top, bottom and rear allows up to 9 fans for aggressive airflow tuning. [web:2563][web:2564][web:2571]
>Modern front I/O with USB‑C: Includes dual USB 3.0 ports, one USB 3.2 Gen 2 Type‑C, HD Audio and LED control for easy access and fast connectivity. [web:2569][web:2571]
| Specification | Detail |
|---|---|
| Brand | GAMDIAS [web:2563][web:2564] |
| Model | ATHENA M4M WOOD [web:2563][web:2569][web:2570] |
| Case Type | Micro Tower / M-ATX Mini Tower [web:2564][web:2569][web:2571] |
| Color | Black chassis with real wood front accent [web:2563][web:2567][web:2573] |
| Materials | Steel, plastic, tempered glass, wood accent [web:2563][web:2569][web:2570] |
| Dimensions (D × W × H) | 446 × 235 × 347 mm [web:2569][web:2571] |
| Net Weight | Approx. 5.5–5.6 kg [web:2571] |
| Motherboard Support | Micro-ATX, Mini-ITX (BTF / back-connect mATX support as well) [web:2564][web:2569][web:2571] |
| GPU Support | Graphics cards up to 395 mm length [web:2569][web:2571] |
| Max CPU Cooler Height | Up to 175 mm [web:2569] |
| Max PSU Length | Up to 150 mm [web:2569] |
| Radiator Support | Top: up to 360 mm; Bottom: up to 360 mm; Front: up to 240 mm; Rear: 120 mm (varies by layout) [web:2563][web:2564][web:2569][web:2571] |
| Fan Support (Max) |
Front: 2 × 120 mm; Top: 2 × 120 mm; Bottom: up to 3 × 120 mm (and in some configs 2 × 140 mm); Rear: 1 × 120 mm; Side/extra: up to 1–2 more fans depending on configuration (total up to 9). [web:2563][web:2565][web:2567][web:2568][web:2571] |
| Pre-installed Fans | 3 × 120 mm fans (2 front intake, 1 rear exhaust) [web:2569][web:2571] |
| Drive Support | Behind motherboard tray: 1 × 3.5" HDD + 1 × 2.5" SSD or 2 × 2.5" SSD [web:2569] |
| Front I/O | USB 3.0 × 2, USB 3.2 Gen 2 Type‑C × 1, HD Audio, LED control, Power [web:2569][web:2571] |
| Panels | Mesh/vented front, perforated side/rear for airflow, tempered glass side panel [web:2563][web:2567][web:2575] |
| Dust Filters | Dust filters on most intake areas (front, bottom, etc.) [web:2568][web:2571] |
| BTF / Back-connect Support | Yes, supports back-connect Micro-ATX boards [web:2564][web:2569] |
| Warranty | 1–2 years depending on region/listing (many show 1 year in India) [web:2569][web:2571] |
Ideal For: Compact Micro-ATX or Mini-ITX gaming and creator builds where you want a stylish wood-accented case with excellent airflow, dual 360 mm radiator support, long GPU support and modern USB‑C front I/O in a small footprint. [web:2563][web:2564][web:2569][web:2571]
