Description
The GAMDIAS ATLAS M1 is a feature-packed black ATX mid-tower gaming case that stands out with its seamless tempered glass side and front panels and a built-in real-time temperature display. It comes with three pre-installed 120 mm ARGB PWM fans — including two unique reverse intake fans on the side — ensuring excellent multi-directional airflow. With perforated vents across the side panel, PSU chamber and rear exhaust, USB 3.2 Gen 2 Type-C front I/O, support for GPUs up to 410 mm and AIOs up to 360 mm, the ATLAS M1 delivers striking visuals and strong thermal performance for high-end ATX builds. [web:2162][web:2166][web:2169][web:2173]
-

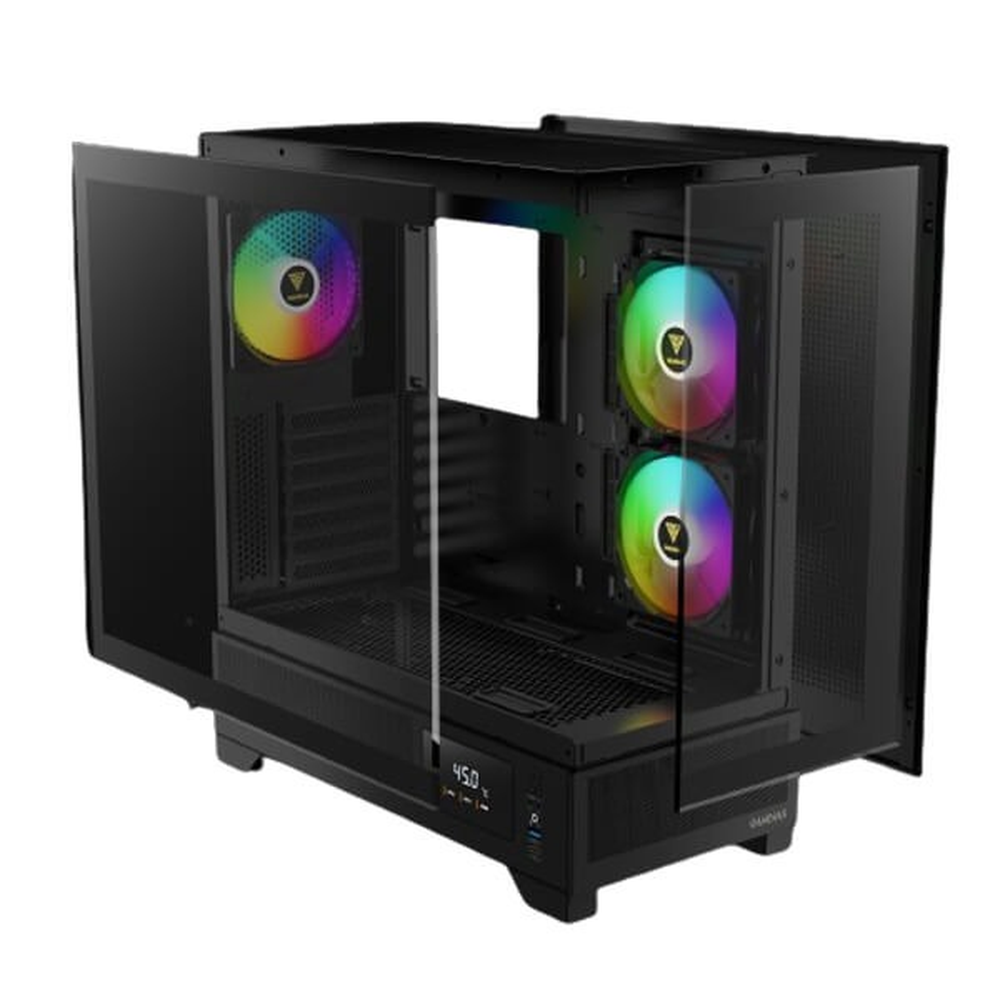

>Seamless full tempered glass display: Both the side and front panels feature seamless tempered glass with a simple clasp mechanism for tool-free removal, offering a full, unobstructed view of your components and RGB lighting. [web:2162][web:2166][web:2173]

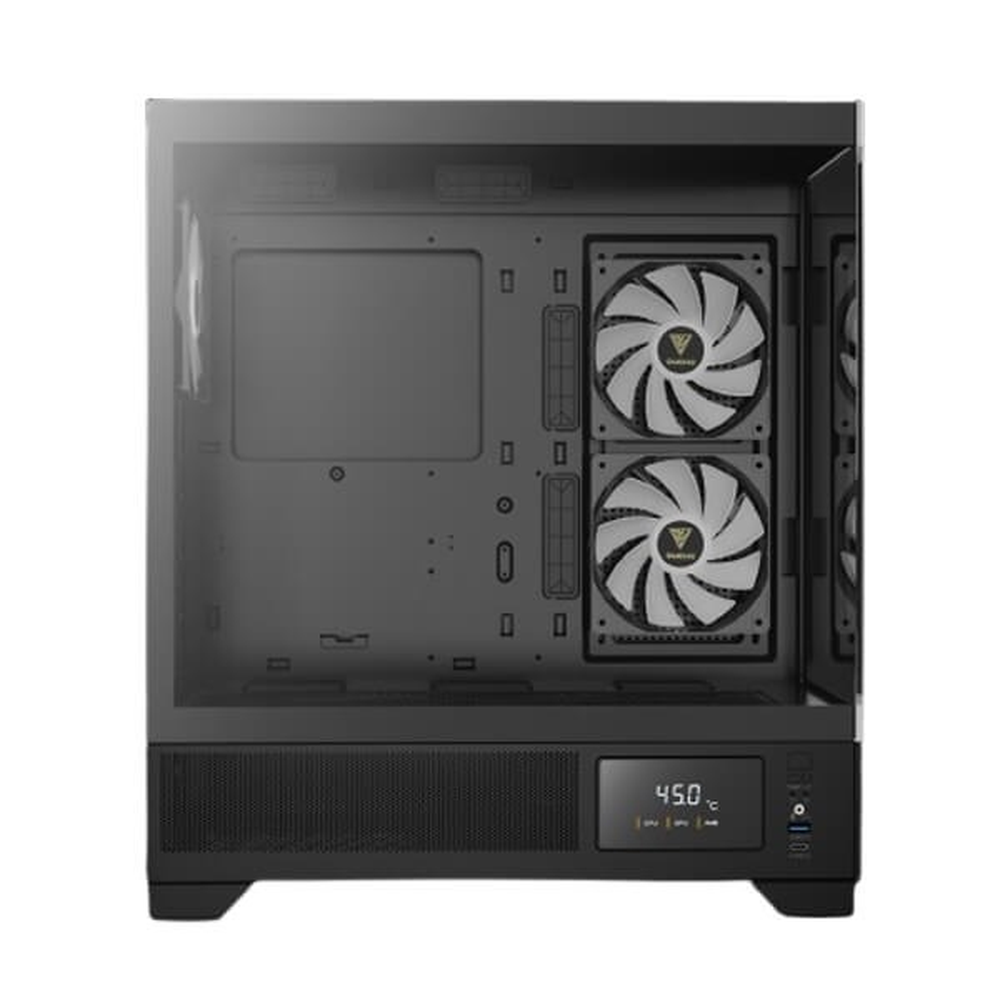

>Built-in temperature monitor/display: An integrated display panel shows real-time system information, making it a standout visual and functional feature among similarly priced cases. [web:2162][web:2163][web:2165][web:2167]
>3 built-in ARGB PWM fans with unique reverse intake: Two 120 mm reverse intake fans on the side and one 120 mm rear exhaust fan are pre-installed, paired with an included fan hub and velcro straps for clean management. ARGB sync via 5 V 3-pin motherboard header. [web:2162][web:2166][web:2169][web:2173]

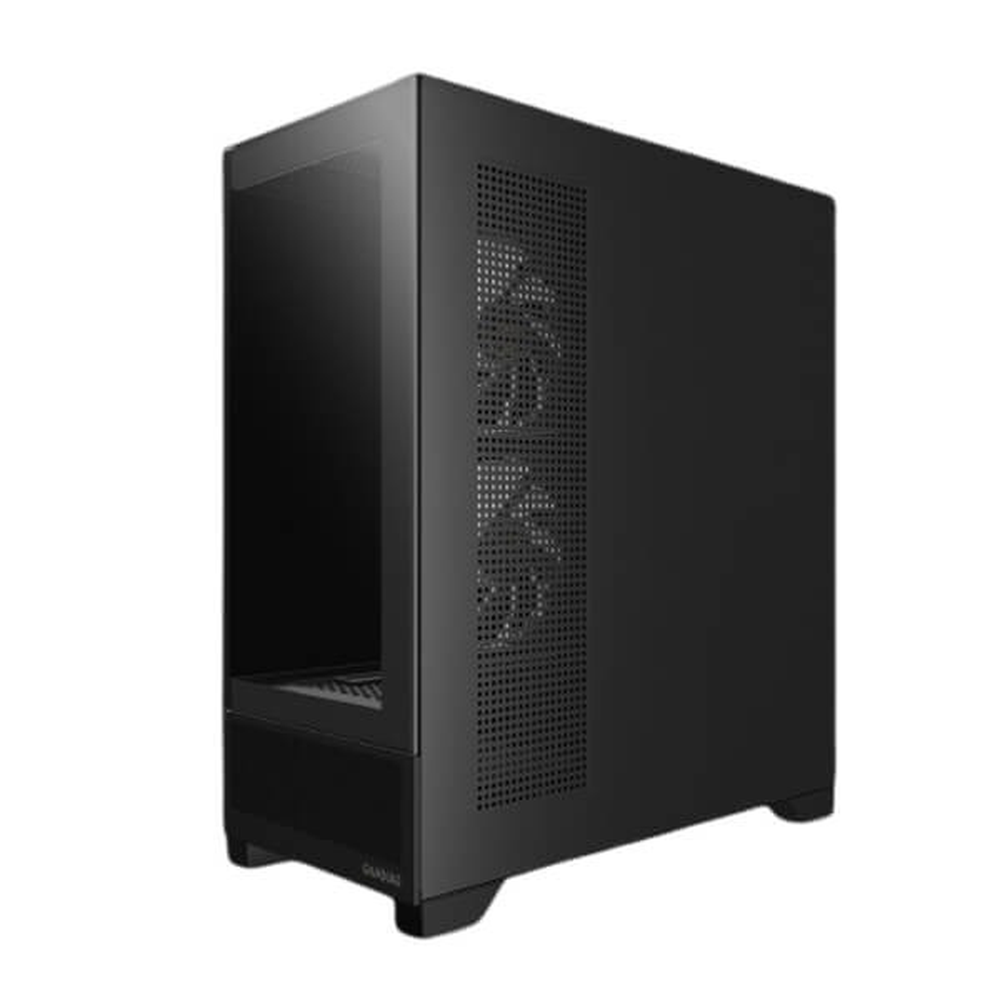

>Perforated ventilation throughout: Perforated vents on the side panel, PSU chamber and rear exhaust combine for superior all-around airflow, reducing thermal buildup during demanding gaming sessions. [web:2166][web:2169][web:2173]
>Flexible GPU and cooling support: Supports GPUs up to 410 mm, ATX / mATX / Mini-ITX motherboards, CPU coolers up to 160 mm height, PSUs up to 180 mm, and radiators up to 360 mm (top) or 240 mm (side). 7+2 PCIe slots allow both horizontal and vertical GPU mounting. [web:2166][web:2167][web:2168][web:2173]
| Specification | Detail |
|---|---|
| Brand | GAMDIAS [web:2162][web:2166] |
| Model | ATLAS M1 [web:2162][web:2166][web:2167] |
| Case Type | Mid Tower [web:2162][web:2166][web:2173] |
| Color | Black [web:2166][web:2169][web:2173] |
| Material | SPCC Steel, ABS Plastic, Tempered Glass [web:2166][web:2173] |
| Dimensions (L × W × H) | 420 × 210 × 465 mm [web:2166][web:2167][web:2168] |
| Net Weight | 7.6 kg [web:2166][web:2167] |
| Motherboard Support | ATX, Micro-ATX, Mini-ITX [web:2166][web:2173] |
| Expansion Slots | 7+2 (horizontal + vertical GPU mount) [web:2166][web:2173] |
| Drive Bays | 4 × 2.5" SSD or 3 × 2.5" SSD + 1 × 3.5" HDD [web:2166][web:2173] |
| Pre-Installed Fans | 3 × 120 mm ARGB PWM (2 × reverse intake side + 1 × rear exhaust) [web:2162][web:2166][web:2173] |
| Total Fan Support | Up to 6 × 120 mm [web:2162][web:2167] |
| Included Accessories | Fan hub, velcro cable straps [web:2162][web:2166][web:2173] |
| Radiator Support — Top | 240 / 360 mm [web:2166][web:2168] |
| Radiator Support — Side | 240 mm [web:2168] |
| Radiator Support — Rear | 120 mm [web:2168] |
| Max CPU Cooler Height | 160 mm [web:2166][web:2173] |
| Max GPU Length | 410 mm [web:2166][web:2167][web:2168] |
| Max PSU Length | 180 mm [web:2166][web:2173] |
| Front I/O | 1 × USB 3.2 Gen 2 Type-C, 1 × USB 3.0, Fan/LED control, Monitor mode switch, HD Audio/Mic [web:2162][web:2166][web:2173] |
| Side Panel | Seamless tempered glass (clasp mechanism, tool-free) [web:2162][web:2166][web:2173] |
| Built-in Display | Yes — real-time temperature / system monitor [web:2162][web:2165][web:2167] |
| Dust Filters | Top + Bottom [web:2166][web:2173] |
| ARGB Sync | 5 V 3-pin addressable header [web:2162][web:2166][web:2173] |
| Warranty | 2 years [web:2173] |
Ideal For: Gamers who want a visually stunning all-glass ATX build with a built-in temperature display, unique side reverse intake fans and strong multi-directional airflow at a competitive price point. [web:2162][web:2165][web:2167][web:2173]
