Description

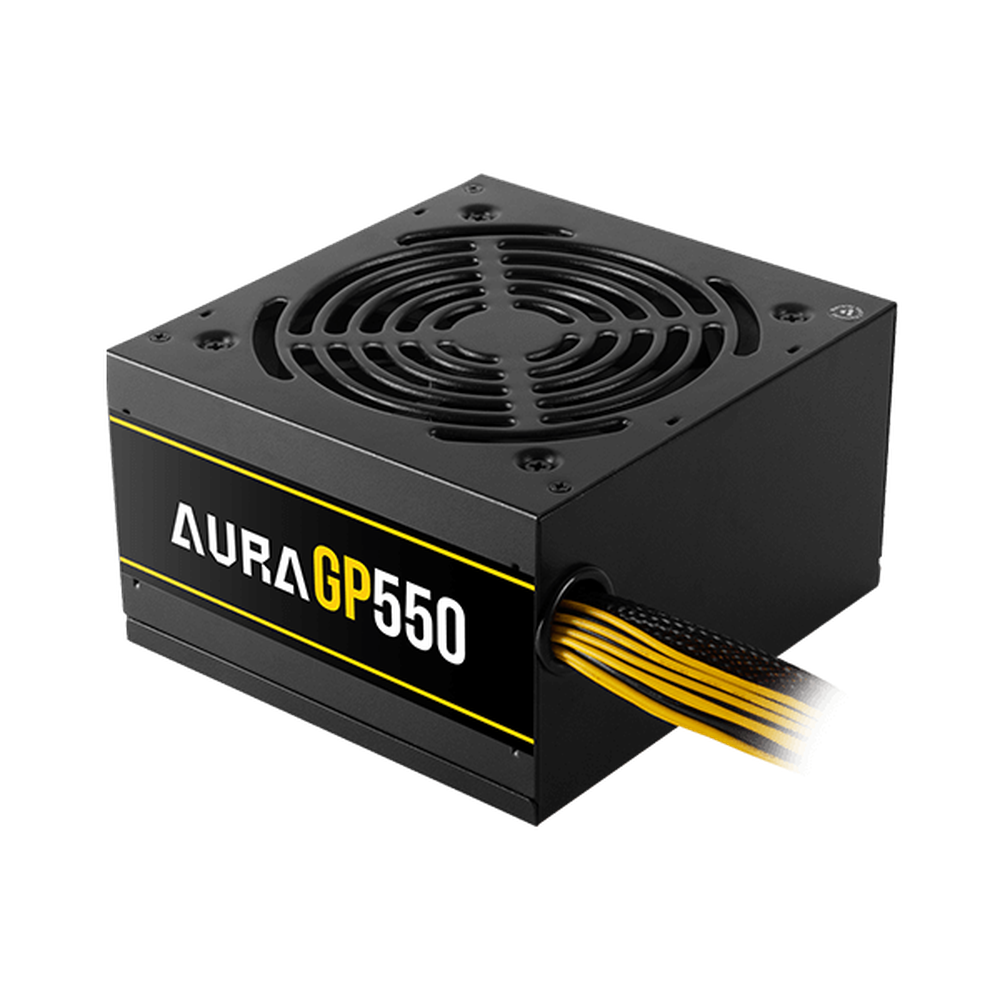

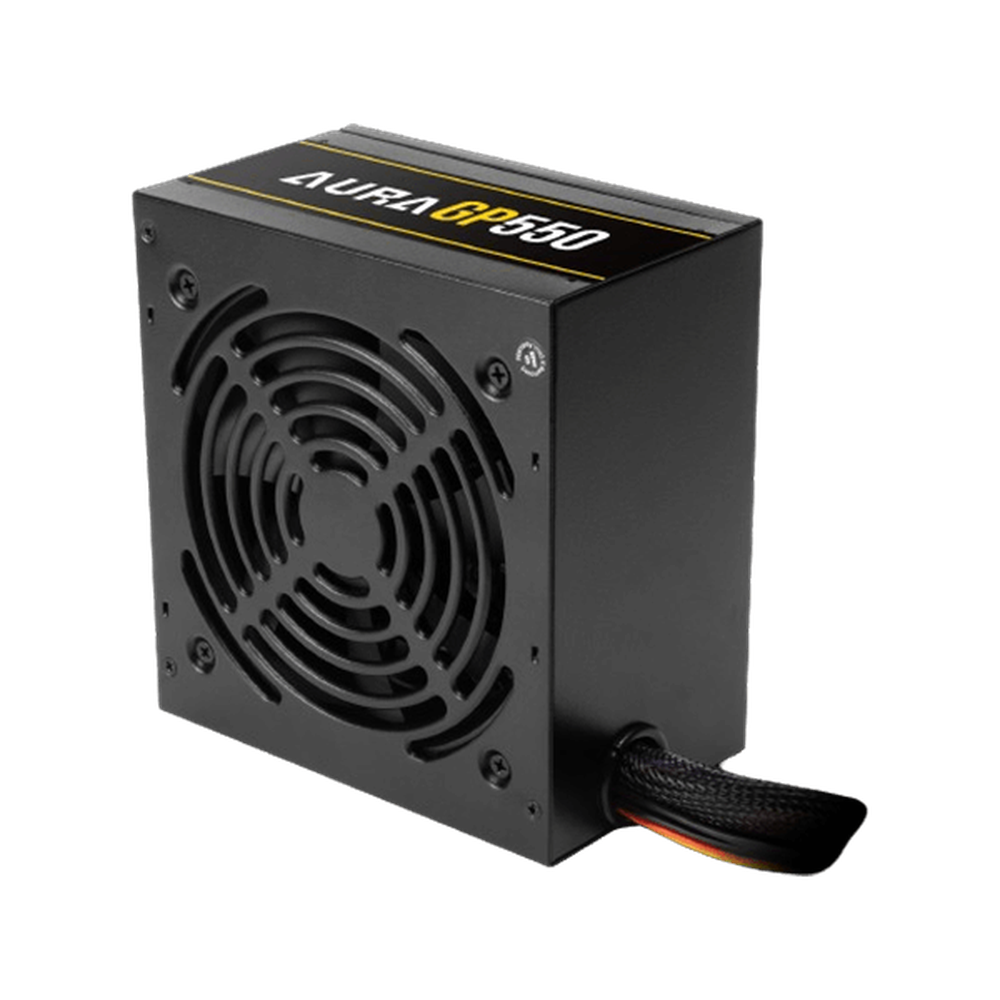

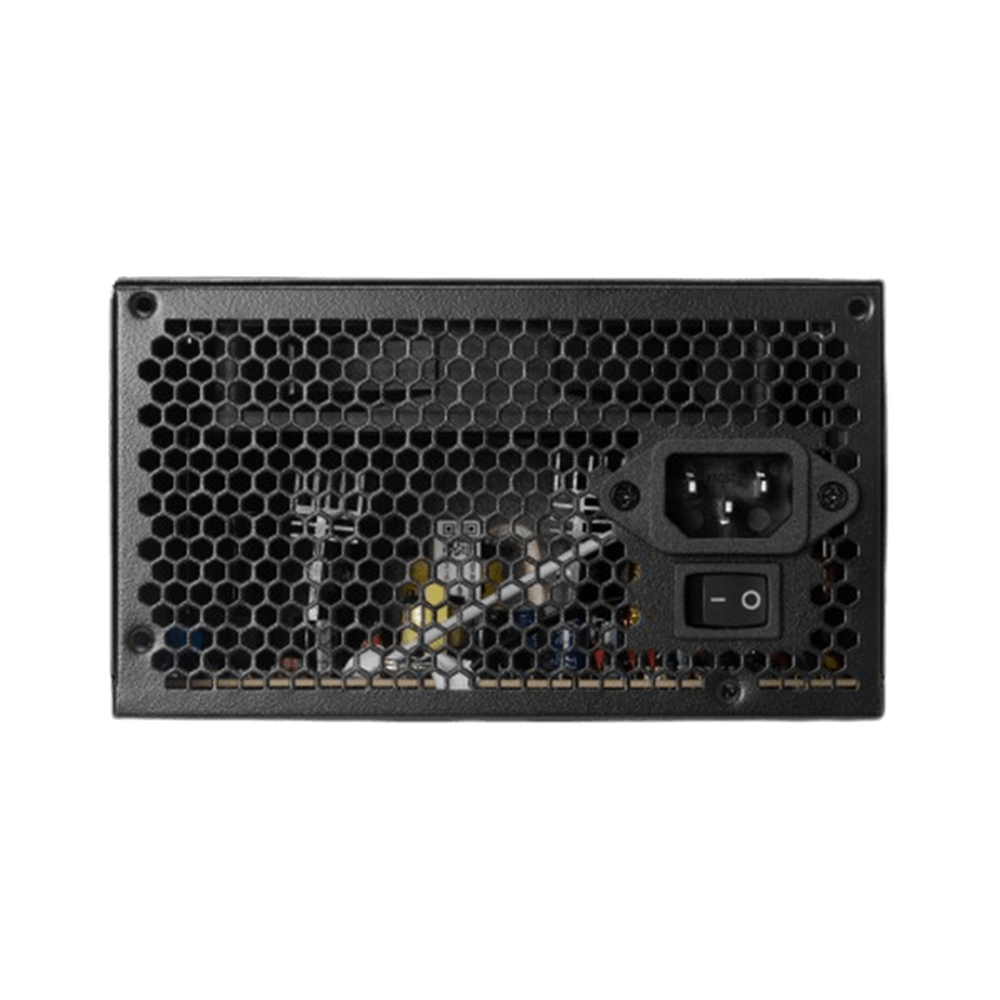

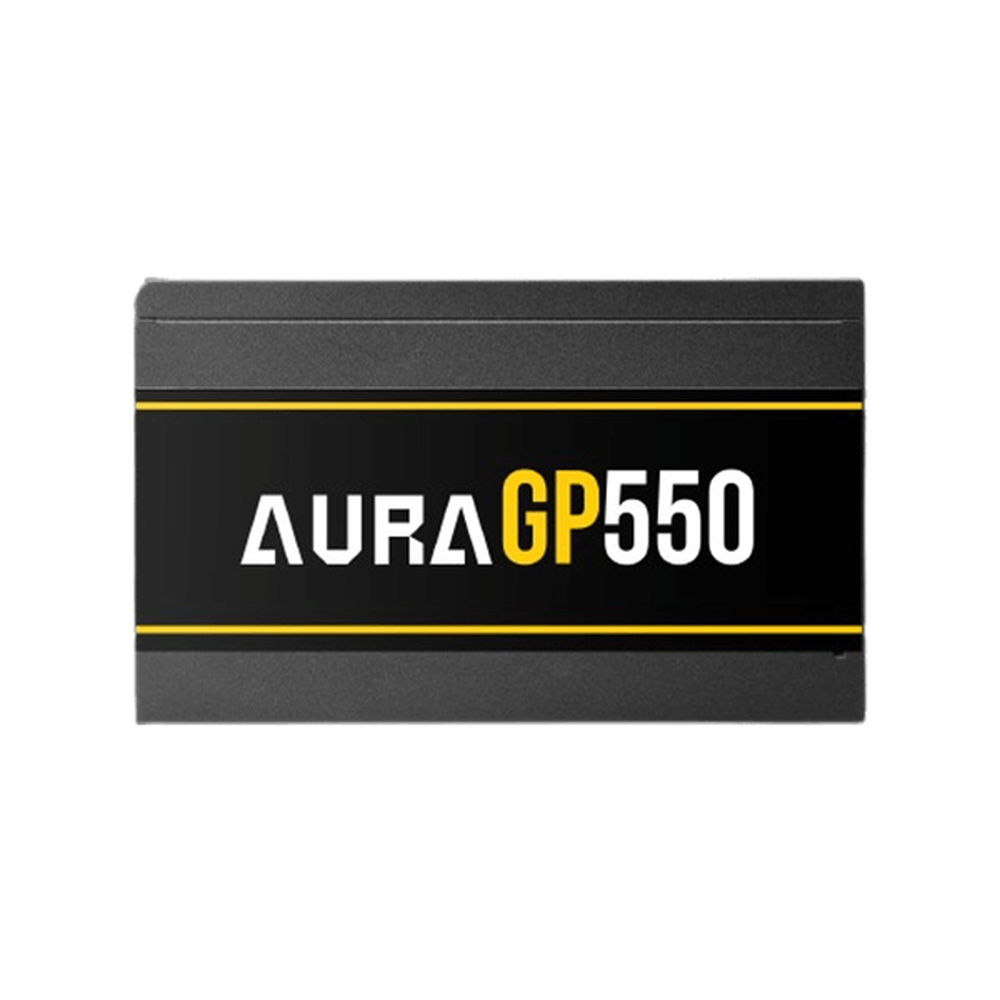

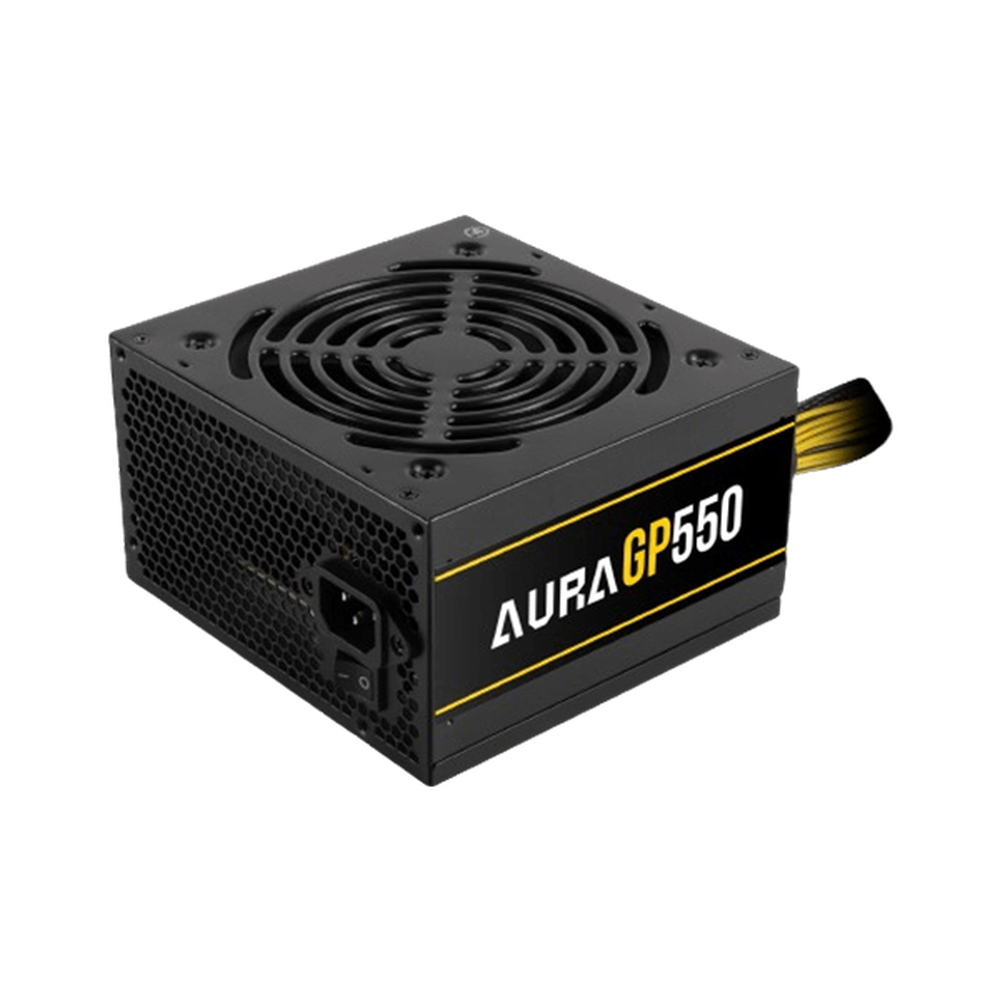

The GAMDIAS AURA GP550 is a 550 W non-modular ATX power supply designed for mid-range gaming and productivity PCs, delivering close to 80 PLUS White efficiency with a compact 140 mm chassis and flat black cables. It features a 120 mm hydraulic bearing smart fan with automatic temperature control, a strong single +12 V rail, and essential protections (OVP, UVP, OPP, OCP, SCP) for stable, safe power delivery. With dual 6+2-pin PCIe connectors, five SATA and two Molex connectors, the AURA GP550 is ready to power modern single-GPU gaming systems with efficient, quiet operation. [web:2291][web:2292][web:2293][web:2297][web:2300]
-
>550 W efficient platform: Real 550 W output with approximate 80% efficiency (80 PLUS White-level), ideal for mid-range CPUs and GPUs. [web:2291][web:2292][web:2293][web:2296][web:2297]

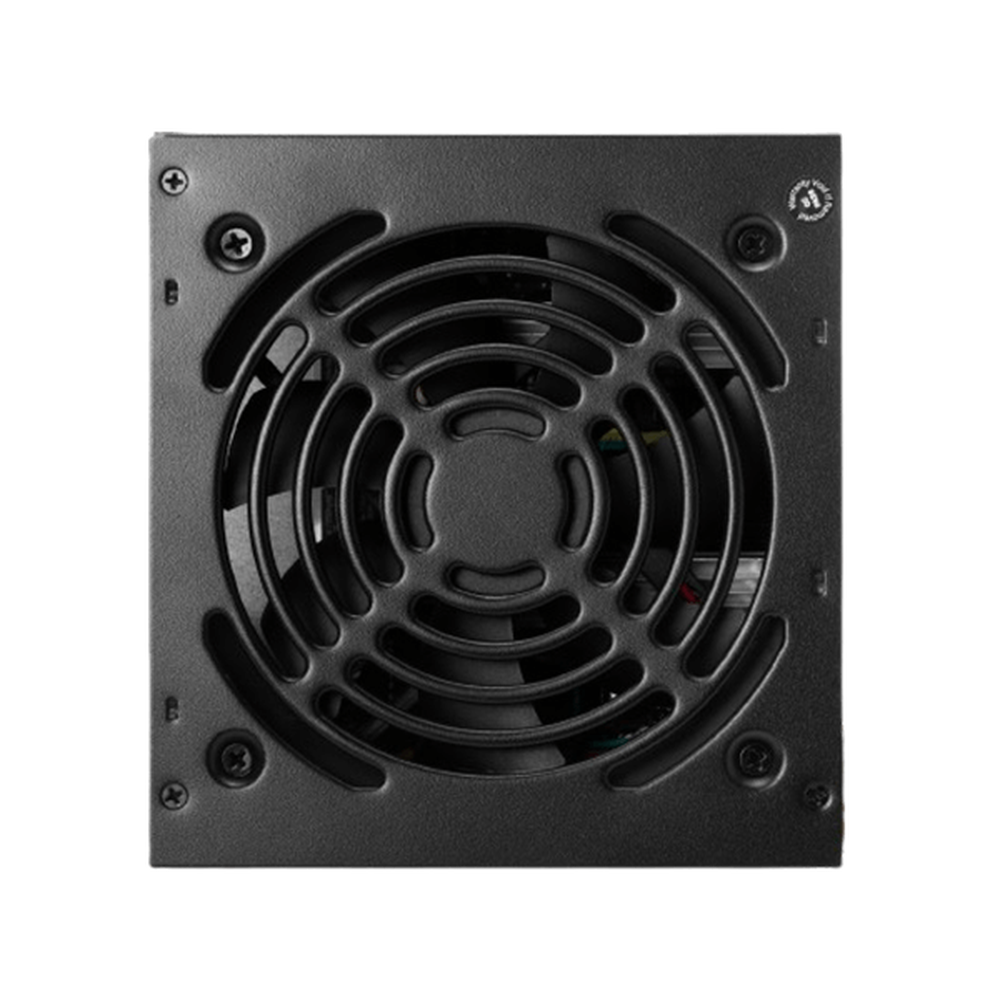

>120 mm hydraulic bearing smart fan: Temperature-controlled 120 mm fan automatically adjusts speed by load, ensuring quiet operation at idle and stronger cooling under heavy use. [web:2291][web:2293][web:2294][web:2297]
>Single +12 V rail & full protections: Single +12 V rail design with OVP, UVP, OPP, OCP and SCP delivers stable voltage and guards against shorts, overloads and low voltage issues. [web:2291][web:2293][web:2296][web:2297]
>Modern connectivity with dual PCIe: Includes 1 × 24-pin ATX, 1 × 4+4-pin EPS CPU, 2 × 6+2-pin PCIe, 5 × SATA and 2 × Molex, covering most current gaming and creator builds. [web:2292][web:2293][web:2297][web:2300]
>Flat non-modular black cables: Non-modular design with flat black cables improves case airflow and simplifies routing compared to older rounded cable looms. [web:2291][web:2293][web:2297]
| Specification | Detail |
|---|---|
| Brand | GAMDIAS [web:2291][web:2293] |
| Model | AURA GP550 [web:2291][web:2293][web:2297] |
| Form Factor | ATX12V v2.4 [web:2291][web:2293][web:2294] |
| Total Power | 550 W (continuous) [web:2291][web:2292][web:2293][web:2296] |
| Efficiency | Approx. 80% efficiency, close to 80 PLUS White [web:2291][web:2293][web:2297][web:2298] |
| AC Input | 180–240 V / 5 A / 47–63 Hz (many listings: 230 V, 5 A, 50 Hz) [web:2291][web:2292][web:2293][web:2297][web:2300] |
| DC Outputs | +3.3 V, +5 V, +12 V, -12 V, +5 Vsb [web:2293][web:2297] |
| Max Output Current | +3.3 V: 13 A, +5 V: 13 A, +12 V: 30 A, -12 V: 0.5 A, +5 Vsb: 2.5 A [web:2293][web:2297] |
| Max Combined Power | +3.3 V/+5 V: 80 W, +12 V: 360 W, -12 V: 6 W, +5 Vsb: 12.5 W [web:2293][web:2297] |
| Modular Type | Non-modular [web:2291][web:2293][web:2296][web:2297] |
| Cooling Fan | 120 mm hydraulic bearing fan (smart, temperature-controlled) [web:2291][web:2293][web:2294][web:2300] |
| Main Power | 1 × 24-pin ATX [web:2292][web:2293][web:2297][web:2300] |
| CPU Power | 1 × 8-pin (4+4) EPS/CPU [web:2292][web:2293][web:2297][web:2300] |
| PCIe Power | 2 × 8-pin (6+2) PCIe [web:2293][web:2297][web:2300] |
| SATA Power | 5 × SATA [web:2292][web:2293][web:2297][web:2300] |
| Molex Power | 2 × 4-pin Molex [web:2292][web:2293][web:2297] |
| Dimensions (L × W × H) | 140 × 150 × 86 mm [web:2293][web:2296][web:2297] |
| Protections | OVP, UVP, OPP, OCP, SCP [web:2291][web:2293][web:2296][web:2297] |
| Color | Black [web:2292][web:2293][web:2294][web:2298] |
| Warranty | 2 years (typical across listings) [web:2292][web:2293][web:2296][web:2297] |
Ideal For: Mid-range gaming and productivity PCs needing a reliable 550 W non-modular PSU with dual PCIe connectors, flat black cables, 120 mm hydraulic fan and 80 PLUS White-level efficiency at an affordable price. [web:2291][web:2292][web:2293][web:2297][web:2300]
