GAMDIAS HELIOS P1A-850G 850W 80+ Gold Fully Modular ATX Power Supply (120mm Hydraulic Fan, Flat Cables, ATX12V v2.52)
Technical specification
The GAMDIAS HELIOS P1A-850G Fully Modular is an 80 PLUS Gold certified 850 W ATX power supply designed to deliver powerful, efficient and stable power for high-performance gaming and creator PCs. It uses a full DC-to-DC structure with full bridge LLC resonance and 12 V synchronous rectification for cleaner output and better stability, achieving up to 90% efficiency and reducing wasted power and heat. A 120 mm hydraulic-bearing smart fan automatically adjusts its speed based on temperature and load, while fully modular flat black cables, high-quality capacitors and a full protection suite (OVP, UVP, OPP, OCP, OTP, SCP) ensure a clean build and long-term reliability. [web:2627][web:2425][web:2424][web:2631][web:2634][web:2633]
- 80 PLUS Gold efficiency: Gold certification guarantees stable power output with up to 90% efficiency, reducing power loss and heat versus lower-tier units. [web:2425][web:2627][web:2631][web:2633]
- Full DC-to-DC, LLC resonant design: DC-to-DC structure with full bridge LLC resonance and 12 V synchronous rectification improves performance, voltage stability and safety. [web:2425][web:2627][web:2424]
- 120 mm hydraulic-bearing smart fan: Hydraulic-bearing fan supports automatic speed optimization according to temperature and load for quieter operation and longer lifespan. [web:2425][web:2627][web:2633][web:2634]
- Fully modular flat cables: Fully modular design with flat black cables simplifies cable management, improves airflow and keeps the interior clean. [web:2627][web:2633][web:2634]
- Heavy-duty protection suite: Full protections including OVP, UVP, OPP, OCP, OTP and SCP help protect your system from electrical faults. [web:2425][web:2627][web:2424]
| Specification | Detail |
|---|---|
| Brand | GAMDIAS [web:2627][web:2414] |
| Model | HELIOS P1A-850G Fully Modular [web:2627][web:2425][web:2631][web:2634] |
| Form Factor | ATX, ATX12V v2.52 [web:2425][web:2627][web:2414][web:2633] |
| Total Power | 850 W [web:2425][web:2424][web:2631][web:2637] |
| Certification | 80 PLUS Gold (up to 90% efficiency) [web:2425][web:2627][web:2633][web:2414] |

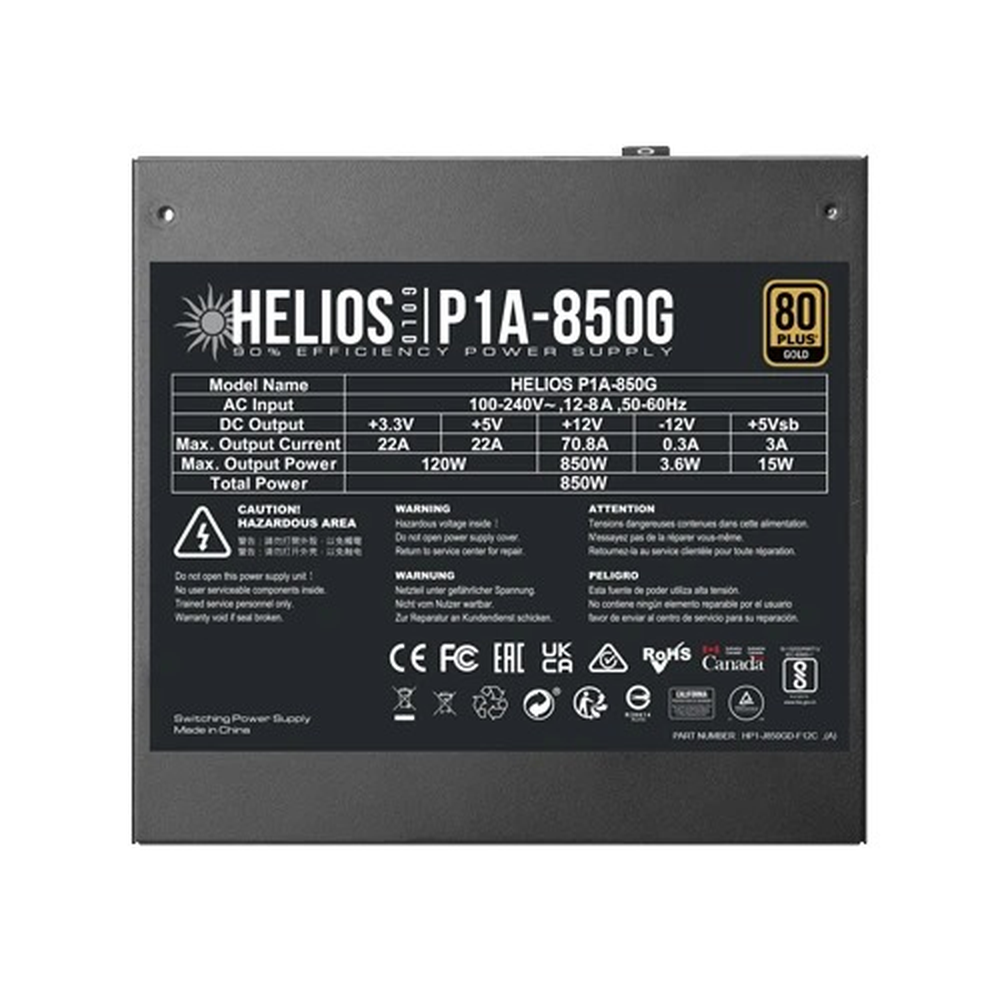

| AC Input | 100–240 V~, 12–8 A, 50–60 Hz [web:2424][web:2631] |
| DC Outputs | +3.3 V, +5 V, +12 V, -12 V, +5 Vsb [web:2424][web:2631] |
| Max Output Current | +3.3 V: 22 A; +5 V: 22 A; +12 V: 70.8 A; -12 V: 0.3 A; +5 Vsb: 3 A [web:2424][web:2631][web:2637] |
| Max Power per Rail | +3.3 V/+5 V: 120 W; +12 V: 850 W; -12 V: 3.6 W; +5 Vsb: 15 W [web:2424][web:2637] |
| Design | Full DC-DC, full bridge LLC resonant, single +12 V rail [web:2425][web:2627] |

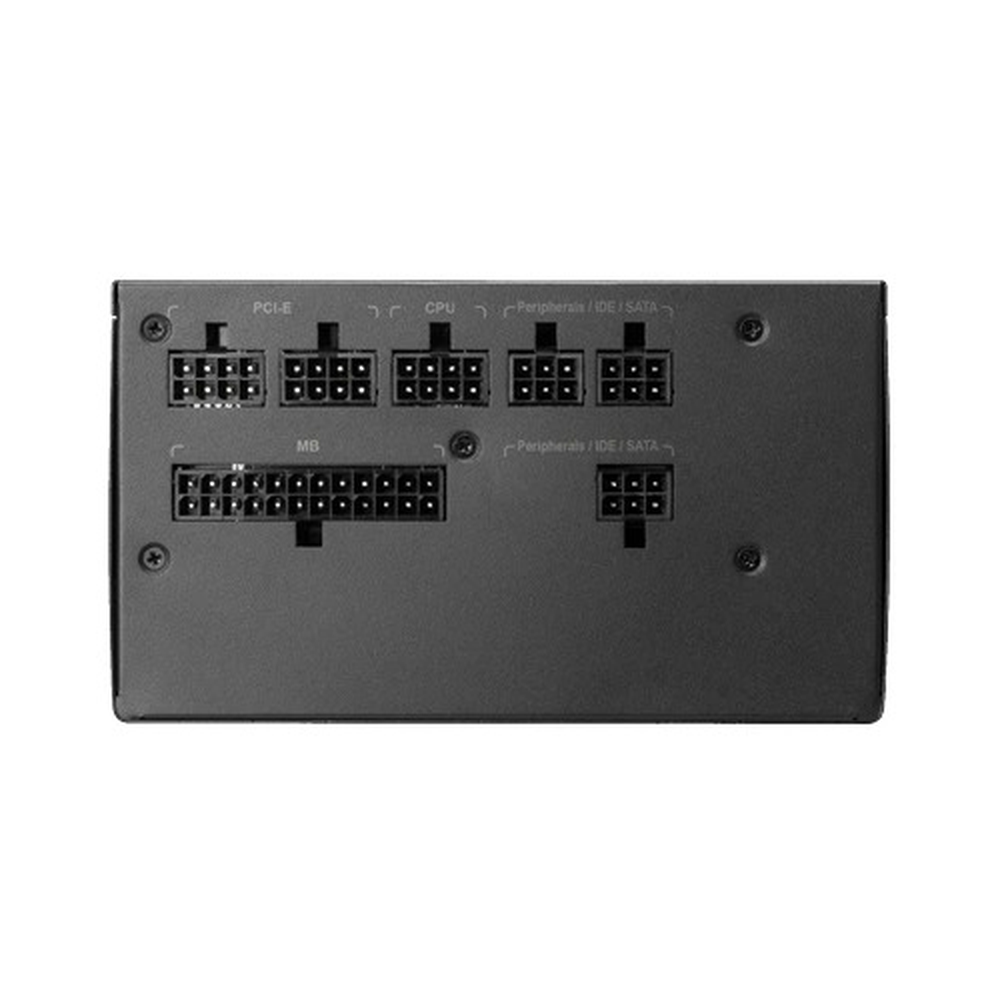

| Modular Type | Fully modular, flat black cables [web:2627][web:2633][web:2634] |

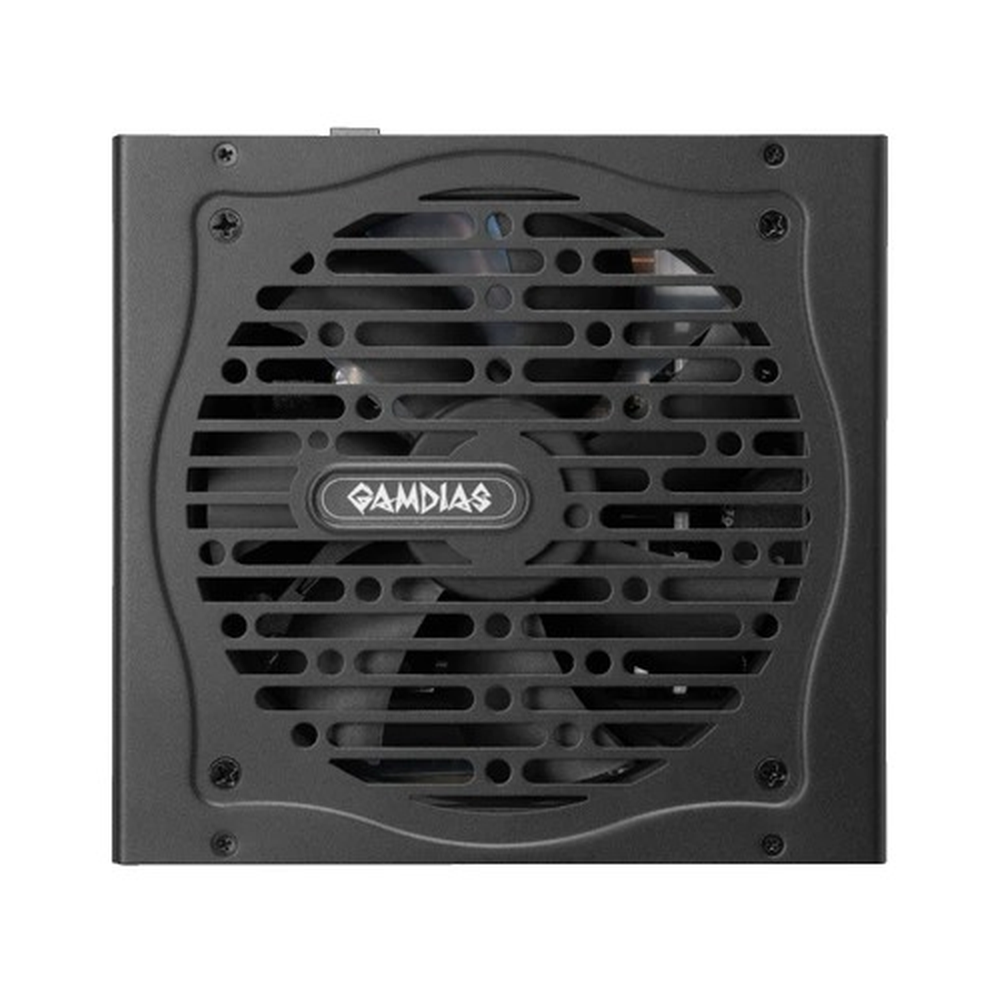

| Fan | 120 mm hydraulic-bearing fan with automatic speed control [web:2425][web:2627][web:2633][web:2634] |
| Main Power | 1 × 24-pin ATX [web:2631] |
| CPU Power | 2 × 8-pin (4+4) EPS/CPU (varies by region; at least 1 × 8-pin) [web:2627][web:2631][web:2633] |
| PCIe Power | Typically 4 × 8-pin (6+2) PCIe connectors (check included cable set) [web:2631][web:2633] |
| SATA Power | 6 × SATA connectors [web:2414][web:2631][web:2632] |
| Molex Power | 3 × 4-pin peripheral (Molex) connectors [web:2414][web:2631][web:2632] |
| Protections | OVP, UVP, OPP, OCP, OTP, SCP [web:2425][web:2627][web:2424] |
| Standby / Power States | Supports Intel C6/C7 power states [web:2425][web:2627] |
| Dimensions (L × W × H) | Approx. 150 × 140 × 86 mm (standard ATX length/width/height) [web:2630][web:2634] |
| Color | Black [web:2627][web:2633][web:2634] |
| Warranty | Typically 7 years as per PSU listings (check local distributor terms) [web:2414][web:2630][web:2635] |
Ideal For: High-end single-GPU or moderate dual-GPU gaming and creator builds that need an 850 W 80+ Gold fully modular PSU with flat cables, quiet 120 mm hydraulic fan and robust protections. [web:2425][web:2627][web:2631][web:2633]
