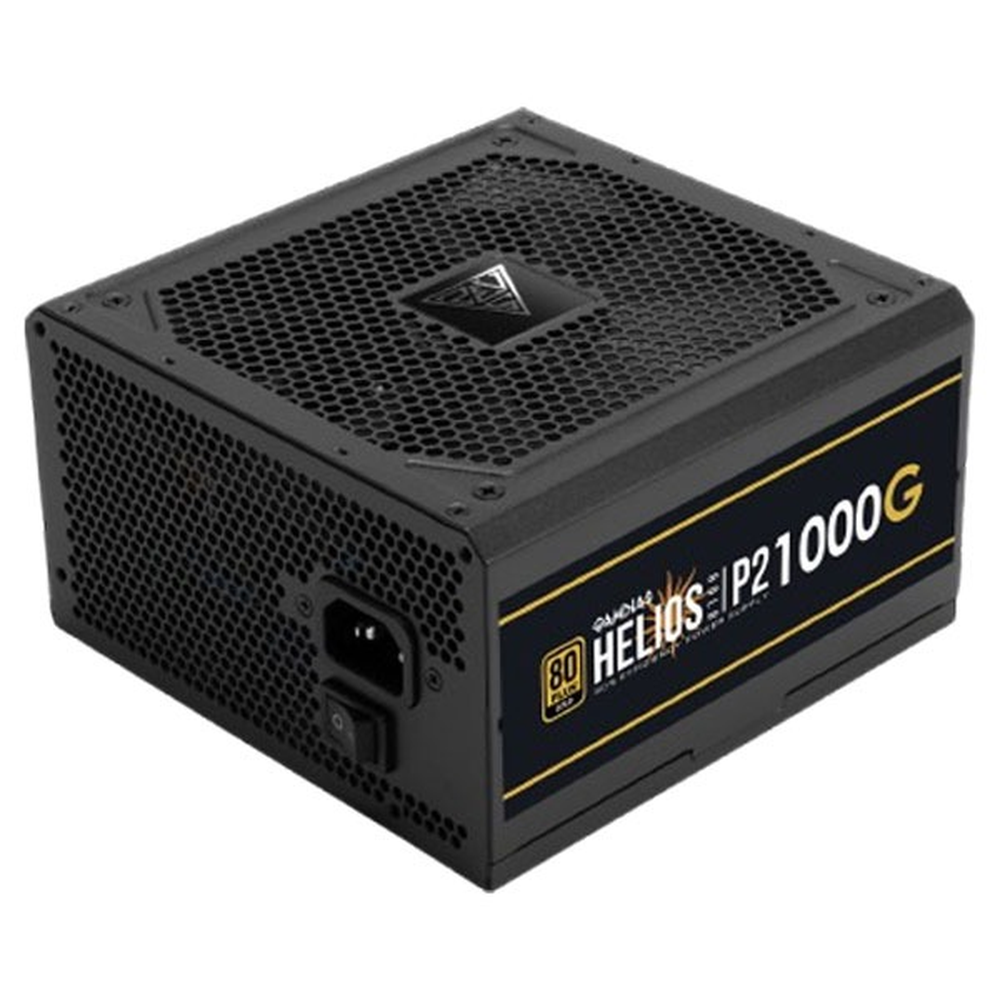

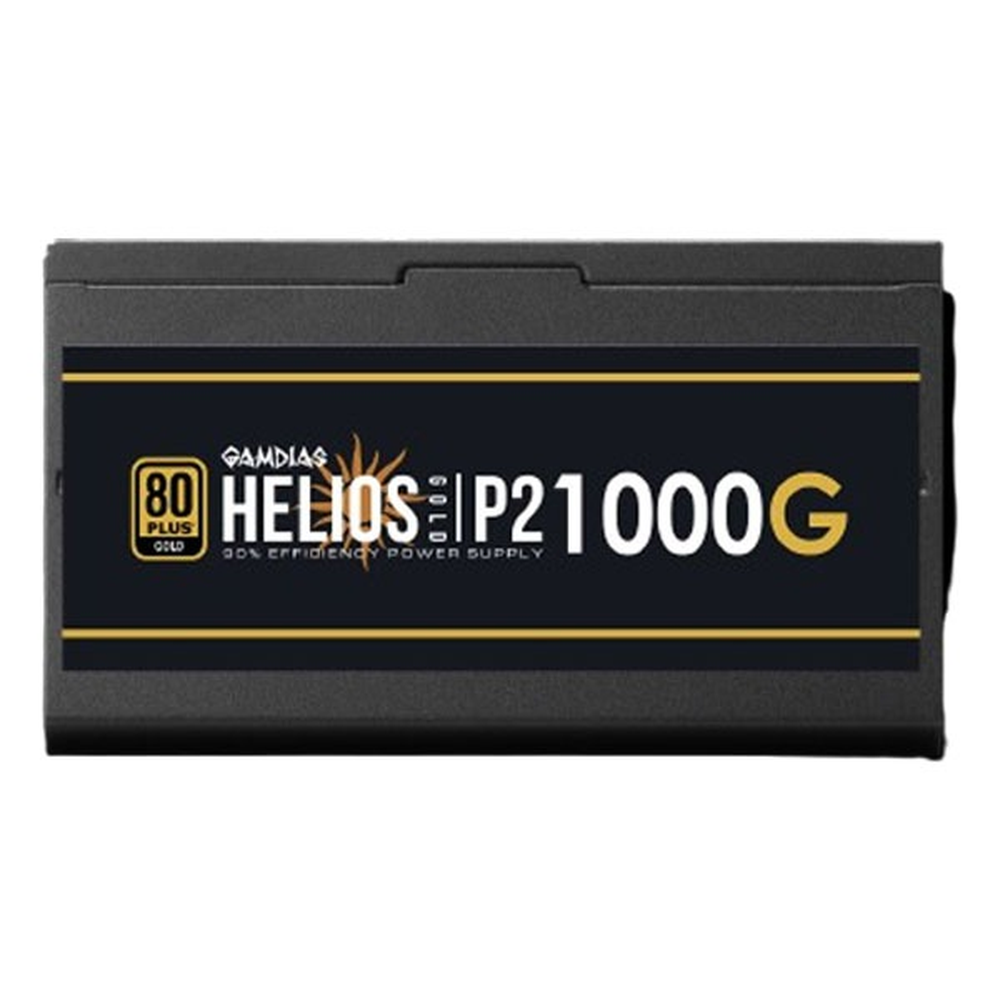

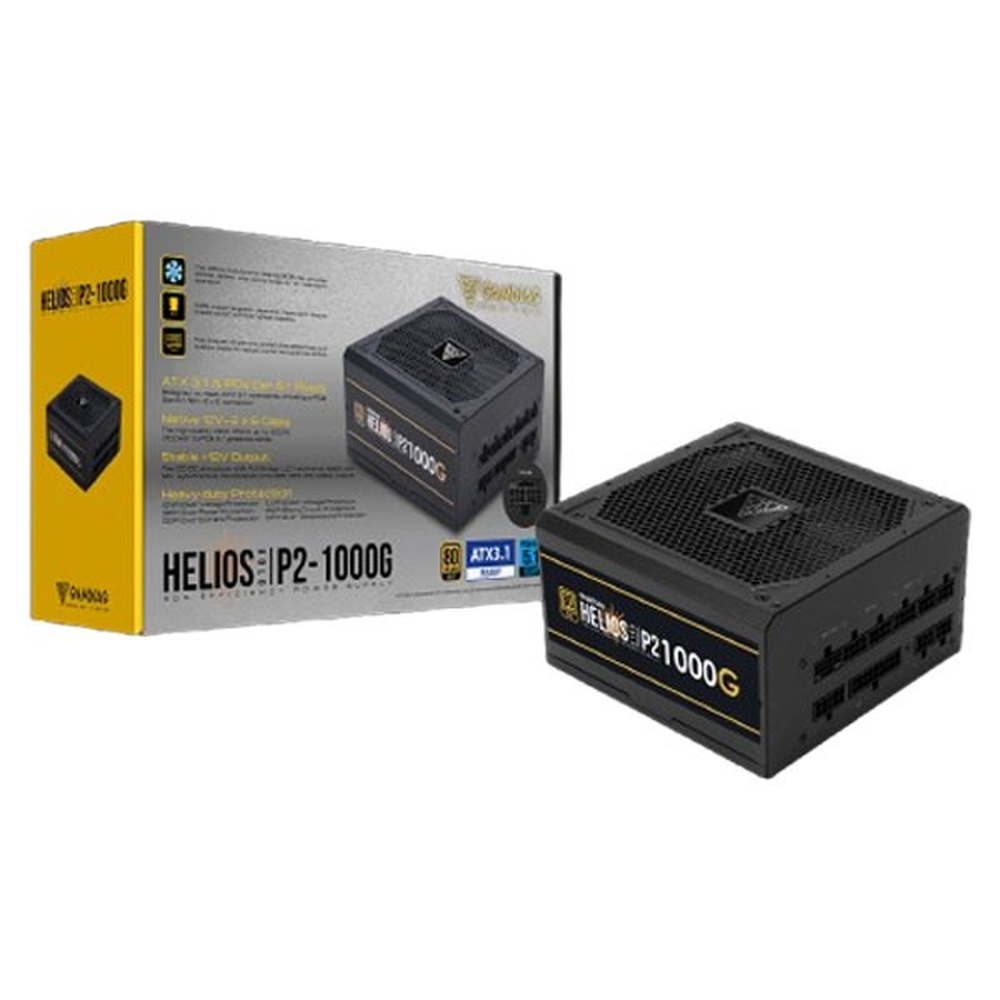

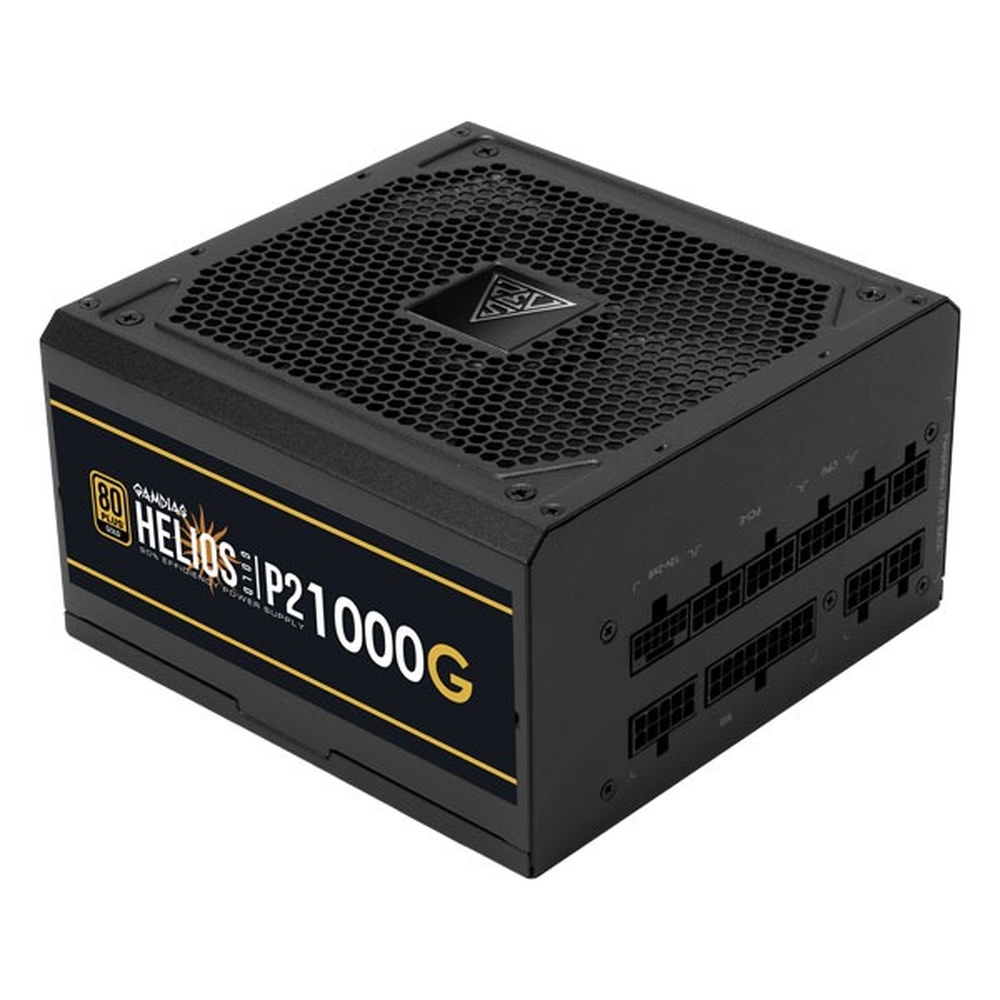

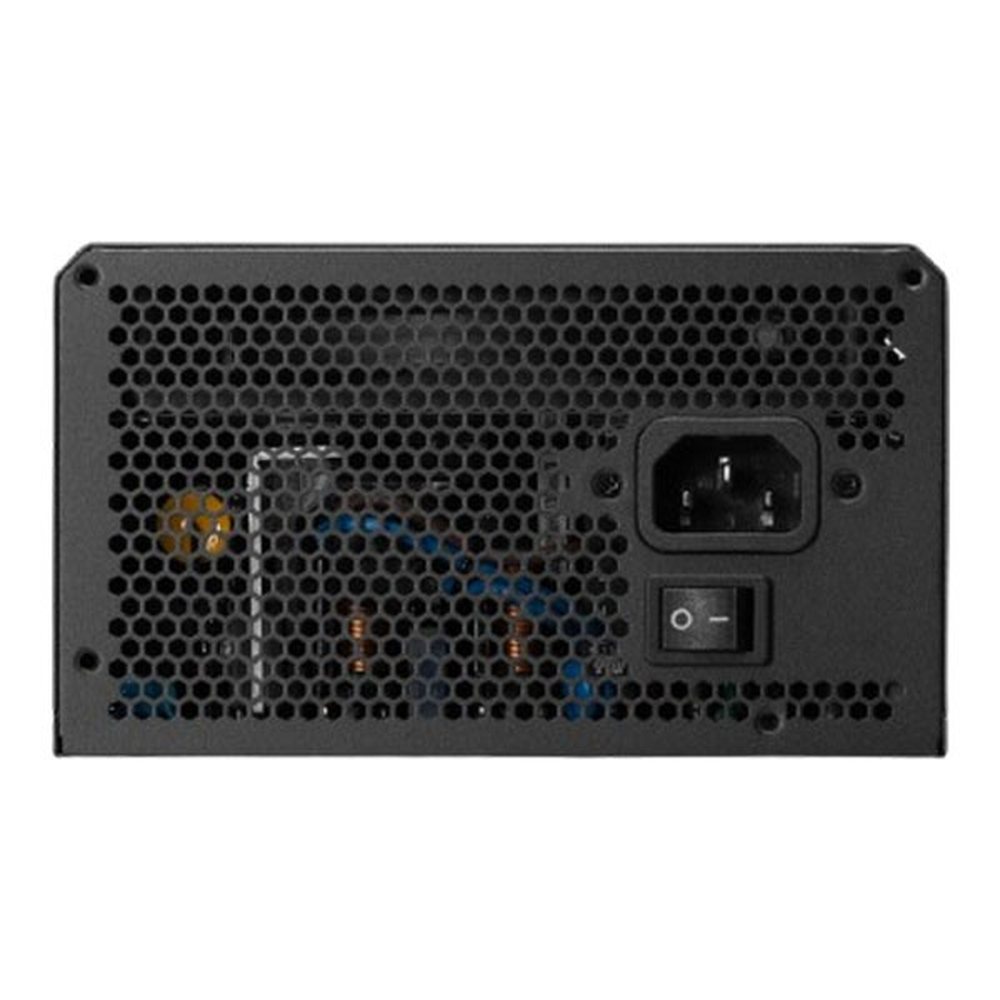

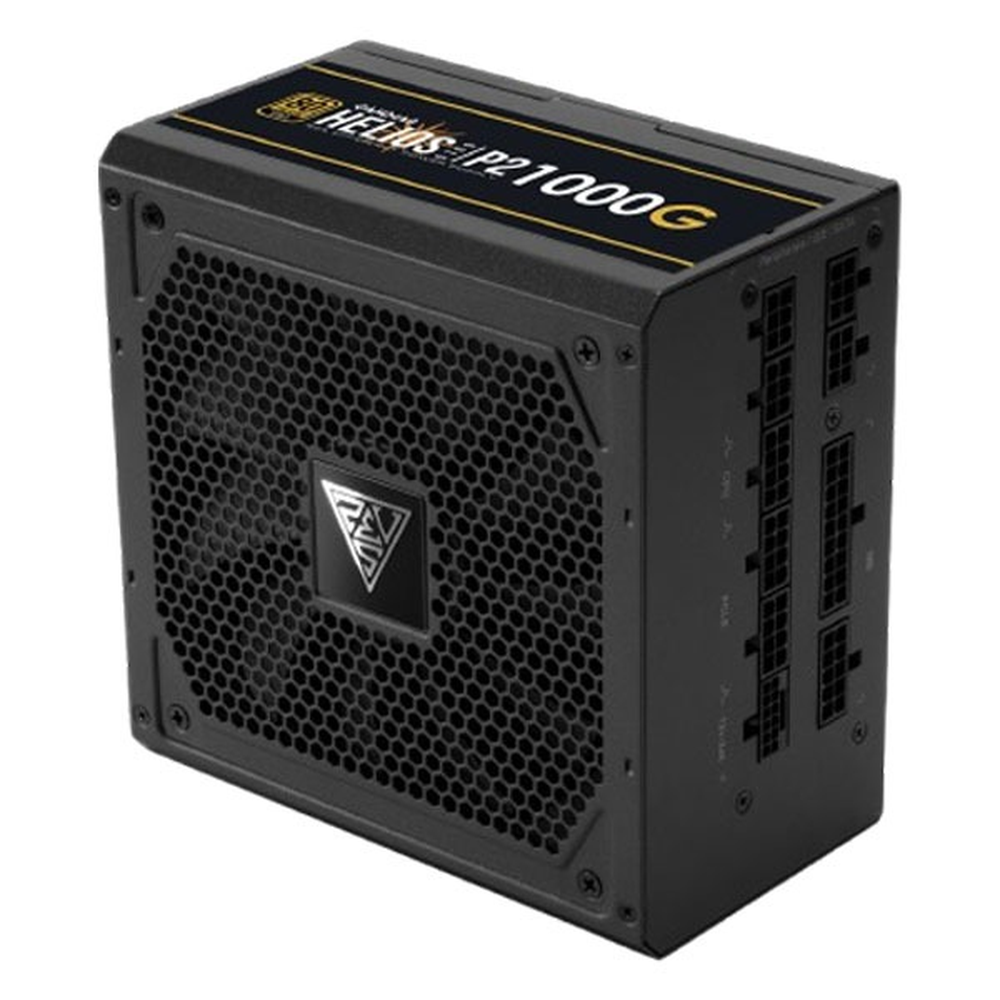

GAMDIAS HELIOS P2-1000G 1000W 80+ Gold ATX 3.1 Fully Modular Power Supply (12VHPWR, PCIe Gen 5.1, 135mm FDB Fan)
Technical specification
The GAMDIAS HELIOS P2-1000G is a next‑generation 1000 W 80 PLUS Gold fully modular power supply designed for high‑end gaming and creator PCs built around the latest ATX 3.1 and PCIe Gen 5.1 standards. It features a native 16‑pin 12VHPWR connector (up to 600 W) for next‑gen GPUs, full DC‑DC LLC resonant design with 100% industrial‑grade Japanese capacitors and a 135 mm fluid dynamic bearing fan for quiet, long‑life operation. Double‑Gold certified (80 PLUS Gold and Cybenetics Gold) with up to 92% efficiency at 50% load and support for up to 235% power excursion, the HELIOS P2‑1000G delivers peak stability, transient handling and heavy‑duty protections for modern flagship systems. [web:2439][web:2440][web:2442][web:2443][web:2446][web:2451]
- ATX 3.1 & PCIe Gen 5.1 ready: Fully compliant with ATX 3.1 and PCIe Gen 5.1, including a native 16‑pin 12VHPWR cable capable of delivering up to 600 W directly to supported GPUs without adapters. [web:2439][web:2440][web:2443][web:2446][web:2447]
- Double‑Gold certified efficiency: Rated 80 PLUS Gold and Cybenetics Gold, providing stable power with up to 92% efficiency at 50% load to reduce power loss, heat and noise. [web:2440][web:2442][web:2443][web:2446][web:2451]
- Full DC‑DC, LLC resonant design with Japanese capacitors: Uses a full DC‑DC, LLC resonant circuit and 100% industrial‑grade Japanese capacitors for cleaner output, better transient response and long‑term reliability. [web:2440][web:2443][web:2446][web:2451]
- 135 mm fluid dynamic bearing fan with semi‑fanless mode: A 135 mm FDB fan provides strong cooling and low noise; silent / hybrid modes reduce or stop fan operation at low loads to minimize noise. [web:2440][web:2444][web:2446][web:2451]
- Heavy‑duty protection and power excursion support: Supports up to triple GPU power excursion and double total power excursion while providing OVP, UVP, OPP, OCP, OTP and SCP protections for safe, stable operation. [web:2440][web:2443][web:2446][web:2450][web:2451]
| Specification | Detail |
|---|---|
| Brand | GAMDIAS [web:2439][web:2443] |
| Model | HELIOS P2-1000G [web:2439][web:2440][web:2443][web:2447][web:2451] |
| Form Factor | ATX, ATX 3.0/3.1 compliant [web:2440][web:2442][web:2443][web:2447] |
| Total Power | 1000 W [web:2440][web:2443][web:2446][web:2451] |
| Certification | 80 PLUS Gold & Cybenetics Gold (up to 92% efficiency at 50% load) [web:2440][web:2442][web:2443][web:2446][web:2451] |
| Standards | ATX 3.1, PCIe Gen 5.1, 12VHPWR ready [web:2439][web:2440][web:2443][web:2447] |

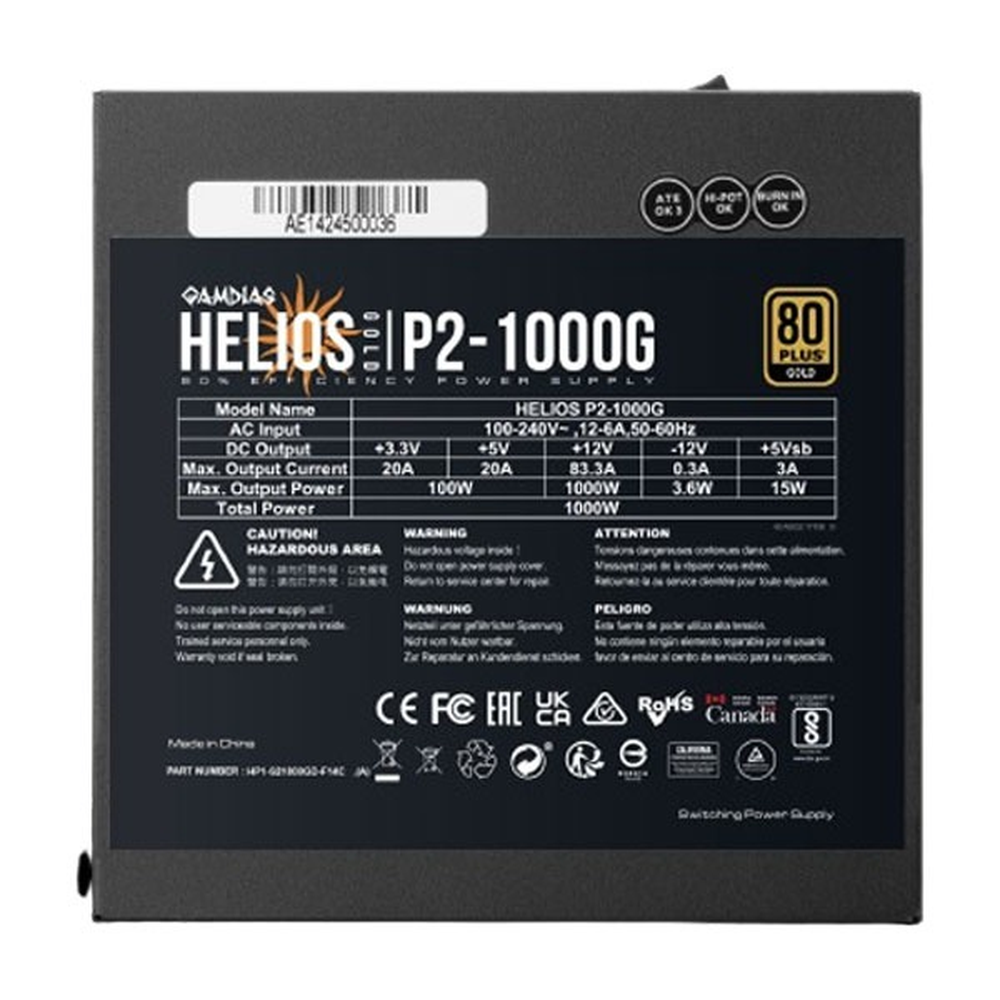

| AC Input | 100–240 V~, 13–6.5 A, 50–60 Hz [web:2450][web:2451] |
| DC Outputs | +3.3 V, +5 V, +12 V, -12 V, +5 Vsb [web:2450] |
| Max Output Current | +3.3 V: 20 A; +5 V: 20 A; +12 V: 83 A; -12 V: 0.3 A; +5 Vsb: 2.5 A [web:2450] |
| Max Power per Rail | +3.3 V/+5 V: 110 W; +12 V: 996 W; -12 V: 3.6 W; +5 Vsb: 12.5 W [web:2450] |
| Design | Full DC‑DC, LLC resonant circuit, single +12 V rail [web:2440][web:2443][web:2451] |

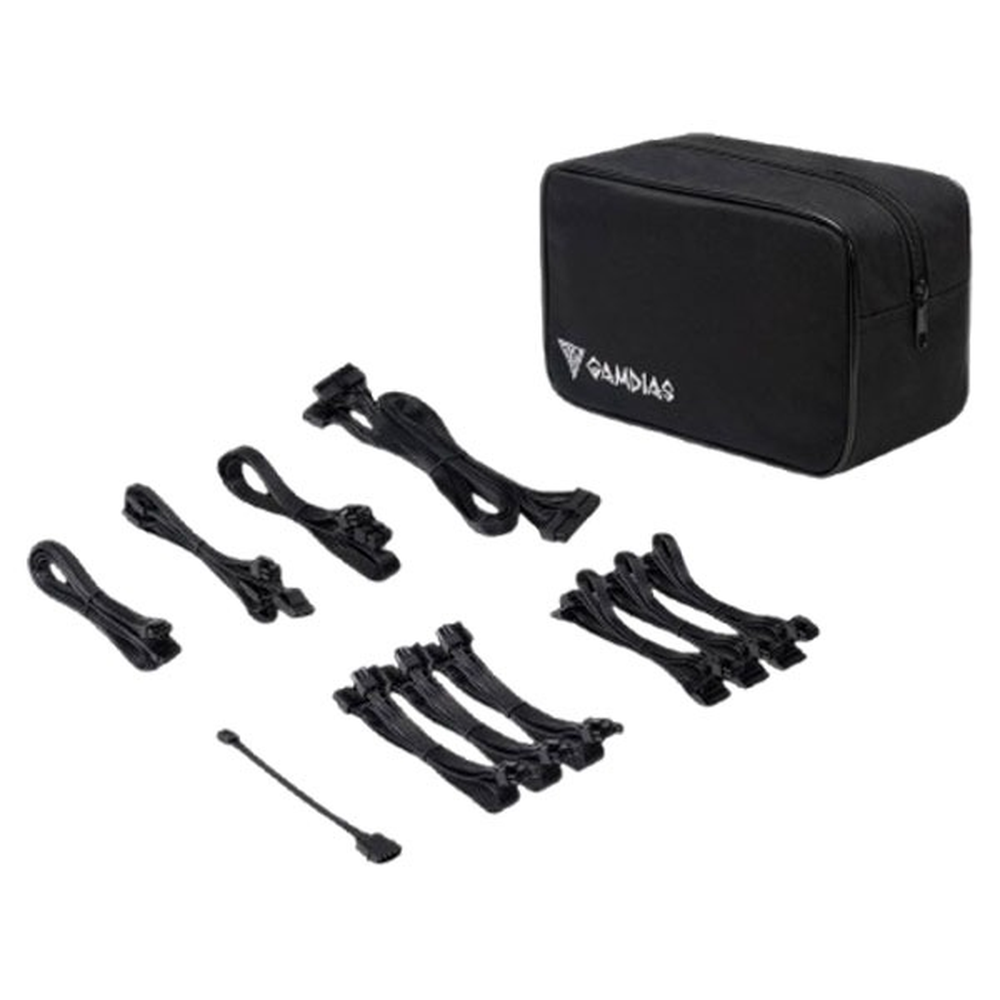

| Modular Type | Fully modular [web:2439][web:2440][web:2442][web:2443][web:2447][web:2451] |

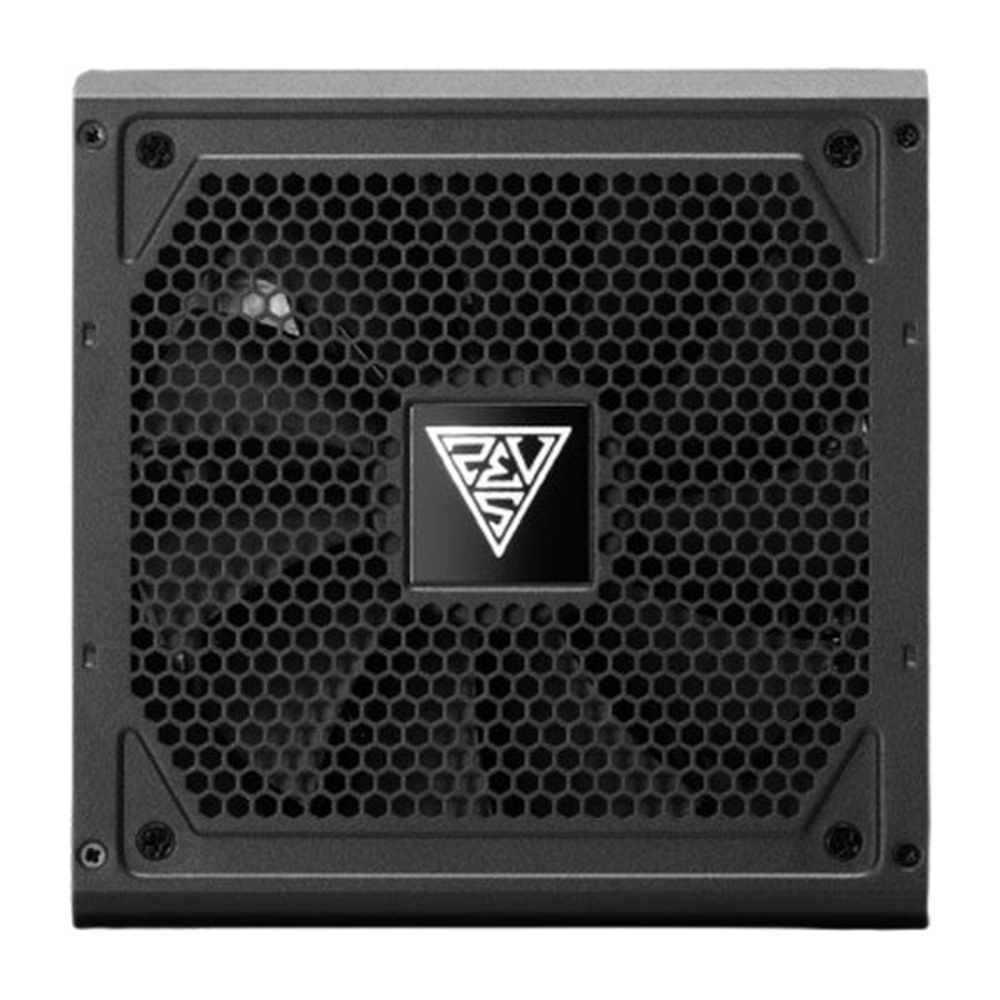

| Fan | 135 mm fluid dynamic bearing fan, silent / hybrid mode [web:2440][web:2443][web:2444][web:2446][web:2451] |

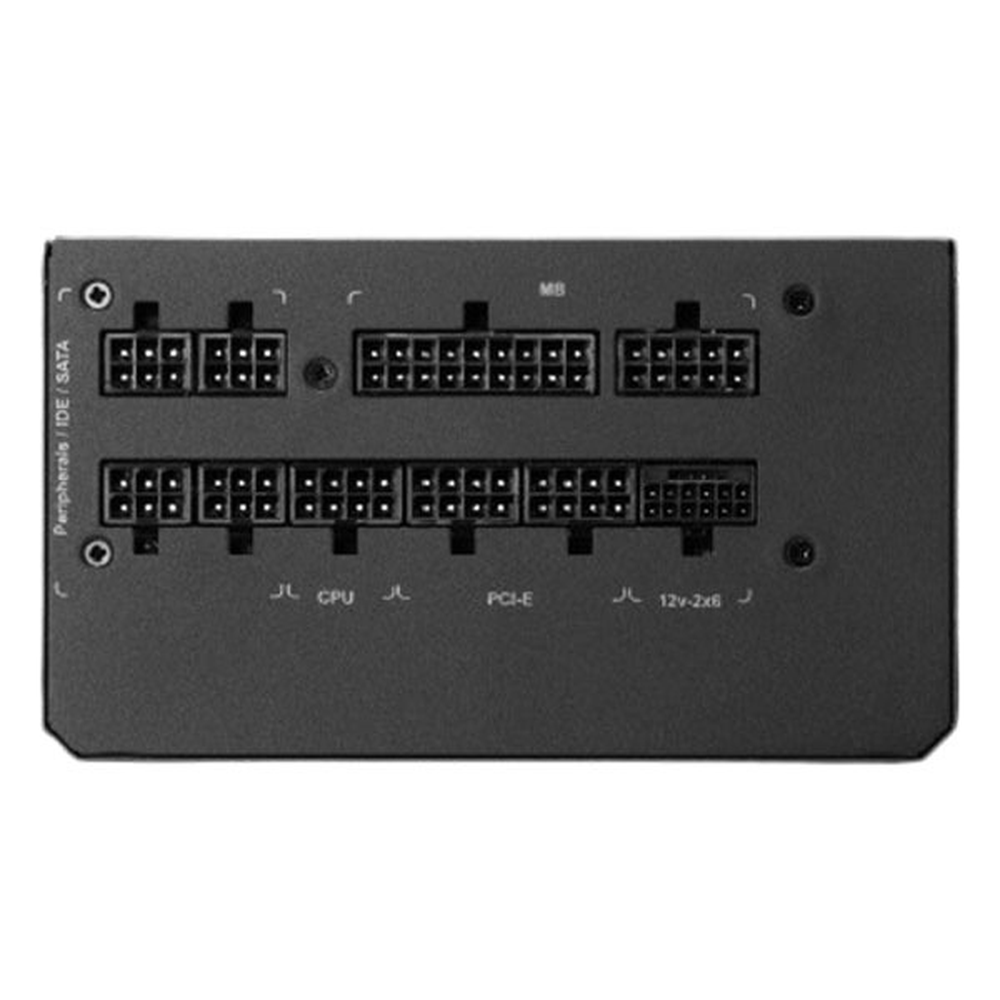

| Main Power | 1 × 24‑pin ATX [web:2451] |
| CPU Power | 2 × 8‑pin (4+4) EPS/CPU [web:2440][web:2443][web:2451] |
| PCIe (8‑pin) | Typically 3–4 × 8‑pin (6+2) PCIe (varies by cable set; ATX 3.x plus 12VHPWR covers high‑end GPUs) [web:2440][web:2443][web:2451] |
| 12VHPWR | 1 × native 16‑pin 12VHPWR (up to 600 W) [web:2440][web:2443][web:2444][web:2451] |
| SATA Power | 8 × SATA (typical for 1000 W config) [web:2442][web:2443][web:2451] |
| Molex Power | 3 × 4‑pin Molex (typical) [web:2443][web:2451] |
| Dimensions (L × W × H) | Approx. 150 × 150 × 86 mm (ATX chassis) [web:2451] |
| Protections | OVP, UVP, OPP, OCP, OTP, SCP [web:2440][web:2443][web:2450][web:2451] |
| Excursion Support | Up to triple GPU power excursion and double total power excursion (ATX 3.x spec) [web:2440] |
| Capacitors | 100% industrial‑grade Japanese capacitors [web:2440][web:2443][web:2451] |
| Color | Black [web:2439][web:2443][web:2451] |
| Warranty | Often 10 years globally; India listings vary but position it as a long‑warranty flagship (check distributor policy). [web:2441][web:2443][web:2446] |
Ideal For: Flagship RTX 40‑series / next‑gen GPU builds and high‑core‑count CPUs that need a 1000 W 80+ Gold, ATX 3.1, fully modular PSU with native 12VHPWR, excellent transient handling, quiet 135 mm FDB cooling and long‑term reliability. [web:2440][web:2442][web:2443][web:2446][web:2447][web:2451]
