HYTE Revolt 3 Premium ITX Small Form Factor Case (White, Case Only)

Rs. 12,499.00

case only

cs-hyte-revolt3-w

hyte

hyte revolt 3

Genuine & warrantedAuthorised stock, brand warranty

83560 26438Contact for querries

Secure checkoutUPI · cards · EMI

Fast shippingTracked · 5–7 days

01 — Datasheet

Technical specification

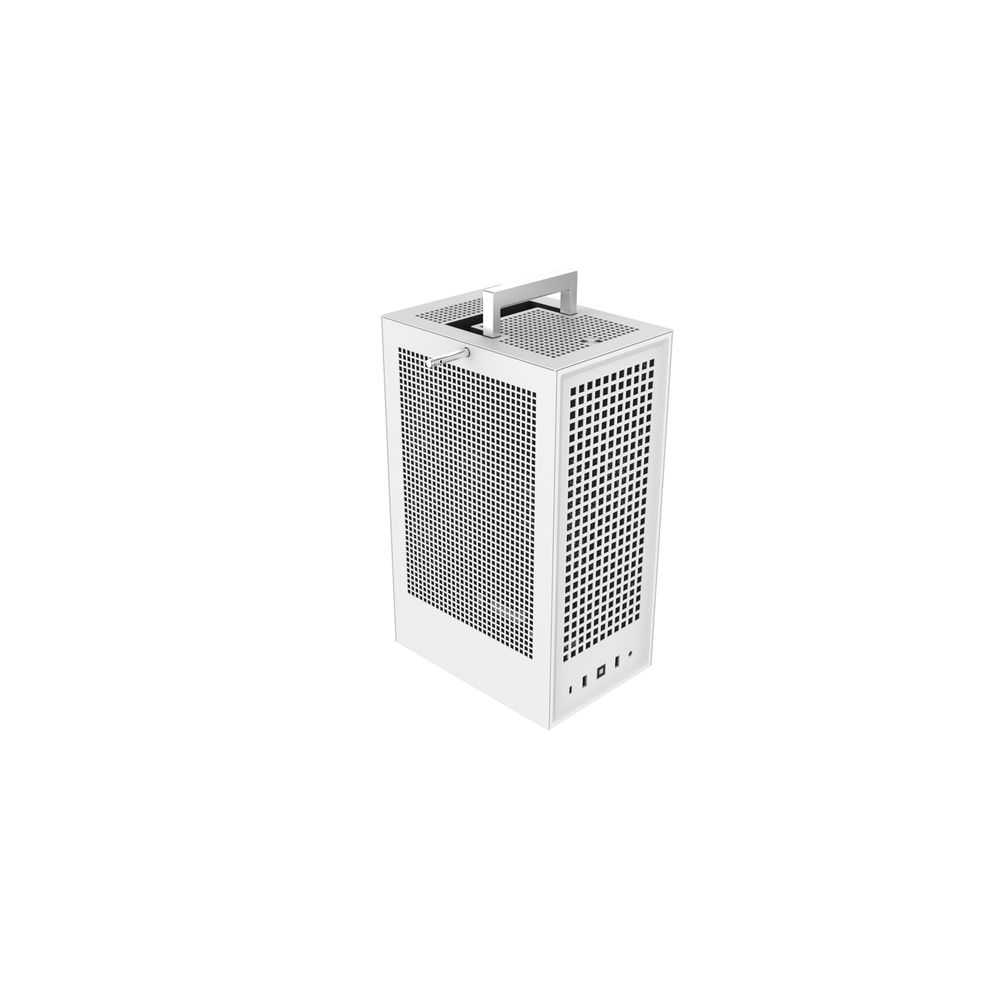

HYTE Revolt 3 (White) is a premium ITX small form factor case with an integrated handle, tool‑less side panels and support for full‑size GPUs, finished in a clean white colourway. This version is case only, so no power supply is included.

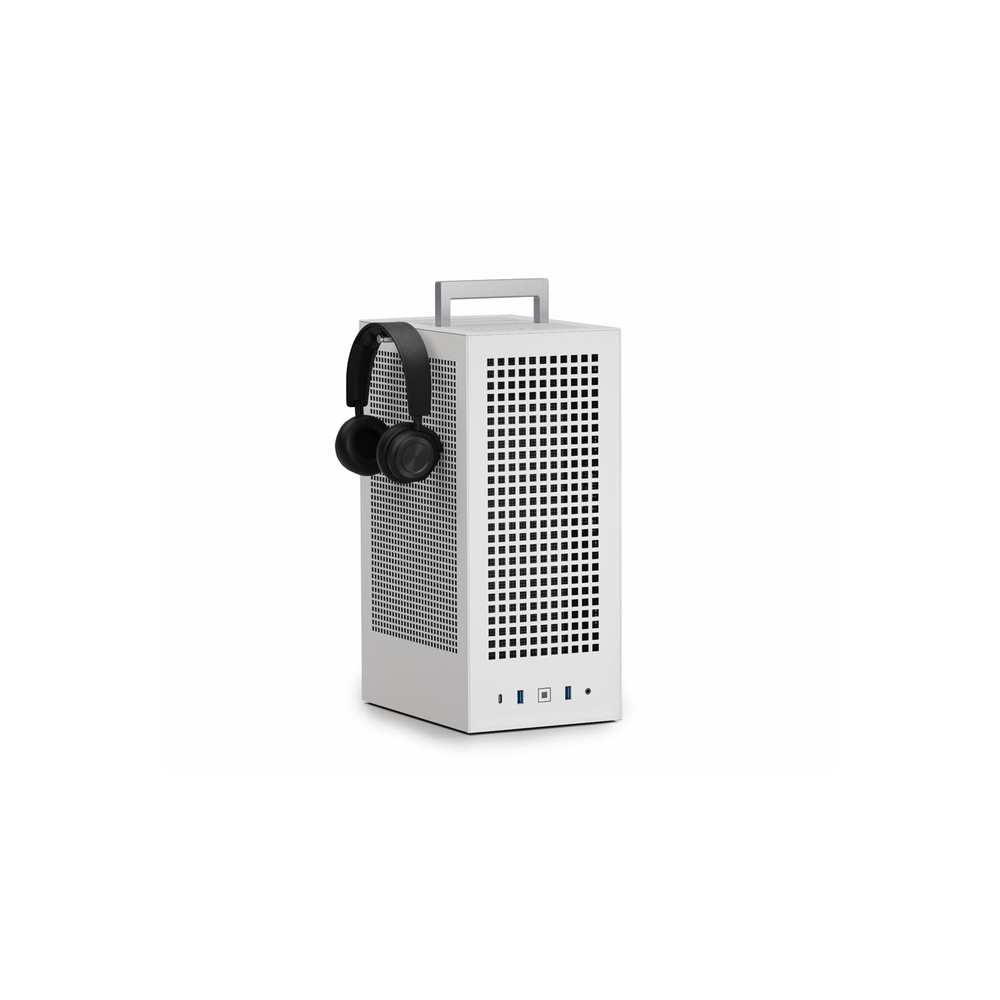

Portable white SFF tower: Compact 18 L chassis with a built‑in carry handle and retractable headset/accessory hooks, designed to go anywhere. [web:897][web:899]
Full‑size GPU support: Handles most triple‑slot GPUs up to 335 × 140 × 58 mm without needing a PCIe riser cable. [web:897][web:899]

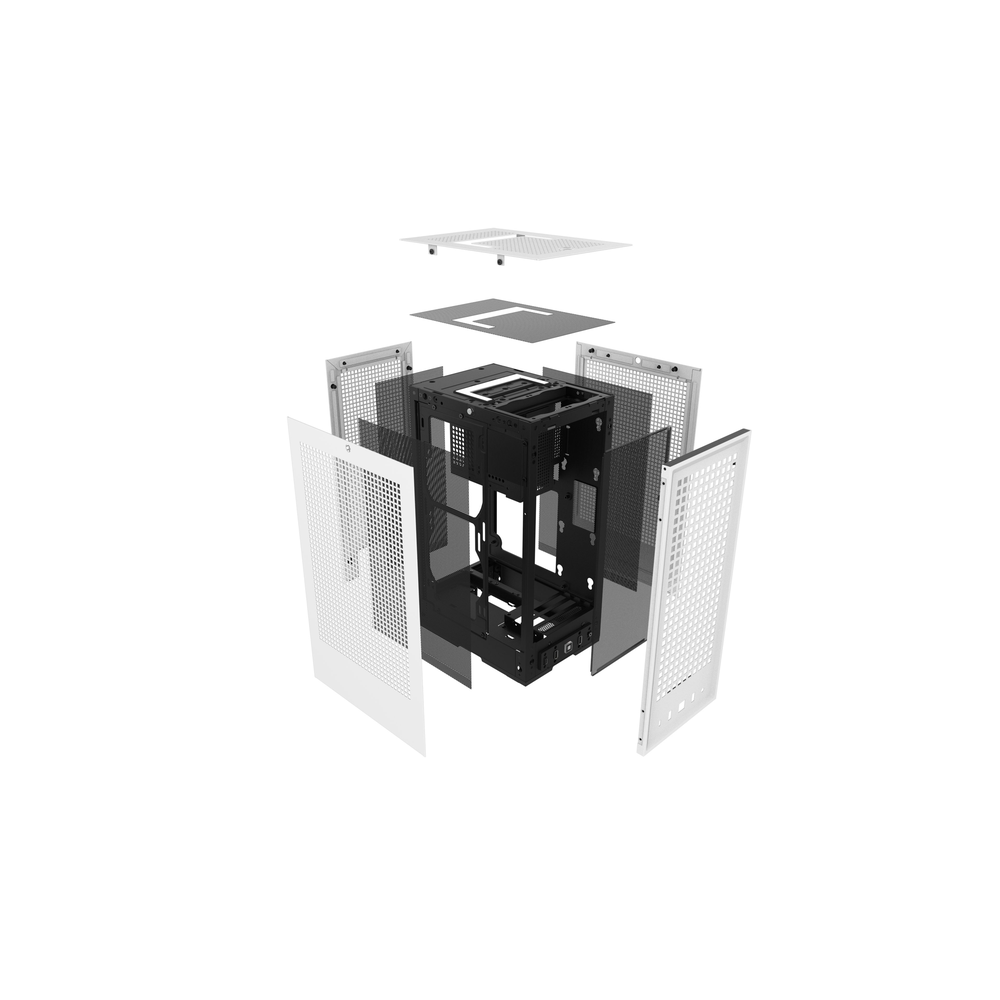

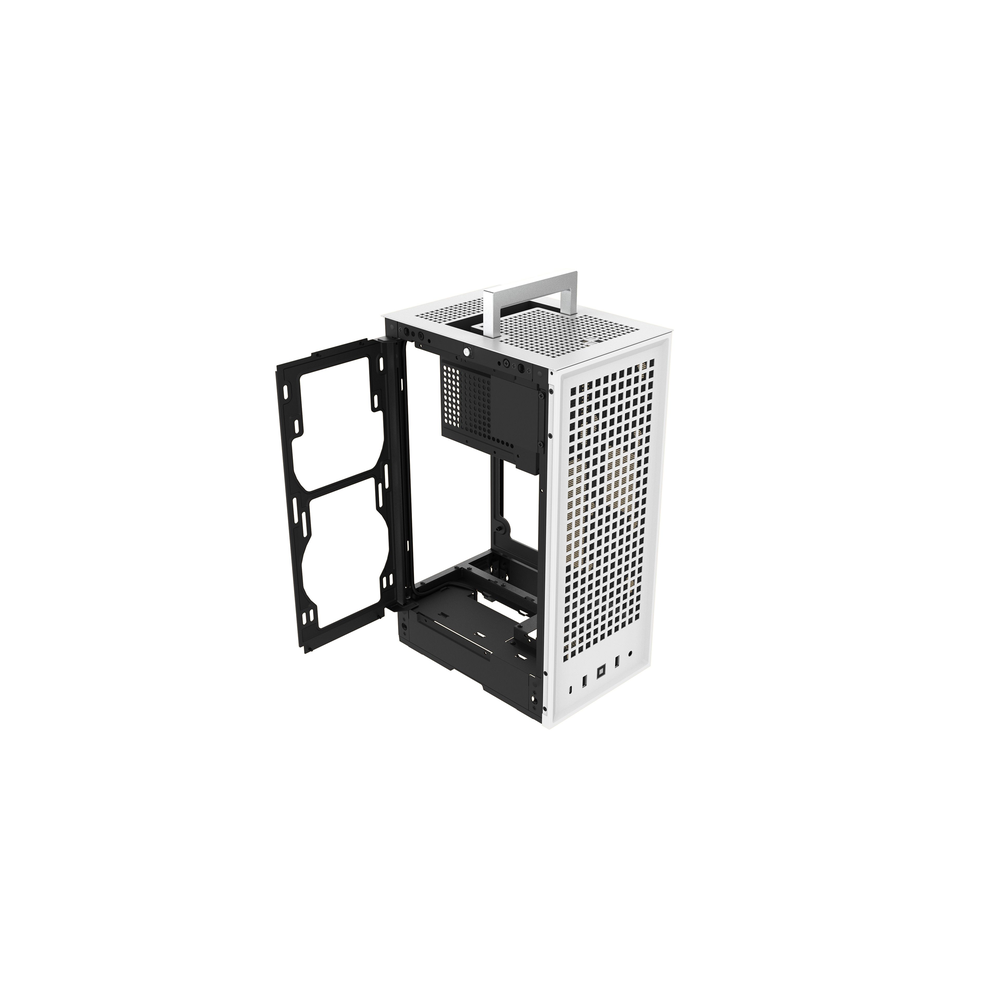

Tool‑less access: Steel side panels pop off without tools, and the layout gives quick access for building, cleaning and upgrades. [web:897][web:893]
Optimised CPU/GPU airflow: Separate intake paths for CPU and GPU, with radiator support up to 280 mm and an optional slim 80 mm exhaust fan slot at the top. [web:897][web:898]
Standard SFX PSU support: Uses SFX / SFX‑L power supplies (optional 700 W Gold unit on “with power” bundles; not included in this case‑only SKU). [web:897][web:898]

Specification	Detail
Brand	HYTE
Model	Revolt 3 (Case Only)
SKU	CS-HYTE-REVOLT3-W
Colour	White
Form Factor	Mini‑ITX Small Form Factor (SFF)
Approx. Volume	~18 L [web:901]
Dimensions	253 × 178 × 409 mm (D × W × H) [web:897]
Materials	Aluminum, steel, ABS [web:897]
Motherboard Support	Mini‑ITX [web:897]
Power Supply Support	SFX / SFX‑L (PSU not included – case only) [web:897][web:898]
GPU Support	Most cards up to 335 mm length × 140 mm height × 58 mm thickness [web:897]
Expansion Slots	3 [web:897]
Storage Support	1 × 3.5″ HDD and 2 × 2.5″ SSD [web:897]
Radiator Support	120 / 140 / 240 / 280 mm radiators up to 35 mm thick (incl. fans) [web:897][web:898]
Top Fan Support	1 × 80 × 15 mm slim fan [web:897][web:898]
CPU Cooler Height	Up to 140 mm [web:897][web:898]
Front I/O	1 × USB 3.2 Gen 2 Type‑C, 2 × USB 3.2 Gen 1 Type‑A, 1 × 3.5 mm audio/mic combo [web:897]
Dust Filters	Front metal mesh; magnetic filters on top, sides and rear [web:897]
Handle Weight Limit	Up to 14 kg (30 lbs) system weight [web:897]
Case Weight*	HYTE quotes 6.3 kg including PSU; case‑only SKU is slightly lighter (~5–5.5 kg) [web:897][web:898]
Included PSU	None (this is the White “No Power” version) [web:897][web:898]
Warranty	Typically 3 Years (region dependent) [web:897][web:908]
Box Contents	HYTE Revolt 3 case (White), accessory box (screws, standoffs, zip ties), documentation [web:897]
