Description

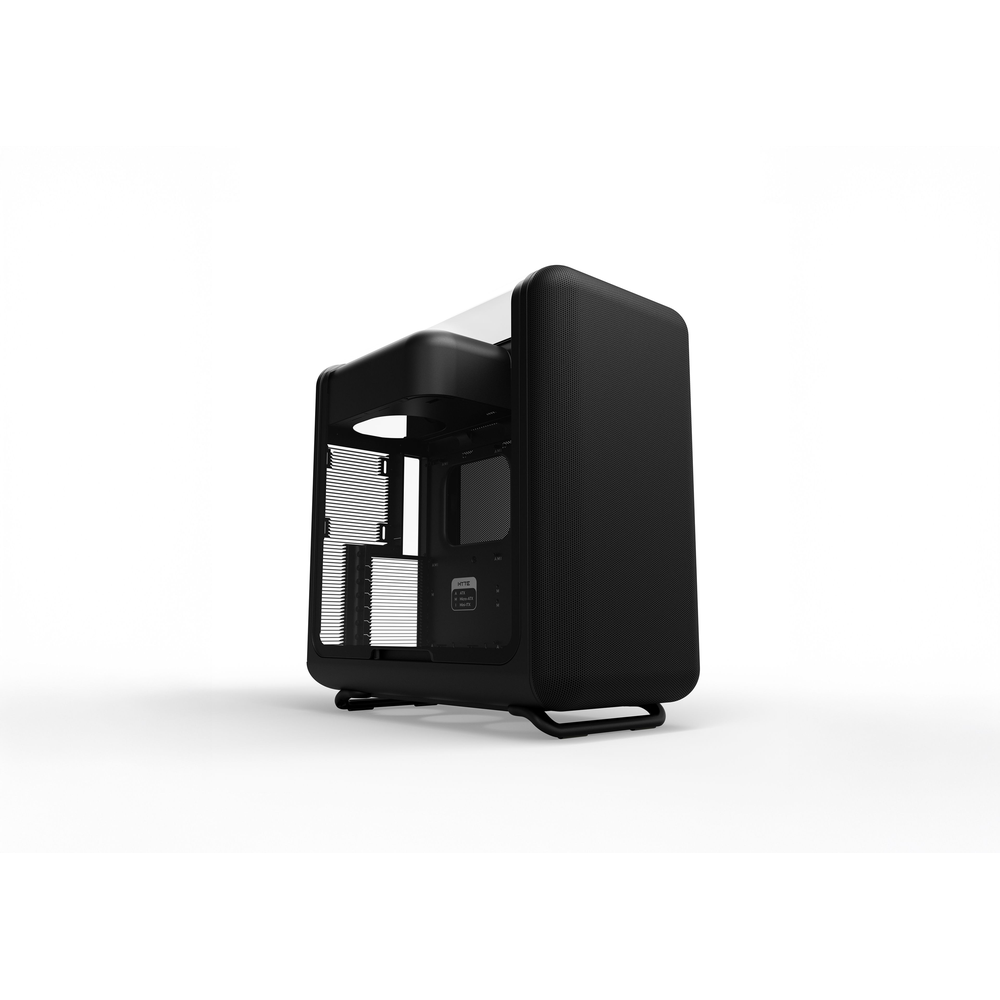

HYTE X50 (Pitch Black) is a 63 L modern performance ATX mid‑tower featuring full‑coverage micro‑mesh intake, a 4 mm laminated acoustic glass side panel, patent‑pending louvered top exhaust and “cold‑floor” GPU cooling for powerful, quiet builds.
- Full‑coverage micro‑mesh front: Large low‑restriction mesh intake feeds high airflow into the main chamber, optimised for both temps and noise. [web:767][web:759]
- 4 mm laminated acoustic glass: Thick, shatter‑resistant acoustic glass side panel significantly reduces noise transmission versus standard tempered glass. [web:767][web:782]
- Louvered blade ventilation: Patent‑pending louvered top exhaust slices through hot air while increasing chassis rigidity and preserving a clean top design. [web:767][web:759]
- Cold‑floor cooling for GPUs: Up to 3 × 120 mm bottom fans pull fresh air directly into the GPU, keeping even flagship cards comfortably cool. [web:767][web:782]
- High‑end hardware support: Supports E‑ATX boards, 430 mm GPUs, 180 mm tower coolers and dual 360 mm radiators (front + side) in a disciplined, easy‑to‑build layout. [web:782][web:759]
| Specification | Detail |
|---|---|
| Brand | HYTE |
| Model | X50 |
| SKU | CS-HYTE-X50G-BB |
| Colour | Pitch Black |
| Form Factor | ATX Mid‑Tower |
| Volume | 63 L [web:767][web:782] |
| Case Dimensions | 510 × 255 × 485 mm (L × W × H) [web:782][web:759] |
| Case Materials | ABS, steel, 4 mm laminated acoustic glass [web:767][web:782] |
| Window Material | 4 mm laminated acoustic glass (side) [web:767] |
| Motherboard Support | ITX, mATX, ATX, E‑ATX (up to 10.6") [web:767][web:782] |
| Power Supply Support | ATX PSU up to 223 mm length [web:767][web:782] |
| GPU Support | Up to 430 mm length, 160 mm height (horizontal) [web:767][web:782] |
| CPU Cooler Height | Up to 180 mm [web:782] |
| Expansion Slots | 7 × horizontal full‑size [web:782][web:759] |
| Storage Support | 1 × 3.5" HDD and 2 × 2.5" SSD [web:782][web:767] |
| Front Fan Support | 3 × 120 mm or 3 × 140 mm [web:782][web:767] |
| Side Fan Support | 3 × 120 mm [web:782][web:767] |
| Bottom Fan Support | 3 × 120 mm (GPU cold‑floor cooling) [web:782][web:767] |
| Rear Fan Support | 1 × 120 mm [web:782][web:767] |
| Pre‑Installed Fans | Varies by region (usually none; check local listing) [web:760][web:784] |
| Front Radiator Support | Up to 360 mm or 280 mm, 80 mm thick (incl. fans) [web:782][web:767] |
| Side Radiator Support | Up to 360 mm, 70 mm thick (incl. fans) [web:782][web:767] |
| Rear Radiator Support | 120 mm [web:782][web:767] |
| Front I/O | 2 × USB 3.2 Gen1 Type‑A, 1 × USB 3.2 Gen2x2 Type‑C, 1 × 3.5 mm combo audio [web:782][web:767] |
| Dust Filters | Magnetic bottom dust filter; open mesh elsewhere [web:782][web:767] |
| Box Dimensions | 587 × 345 × 607 mm (L × W × H) [web:782] |
| Net Weight | 11.5 kg [web:782] |
| Weight with Box | 13.63 kg [web:782] |
| Warranty | 4 Years [web:782][web:767] |
| Box Contents | HYTE X50 case (Pitch Black), accessory box (screws, standoffs, zip ties), documentation [web:784][web:782] |
