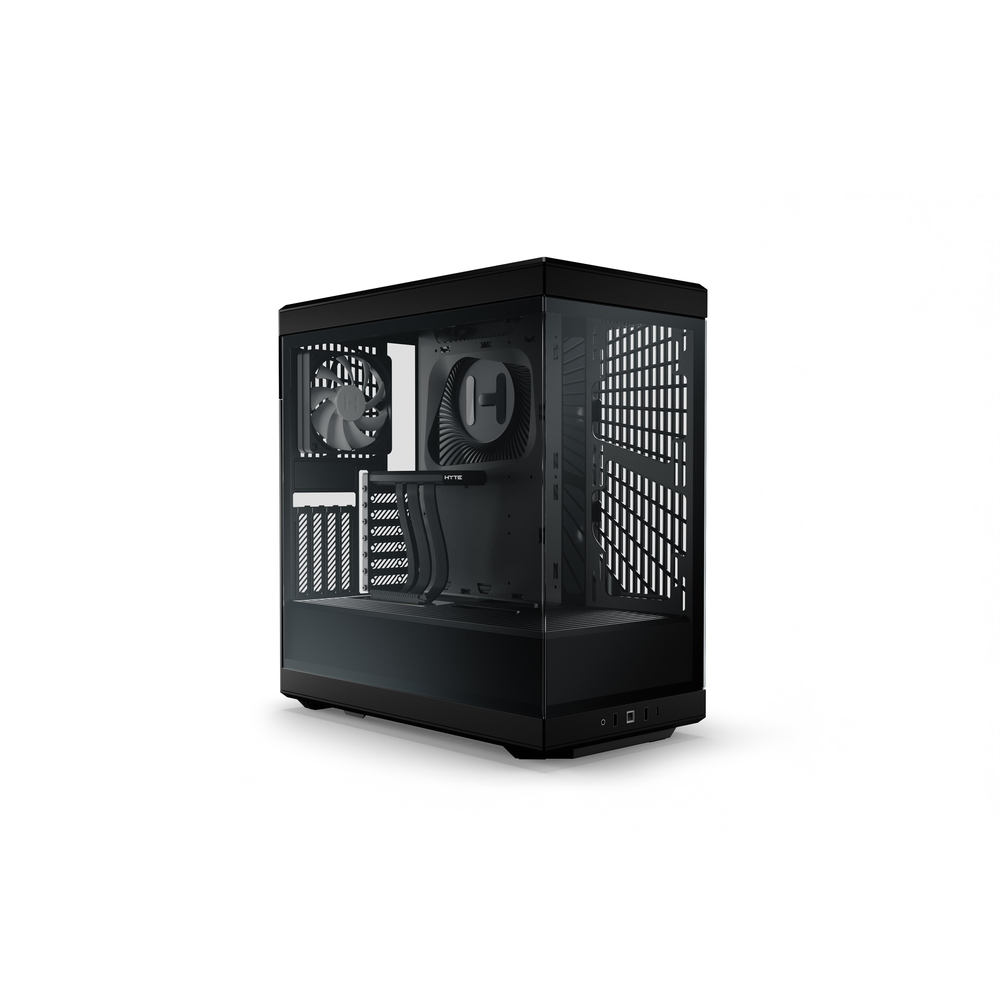

HYTE Y40 S-Tier ATX Mid-Tower Case (Black)
Rs. 12,999.00
atx mid tower
black
cs-hyte-y40-b
hyte
Genuine & warrantedAuthorised stock, brand warranty
83560 26438Contact for querries
Secure checkoutUPI · cards · EMI
Fast shippingTracked · 5–7 days
01 — Datasheet
Technical specification
HYTE Y40 (Black) is a 50 L S‑Tier ATX mid‑tower with panoramic dual‑glass design, an included PCIe 4.0 vertical GPU riser, and modern airflow‑focused layout, ideal for clean, showcase‑style gaming and creator builds.
- Panoramic glass view: Two‑piece tempered glass front+side provides a nearly uninterrupted view of your components and lighting. [web:715][web:719]
- Vertical GPU ready: Includes a PCIe 4.0 riser cable and vertical mount for full‑height GPUs up to 422 mm long and 94 mm tall (80 mm recommended for best airflow). [web:714][web:715]
- Modern airflow layout: Side intake plus top and rear exhaust support up to a 360 mm top radiator and 280 mm side radiator, while two 120 mm fans come pre‑installed (bottom intake and rear exhaust). [web:714][web:719]
- Clean cable management: Separate “cable‑cave” behind the motherboard tray, ample routing channels and Velcro straps keep wiring hidden for a minimal look. [web:715]
- Next‑gen front I/O: USB‑C, dual USB‑A and combo audio jack on the top front edge give easy access for headsets, drives and devices. [web:719][web:721]
| Specification | Detail |
|---|---|
| Brand | HYTE |
| Model | Y40 |
| SKU | CS-HYTE-Y40-B |
| Colour | Black (Pitch Black) |
| Type | ATX Mid‑Tower |
| Volume | 50 L [web:714][web:716] |
| Case Dimensions | 439 × 240 × 472 mm (D × W × H) [web:714][web:716][web:720] |
| Weight (Net) | Approx. 8.6 kg [web:719] |
| Motherboard Support | Mini‑ITX, Micro‑ATX, ATX [web:714][web:716][web:720] |
| Power Supply Support | ATX PSUs up to 224 mm in length [web:714][web:718] |
| GPU Support (Vertical) | Max length 422 mm, max height 94 mm (80 mm or less recommended for best cooling) [web:714][web:715] |
| Expansion Slots | 6 low‑profile horizontal + 4 vertical full‑height (with riser) [web:719] |
| Drive Bays | 1 × 3.5"/2.5" combo + 2 × 2.5" SSD mounts [web:719] |
| Fan Support – Side | 2 × 120/140 mm [web:714][web:719] |
| Fan Support – Top | 3 × 120 mm [web:714][web:719] |
| Fan Support – Rear | 1 × 120 mm [web:719] |
| Fan Support – Bottom | 1 × 120/140 mm [web:719] |
| Pre‑Installed Fans | 2 × 120 mm non‑LED (1 bottom, 1 rear, 1300 rpm) [web:715][web:719] |
| Radiator Support – Top | Up to 360 mm [web:719] |
| Radiator Support – Side | Up to 280 mm (combined thickness up to 120 mm incl. fans) [web:727] |
| Radiator Support – Rear | 120 mm [web:719] |
| Front I/O | 2 × USB‑A 3.2 Gen1, 1 × USB‑C 3.2 Gen1, 1 × 3.5 mm combo audio [web:719][web:721] |
| Side & Bottom Filters | Removable dust filters on side, bottom and top [web:719] |
| Included Riser | PCIe 4.0 x16 vertical GPU riser cable [web:714][web:715] |
| Windowed Panels | Tempered glass front & side [web:715][web:719] |
| Warranty | Typically 2 Years (check local distributor) |
| Box Contents | HYTE Y40 case (Black), PCIe 4.0 riser, pre‑installed fans, accessory box (screws, zip ties), documentation [web:715][web:719] |
