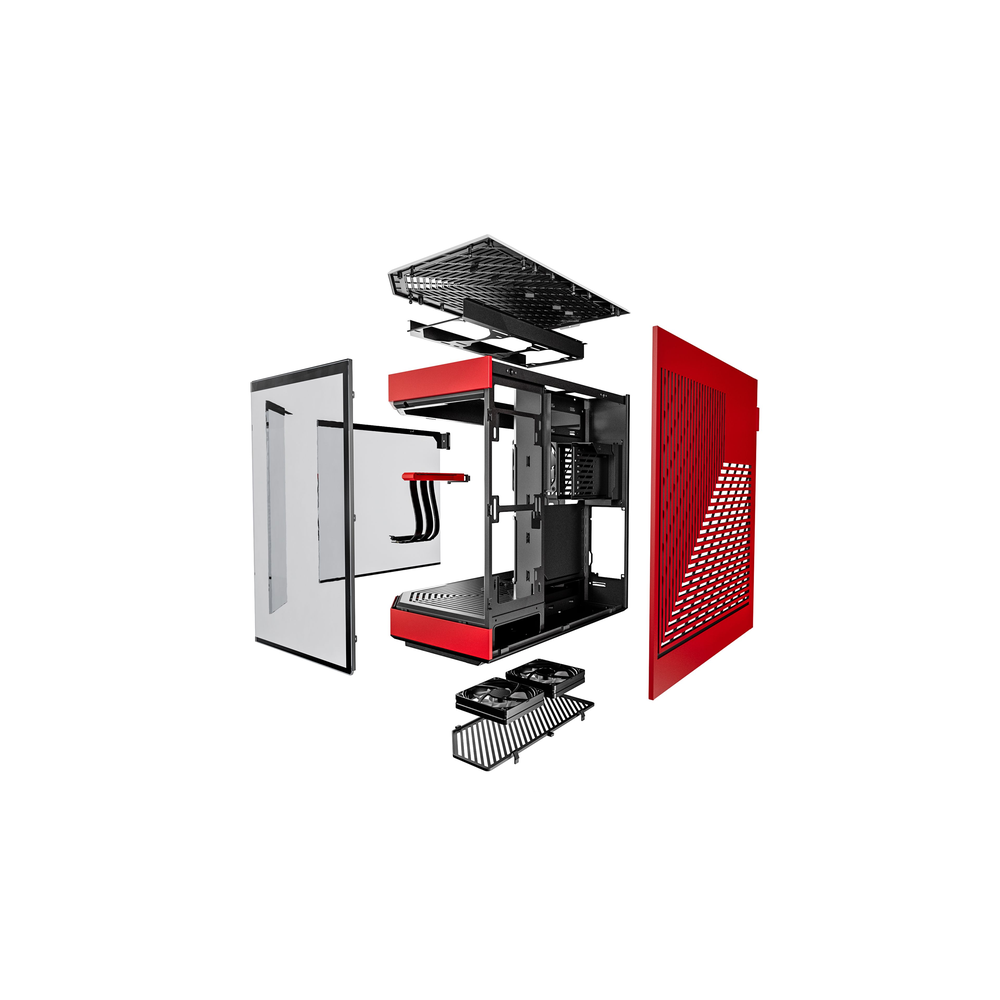

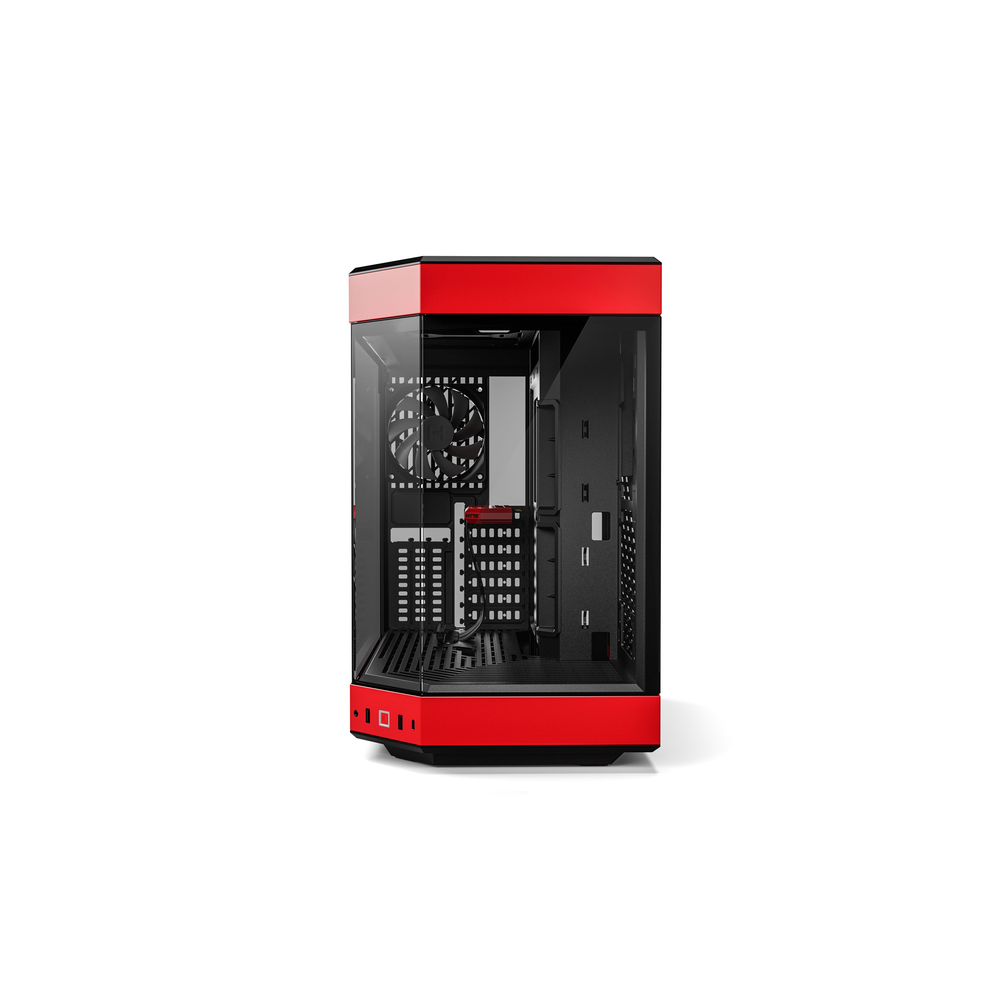

HYTE Y60 Dual-Chamber Panoramic ATX Mid-Tower Case (Black-Red / Black Cherry)

Rs. 16,999.00

atx mid tower

black cherry

black-red

cs-hyte-y60-br

Genuine & warrantedAuthorised stock, brand warranty

83560 26438Contact for querries

Secure checkoutUPI · cards · EMI

Fast shippingTracked · 5–7 days

01 — Datasheet

Technical specification

HYTE Y60 (Black-Red / Black Cherry) is a 60 L dual‑chamber ATX mid‑tower with a black‑and‑red Black Cherry colourway, 3‑piece panoramic tempered glass, an included PCIe 4.0 vertical GPU riser and three pre‑installed 120 mm fans, ideal for bold showcase builds.

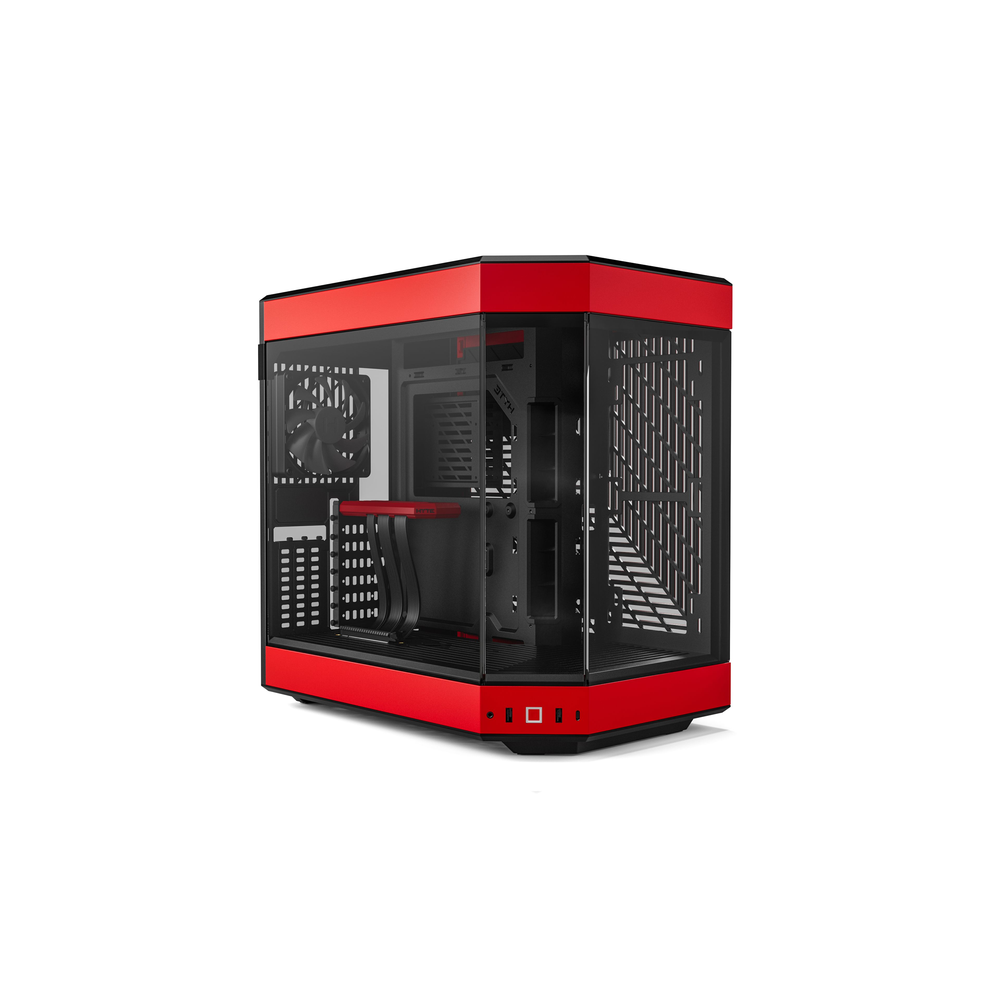

Black Cherry panoramic design: Red‑black exterior with 3‑sided tempered glass and no front corner pillar gives a clean wrap‑around view of your components. [web:835][web:840][web:868]

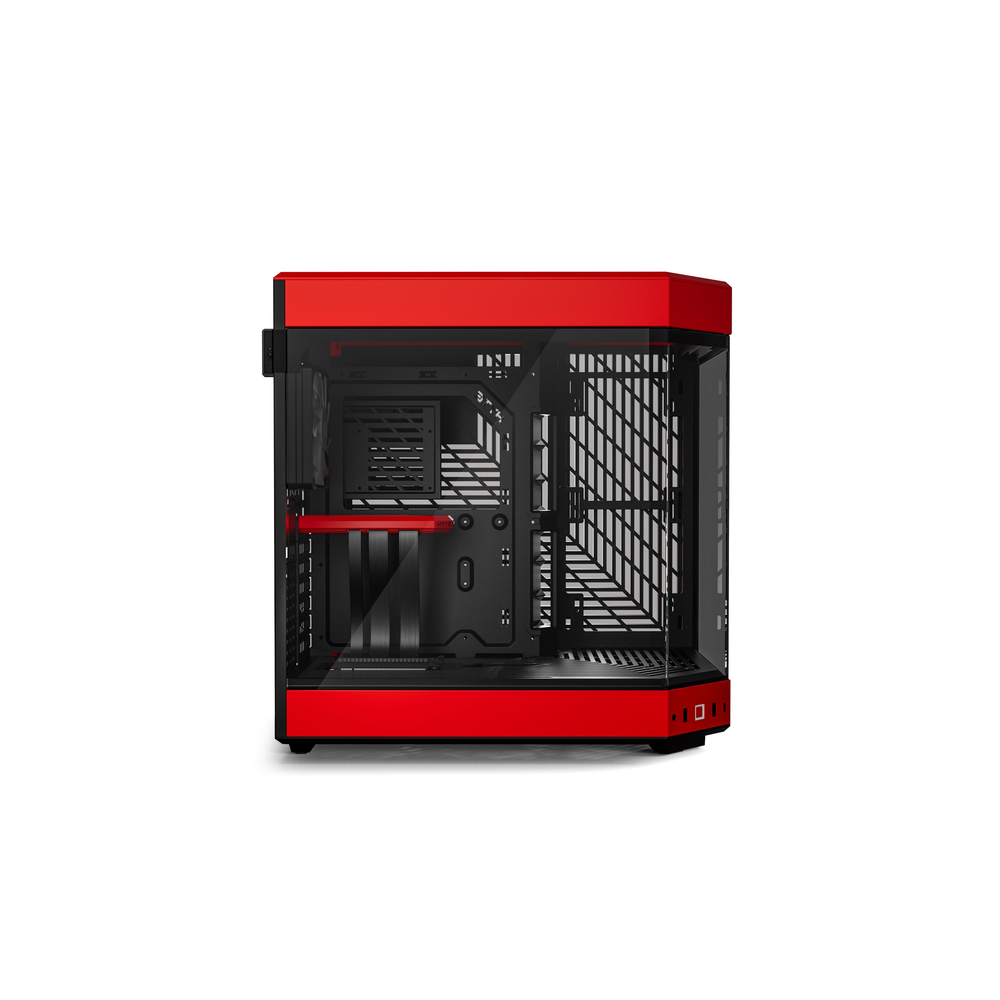

Vertical GPU only: Exclusively vertical GPU mounting with an included PCIe 4.0 x16 riser cable and protective canopy keeps your graphics card as the centrepiece. [web:835][web:868][web:873]

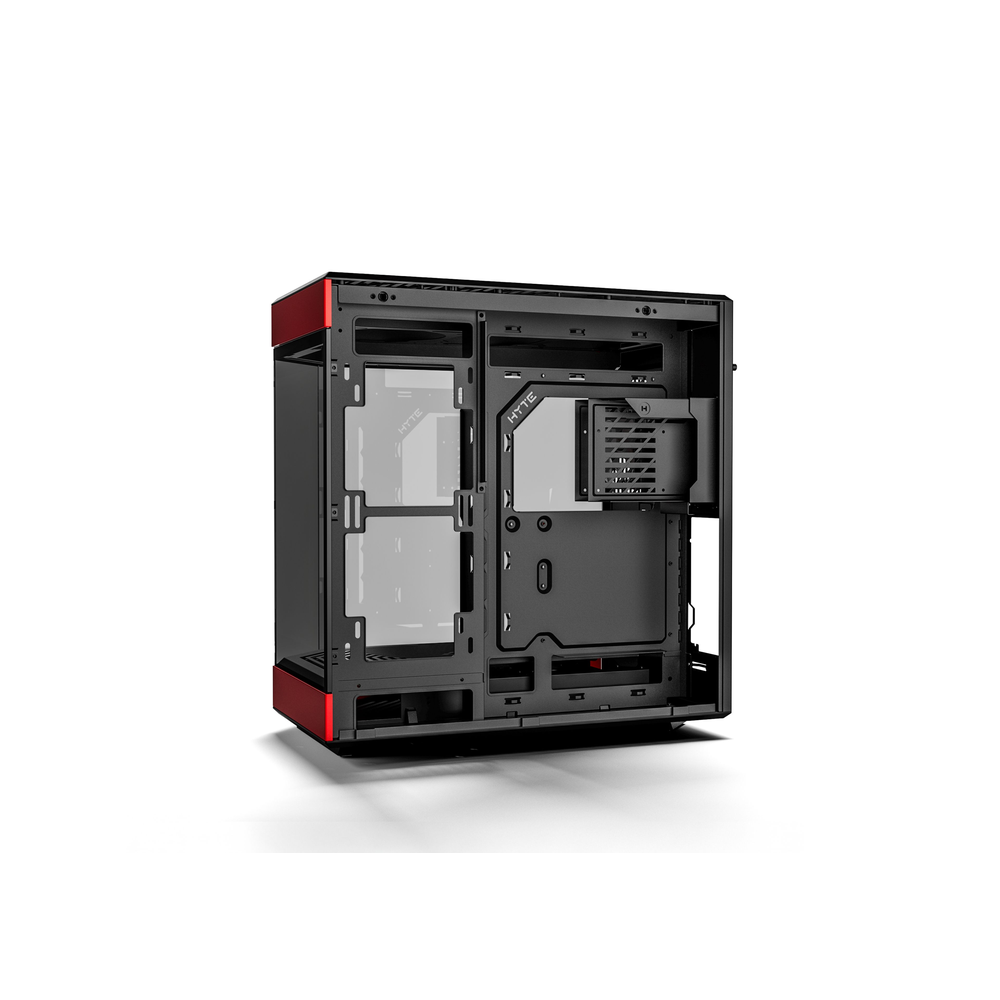

Dual‑chamber airflow: Antechamber construction hides PSU and cables in a separate chamber, improving airflow and making the main chamber look cleaner. [web:835][web:868]
Cold‑floor cooling: Two bottom intake fans push cool air up from the “cold floor” to eliminate hot spots around the GPU and CPU. [web:868][web:870]
High‑end hardware support: Supports E‑ATX boards, GPUs up to 375 mm long, ATX PSUs up to 235 mm and up to 2 × 3.5″ or 4 × 2.5″ drives. [web:835][web:868][web:872]

Specification	Detail
Brand	HYTE
Model	Y60
SKU	CS-HYTE-Y60-BR
Colour	Black-Red (Black Cherry)
Type	Dual Chamber Mid‑Tower ATX Case
Volume	60 L [web:835][web:870]
Case Dimensions	456 mm (L) × 285 mm (W) × 462 mm (H) [web:835][web:868][web:870]
Case Weight	9.6 kg [web:835][web:870][web:876]
Box Dimensions	535 mm (L) × 372 mm (W) × 540 mm (H) [web:835][web:870]
Box Weight	11.3 kg [web:835][web:870]
Materials	Tempered glass, steel, ABS [web:835][web:868][web:870]
Motherboard Support	E‑ATX, ATX, mATX, ITX [web:835][web:868][web:872]
Power Supply Support	ATX PSU up to 235 mm length [web:835][web:868][web:872]
GPU Support (Vertical only)	Max length 375 mm, max width 75 mm (60 mm or less recommended) [web:835][web:868][web:876]
Expansion Slots	3 + 7 half‑height slots [web:835][web:868]
Storage Support	2 × 3.5″ HDD or up to 4 × 2.5″ SSD [web:835][web:868]
Fan Support – Side	2 × 120 / 140 mm [web:835][web:870]
Fan Support – Top	3 × 120 mm [web:835][web:870]
Fan Support – Rear	1 × 120 mm [web:835][web:870]
Fan Support – Bottom	2 × 120 / 140 mm [web:835][web:870]
Pre‑Installed Fans	3 × 120 mm HYTE Flow FE12 (2 bottom intake, 1 rear exhaust, 1300 rpm) [web:835][web:868][web:870]
Radiator Support – Side	120 / 140 / 240 / 280 mm up to 150 mm thick [web:835][web:868][web:840]
Radiator Support – Top	120 / 240 / 360 mm up to 30 mm thick [web:835][web:868][web:840]
Radiator Support – Rear	120 mm [web:835][web:868][web:840]
CPU Cooler Height	Up to 160 mm [web:835][web:868][web:876]
Front I/O	2 × USB 3.0 Type‑A, 1 × USB 3.2 Gen 2 Type‑C, 1 × 3.5 mm audio/mic combo [web:835][web:868][web:840]
Dust Filters	Bottom, side, top removable filters [web:868][web:878]
PCIe Riser	PCIe 4.0 x16 vertical GPU riser cable (included) [web:835][web:868][web:840]
RGB Lighting	None (fans are non‑RGB) [web:868]
Warranty	2–3 Years (depending on region / seller) [web:868][web:872]

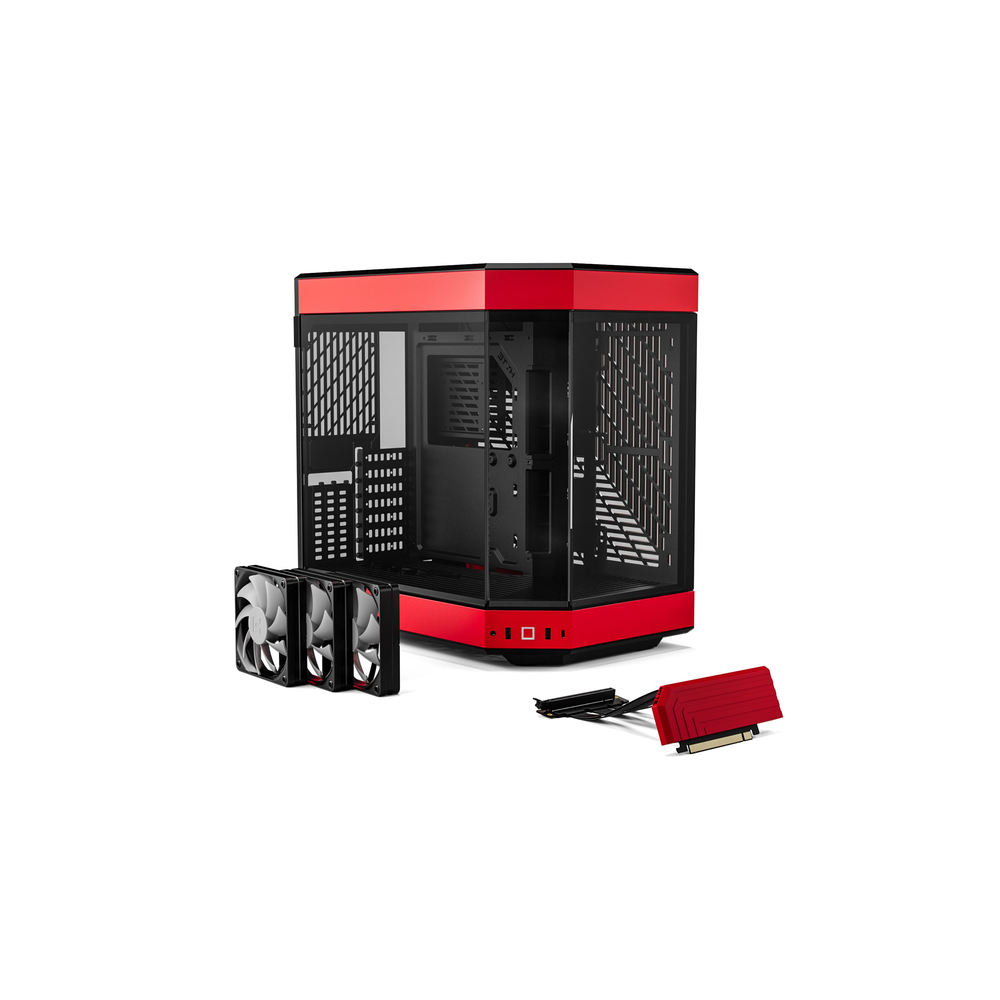

Box Contents	HYTE Y60 case (Black‑Red), PCIe 4.0 riser cable, 3 × 120 mm fans, accessory kit, documentation [web:835][web:868][web:840]
