Description

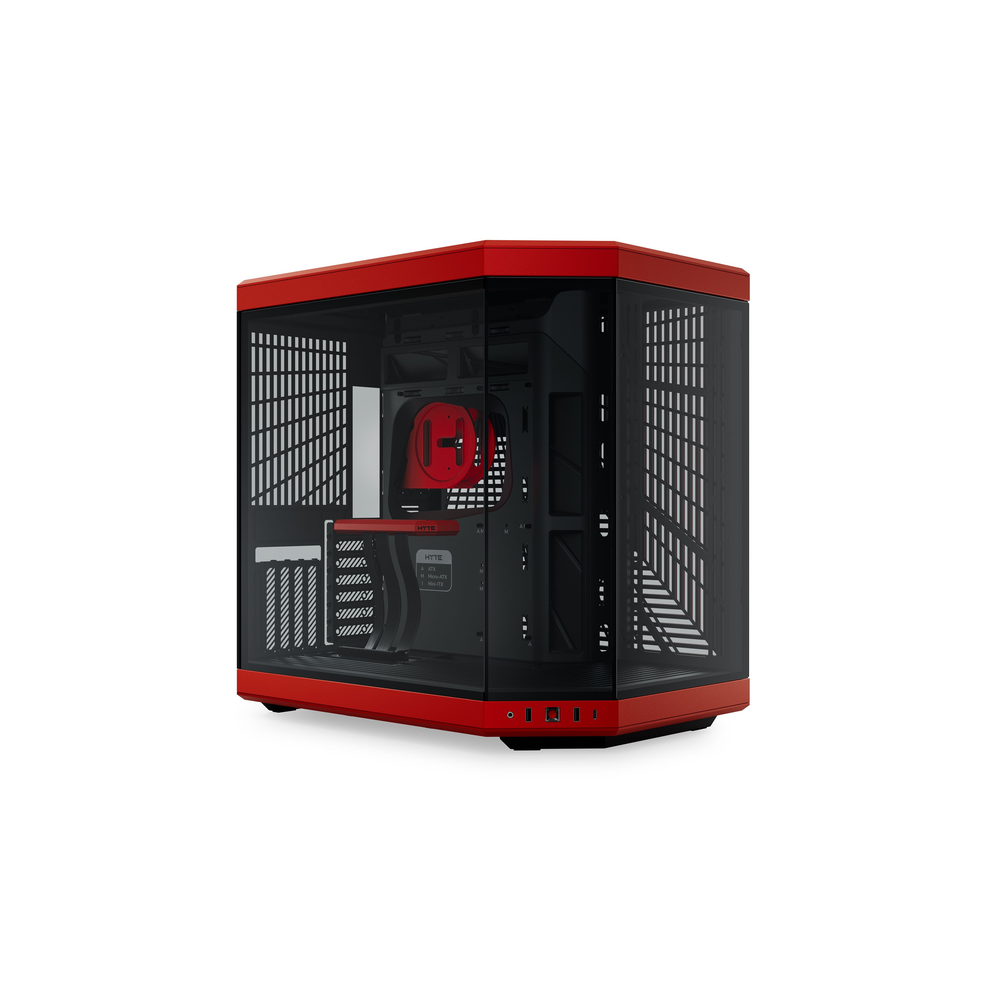

HYTE Y70 (Black Cherry) is a 70.7 L dual‑chamber E‑ATX mid‑tower in a Black‑Red “Black Cherry” finish, featuring 3‑piece panoramic tempered glass, support for massive 4‑slot vertical GPUs via an included PCIe 4.0 riser, and extreme cooling capacity for flagship gaming and creator builds.
-
>Black Cherry dual‑tone design: Striking black chassis with Cherry red accents and canopy, combined with wrap‑around tempered glass, makes your system a bold centrepiece. [web:919][web:973][web:976]
>Panoramic 3‑piece glass: Front and side tempered glass panels offer an unobstructed view of your hardware, while the dual‑chamber layout hides PSU and cables in the back. [web:919][web:971]
>4‑slot vertical GPU ready: Includes a PCIe 4.0 x16 riser cable and supports vertical GPUs up to 422 mm long and 105 mm thick (full 4‑slot cards). [web:919][web:971]
>High‑end cooling support: Mount up to 10 fans and radiators up to 360 mm on side, top and bottom, plus 120/140 mm at the rear, with clearance for 180 mm air coolers. [web:971]
>Spacious, easy‑build interior: Supports ITX to E‑ATX boards, long ATX PSUs and multiple drives, with clean cable‑routing channels, rubber grommets and Velcro straps. [web:971][web:973]
| Specification | Detail |
|---|---|
| Brand | HYTE |
| Model | Y70 |
| SKU | CS-HYTE-Y70-BR |
| Colour | Black-Red (Black Cherry) |
| Type | Dual Chamber Mid‑Tower ATX / E‑ATX Case |
| Exterior Dimensions | 470 × 320 × 470 mm (H × W × D) [web:971][web:919] |
| Volume | 70.7 L [web:919][web:973] |
| Materials | Steel, ABS, tempered glass [web:919][web:971] |
| Motherboard Support | ITX, mATX, ATX, E‑ATX [web:919][web:971][web:973] |
| PSU Support | ATX PSU up to 235 mm length [web:919][web:971] |
| Expansion Slots | 7 half‑height + 4 full‑height vertical (11 total) [web:971][web:919] |
| PCIe Riser | PCIe 4.0 x16 riser cable included [web:919][web:971] |
| Max GPU Length | 422 mm [web:971][web:919] |
| Max GPU Thickness | Up to 105 mm (4‑slot) [web:919] |
| Max CPU Cooler Height | 180 mm [web:971][web:919] |
| Storage Support | 2 × 3.5″ HDD + 4 × 2.5″ SSD (6 drives total) [web:971][web:919] |
| Fan Support – Front/Side | Up to 3 × 120 mm or 3 × 140 mm (side/top/bottom fan mounting points) [web:971] |
| Fan Support – Top | Up to 3 × 120 mm or 3 × 140 mm [web:971] |
| Fan Support – Rear | 1 × 120 mm or 1 × 140 mm [web:971][web:919] |
| Fan Support – Bottom | Up to 3 × 120 mm or 3 × 140 mm [web:971] |
| Pre‑Installed Fans | None (fanless; add your own fans) [web:973] |
| Radiator Support – Top | 120 / 140 / 280 / 360 mm [web:971][web:973] |
| Radiator Support – Side | 120 / 140 / 280 / 360 mm [web:971][web:973] |
| Radiator Support – Bottom | Up to 360 mm (depending on PSU and GPU clearance) [web:971] |
| Radiator Support – Rear | 120 / 140 mm [web:971] |
| Front I/O | 1 × USB‑C 3.2 Gen 2, 2 × USB‑A 3.2 Gen 1, 1 × 3.5 mm audio/mic combo [web:919][web:971] |
| Dust Filters | Removable anti‑dust filters on top, side and bottom [web:971][web:973] |
| Windowed Panels | 3‑piece panoramic tempered glass front & side [web:919][web:973] |
| Touch Screen | Not included (Black Cherry “Touch Infinite” is a separate SKU) [web:974][web:968] |
| Warranty | 4 Years (HYTE spec) [web:919] |
| Box Contents | HYTE Y70 case (Black Cherry), PCIe 4.0 riser, Black‑Red canopy, accessory kit, documentation [web:919][web:973] |
