Description

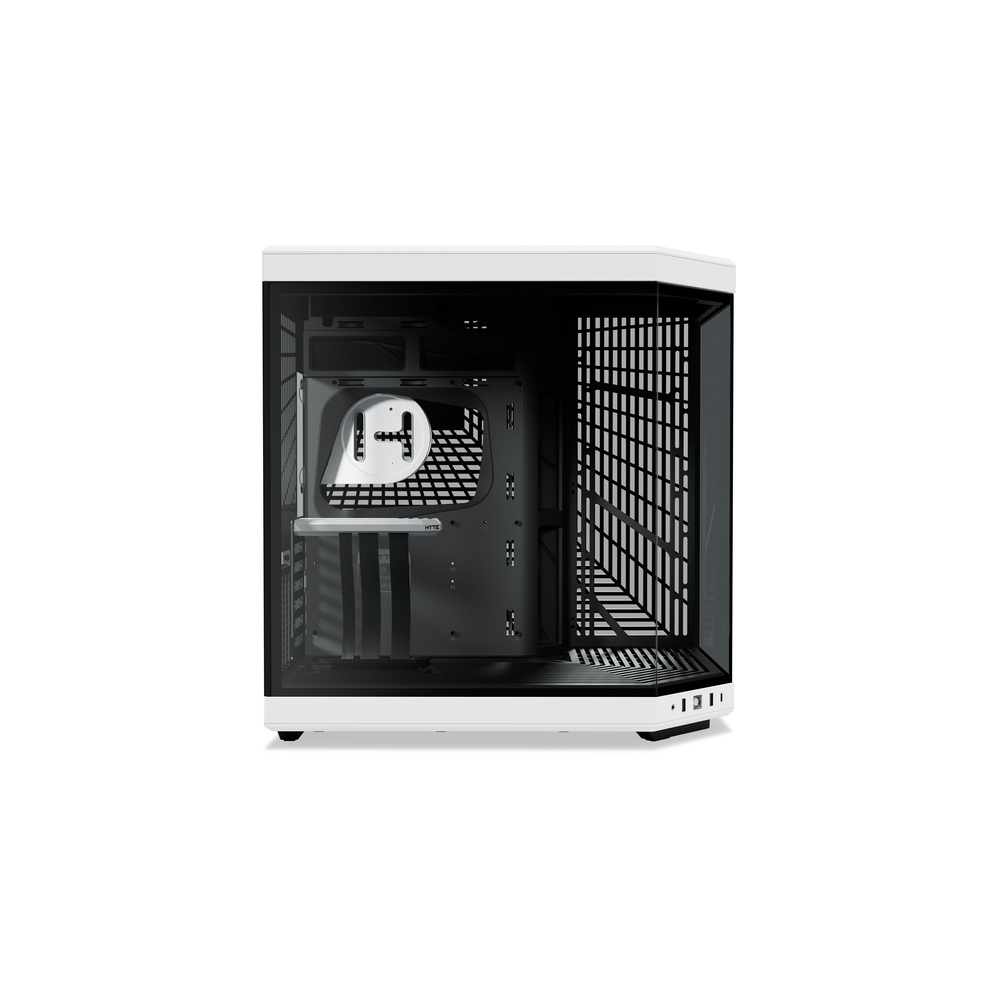

HYTE Y70 (Black-White / Panda) is a 70.7 L dual‑chamber E‑ATX mid‑tower with a black‑and‑white Panda colourway, 3‑piece panoramic tempered glass and support for massive 4‑slot vertical GPUs via an included PCIe 4.0 riser, ideal for high‑end showcase builds.
-
>Panda black‑white aesthetic: Contrasting black and white exterior with wrap‑around tempered glass puts your components on display while keeping cables hidden in the rear chamber. [web:918][web:984]
>4‑slot vertical GPU support: Ships with a PCIe 4.0 x16 riser and supports GPUs up to 422 mm long and 105 mm thick, perfect for modern flagship graphics cards. [web:918][web:990]
>Ginormous cooling capacity: Supports up to 10 fans and dual 360 mm radiators (top and side), plus 120/140 mm at the rear and bottom for serious air or liquid cooling. [web:918][web:984]
>Dual‑chamber layout: Front chamber is dedicated to your main hardware, while the rear chamber handles PSU, drives and cable management using L‑shaped rubber grommets and cable channels. [web:918][web:915]
>Builder‑friendly design: Tool‑less top and side panels, floating storage sleds and reusable Velcro straps make installing and maintaining your system straightforward. [web:918][web:984]
| Specification | Detail |
|---|---|
| Brand | HYTE |
| Model | Y70 |
| SKU | CS-HYTE-Y70-BW |
| Colour | Black-White (Panda) |
| Type | Dual Chamber Mid‑Tower ATX / E‑ATX Case |
| Exterior Dimensions | 470 × 320 × 470 mm (H × W × D) [web:918][web:984][web:990] |
| Volume | 70.7 L [web:918][web:984] |
| Materials | Steel, tempered glass, ABS [web:918][web:984] |
| Motherboard Support | ITX, mATX, ATX, E‑ATX [web:918][web:921][web:990] |
| PSU Support | ATX PSU up to 235 mm length [web:918][web:921] |
| Expansion Slots | 7 half‑height + 4 full‑height vertical [web:918][web:921] |
| PCIe Riser | Included PCIe 4.0 x16 riser cable [web:918][web:990] |
| Max GPU Length | 422 mm [web:918][web:921][web:990] |
| Max GPU Thickness | 105 mm (4‑slot) [web:918][web:921] |
| Max CPU Cooler Height | 180 mm [web:918][web:921] |
| Storage Support | 2 × 3.5″ HDD or 4 × 2.5″ SSD (floating sleds) [web:918][web:921] |
| Fan Support – Top | 3 × 120 mm or 2 × 140 mm [web:918][web:921] |
| Fan Support – Side | 3 × 120 mm or 2 × 140 mm [web:918][web:921] |
| Fan Support – Rear | 1 × 120 mm or 1 × 140 mm [web:918][web:921] |
| Fan Support – Bottom | 3 × 120 mm or 2 × 140 mm @ 32 mm thick [web:918][web:921] |
| Pre‑Installed Fans | None (fanless; add your own fans) [web:984][web:990] |
| Radiator Support – Top | 120–360 mm, 140–280 mm up to 68 mm thick [web:918][web:921] |
| Radiator Support – Side | 120–360 mm, 140–280 mm up to 125 mm thick [web:918][web:921] |
| Radiator Support – Rear | 120 / 140 mm [web:918][web:921] |
| Radiator Support – Bottom | Up to 360 mm (depending on PSU/GPU) [web:984][web:990] |
| Front I/O | 1 × USB‑C 3.2 Gen 2, 2 × USB‑A 3.2 Gen 1, 1 × 3.5 mm audio/mic combo [web:918][web:921][web:990] |
| Dust Filters | Top, side and bottom removable filters [web:918][web:921] |
| Windowed Panels | 3‑piece panoramic tempered glass front & side [web:918][web:984] |
| Touch Screen | None (Panda Touch Infinite is a separate SKU) [web:982][web:988] |
| Warranty | 4 Years [web:918][web:921] |
| Box Contents | HYTE Y70 case (Black‑White / Panda), PCIe 4.0 riser, accessory kit, documentation [web:918][web:984][web:990] |
