Description

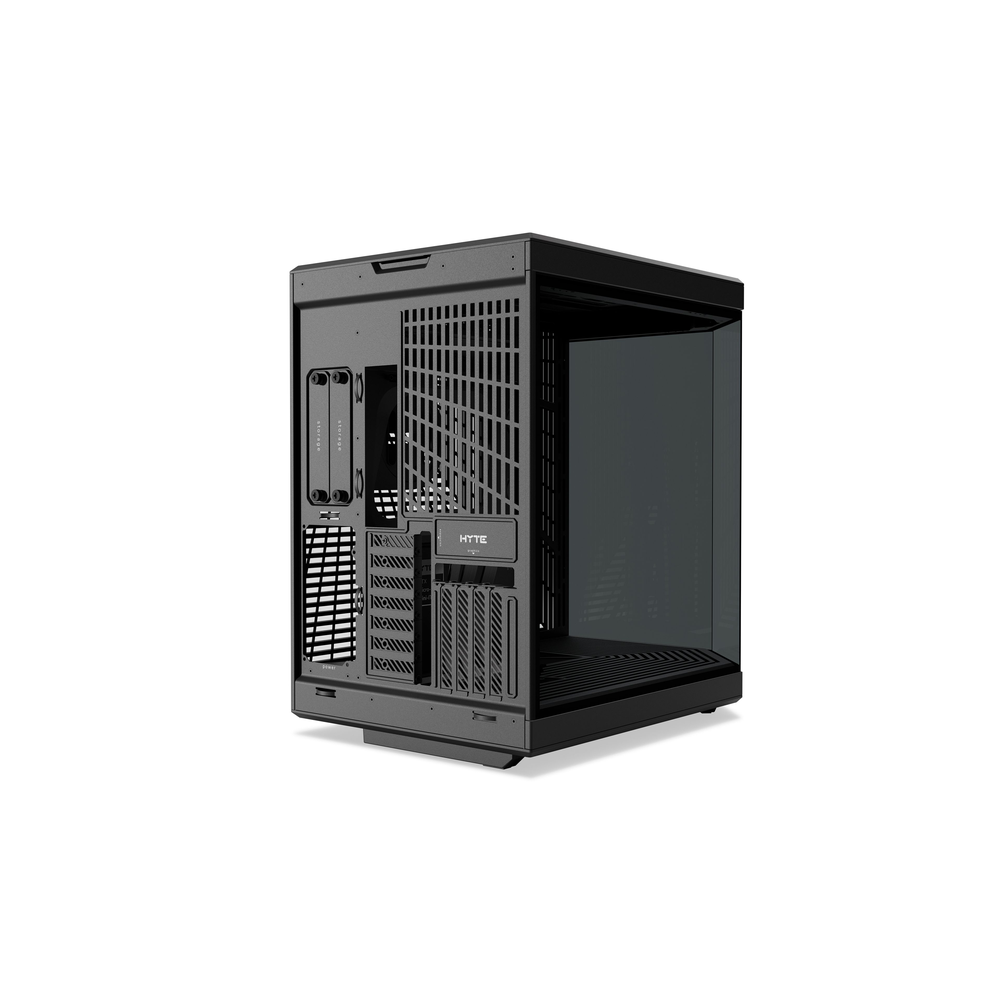

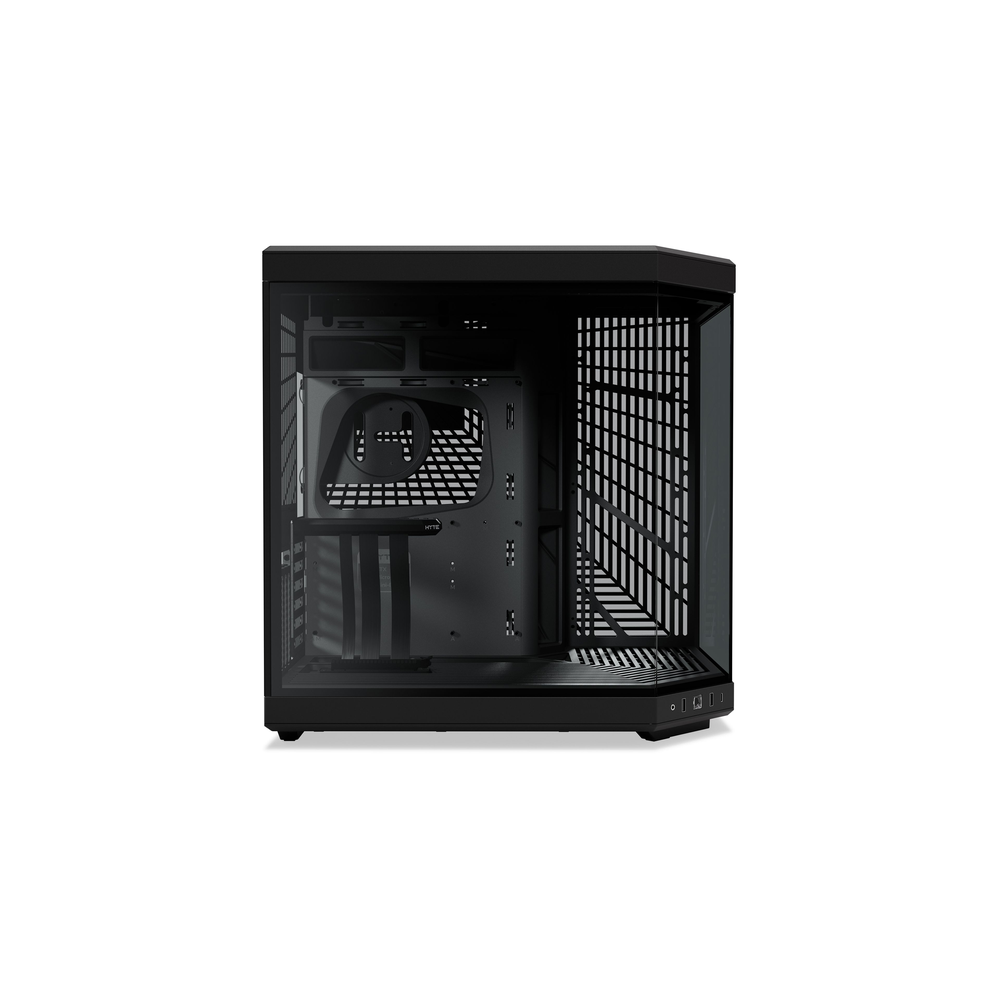

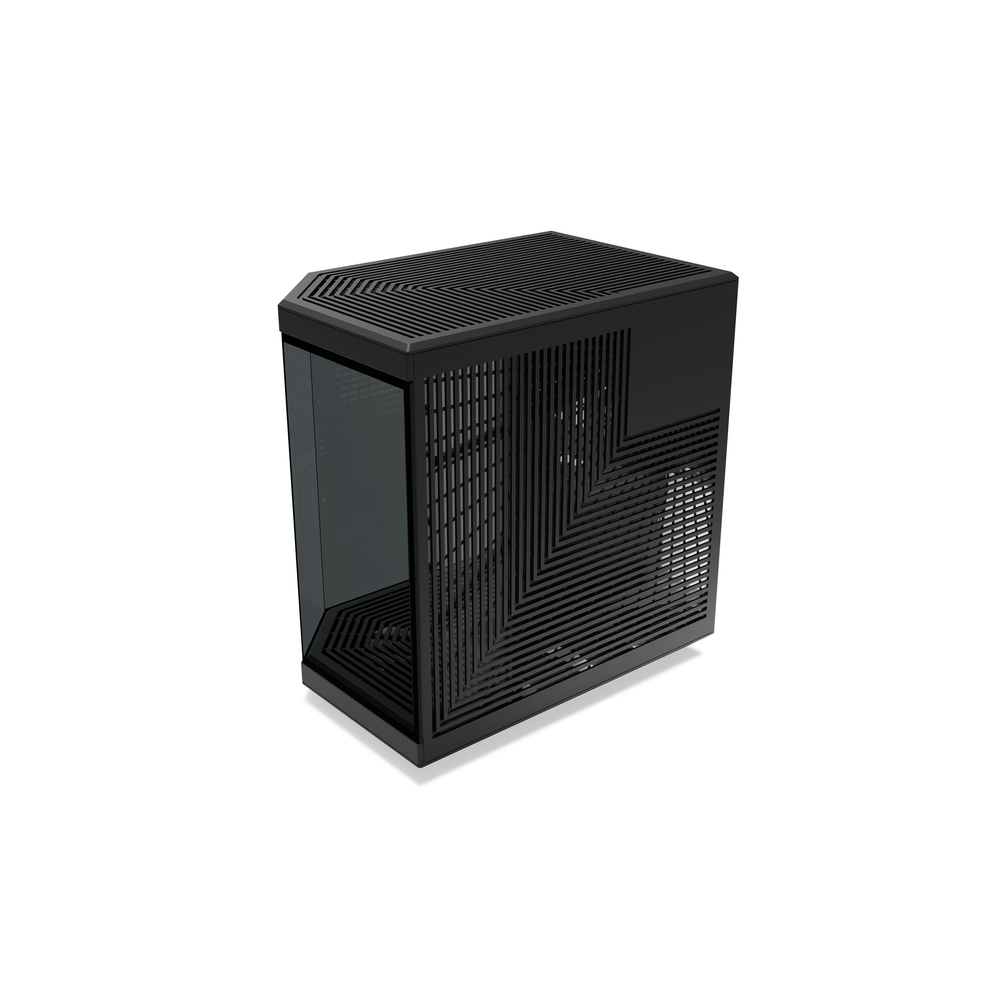

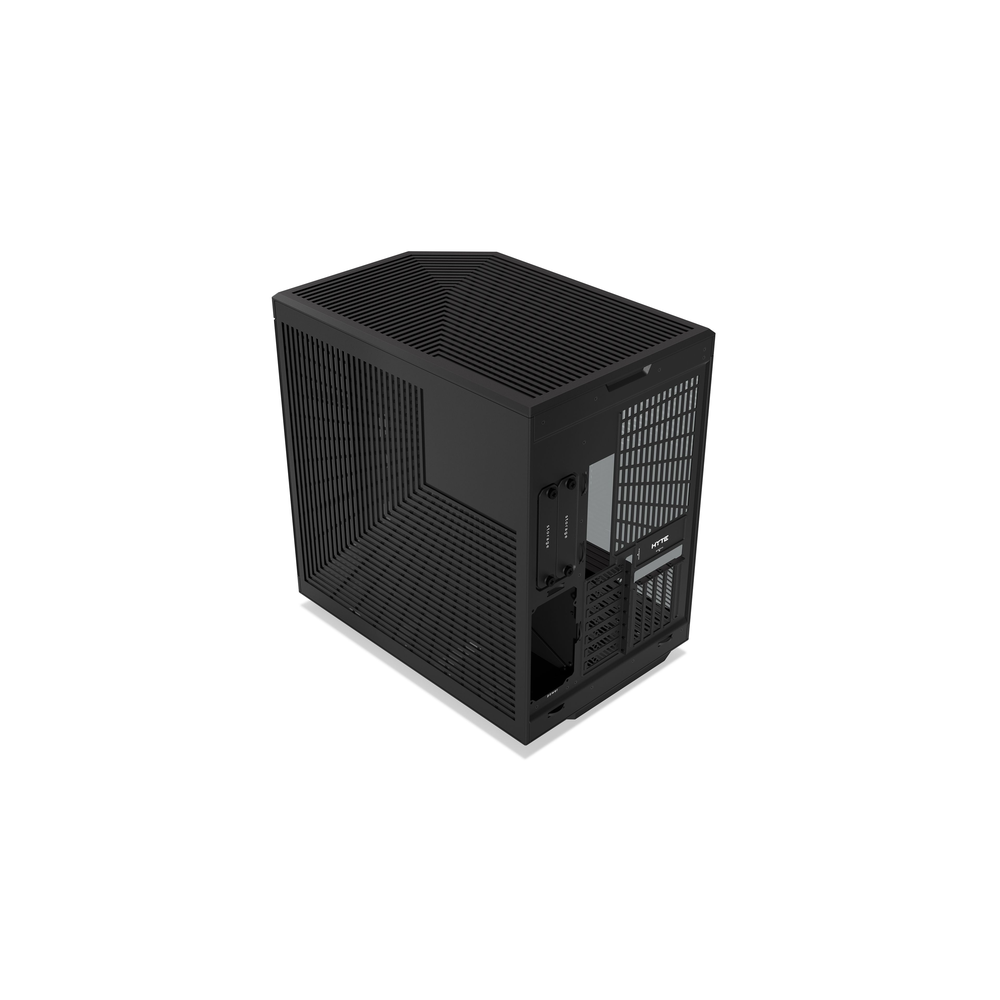

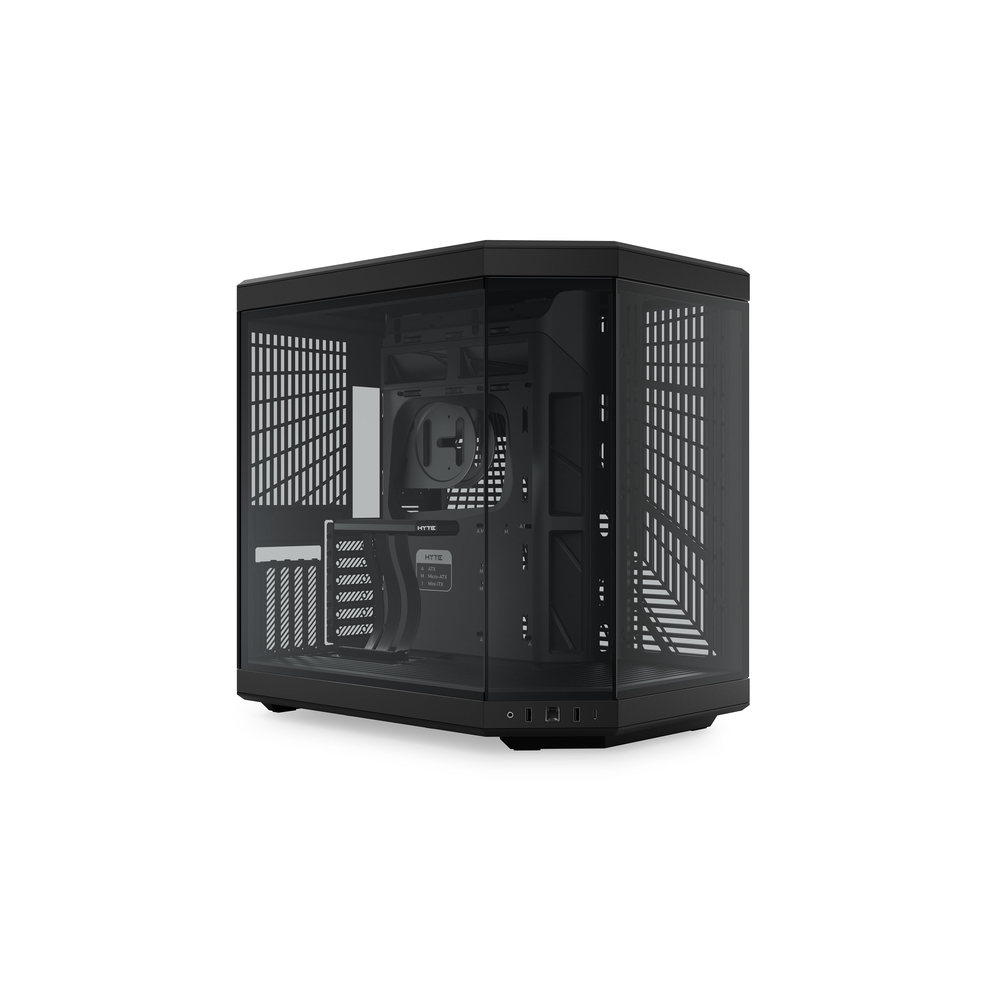

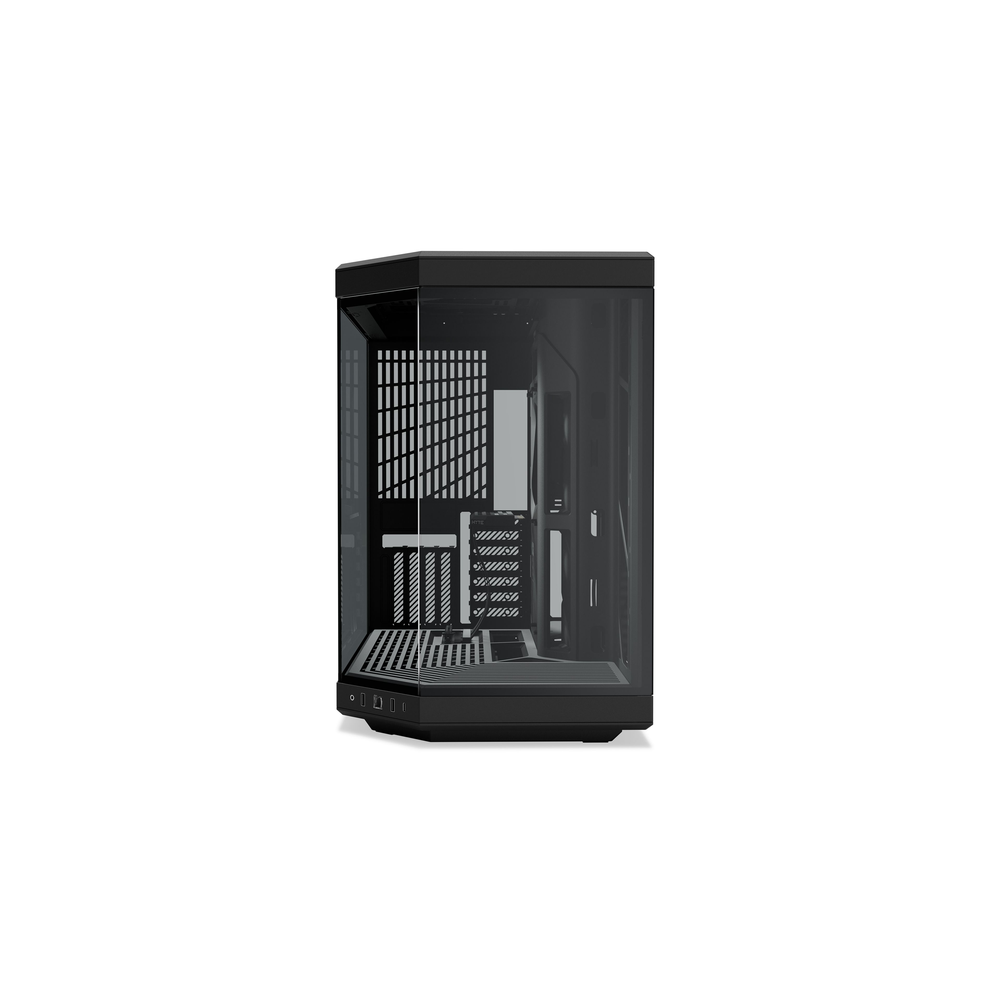

HYTE Y70 (Pitch Black) is a 70.7 L dual‑chamber ATX mid‑tower with 3‑piece panoramic glass, support for massive 4‑slot vertical GPUs via an included PCIe 4.0 riser, and next‑gen cooling capacity for high‑end gaming and creator builds.
-
>Panoramic 3‑piece glass: Modern octagonal design with wrap‑around tempered glass puts your components front and centre while hiding cables in the rear chamber. [web:915][web:842]
>4‑slot vertical GPU ready: Ships with a PCIe 4.0 x16 riser and supports GPUs up to 422 mm long and 105 mm thick for next‑gen flagship cards. [web:915][web:922]
>Massive cooling support: Dual 360 mm radiator support (top + side), room for up to 10 fans, and generous CPU cooler and PSU clearances. [web:915][web:922]
>Clean dual‑chamber layout: Dual‑chamber interior with L‑shaped rubber grommet, cable channels and Velcro straps keeps the front glass area clean. [web:915][web:923]
>Modern front I/O: USB‑C 3.2 Gen 2, dual USB‑A 3.2 Gen 1, and a 3.5 mm combo jack on the front edge for easy access. [web:915][web:922]
| Specification | Detail |
|---|---|
| Brand | HYTE |
| Model | Y70 |
| SKU | CS-HYTE-Y70-B |
| Colour | Pitch Black |
| Type | Dual Chamber Mid‑Tower ATX Case |
| Exterior Dimensions | 470 × 320 × 470 mm (H × W × D) [web:915][web:922] |
| Volume | 70.7 L [web:915] |
| Materials | Steel, tempered glass, ABS [web:915][web:922] |
| Motherboard Support | ITX, mATX, ATX, E‑ATX [web:915][web:921] |
| PSU Support | ATX PSU up to 235 mm length [web:915][web:921][web:922] |
| Expansion Slots | 7 half‑height + 4 full‑height (vertical) [web:915][web:922] |
| PCIe Riser | PCIe 4.0 x16 riser cable included [web:915][web:923] |
| Max GPU Length | Up to 422 mm [web:922][web:923] |
| Max GPU Thickness | Up to 105 mm (4‑slot) [web:915][web:919] |
| Max CPU Cooler Height | Up to 180 mm [web:915][web:919][web:922] |
| Storage Support | 2 × 3.5" HDD or 4 × 2.5" SSD [web:915][web:921][web:922] |
| Fan Support – Top | 3 × 120 mm or 2 × 140 mm [web:915][web:922] |
| Fan Support – Side | 3 × 120 mm or 2 × 140 mm [web:915][web:922] |
| Fan Support – Rear | 1 × 120 mm or 1 × 140 mm [web:915][web:922] |
| Fan Support – Bottom | Up to 3 × 120 mm (depending on PSU length) [web:915] |
| Pre‑Installed Fans | None (fanless out of the box; add your own) [web:915][web:922] |
| Radiator Support – Top | Up to 360 mm [web:915][web:922][web:921] |
| Radiator Support – Side | Up to 360 mm [web:915][web:922][web:921] |
| Radiator Support – Rear | 120 / 140 mm [web:915][web:922] |
| Front I/O | 1 × USB‑C 3.2 Gen 2, 2 × USB‑A 3.2 Gen 1, 1 × 3.5 mm audio/mic combo [web:915][web:921][web:922] |
| Dust Filters | Top, side, bottom removable filters [web:915][web:921] |
| Windowed Panels | 3‑piece tempered glass panoramic front/side [web:915][web:842] |
| Touch Screen | None on this model (Touch Infinite is a separate SKU) [web:916][web:926] |
| Warranty | 4 Years [web:915][web:919] |
| Box Contents | HYTE Y70 case (Pitch Black), PCIe 4.0 riser, accessory kit, documentation [web:915][web:923] |
