Description

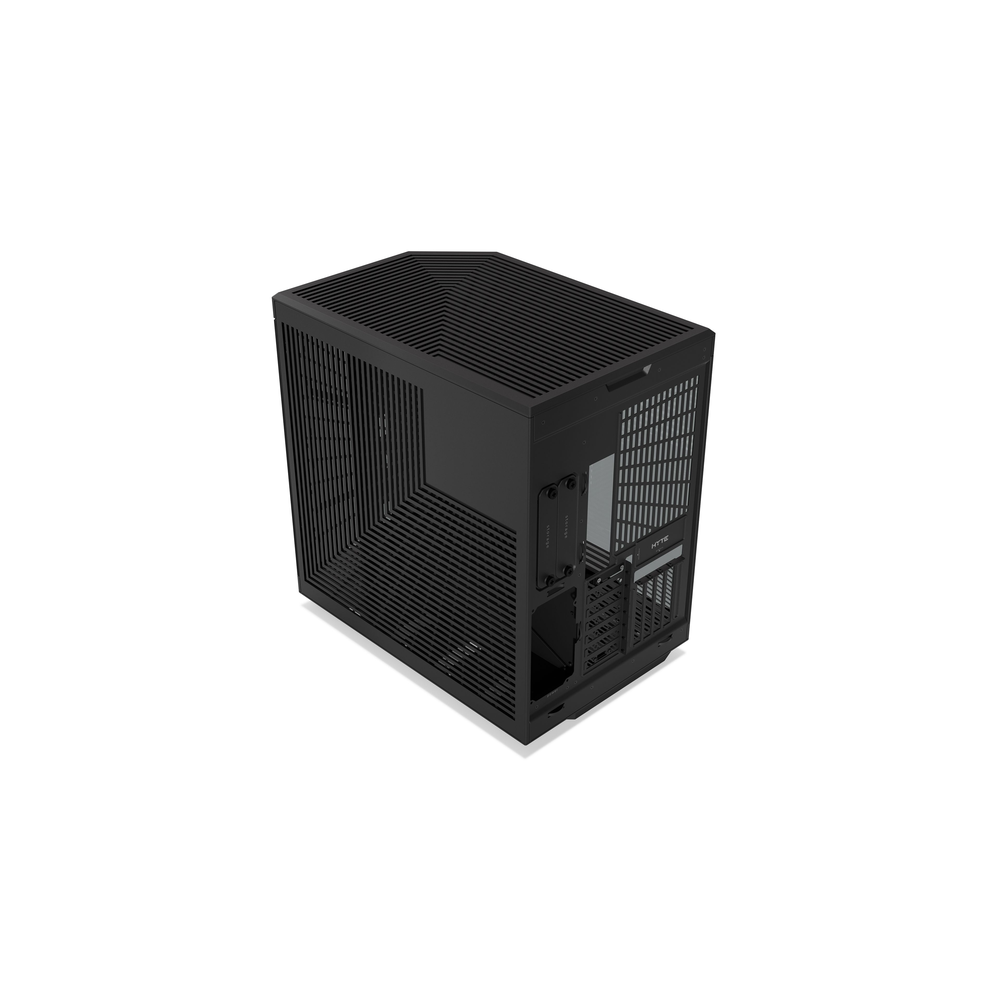

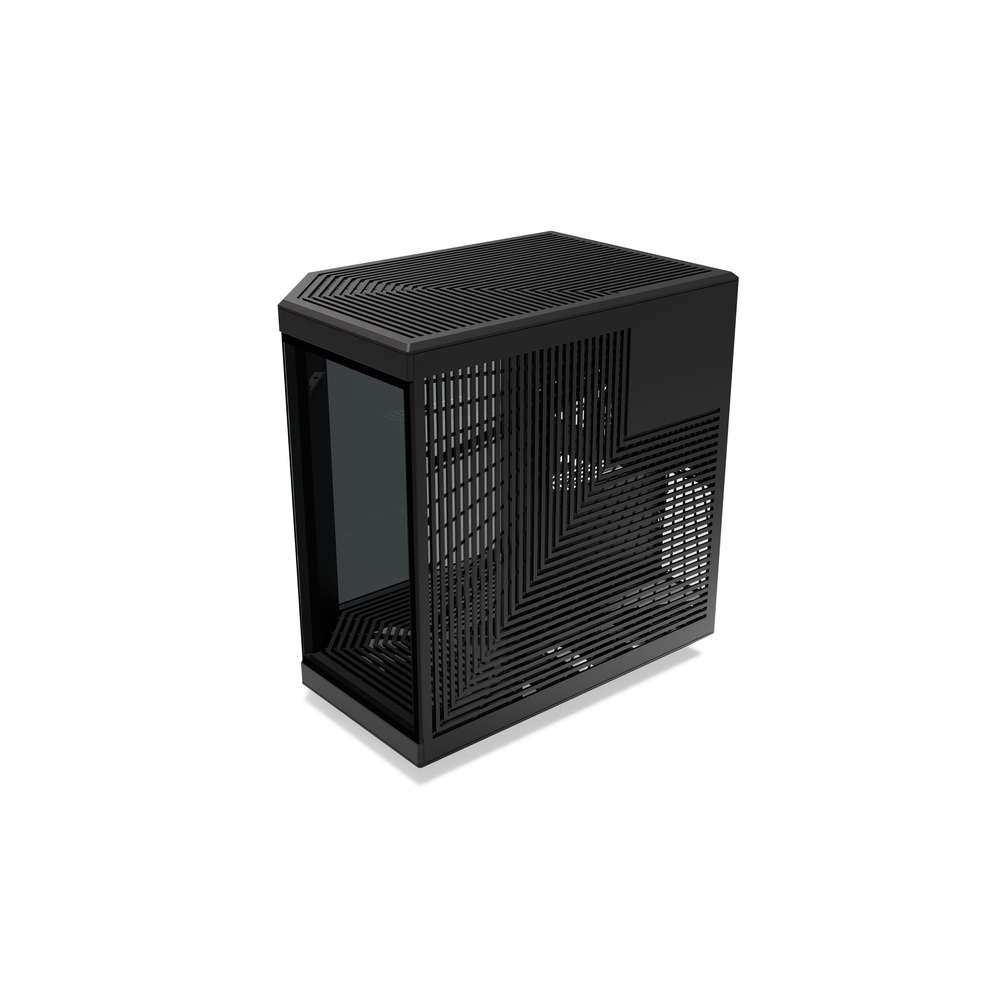

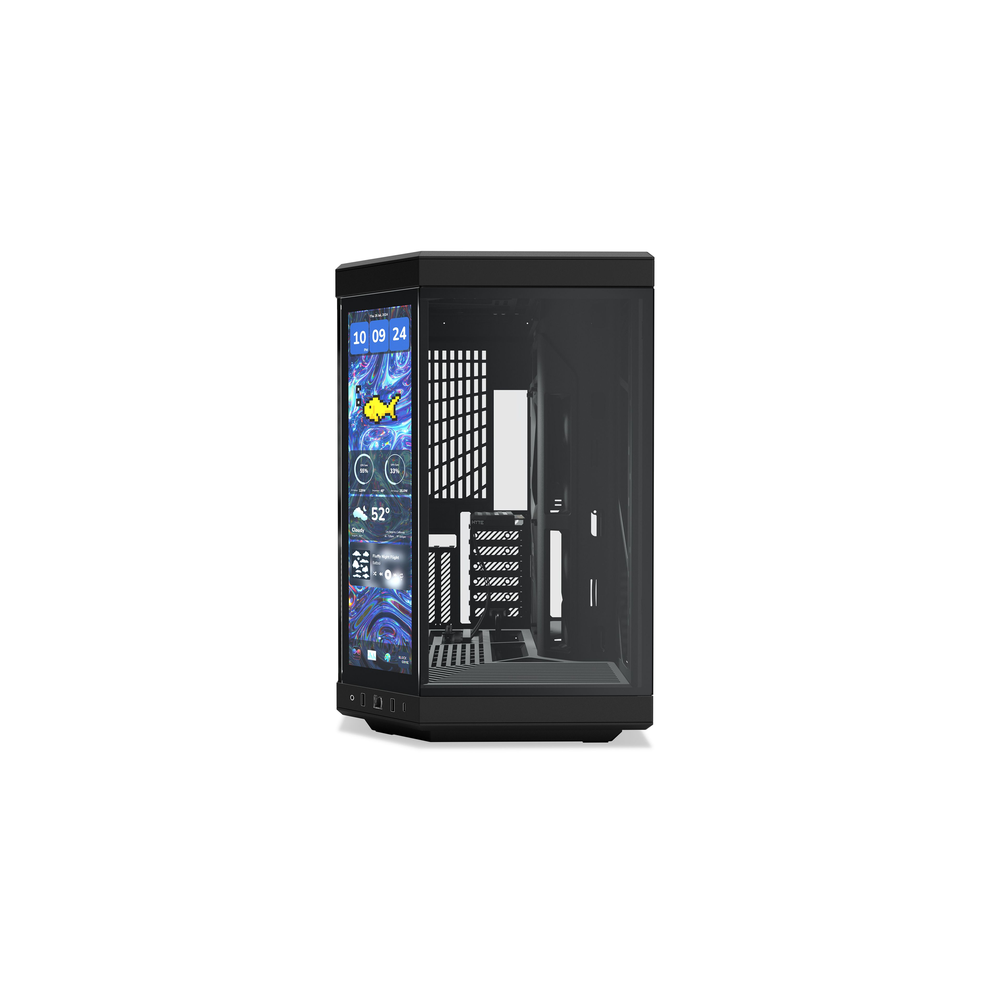

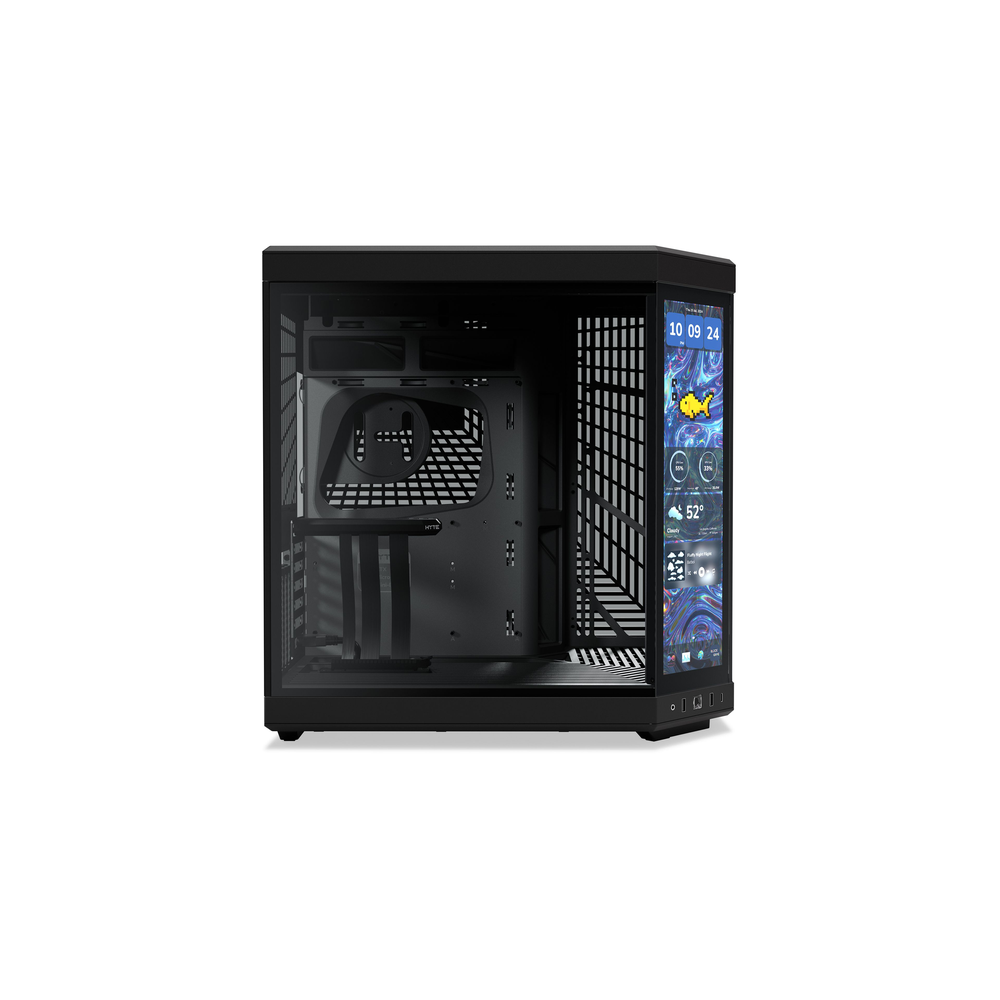

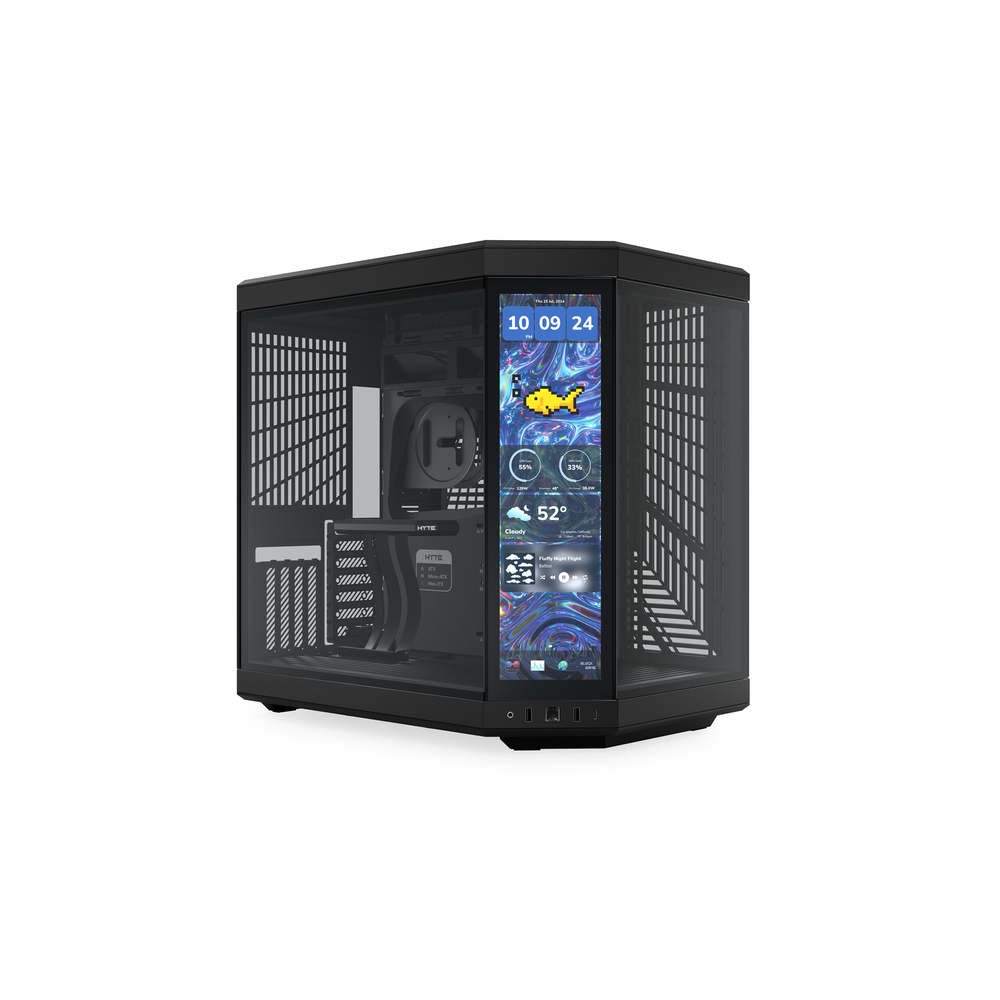

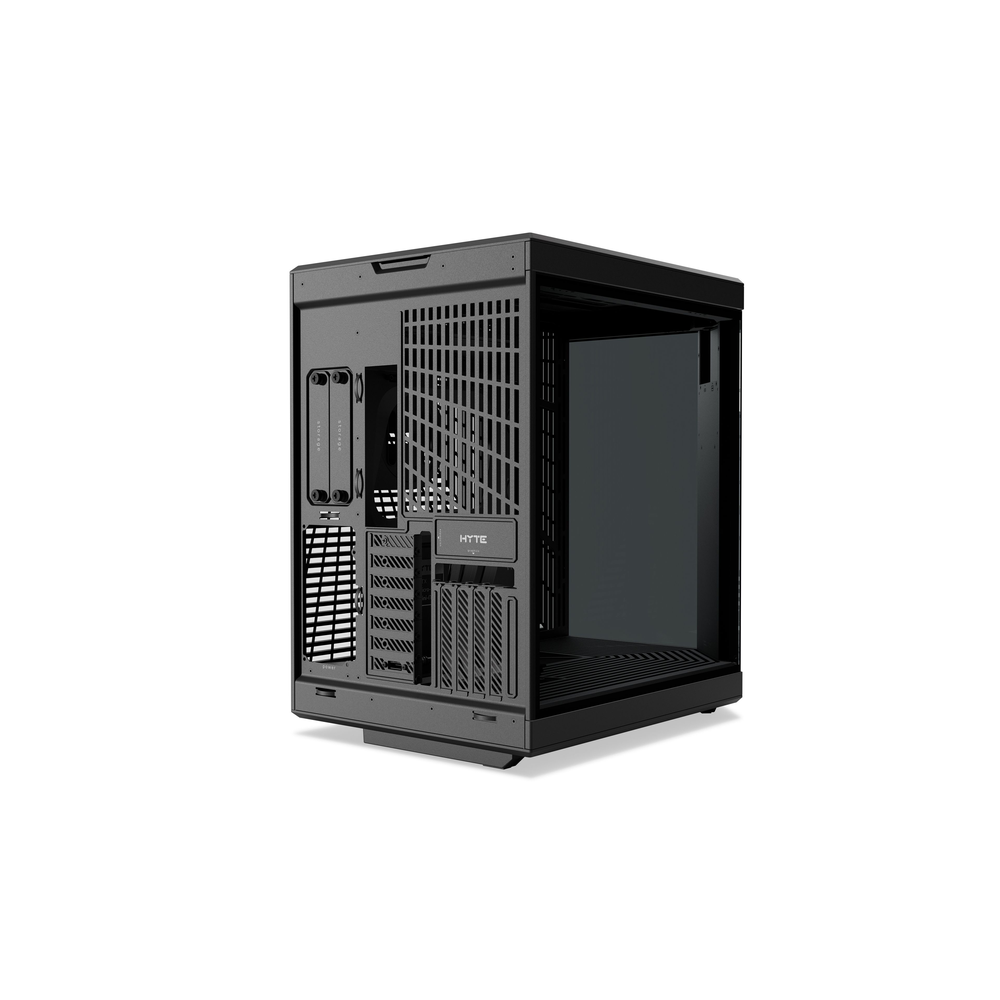

HYTE Y70 Touch Infinite (Pitch Black) combines the 70.7 L dual‑chamber Y70 chassis with a 14.9" integrated IPS touchscreen in a stealthy Pitch Black finish, delivering a panoramic showcase build plus an interactive side display for system stats, media, widgets and more via HYTE Nexus Touch.
-
>14.9" integrated IPS touchscreen: 682 × 2560 (2.5K) capacitive IPS panel at 60 Hz with 10‑point multi‑touch, 178 PPI, 500 nits brightness and 1000:1 contrast, driven by HYTE Nexus Touch for fully custom dashboards and layouts. [web:916][web:1003]
>Pitch Black dual‑chamber design: Matte black version of the Y70 with 3‑piece panoramic tempered glass and a rear chamber to hide PSU, drives and cables while the front stays clean. [web:916][web:1043]
>4‑slot vertical GPU support: Supports GPUs up to 422 mm long and 105 mm thick using the included PCIe 4.0 x16 luxury riser, with extra space between the card and the glass. [web:916][web:1039][web:1043]
>Ginormous cooling capacity: Up to 10 fans and multiple radiators (360 mm top and side plus 120/140 mm rear and bottom) let you cool flagship CPU‑GPU combos comfortably. [web:916][web:1039][web:1040]
>Easy to build and maintain: Tool‑less top and side panels, floating storage sleds, L‑shaped rubber grommet and cable‑routing channels simplify building, cleaning and upgrades. [web:916][web:1039]
| Specification | Detail |
|---|---|
| Brand | HYTE |
| Model | Y70 Touch Infinite |
| Part Number | CS-HYTE-Y70TTI-BB |
| Colour | Pitch Black |
| Type | Dual Chamber Mid‑Tower ATX / E‑ATX Case with Integrated Touchscreen |
| Exterior Dimensions | 470 × 320 × 470 mm (H × W × D) [web:916][web:1039] |
| Volume | 70.7 L [web:916][web:1039] |
| Materials | Steel, tempered glass, ABS [web:916][web:1039] |
| Net Weight | ≈ 11.1 kg (case + screen, per distributor specs) [web:1039][web:1043] |
| Motherboard Support | ITX, mATX, ATX, E‑ATX [web:916][web:1039][web:1043] |
| PSU Support | ATX PSU up to 235 mm length [web:916][web:1039] |
| Expansion Slots | 7 half‑height + 4 full‑height vertical [web:916][web:1039] |
| PCIe Riser | Included PCIe 4.0 x16 luxury riser [web:916][web:1039] |
| Max GPU Length | 422 mm [web:916][web:1039][web:924] |
| Max GPU Thickness | 105 mm (4‑slot) [web:916][web:1039] |
| Max CPU Cooler Height | 180 mm [web:916][web:1039] |
| Storage Support | 2 × 3.5″ HDD or 4 × 2.5″ SSD [web:916][web:1039] |
| Fan Support – Top | 3 × 120 mm or 2 × 140 mm [web:916][web:1039] |
| Fan Support – Side | 3 × 120 mm or 2 × 140 mm [web:916][web:1039] |
| Fan Support – Rear | 1 × 120 mm or 1 × 140 mm [web:916][web:1039] |
| Fan Support – Bottom | 3 × 120 mm or 2 × 140 mm @ 32 mm thick [web:916][web:1039] |
| Pre‑Installed Fans | None (fanless; add your own) [web:1043] |
| Radiator Support – Top | 120–360 mm, 140–280 mm up to ~68 mm thick [web:916][web:1040] |
| Radiator Support – Side | 120–360 mm, 140–280 mm up to ~125 mm thick [web:916][web:1040] |
| Radiator Support – Rear | 120 / 140 mm [web:916][web:1040] |
| Radiator Support – Bottom | Up to 360 mm (depending on PSU/GPU) [web:916][web:1040] |
| Front I/O | 1 × USB‑C 3.2 Gen 2, 2 × USB‑A 3.2 Gen 1, 1 × 3.5 mm audio/mic combo [web:916][web:1043] |
| Dust Filters | Top, side and bottom removable filters [web:916][web:1043] |
| Windowed Panels | 3‑piece panoramic tempered glass front & side [web:916][web:1039] |
| Touchscreen Panel Type | IPS, 14.9″ diagonal [web:916][web:1003] |
| Touchscreen Resolution | 682 × 2560 (2.5K) [web:916][web:1003] |
| Refresh Rate | 60 Hz [web:916][web:1003] |
| Brightness | 500 nits [web:916][web:1003] |
| Contrast Ratio | 1000:1 [web:916][web:1003] |
| Viewing Angle | 80 degrees [web:916][web:1003] |
| PPI / Dot Pitch | 178 PPI, 0.007 mm dot pitch [web:916][web:1003] |
| Response Time | 30 ms [web:916][web:1003] |
| Touch Input | 10‑point multi‑touch (capacitive) [web:916][web:1003] |
| Display Inputs | USB 2.0 header, SATA power, DisplayPort [web:916][web:1003] |
| Software | HYTE Nexus Touch for layouts, widgets and themes [web:916][web:1003] |
| Warranty | 4 Years (case + touchscreen, HYTE spec) [web:916][web:1039] |
| Box Contents | HYTE Y70 Touch Infinite case (Pitch Black), integrated 14.9" IPS touchscreen, PCIe 4.0 riser, display cables, accessory kit, documentation [web:916][web:1039] |
