Description

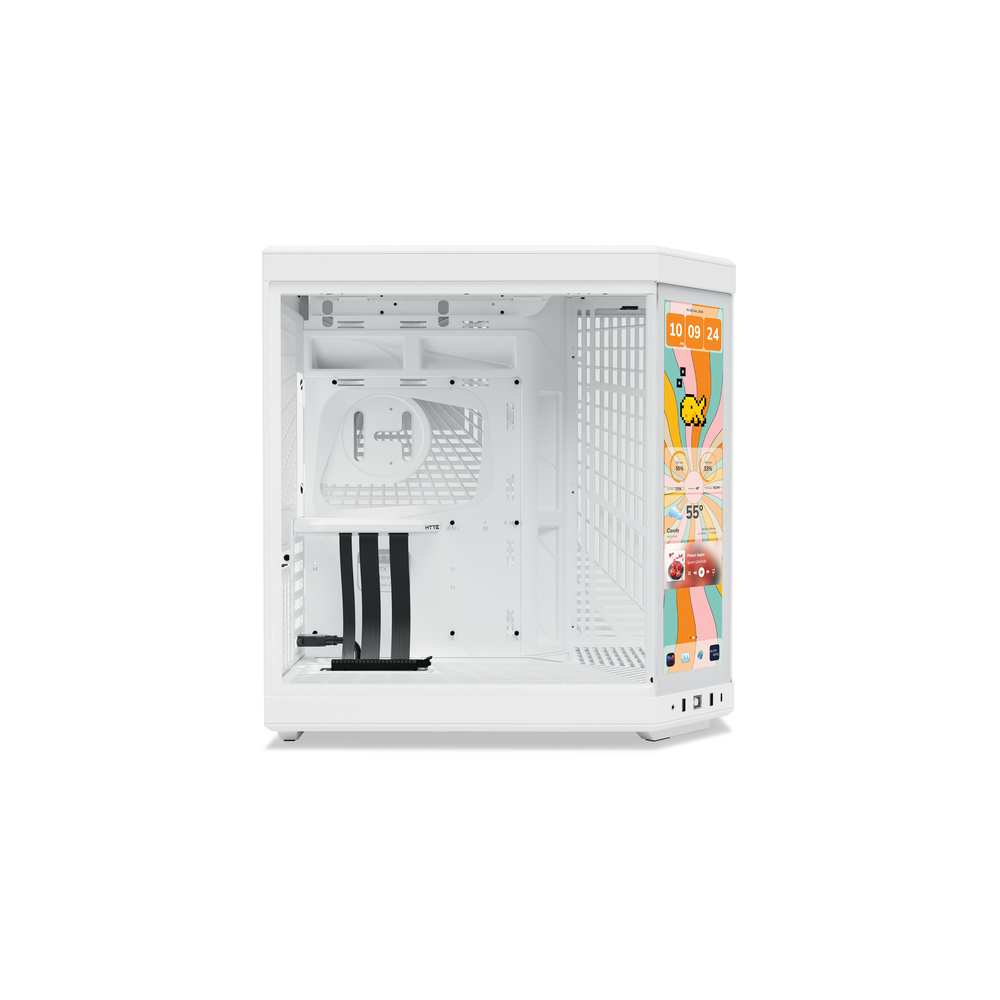

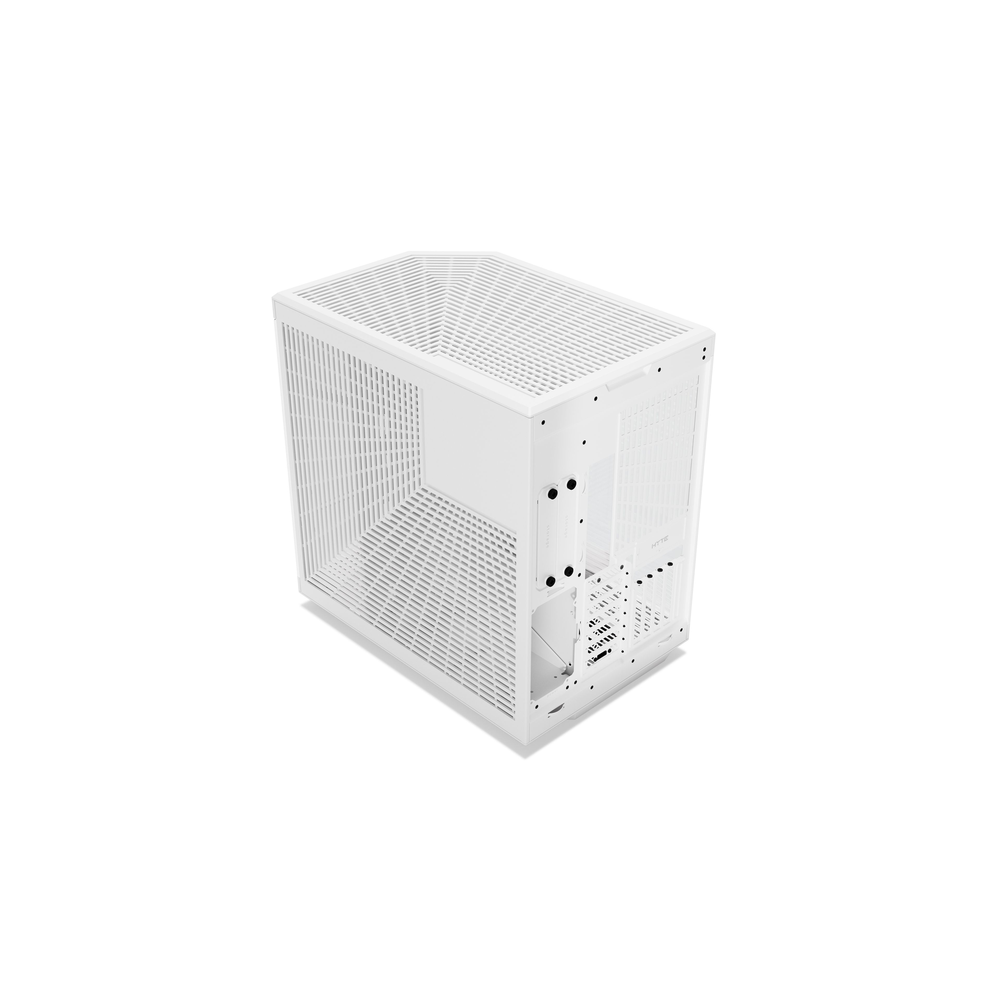

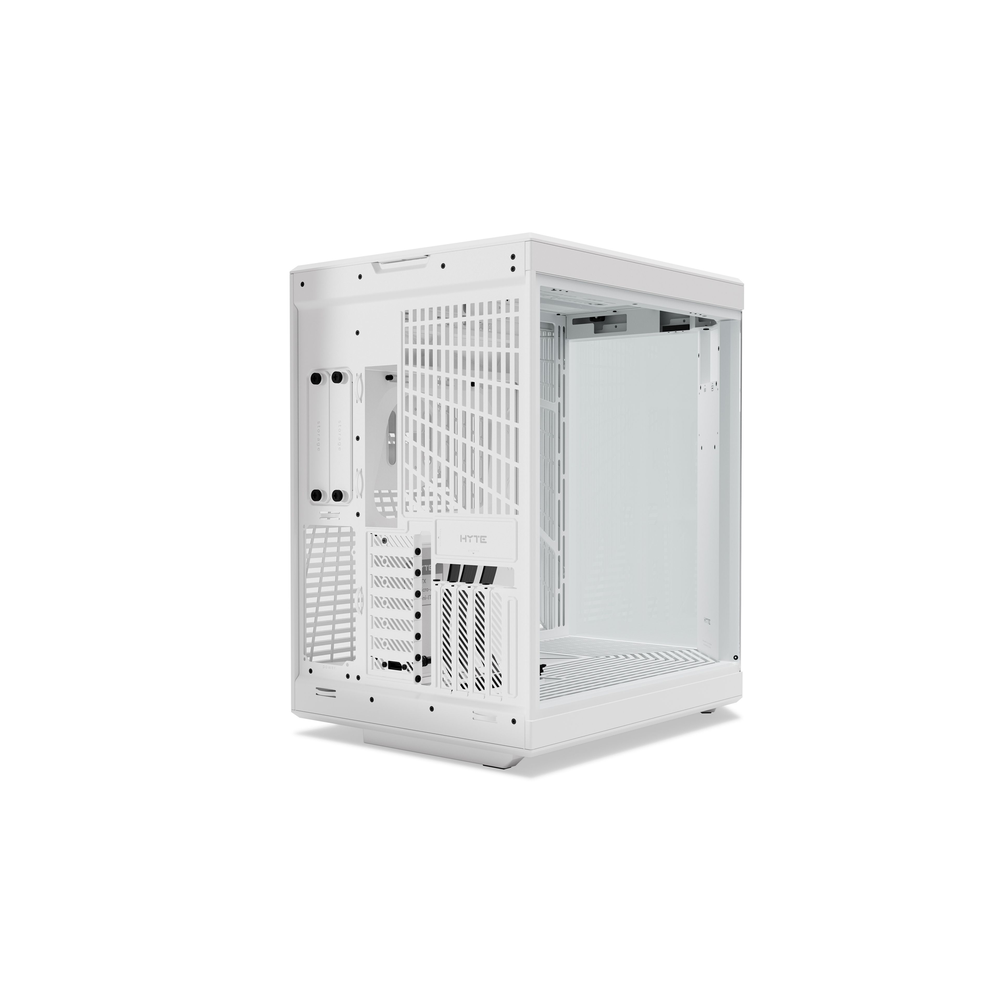

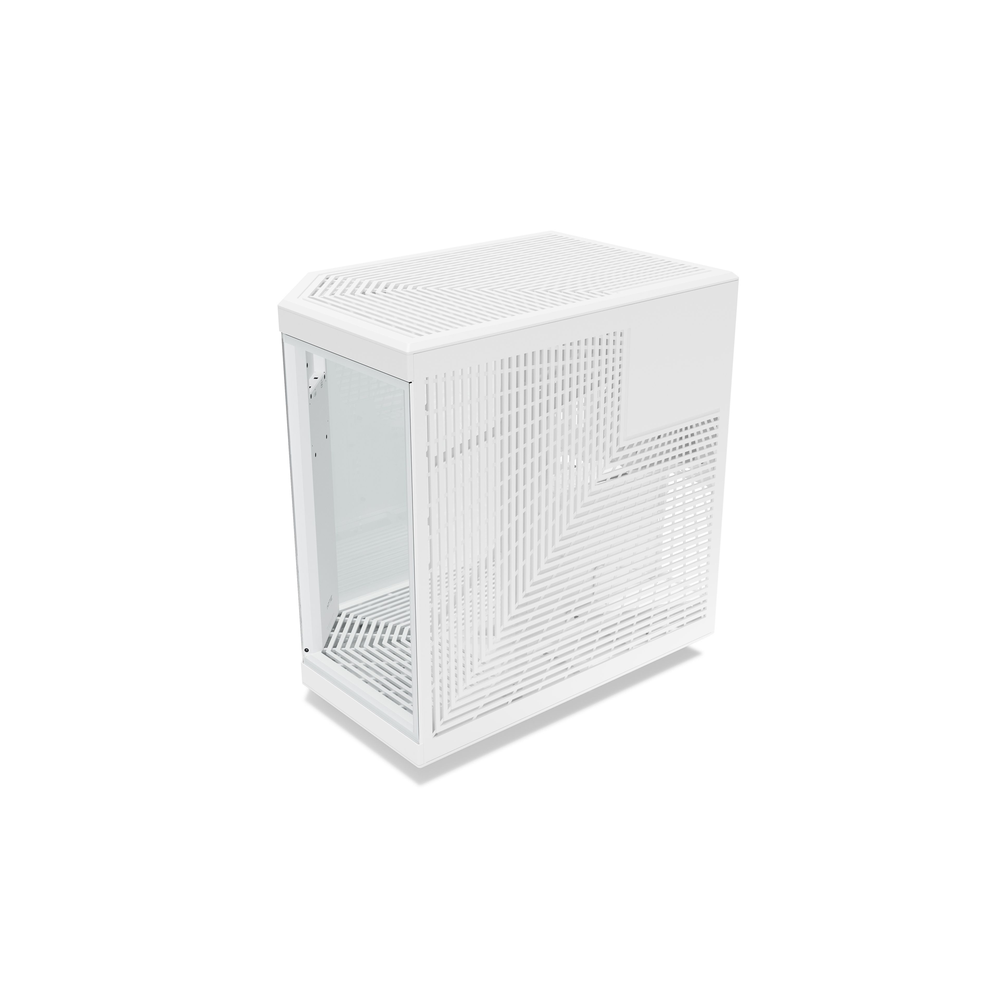

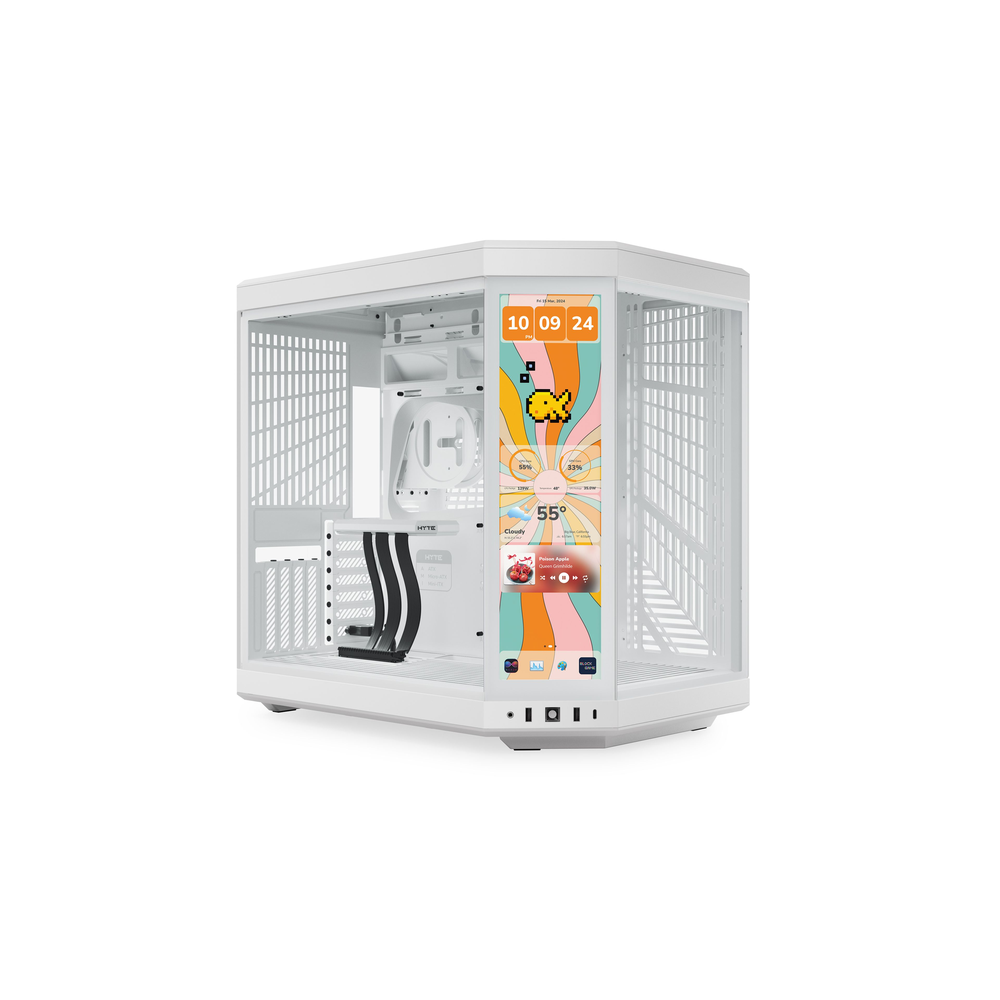

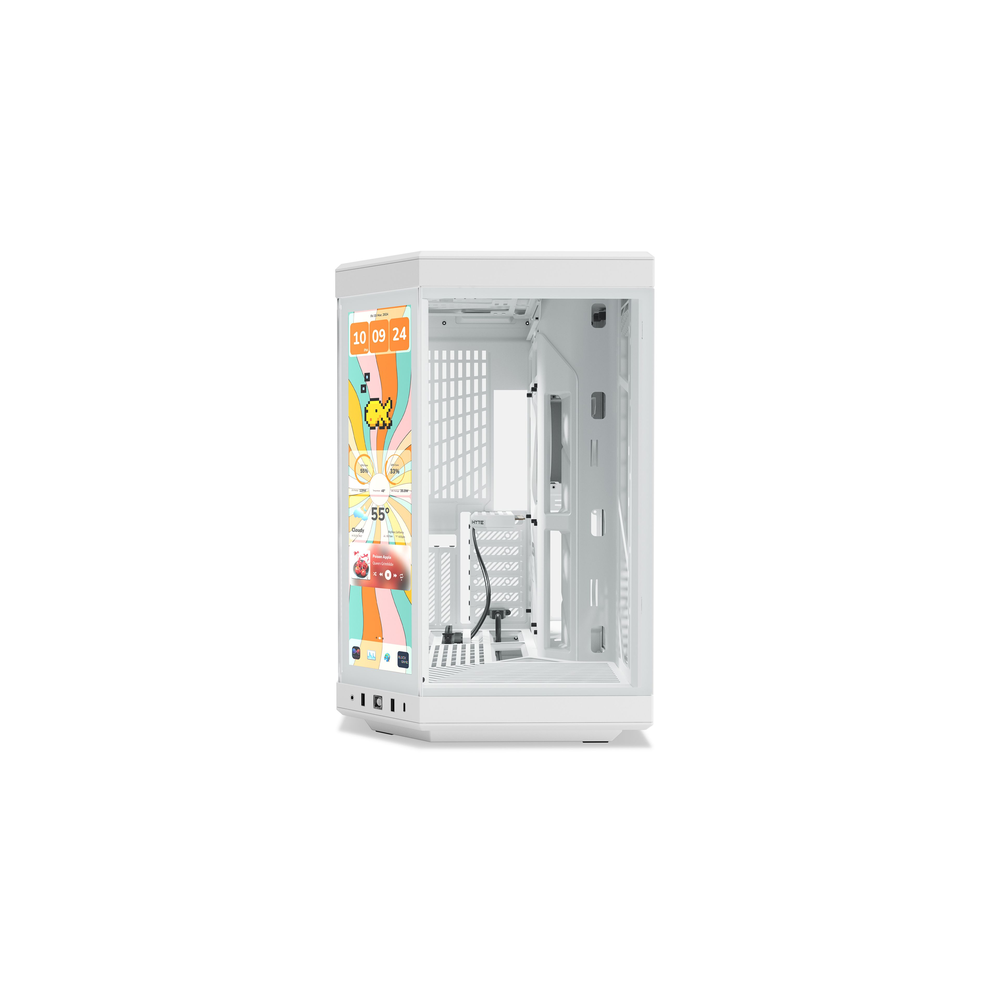

HYTE Y70 Touch Infinite (Snow White) combines the 70.7 L dual‑chamber Y70 chassis with a mesmerizing 14.9" integrated IPS touchscreen in a clean Snow White finish, giving you a panoramic showcase build and a fully interactive side display for stats, media and customization via HYTE Nexus.
-
>14.9" integrated IPS touchscreen: Tall 682 × 2560 (2.5K) IPS panel at 60 Hz with 10‑point multi‑touch, 500 nits brightness and 178 PPI, powered by HYTE Nexus Touch software for custom dashboards, widgets, wallpapers and more. [web:1003][web:1022][web:1025]
>Snow White dual‑chamber design: All‑white Y70 chassis with 3‑piece panoramic tempered glass and a dedicated rear chamber to hide PSU, storage and cables for a clean front view. [web:1003][web:921][web:1000]
>4‑slot vertical GPU ready: Includes a PCIe 4.0 x16 luxury riser and supports GPUs up to 422 mm long and 105 mm thick, ideal for the latest high‑end graphics cards. [web:1000][web:1023][web:1027]
>Ginormous cooling capacity: Supports up to 10 fans and multiple radiators (360 mm top and side, 120/140 mm rear and bottom), delivering serious cooling for powerful CPU‑GPU combos. [web:1000][web:1023]
>Builder‑friendly I/O and layout: Features USB‑C 3.2 Gen 2, dual USB‑A 3.2 Gen 1 and a 3.5 mm combo jack, plus tool‑less panels, floating drive sleds, cable channels and Velcro straps for easier building and maintenance. [web:1000][web:1023][web:1025]
| Specification | Detail |
|---|---|
| Brand | HYTE |
| Model | Y70 Touch Infinite |
| Part Number | CS-HYTE-Y70TI-WW |
| Colour | Snow White (White/White) |
| Type | Dual Chamber Mid‑Tower ATX / E‑ATX Case with Integrated Touchscreen |
| Exterior Dimensions | 470 × 320 × 470 mm (H × W × D) [web:1000][web:1023] |
| Volume | 70.7 L [web:1000][web:1023] |
| Materials | Steel, tempered glass, ABS [web:1000][web:1003] |
| Net Weight | ≈ 11.1 kg [web:1000] |
| Motherboard Support | ITX, mATX, ATX, E‑ATX [web:1000][web:1023] |
| PSU Support | ATX PSU up to 235 mm length [web:1000][web:1027] |
| Expansion Slots | 7 half‑height + 4 full‑height (vertical) [web:1000][web:1023] |
| PCIe Riser | Included PCIe 4.0 x16 luxury riser, colour‑matched canopy [web:1000][web:1023] |
| Max GPU Length | 422 mm [web:1000][web:1023][web:1027] |
| Max GPU Thickness | 105 mm (4‑slot) [web:1000][web:1025] |
| Max CPU Cooler Height | 180 mm [web:1000][web:1023][web:1027] |
| Storage Support | 2 × 3.5″ HDD or 4 × 2.5″ SSD (floating sleds) [web:1000][web:1025] |
| Fan Support – Top | 3 × 120 mm or 2 × 140 mm [web:1000][web:1023] |
| Fan Support – Side | 3 × 120 mm or 2 × 140 mm [web:1000][web:1023] |
| Fan Support – Rear | 1 × 120 mm or 1 × 140 mm [web:1000][web:1023] |
| Fan Support – Bottom | 3 × 120 mm or 2 × 140 mm @ 32 mm thick [web:1000][web:1025] |
| Pre‑Installed Fans | None (fanless; add your own) [web:1000] |
| Radiator Support – Top | 120–360 mm, 140–280 mm up to 68 mm thick [web:1000][web:1023] |
| Radiator Support – Side | 120–360 mm, 140–280 mm up to 125 mm thick [web:1000][web:1025] |
| Radiator Support – Rear | 120 / 140 mm [web:1000][web:1025] |
| Radiator Support – Bottom | Up to 360 mm (depending on PSU/GPU) [web:1000][web:1025] |
| Front I/O | 1 × USB‑C 3.2 Gen 2, 2 × USB‑A 3.2 Gen 1, 1 × 3.5 mm audio/mic combo jack [web:1000][web:1023] |
| Dust Filters | Top, side and bottom removable filters [web:1000][web:1023] |
| Windowed Panels | 3‑piece panoramic tempered glass front & side [web:1003][web:1000] |
| Touchscreen Panel Type | IPS, 14.9" diagonal [web:1003][web:1022] |
| Touchscreen Resolution | 682 × 2560 (2.5K) [web:1003][web:1022] |
| Refresh Rate | 60 Hz [web:1003][web:1022][web:1025] |
| Brightness | 500 nits [web:1022] |
| Contrast Ratio | 1000:1 [web:1022] |
| Viewing Angle | 80 degrees [web:1022] |
| PPI / Dot Pitch | 178 PPI, 0.007 mm dot pitch [web:1022] |
| Response Time | 30 ms [web:1022] |
| Touch Input | 10‑point multi‑touch (capacitive) [web:1003][web:1022] |
| Display Inputs | USB 2.0 header, SATA power, DisplayPort [web:1003][web:1022] |
| Software | Powered by HYTE Nexus Touch for custom layouts, widgets and themes [web:1003][web:1022] |
| Warranty | 3 Years (case + touchscreen) [web:1000][web:1023] |
| Box Contents | HYTE Y70 Touch Infinite case (Snow White), integrated 14.9" IPS touchscreen, PCIe 4.0 riser, display cabling, accessory kit, documentation [web:1003][web:1000] |
