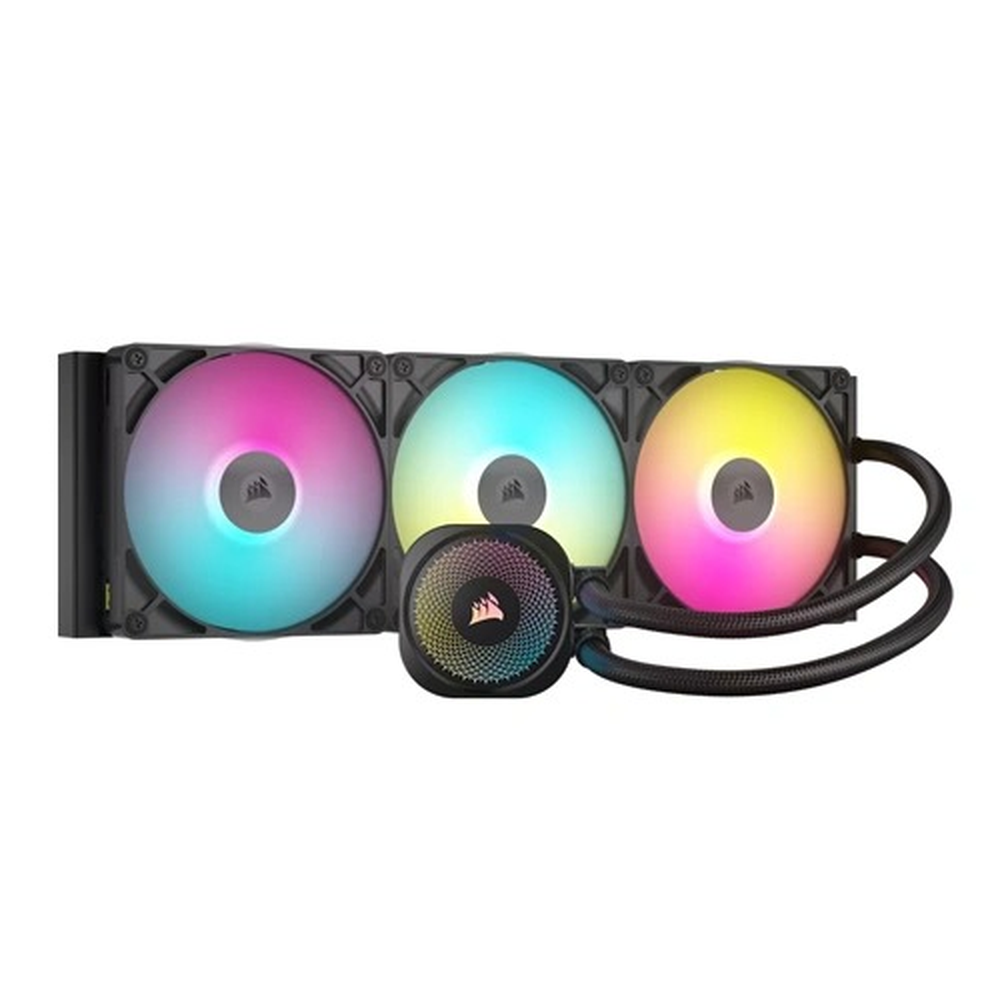

ICUE LINK TITAN 420 RX RGB

The Corsair iCUE LINK TITAN 420 RX RGB AIO Liquid CPU Cooler delivers high-performance, ultra-quiet cooling with optimized thermal performance, streamlined iCUE LINK connectivity, and dynamic RGB lighting. With FlowDrive cooling engine featuring three-phase motor, precision cold plate, pre-applied XTM70 thermal paste, three RX140 RGB fans with 60 RGB LEDs total, detachable decorative plates, and iCUE LINK System Hub included, this flagship 420mm AIO provides exceptional cooling for the most demanding CPUs.

Key Features:

>420mm radiator delivers maximum heat dissipation for flagship CPUs and extreme overclocking >FlowDrive cooling engine with high-performance three-phase motor for peak thermal efficiency and longevity >Precision engineered cold plate surface profile for optimal thermal contact with CPU >Pre-applied CORSAIR XTM70 Extreme Performance thermal paste for unparalleled efficiency >Three high-performance RX140 RGB fans deliver 94.7 CFM airflow and 3.75 mm-H2O static pressure >Digital fan speed control from 300-1700 RPM for precise cooling and whisper-quiet operation (10-36 dBA) >60 individually addressable RGB LEDs—24 around pump cap, 12 per fan—for dynamic lighting effects >Detachable decorative plates on RX RGB fans allow customization with or without plates >Streamlined iCUE LINK connectivity with included iCUE LINK System Hub simplifies cable management >Single cable connection per component eliminates traditional cable daisy-chaining >Full iCUE software control for fan speeds, pump control, RGB lighting, and system monitoring >457mm x 140mm x 27mm aluminum radiator with optimized fin density >450mm black sleeved low-permeation rubber tubing for flexible installation >Full compatibility with Intel LGA 1851, 1700 and AMD AM5, AM4 sockets >Intel mounting bracket pre-installed for quick installation >Available in Black or White >6-year warranty on FlowDrive cooling engine

Technical Specifications:

Model Number	CW-9061019-WW (Black), CW-9061020-WW (White)
Brand	Corsair
Series	iCUE LINK TITAN RX RGB
Color	Black or White
Cooler Type	All-in-One Liquid CPU Cooler (AIO) - 420mm
Pump Type	FlowDrive with three-phase motor
Radiator Size	420mm (457mm x 140mm x 27mm)
Radiator Material	Aluminum
Cold Plate Material	Copper (precision engineered surface profile)
Thermal Paste	Pre-applied CORSAIR XTM70 Extreme Performance
Tubing Length	450mm
Tubing Material	Black sleeved low-permeation rubber

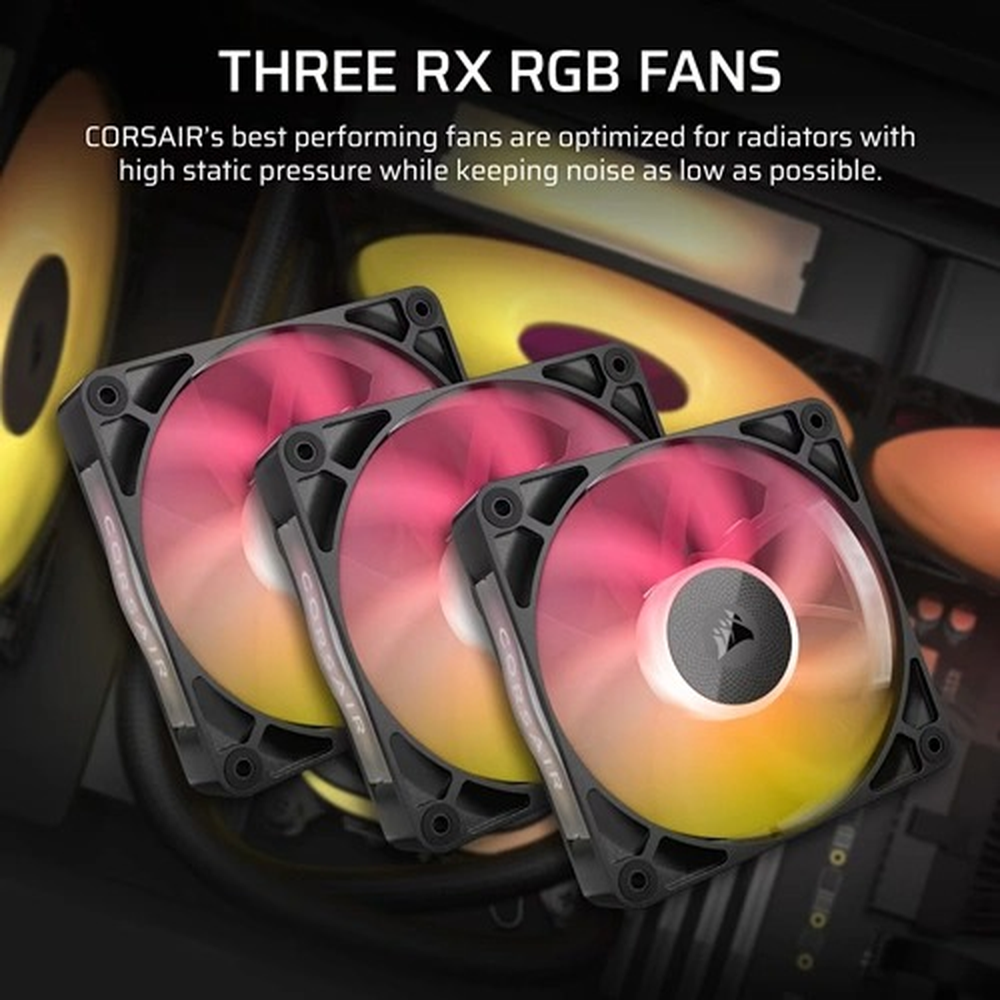

Number of Fans	3x RX140 RGB Fans
Fan Model	iCUE LINK RX140 RGB
Fan Size	140mm x 140mm x 25mm
Fan Speed Range	300-1700 RPM ±10%
Fan Airflow	17.9 - 94.7 CFM (per fan)
Fan Static Pressure	0.15 - 3.75 mm-H2O (per fan)
Fan Noise Level	10 - 36 dBA
Fan Bearing Type	Magnetic Dome
Fan Control Method	Digital (via iCUE LINK System Hub)
PWM Control	No (digital control via iCUE LINK)
Fan Decorative Plates	Detachable (can use with or without)
RGB LEDs	24 LEDs on pump/cap, 12 LEDs per fan (60 total)
RGB Type	Individually addressable RGB (via iCUE LINK)
RGB Control	iCUE software via iCUE LINK System Hub (included)
iCUE LINK System Hub	Included (controls pump, fans, and RGB)
Intel Socket Support	LGA 1851, LGA 1700
AMD Socket Support	AM5, AM4
Intel Processors Supported	Core i9, i7, i5, i3, Core Ultra 9, Ultra 7, Ultra 5, Pentium, Celeron
AMD Processors Supported	Ryzen 9, 7, 5, 3, A-Series
Dimensions (L x W x H)	452 x 137 x 145 mm
Weight	2.923 kg
Warranty	6 Years (FlowDrive cooling engine)

Package Contents:

>TITAN 420 RX RGB Pump/Cold Plate Unit >420mm Aluminum Radiator >3x iCUE LINK RX140 RGB Fans (pre-mounted) >iCUE LINK System Hub >150mm PCIe Power Cable (for System Hub) >500mm Micro USB 2.0 Cable >800mm Tach Cable >250mm iCUE LINK Cable with Dual 90° Connectors >600mm iCUE LINK Cable with Dual 90° Connectors >600mm iCUE LINK Cable with Straight/90° Connectors >Intel LGA 1851/1700 Mounting Bracket (pre-installed) >Intel LGA 1851/1700 Backplate >AMD AM5/AM4 Mounting Bracket Set >24x Long Fan Screws >12x Radiator Screws >12x Washers >Quick Start Guide

Perfect for flagship gaming PCs, extreme overclocking, enthusiast workstations, show PC builds, Intel Core i9/Core Ultra 9 and AMD Ryzen 9 systems, iCUE LINK ecosystem users, and anyone seeking the ultimate liquid cooling performance with dynamic RGB lighting and streamlined connectivity. The Corsair iCUE LINK TITAN 420 RX RGB represents the pinnacle of AIO liquid CPU cooling technology, combining extreme thermal performance with personalized RGB expression through 60 individually addressable LEDs. The massive 420mm aluminum radiator provides the ultimate heat dissipation surface area, keeping flagship processors and heavily overclocked CPUs cool even under sustained maximum workloads. The FlowDrive cooling engine features a high-performance three-phase motor that delivers higher flow rates and lower noise levels compared to traditional pumps, ensuring peak thermal efficiency backed by an industry-leading 6-year warranty. The precision engineered cold plate surface profile ensures optimal thermal contact with your CPU's IHS, while pre-applied CORSAIR XTM70 Extreme Performance thermal paste provides unparalleled thermal conductivity for hassle-free installation and maximum cooling efficiency. Three high-performance iCUE LINK RX140 RGB fans deliver powerful airflow (94.7 CFM max per fan) and strong static pressure (3.75 mm-H2O) with digital speed control from 300-1700 RPM via iCUE software, ensuring optimal cooling performance while maintaining whisper-quiet operation (10-36 dBA). Magnetic Dome bearings ensure extended lifespan and minimal noise. Each RX140 RGB fan features detachable decorative plates, allowing you to customize the fan's appearance by using it with or without the plates depending on your aesthetic preference. Sixty individually addressable RGB LEDs—24 around the pump cap plus 12 on each fan—create mesmerizing dynamic lighting effects synchronized through iCUE software for comprehensive RGB ecosystem control. The streamlined iCUE LINK connectivity eliminates traditional cable daisy-chaining chaos: each component connects to the included iCUE LINK System Hub with a single cable that carries both power and data, dramatically simplifying cable management even in complex builds. Full iCUE software control allows precise adjustment of fan speeds, pump control, RGB lighting effects, system monitoring, and integration with other iCUE-compatible components. The 420mm radiator fits in cases with support for 420mm radiators (typically top or front mount in full-tower or enthusiast mid-tower cases). Compatible with the latest Intel LGA 1851/1700 and AMD AM5/AM4 sockets with Intel mounting bracket pre-installed for quick setup. The 450mm black sleeved low-permeation rubber tubing provides flexible installation options. Available in Black or White to match your build aesthetic. Backed by an industry-leading 6-year warranty. Dominate cooling performance with flagship RGB brilliance in the Corsair iCUE LINK TITAN 420 RX RGB.
