Motherboard // MSI

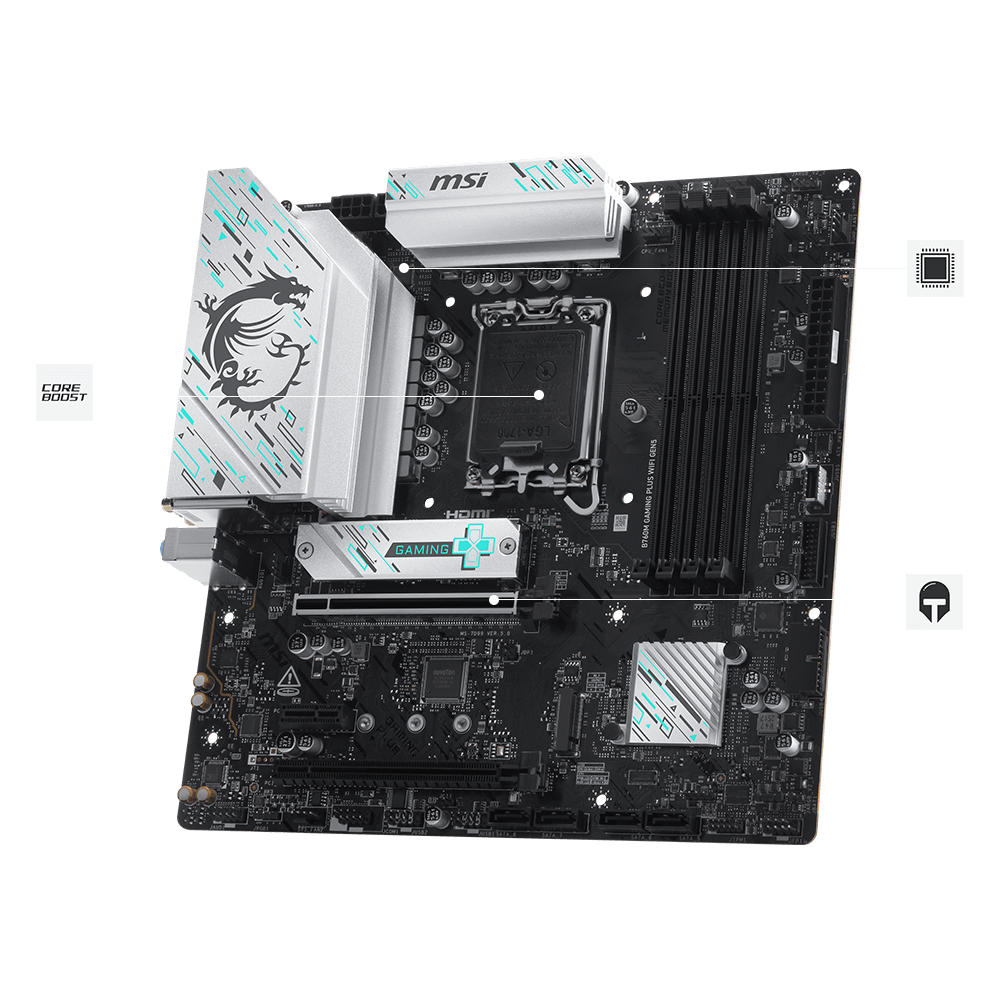

MSI B760M GAMING PLUS WIFI GEN5 Motherboard
Price inclusive of all taxes
Technical specification
Upgraded mATX Intel B760 Gaming Motherboard — Wi-Fi 6E, PCIe 5.0, DDR5 7200+, Dual HDMI 2.1, and Dual DisplayPort for Intel Core 12th, 13th & 14th Gen.
The MSI B760M GAMING PLUS WIFI GEN5 is the enhanced version of the B760M Gaming Plus WIFI, featuring faster DDR5 7200+ OC support (up from 6800+), dual HDMI 2.1 outputs, dual DisplayPort 1.4 outputs, PCIe 5.0 x16, Intel Wi-Fi 6E, Realtek 2.5G LAN, 2x M.2 PCIe 4.0, and SMT DDR5 slots — making it the go-to B760 mATX board for multi-monitor gaming and iGPU builds.
- CPU Support: Intel Core 14th / 13th / 12th Gen + Pentium Gold / Celeron, LGA 1700 socket
- Power Delivery: Dual 8-pin CPU connectors, Core Boost, Memory Boost, SMT DDR5 slots
- Storage: 2x M.2 — M.2_1: PCIe 4.0 x4 (CPU, 2280/2260/2242); M.2_2: PCIe 4.0 x4 / SATA (Chipset, 2280/2260/2242); 4x SATA 6G | RAID 0/1/5/10
- Connectivity: Intel Wi-Fi 6E (2.4/5/6GHz, 160MHz, up to 2.4Gbps), Realtek RTL8125BG 2.5G LAN, Bluetooth 5.3
- USB: Rear — 2x USB 10Gbps Type-A, 2x USB 5Gbps Type-A, 2x USB 2.0; Front — 4x USB 5Gbps Type-A, 1x USB 5Gbps Type-C, 4x USB 2.0
- Video: 2x HDMI 2.1 (4K@60Hz) + 2x DisplayPort 1.4 (4K@60Hz) — 4 display outputs total
- Audio: Realtek ALC897, 7.1-Channel HD Audio
| Specification | Details |
|---|---|
| Chipset | Intel B760 |
| Socket | LGA 1700 |
| Form Factor | mATX (243.84 x 243.84 mm) |
| Memory | 4x DDR5 UDIMM, up to 256GB, DDR5 7200+ MT/s (OC) / 5600–4800 MT/s (JEDEC) |
| Memory Standard | XMP 3.0, Dual Channel, SMT DDR5 slots, non-ECC unbuffered |
| PCIe Slots | PCI_E1: PCIe 5.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset); PCI_E3: PCIe 4.0 x4 (Chipset) |
| M.2 Slots | 2x M.2 PCIe 4.0 x4 — M.2_1: CPU (2280/2260/2242); M.2_2: Chipset PCIe/SATA (2280/2260/2242) |
| SATA | 4x SATA 6G | RAID 0, 1, 5, 10 |
| LAN | Realtek RTL8125BG 2.5G LAN |
| Wireless | Intel Wi-Fi 6E (2.4/5/6GHz, 160MHz, up to 2.4Gbps), Bluetooth 5.3 |
| Thunderbolt | Not included |
| Rear USB | 2x USB 10Gbps Type-A, 2x USB 5Gbps Type-A, 2x USB 2.0 |
| Front USB Headers | 4x USB 5Gbps Type-A, 1x USB 5Gbps Type-C, 4x USB 2.0 |
| Video Output | 2x HDMI 2.1 (4K@60Hz), 2x DisplayPort 1.4 (4K@60Hz) |
| Audio | Realtek ALC897, 7.1-CH HD Audio |
| Fan Headers | 1x CPU Fan, 1x Pump Fan, 2x System Fan |
| RGB | 2x ARGB V2 headers, 1x RGB header, 4x EZ Debug LED |
| OS Support | Windows 11 / 10 64-bit |
