Motherboard // MSI

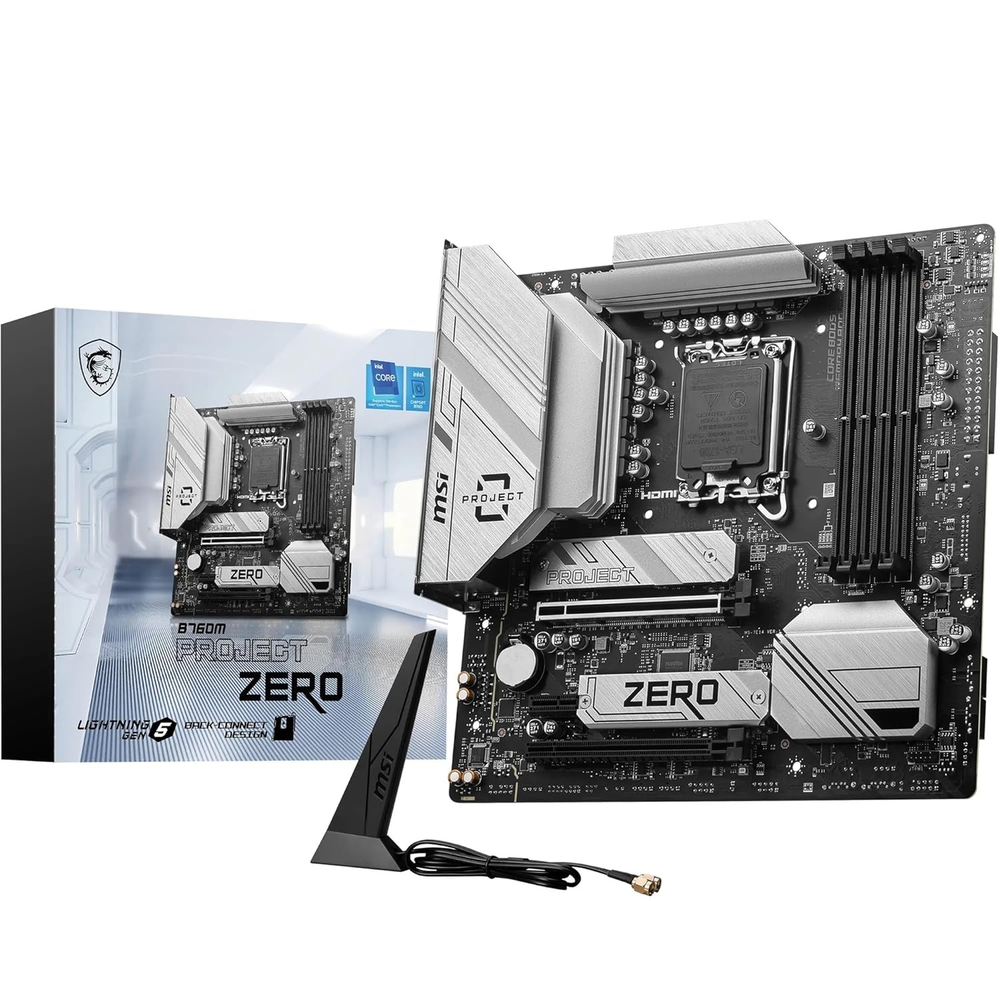

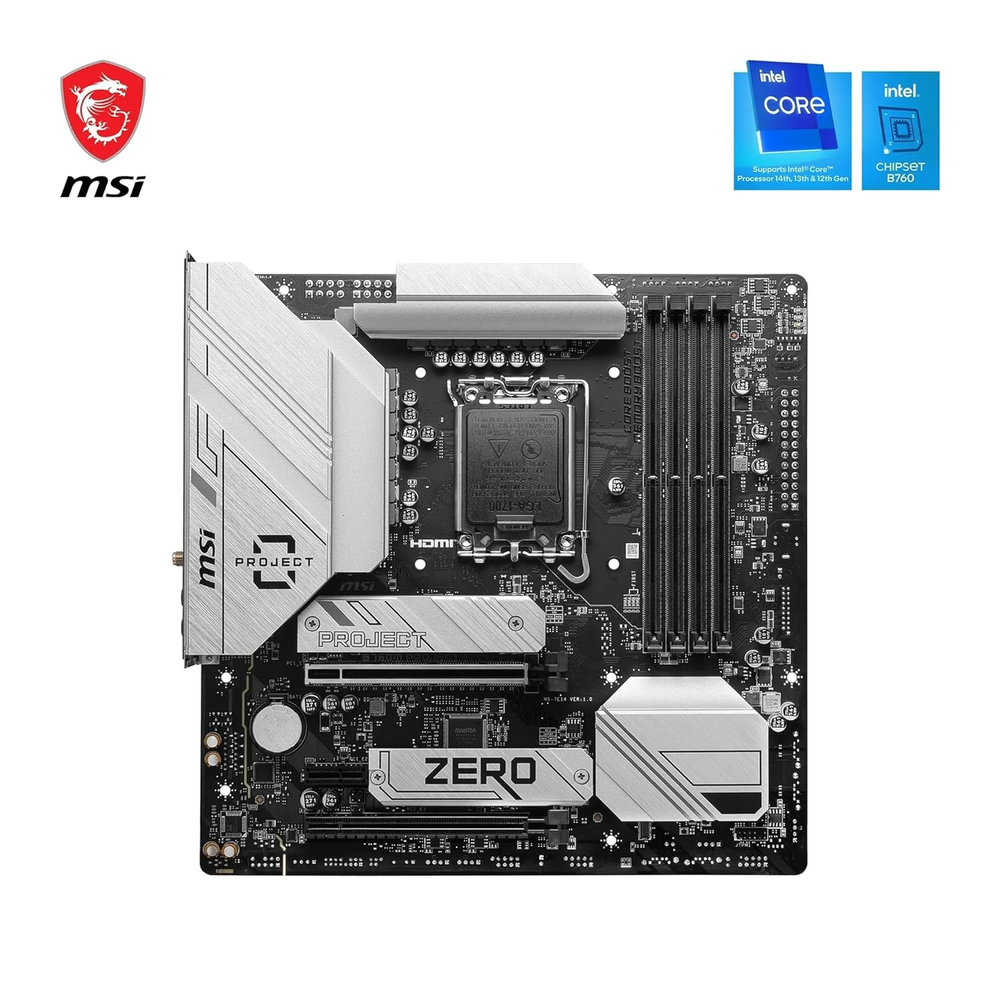

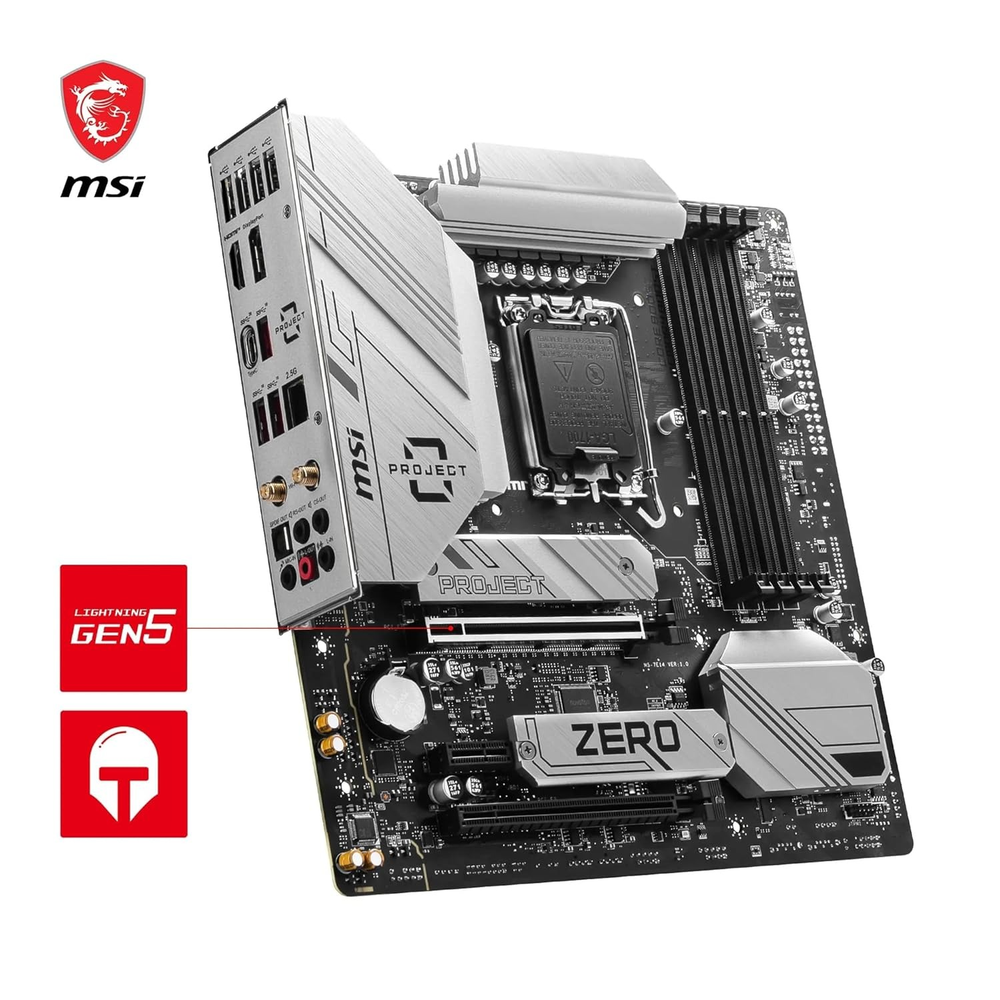

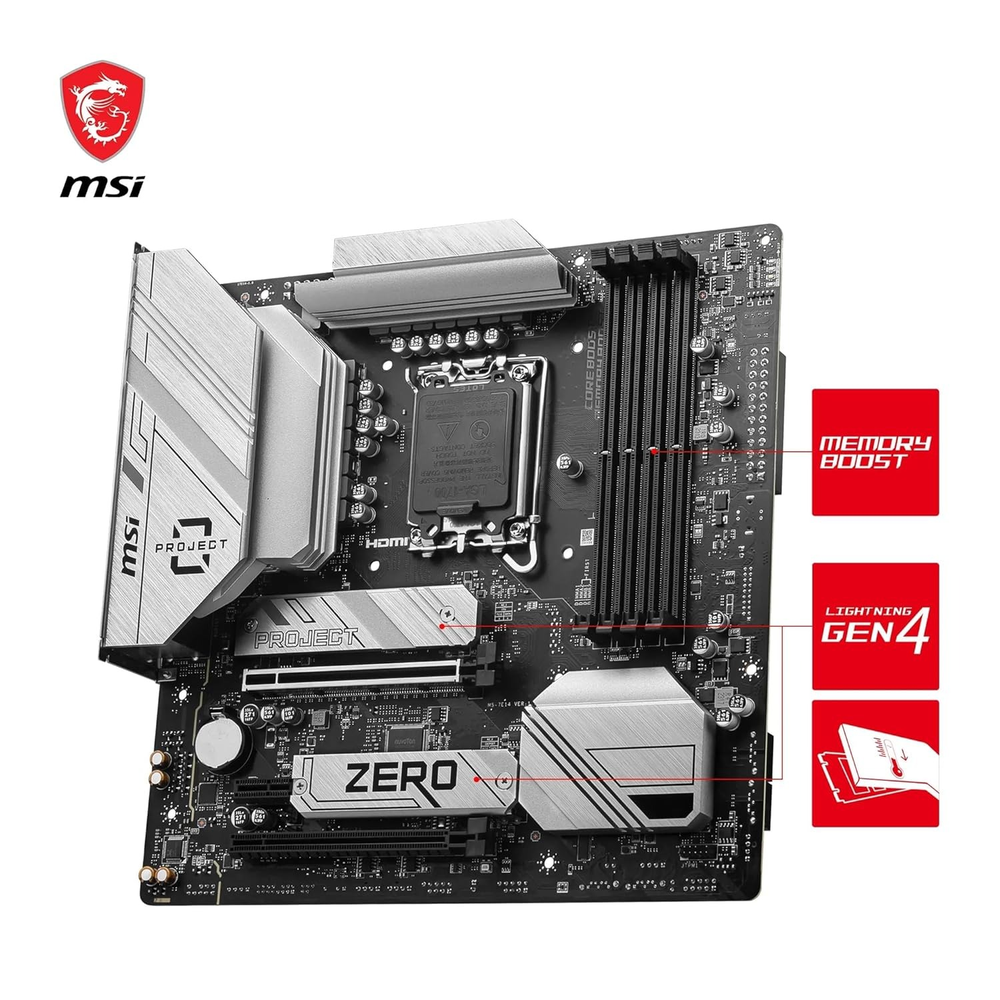

MSI B760M PROJECT ZERO Motherboard
Technical specification
Revolutionary Back-Connect Intel B760 mATX Motherboard — All Connectors on the Rear for the Cleanest PC Build Possible.
The MSI B760M PROJECT ZERO is a groundbreaking Micro-ATX motherboard for Intel Core 12th, 13th, and 14th Gen processors on the LGA 1700 socket. Its revolutionary PROJECT ZERO design relocates ALL internal connectors (power, SATA, USB, fans, RGB) to the back of the PCB — completely eliminating cable clutter from the front of the board for an ultra-clean, showcase-worthy build. Paired with Intel Wi-Fi 6E, 2.5G LAN, DDR5 7800+ OC, PCIe 5.0, and a 12+1+1 Duet Rail power system, it delivers zero-compromise performance with zero-cable aesthetics.
-

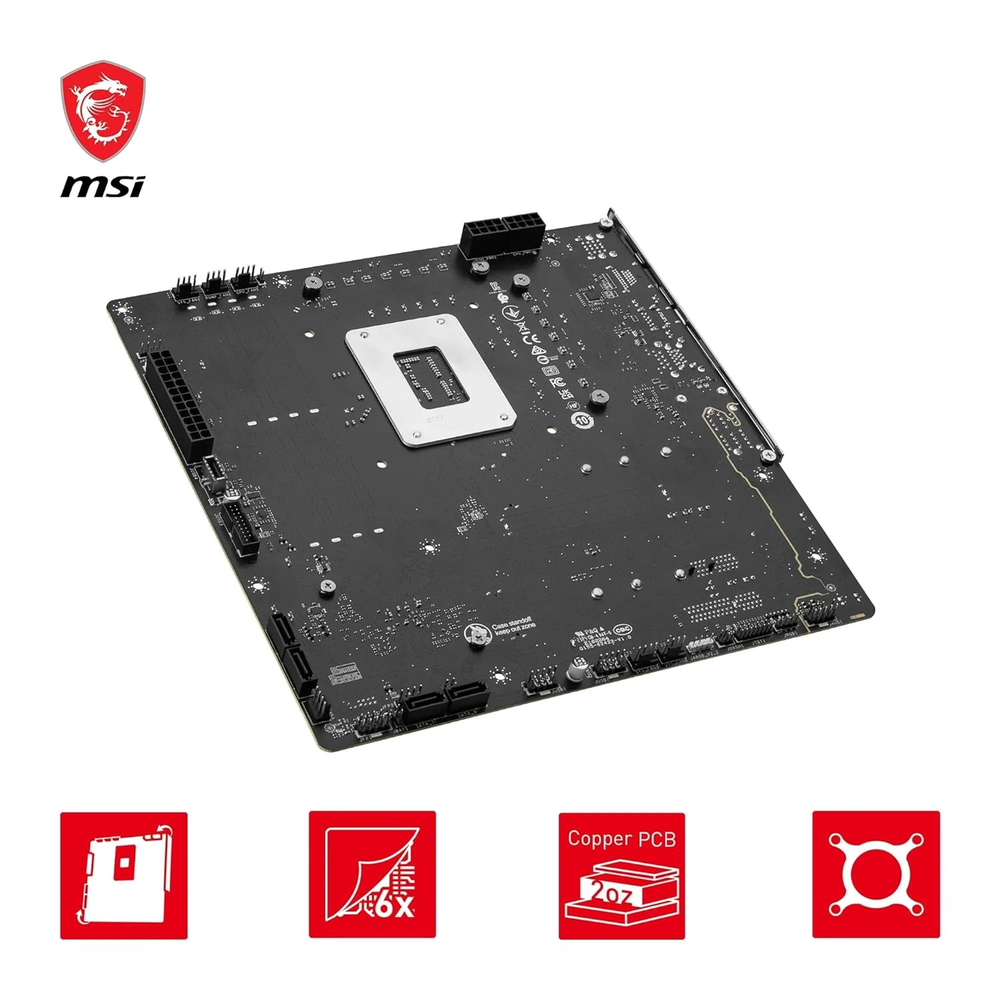

>PROJECT ZERO Design: ALL connectors (ATX power, CPU power, SATA, USB, fan, RGB, front panel) relocated to the back of the PCB for a fully clean front view
>CPU Support: Intel Core 14th / 13th / 12th Gen + Pentium Gold / Celeron, LGA 1700 socket
>Power Delivery: 12+1+1 Duet Rail Power System, dual 8-pin CPU connectors, Core Boost, Memory Boost
>Storage: 2x M.2 — M.2_1: PCIe 4.0 x4 (CPU, 2280/2260/2242); M.2_2: PCIe 4.0 x4 / SATA (Chipset, 2280/2260/2242); 4x SATA 6G | RAID 0/1/5/10
>Connectivity: Intel Wi-Fi 6E (2.4/5/6GHz, 160MHz, up to 2.4Gbps), Realtek 2.5G LAN, Bluetooth 5.3
>USB: Rear — 3x USB 10Gbps Type-A, 1x USB 20Gbps Type-C, 4x USB 2.0; Front — 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C, 4x USB 2.0 (all headers on back)
>Audio: Realtek ALC897, 7.1-Channel HD Audio, S/PDIF output
| Specification | Details |
|---|---|
| Chipset | Intel B760 |
| Socket | LGA 1700 |
| Form Factor | mATX (243.84 x 243.84 mm) |
| Memory | 4x DDR5 UDIMM, up to 256GB, DDR5 7800+ MT/s (OC) / 5600–4800 MT/s (JEDEC) |
| Memory Standard | XMP, SMT DDR5 Slots, Dual Channel, non-ECC unbuffered |
| PCIe Slots | PCI_E1: PCIe 5.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset); PCI_E3: PCIe 4.0 x4 (Chipset) |
| M.2 Slots | M.2_1: PCIe 4.0 x4 (CPU, 2280/2260/2242); M.2_2: PCIe 4.0 x4 / SATA (Chipset, 2280/2260/2242) |
| SATA | 4x SATA 6G | RAID 0, 1, 5, 10 (all SATA connectors on rear of PCB) |
| LAN | Realtek 2.5G LAN |
| Wireless | Intel Wi-Fi 6E (2.4/5/6GHz, 160MHz, up to 2.4Gbps), Bluetooth 5.3 |
| Thunderbolt | Not included |

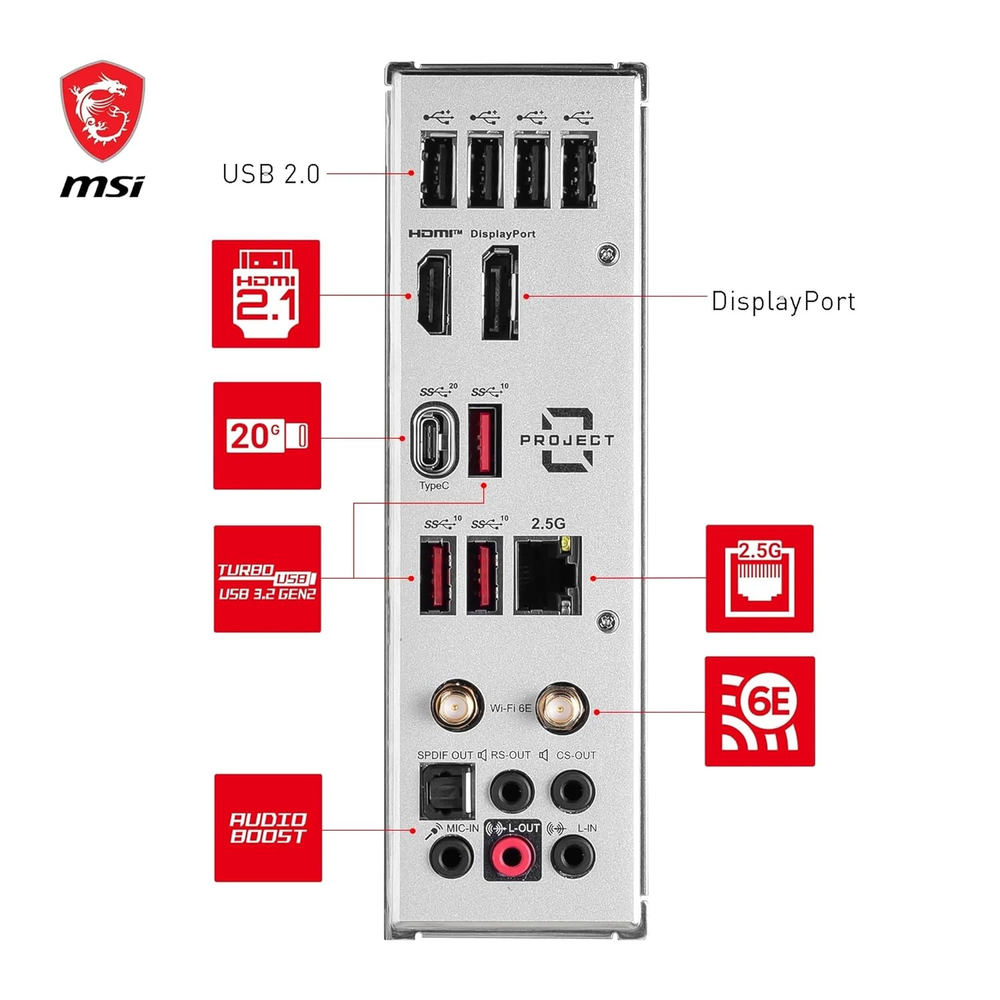

| Rear I/O USB | 3x USB 10Gbps Type-A, 1x USB 20Gbps Type-C, 4x USB 2.0 |
| Front USB Headers | 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C, 4x USB 2.0 (headers on back of PCB) |
| Video Output | 1x HDMI 2.1 (4K@60Hz), 1x DisplayPort 1.4 (4K@60Hz) |
| Audio | Realtek ALC897, 7.1-CH HD Audio, S/PDIF out |
| Fan Headers | 1x CPU Fan, 1x Pump Fan, 4x System Fan (all on back of PCB) |
| RGB | 2x ARGB V2 headers, 2x RGB headers, 4x EZ Debug LED (all on back of PCB) |
| OS Support | Windows 11 / 10 64-bit |
