Description
NVIDIA Blackwell RTX 5060 Ti — 4608 CUDA Cores, 16GB GDDR7 128-bit 28Gbps, PCIe 5.0 x16 (x8), TRI FROZR 4 Triple-Fan Cooling, Boost 2647MHz / Extreme Performance 2662MHz, 180W TDP, 1x 16-pin, 3x DP 2.1b + 1x HDMI 2.1b, 600W PSU Recommended.

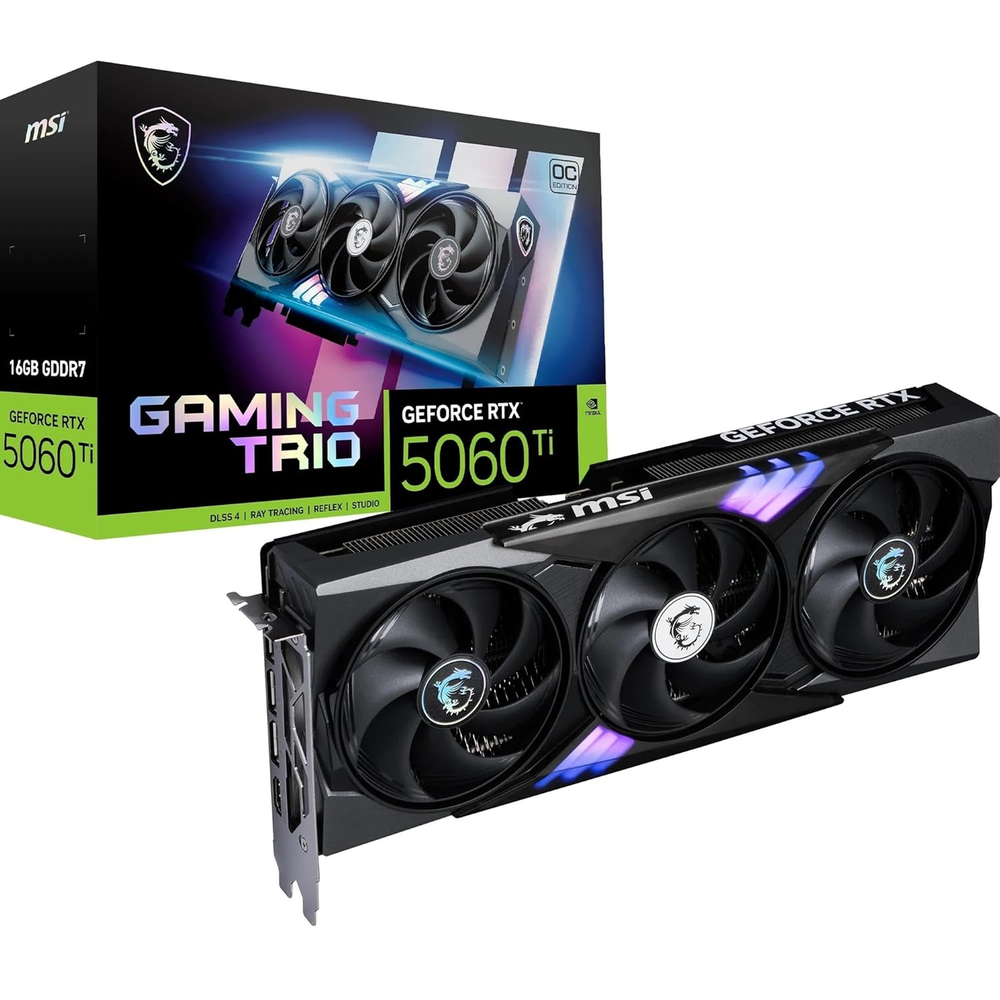

The MSI GeForce RTX 5060 Ti 16G GAMING TRIO OC is the mainstream gamer's best ally — fearless, bold, and built to deliver strong Blackwell performance for gaming and content creation. Dressed in the iconic black GAMING TRIO aesthetic with RGB Mystic Light and a fierce dragon totem, it pairs the TRI FROZR 4 thermal system with STORMFORCE fans for superior cooling at near-silent operation. With DLSS 4 Multi Frame Generation and NVIDIA Reflex 2, it targets excellent 1080p and 1440p gaming at a compelling price point.
-
>NVIDIA Blackwell (GB206) — 4608 CUDA Cores, 4th-gen RT Cores, 5th-gen Tensor Cores, DLSS 4 MFG
>16GB GDDR7 — 128-bit, 28Gbps, 448 GB/s Bandwidth
>Boost Clock: 2647 MHz / Extreme Performance: 2662 MHz (via MSI Center)

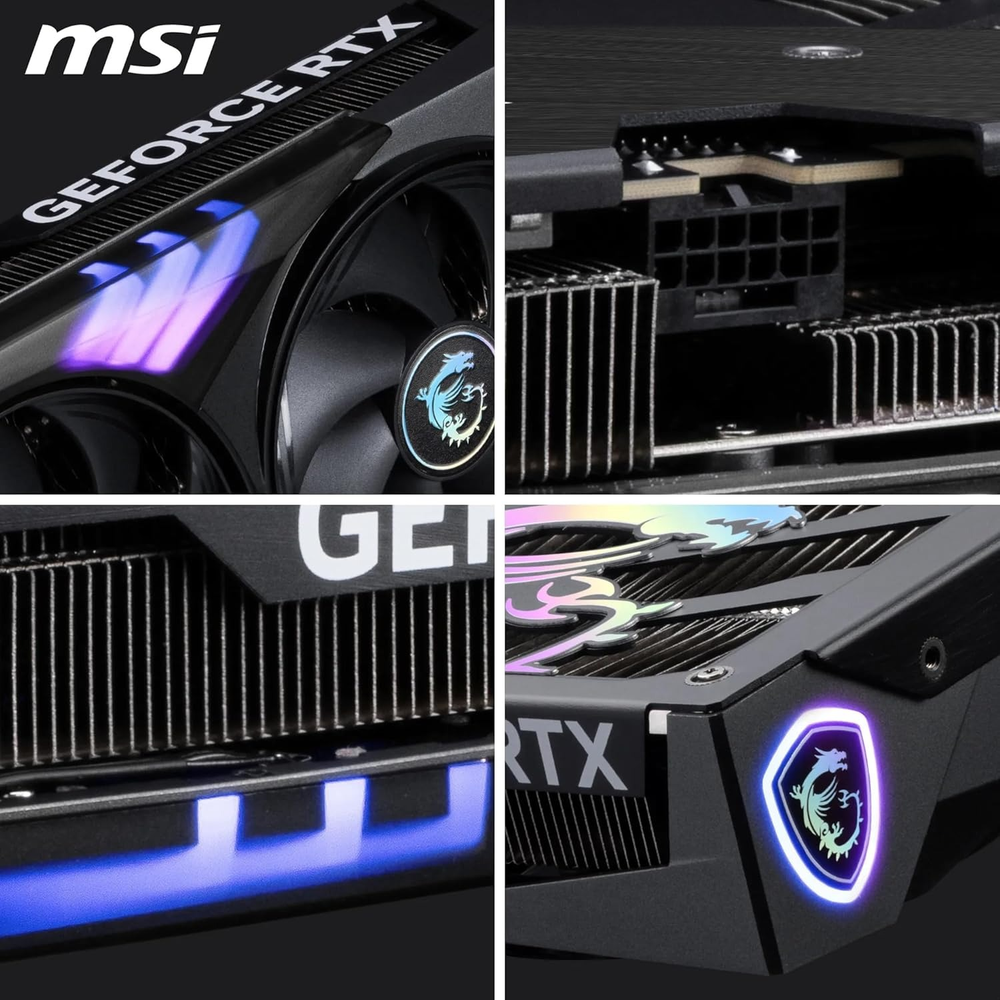

>TRI FROZR 4 Cooling — Triple STORMFORCE fans, 7-blade claw-textured design, Air Antegrade Fin 2.0, Mystic Light RGB
>180W TDP — 1x 16-pin connector (ATX 3.1), 600W PSU recommended
>3x DisplayPort 2.1b + 1x HDMI 2.1b — Up to 8K@120Hz DSC, supports 4 displays
>Card Dimensions: 300 x 125 x 44 mm — Weight: 844g | SFF-Ready
| Spec | Detail |
|---|---|
| GPU Chip | NVIDIA GeForce RTX 5060 Ti (GB206) |
| Architecture | NVIDIA Blackwell |
| CUDA Cores | 4608 |
| Boost Clock | 2647 MHz (2662 MHz Extreme via MSI Center) |
| Memory | 16GB GDDR7, 128-bit, 28 Gbps, 448 GB/s bandwidth |
| Interface | PCI Express Gen 5 x16 (uses x8) |
| Display Output | 3x DisplayPort 2.1b, 1x HDMI 2.1b (max 4 displays) |
| Max Resolution | 7680 x 4320 (8K) |
| Power Consumption | 180W TDP |
| Power Connector | 1x 16-pin (ATX 3.1) |
| Recommended PSU | 600W |
| Cooling | TRI FROZR 4 — Triple STORMFORCE fans, Air Antegrade Fin 2.0 |
| RGB | Mystic Light RGB (MSI Center) |
| Model Number | G506T-16GTC |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| G-Sync | Supported |
| Dimensions | 300 x 125 x 44 mm |
| Weight | 844g |
| Warranty | 3 Years MSI India |
| OS Support | Windows 10 / 11 64-bit |
