Graphics Card // MSI

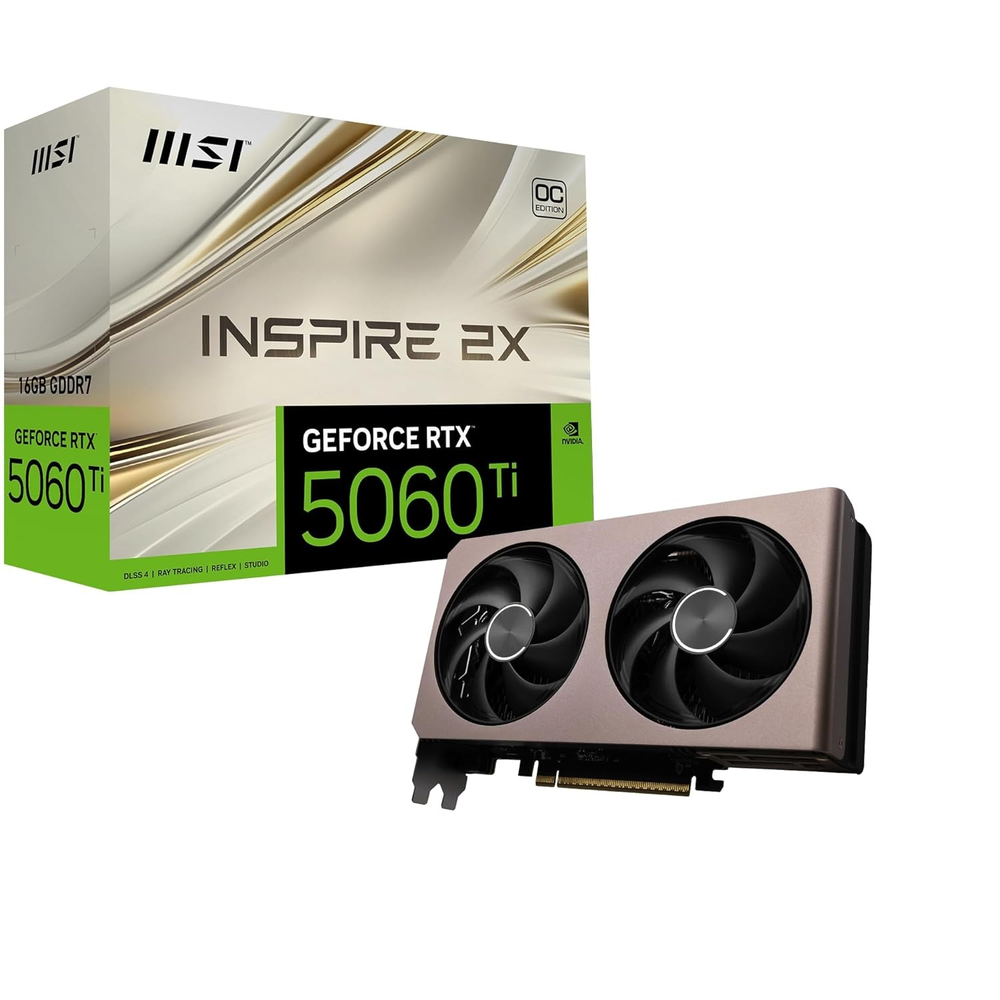

MSI GeForce RTX 5060 Ti 16G INSPIRE 2X OC Graphics Card
Technical specification
Ultra-Compact SFF-Ready NVIDIA Blackwell RTX 5060 Ti with Creator Gold Aesthetic — 4608 CUDA Cores, 16GB GDDR7 128-bit 28Gbps, PCIe 5.0 x16 (x8), Dual STORMFORCE Fan Cooling, Boost 2617MHz / Extreme Performance 2632MHz, 180W TDP, 1x 8-pin, 3x DP 2.1b + 1x HDMI 2.1b, 600W PSU Recommended.
The MSI GeForce RTX 5060 Ti 16G INSPIRE 2X OC is the most compact RTX 5060 Ti available — at just 204mm long and 657g, it's designed from the ground up to fit any SFF, ITX, or mini-tower case without compromise. The INSPIRE series' signature beige and gold Mondrian-inspired aesthetic with dual STORMFORCE fans, Wave-Curved 3.0 heatsink fins, and a metal backplate combine creative style with efficient, quiet cooling. A natural choice for creators and compact PC builders wanting full Blackwell DLSS 4 performance.
-
>NVIDIA Blackwell (GB206) — 4608 CUDA Cores, 4th-gen RT Cores, 5th-gen Tensor Cores, DLSS 4 MFG
>16GB GDDR7 — 128-bit, 28Gbps, 448 GB/s Bandwidth
>Boost Clock: 2617 MHz / Extreme Performance: 2632 MHz (via MSI Center)
>Dual STORMFORCE Fan — 7-blade claw-textured design, Wave-Curved 3.0 fins, Metal Backplate, Zero Frozr
>180W TDP — 1x 8-pin connector, 600W PSU recommended
>3x DisplayPort 2.1b + 1x HDMI 2.1b — Up to 8K@120Hz DSC, supports 4 displays
>Card Dimensions: 204 x 117 x 50 mm — Weight: 657g | Ultra-Compact ITX & SFF-Ready
| Spec | Detail |
|---|---|
| GPU Chip | NVIDIA GeForce RTX 5060 Ti (GB206) |
| Architecture | NVIDIA Blackwell |
| CUDA Cores | 4608 |
| Boost Clock | 2617 MHz (2632 MHz Extreme via MSI Center) |
| Memory | 16GB GDDR7, 128-bit, 28 Gbps, 448 GB/s bandwidth |
| Interface | PCI Express Gen 5 x16 (uses x8) |
| Display Output | 3x DisplayPort 2.1b, 1x HDMI 2.1b (max 4 displays) |
| Max Resolution | 7680 x 4320 (8K) |
| Power Consumption | 180W TDP |
| Power Connector | 1x 8-pin |
| Recommended PSU | 600W |
| Cooling | Dual STORMFORCE Fan, Wave-Curved 3.0 fins, Metal Backplate, Zero Frozr |
| Aesthetic | Beige & Gold — INSPIRE Creator / Mondrian Design |
| Model Number | G506T-16I2C |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| G-Sync | Supported |
| Dimensions | 204 x 117 x 50 mm |
| Weight | 657g |
| Warranty | 3 Years MSI India |
| OS Support | Windows 10 / 11 64-bit |
