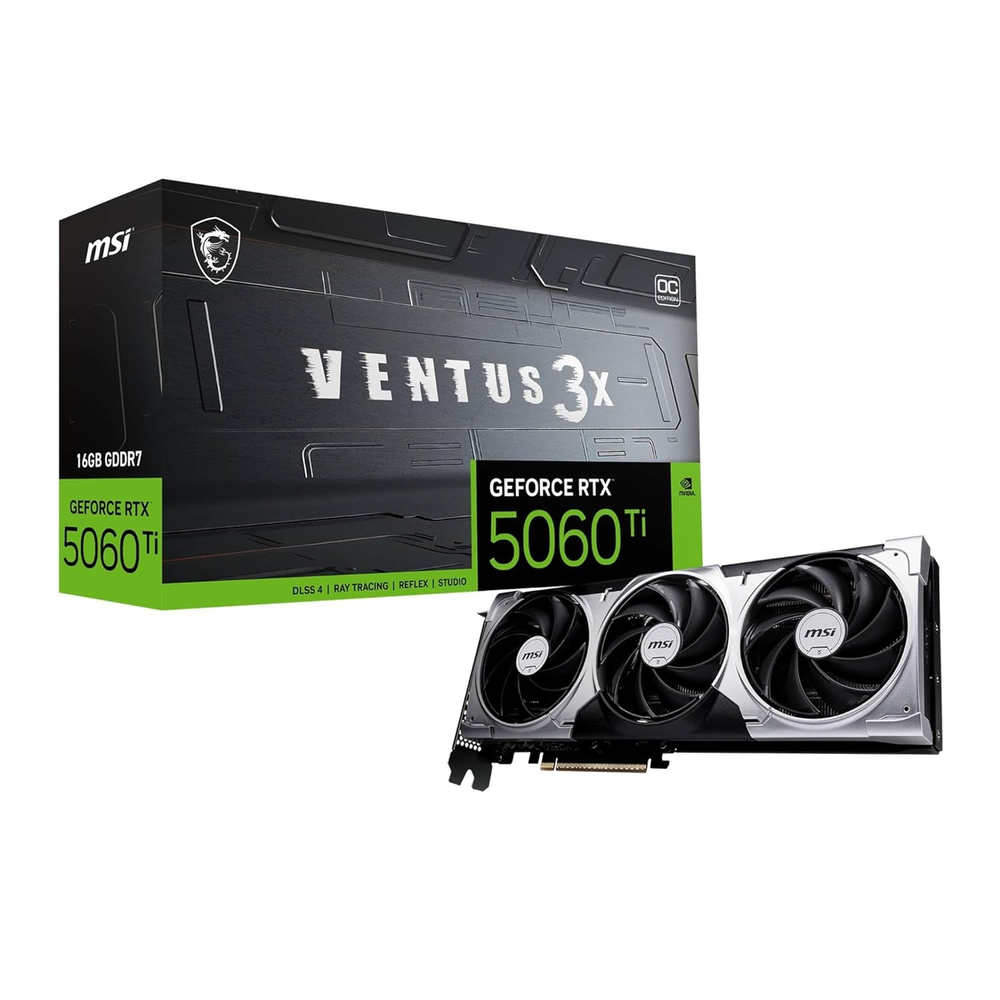

MSI GeForce RTX 5060 Ti 16G VENTUS 3X OC Graphics Card
Technical specification
NVIDIA Blackwell RTX 5060 Ti — 4608 CUDA Cores, 16GB GDDR7 128-bit 28Gbps, PCIe 5.0 x16 (x8), TORX Fan 5.0 Triple-Fan Cooling, Boost 2602MHz / Extreme Performance 2617MHz, 180W TDP, 1x 8-pin, 3x DP 2.1b + 1x HDMI 2.1b, 600W PSU Recommended.
The MSI GeForce RTX 5060 Ti 16G VENTUS 3X OC delivers core Blackwell gaming performance in a clean, neutral design that fits any build seamlessly. Built around the VENTUS philosophy of focused essentials, it uses triple TORX Fan 5.0 cooling with ring arc-linked blades and a solid baseplate for efficient, steady thermal performance. At 304mm and 860g, it handles 1080p and 1440p gaming confidently with DLSS 4 Multi Frame Generation and NVIDIA Reflex 2.
-
>NVIDIA Blackwell (GB206) — 4608 CUDA Cores, 4th-gen RT Cores, 5th-gen Tensor Cores, DLSS 4 MFG
>16GB GDDR7 — 128-bit, 28Gbps, 448 GB/s Bandwidth
>Boost Clock: 2602 MHz / Extreme Performance: 2617 MHz (via MSI Center)
>TORX Fan 5.0 — Triple fans, ring arc-linked blades for high-pressure airflow, Solid Baseplate, Zero Frozr
>180W TDP — 1x 8-pin connector, 600W PSU recommended
>3x DisplayPort 2.1b + 1x HDMI 2.1b — Up to 8K@120Hz DSC, supports 4 displays
>Card Dimensions: 304 x 121 x 44 mm — Weight: 860g | SFF-Ready
| Spec | Detail |
|---|---|
| GPU Chip | NVIDIA GeForce RTX 5060 Ti (GB206) |
| Architecture | NVIDIA Blackwell |
| CUDA Cores | 4608 |
| Boost Clock | 2602 MHz (2617 MHz Extreme via MSI Center) |
| Memory | 16GB GDDR7, 128-bit, 28 Gbps, 448 GB/s bandwidth |
| Interface | PCI Express Gen 5 x16 (uses x8) |
| Display Output | 3x DisplayPort 2.1b, 1x HDMI 2.1b (max 4 displays) |
| Max Resolution | 7680 x 4320 (8K) |
| Power Consumption | 180W TDP |
| Power Connector | 1x 8-pin |
| Recommended PSU | 600W |
| Cooling | TORX Fan 5.0 — Triple fans, ring arc-linked blades, Solid Baseplate, Zero Frozr |
| Aesthetic | Neutral Black/Silver — VENTUS Clean Design |
| Model Number | G506T-16V3C |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| G-Sync | Supported |
| Dimensions | 304 x 121 x 44 mm |
| Weight | 860g |
| Warranty | 3 Years MSI India |
| OS Support | Windows 10 / 11 64-bit |
