Graphics Card // MSI

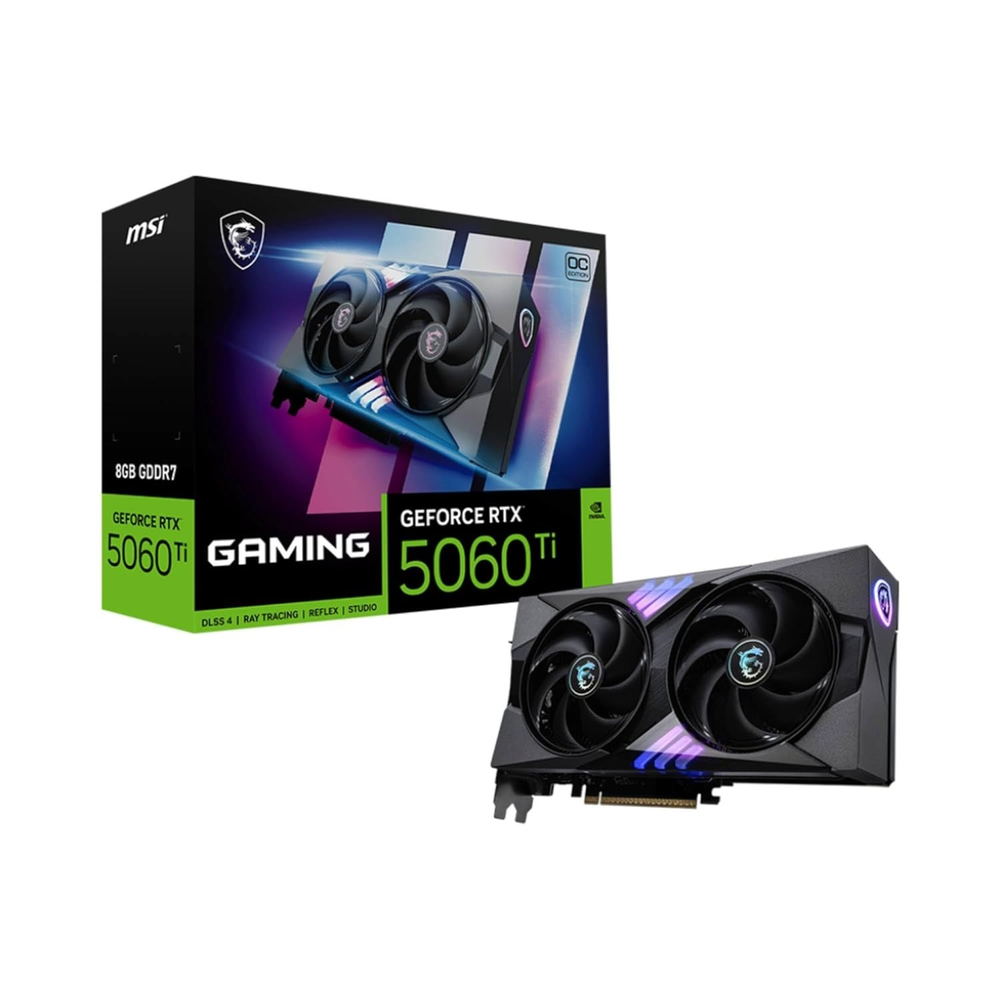

MSI GeForce RTX 5060 Ti 8G GAMING OC Graphics Card
Technical specification
NVIDIA Blackwell RTX 5060 Ti — 4608 CUDA Cores, 8GB GDDR7 128-bit 28Gbps, PCIe 5.0 x16 (x8), TWIN FROZR 10 Dual-Fan Cooling, Boost 2647MHz / Extreme Performance 2662MHz, 180W TDP, 1x 16-pin, 3x DP 2.1b + 1x HDMI 2.1b, 600W PSU Recommended.
The MSI GeForce RTX 5060 Ti 8G GAMING OC is the boldly designed, compact dual-fan GAMING variant — fearless on performance, stylish on looks. Powered by NVIDIA Blackwell architecture with DLSS 4 Multi Frame Generation and Reflex 2, it targets smooth 1080p and 1440p gaming with confidence. The upgraded TWIN FROZR 10 dual-fan cooler with enhanced STORMFORCE blade design and clay-based thermal pads provides superior heat dissipation across the PCB, keeping things cool and quiet at just 247mm and 768g.
-
>NVIDIA Blackwell (GB206) — 4608 CUDA Cores, 4th-gen RT Cores, 5th-gen Tensor Cores, DLSS 4 MFG
>8GB GDDR7 — 128-bit, 28Gbps, 448 GB/s Bandwidth
>Boost Clock: 2647 MHz / Extreme Performance: 2662 MHz (via MSI Center)
>TWIN FROZR 10 Cooling — Enhanced dual STORMFORCE fans, clay-based thermal pads, DrMOS power stage, Mystic Light RGB
>180W TDP — 1x 16-pin connector (ATX 3.1), 600W PSU recommended
>3x DisplayPort 2.1b + 1x HDMI 2.1b — Up to 8K@120Hz DSC, supports 4 displays
>Card Dimensions: 247 x 135 x 51 mm — Weight: 768g | SFF-Ready
| Spec | Detail |
|---|---|
| GPU Chip | NVIDIA GeForce RTX 5060 Ti (GB206) |
| Architecture | NVIDIA Blackwell |
| CUDA Cores | 4608 |
| Boost Clock | 2647 MHz (2662 MHz Extreme via MSI Center) |
| Memory | 8GB GDDR7, 128-bit, 28 Gbps, 448 GB/s bandwidth |
| Interface | PCI Express Gen 5 x16 (uses x8) |
| Display Output | 3x DisplayPort 2.1b, 1x HDMI 2.1b (max 4 displays) |
| Max Resolution | 7680 x 4320 (8K) |
| Power Consumption | 180W TDP |
| Power Connector | 1x 16-pin (ATX 3.1) |
| Recommended PSU | 600W |
| Cooling | TWIN FROZR 10 — Dual STORMFORCE fans, clay-based thermal pads, DrMOS |
| RGB | Mystic Light RGB (MSI Center) |
| Model Number | G506T-8GC |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| G-Sync | Supported |
| Dimensions | 247 x 135 x 51 mm |
| Weight | 768g |
| Warranty | 3 Years MSI India |
| OS Support | Windows 10 / 11 64-bit |
