Motherboard // MSI

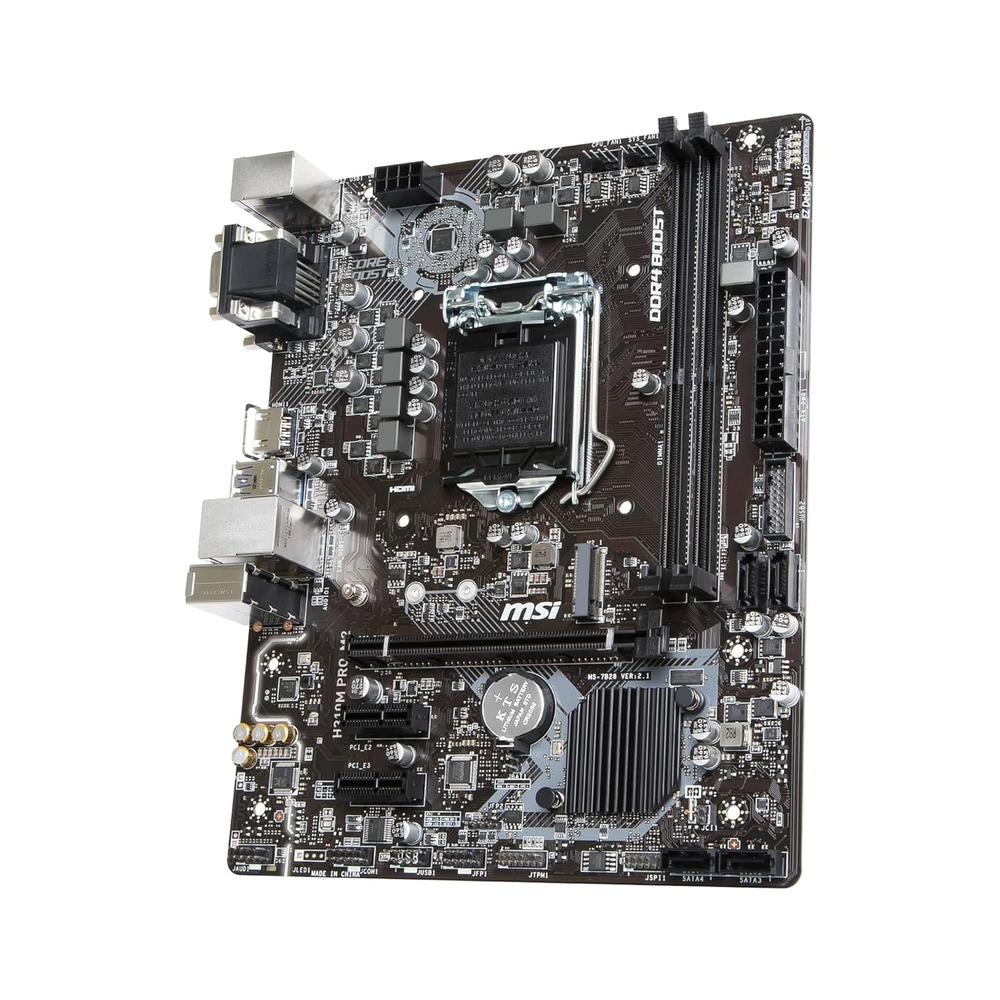

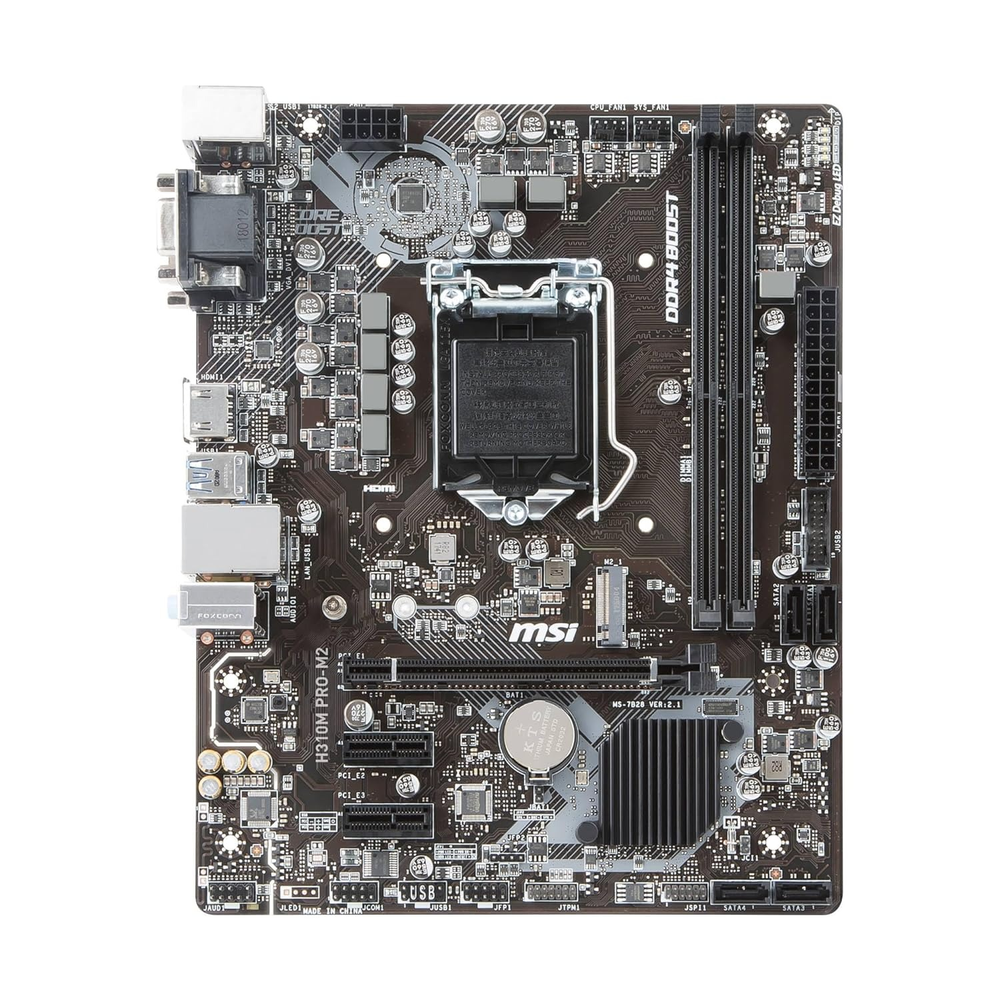

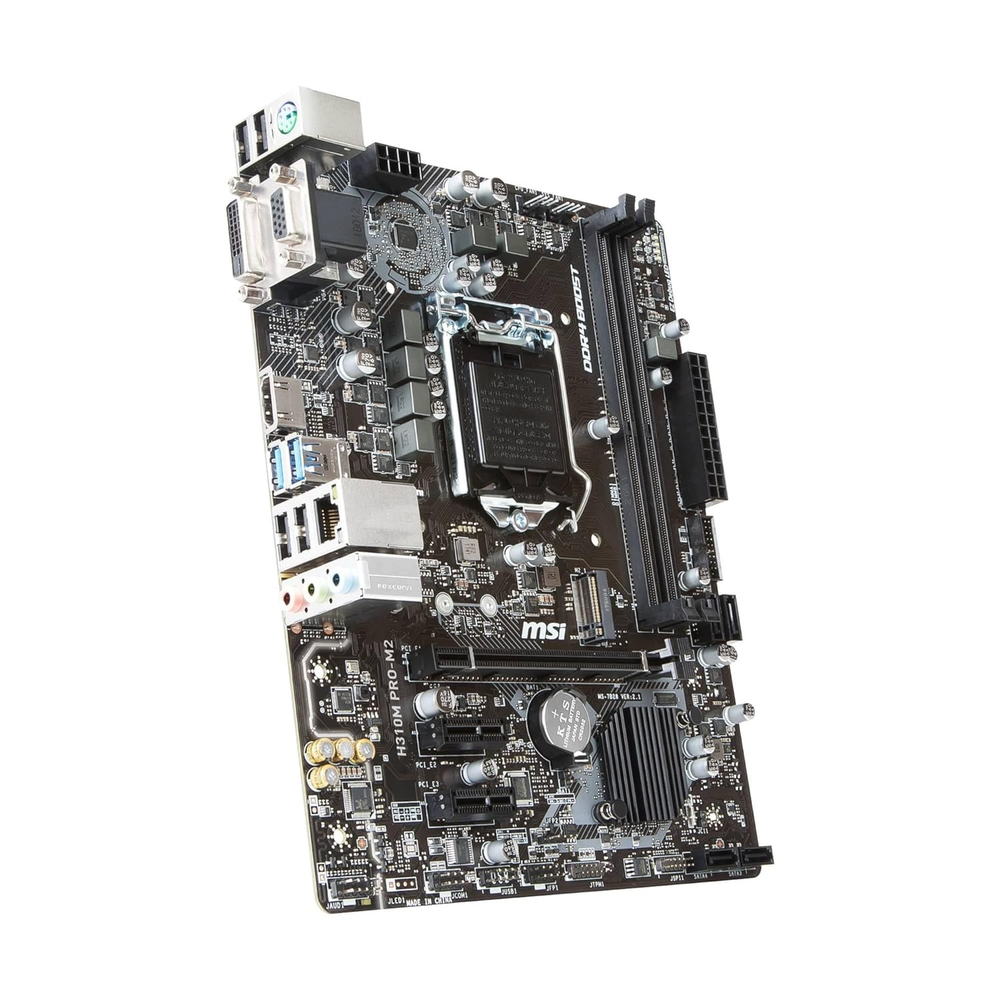

MSI H310M PRO-M2 Motherboard
Technical specification
Intel H310 mATX Motherboard for LGA 1151 — DDR4 up to 2666MHz, No Wi-Fi, Intel 1G LAN, PCIe 3.0 x4 M.2, PCIe 3.0 x16, HDMI + DVI-D + VGA Triple Display, USB 3.1 Gen1, 8th / 9th Gen Intel Core Ready.
The MSI H310M PRO-M2 is a compact and reliable LGA 1151 mATX for Intel 8th and 9th Gen builds — built for content creators and professionals who need a dependable DDR4 platform with M.2 SSD support and triple display output at the lowest price. It features DDR4 Boost, Turbo M.2 (PCIe Gen3 x4, up to 20Gbps), Intel 1G LAN, Realtek ALC887 7.1-CH audio, USB 3.1 Gen1, HDMI + DVI-D + VGA rear outputs, and TPM 2.0 header — a proven budget workhorse for office, home, and light productivity builds.
- CPU Support: Intel Core 9th / 8th Gen, Pentium Gold, Celeron — LGA 1151 socket (Coffee Lake)
- Power Delivery: DDR4 Boost, 1x 8-pin CPU connector, 1x 24-pin ATX main power
- Storage: M2_1: PCIe 3.0 x4 (up to 20Gbps, supports NVMe / SATA M.2, 2280); 4x SATA 6G
- Connectivity: No Wi-Fi; Intel 1G LAN
- USB: Rear — 4x USB 2.0, 2x USB 3.1 Gen1 Type-A; Front — 2x USB 2.0, 2x USB 3.1 Gen1 Type-A
- PCIe: PCI_E1: PCIe 3.0 x16 (CPU); PCI_E2/3: PCIe 3.0 x1 (Chipset)
- Audio: Realtek ALC887, 7.1-CH HD Audio
| Specification | Details |
|---|---|
| Chipset | Intel H310 |
| Socket | LGA 1151 (Coffee Lake — 8th/9th Gen only) |
| Form Factor | mATX (185 x 230 mm) |
| Memory | 2x DDR4 UDIMM, up to 32GB; DDR4 2666 / 2400 / 2133 MHz (JEDEC); Dual Channel, Non-ECC Unbuffered |
| Memory Standard | Non-ECC Unbuffered DDR4, Dual Channel |
| PCIe Slots | PCI_E1: PCIe 3.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset); PCI_E3: PCIe 3.0 x1 (Chipset) |
| M.2 Slots | M2_1: PCIe 3.0 x4 / SATA (Turbo M.2, up to 20Gbps, 2280) — 1 slot only |
| SATA | 4x SATA 6G (no RAID on H310) |
| LAN | Intel 1G LAN (no Wi-Fi) |
| Wireless | None |

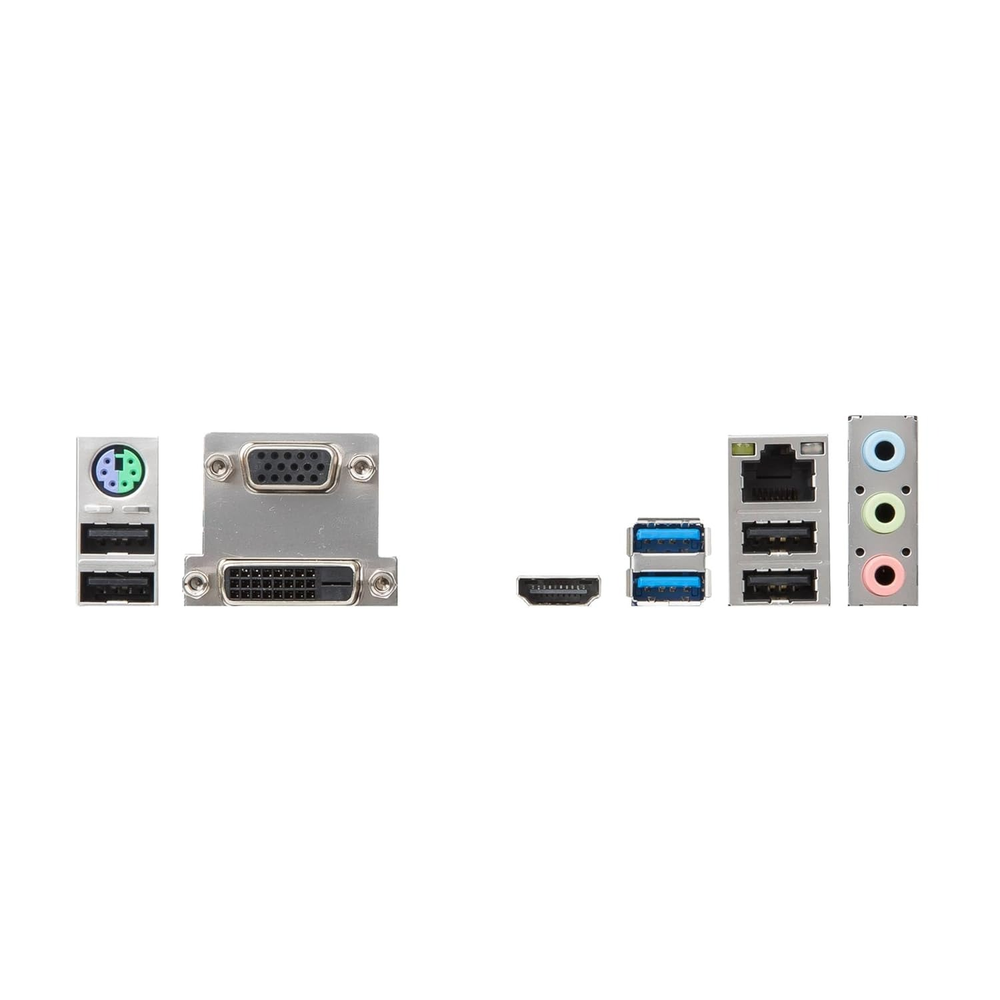

| Rear USB | 4x USB 2.0, 2x USB 3.1 Gen1 Type-A |
| Front USB Headers | 2x USB 2.0, 2x USB 3.1 Gen1 Type-A |
| Video Output | 1x HDMI + 1x DVI-D + 1x VGA — Triple display, iGPU only |
| Audio | Realtek ALC887, 7.1-CH HD Audio |
| Fan Headers | 1x CPU Fan, 1x System Fan |
| RGB | None |
| Extras | Turbo M.2, DDR4 Boost, TPM 2.0 header, PS/2 Combo Port, I/O shield included |
| OS Support | Windows 10 64-bit |
