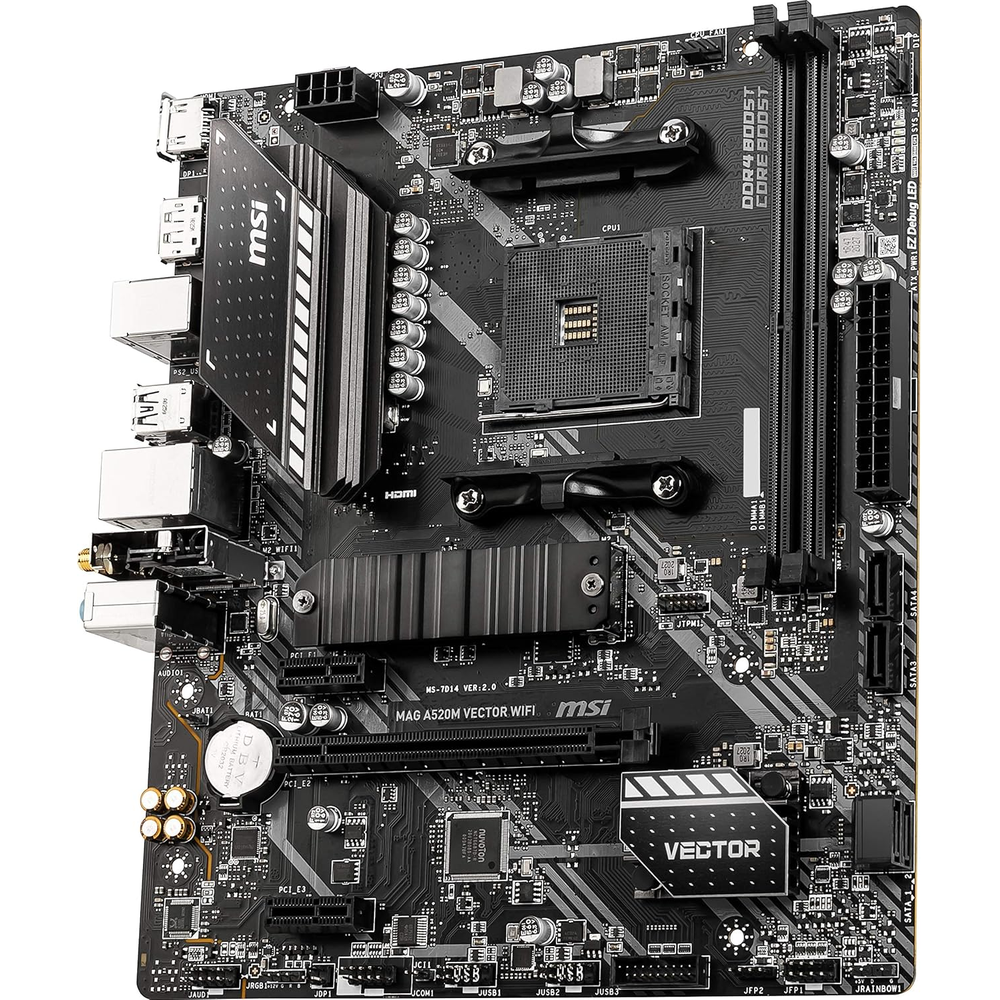

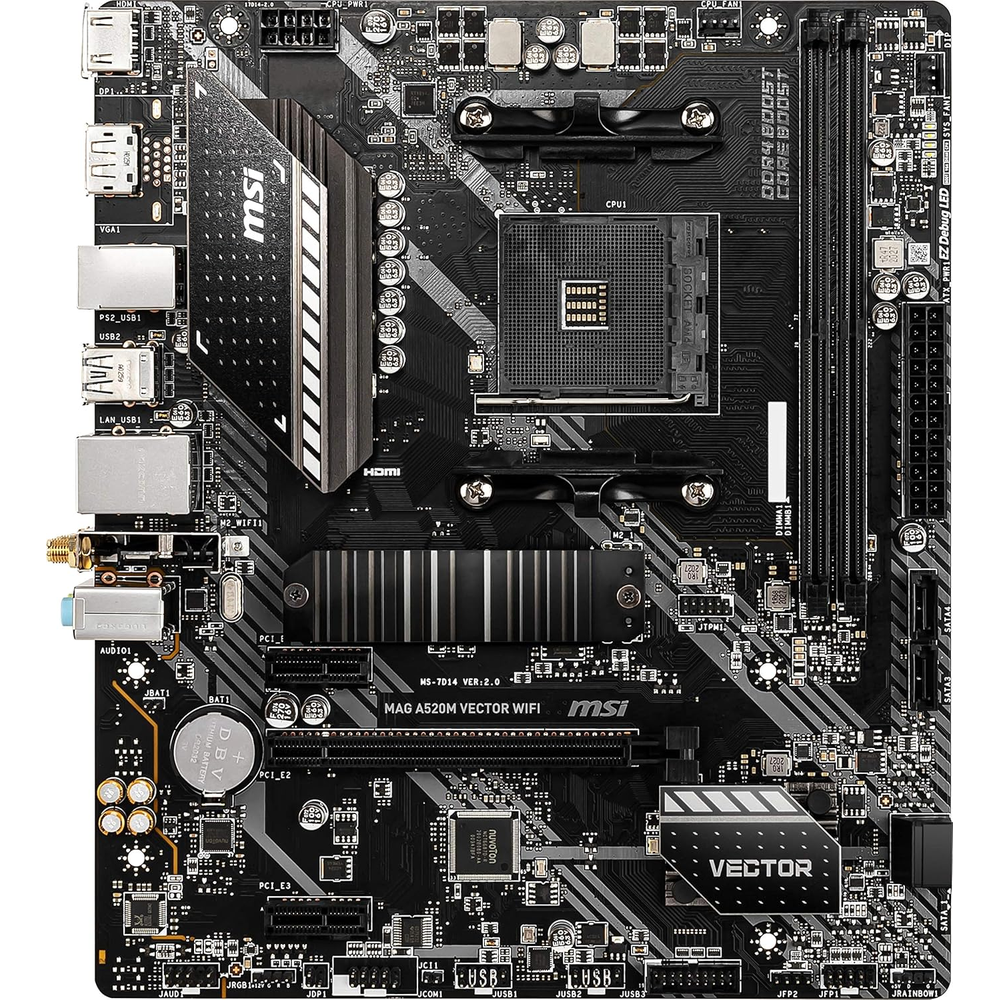

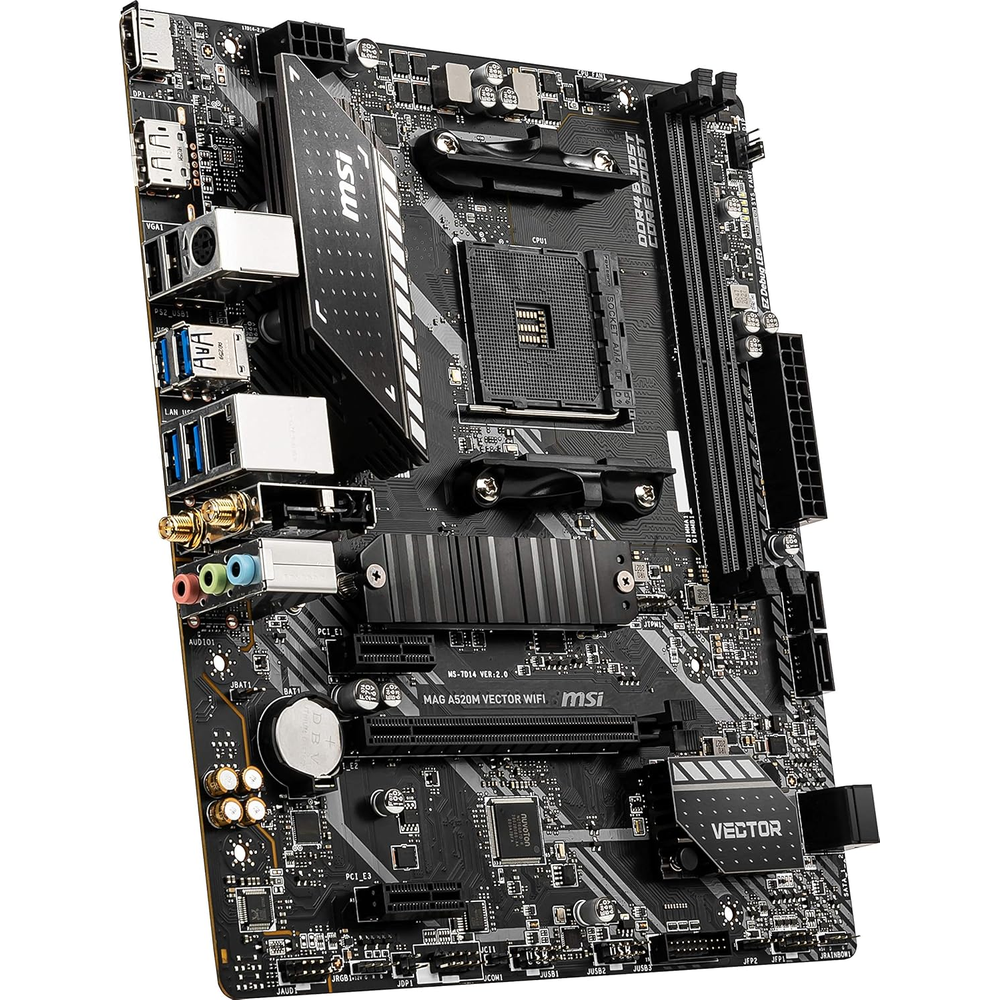

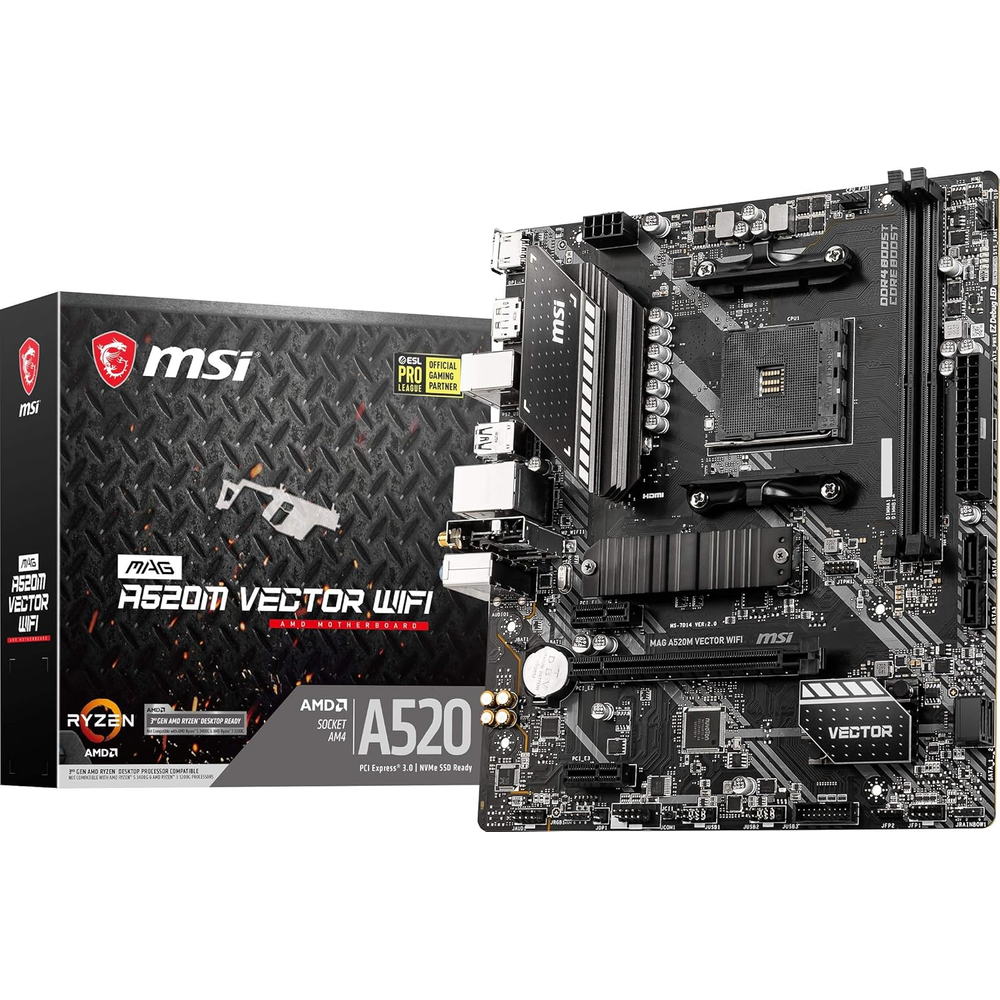

MSI MAG A520M VECTOR WIFI Motherboard
MSI MAG A520M VECTOR WIFI Motherboard
AMD A520 mATX Motherboard for AM4 — Core Boost, Extended Heatsink, Wi-Fi 5 (AC), BT 4.2, 1G LAN, Turbo M.2 PCIe 3.0 x4, DDR4 4600+ OC, 2x DDR4 up to...
Vendor:
MSIType:
MotherboardCouldn't load pickup availability
Estimated deliver 5-7 days
People are viewing this right now
Description
AMD A520 mATX Motherboard for AM4 — Core Boost, Extended Heatsink, Wi-Fi 5 (AC), BT 4.2, 1G LAN, Turbo M.2 PCIe 3.0 x4, DDR4 4600+ OC, 2x DDR4 up to 64GB, 4x SATA, HDMI 1.4 + DisplayPort, USB 5Gbps, Ryzen 5000 / 4000G / 3000 Ready.
The MSI MAG A520M VECTOR WIFI is the go-to budget AM4 mATX — offering the essentials of Ryzen 5000 support, Wi-Fi, and M.2 storage at the most accessible price. Built on AMD A520 with Core Boost VRM and Extended Heatsink Design, it includes Turbo M.2 (PCIe 3.0 x4), Wi-Fi 5 AC + Bluetooth 4.2, Realtek 1G LAN, HDMI + DisplayPort, Audio Boost 7.1-CH, USB 5Gbps, and all the basics needed for a reliable and affordable everyday Ryzen build.
-
>CPU Support: AMD Ryzen 5000 / 5000G / 4000G / 3000 / 3000G Series — Socket AM4 (no overclocking; A520 chipset)

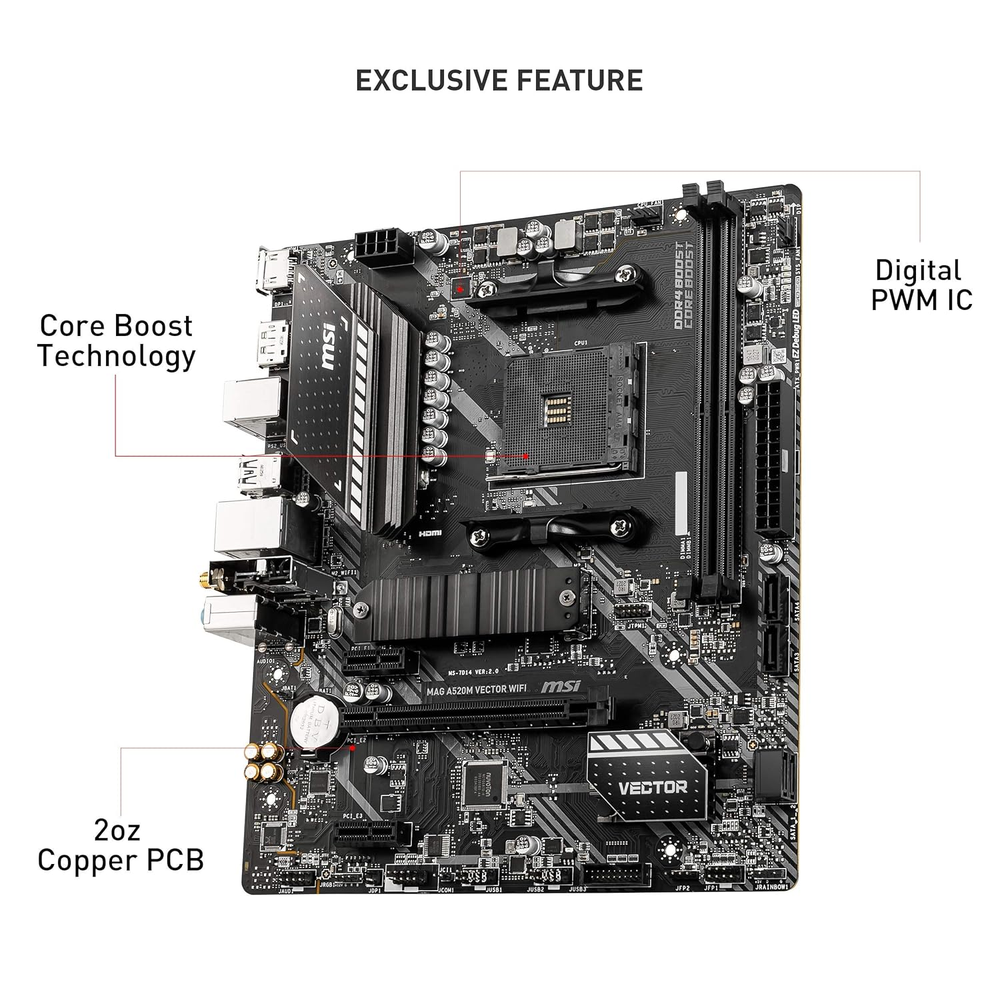

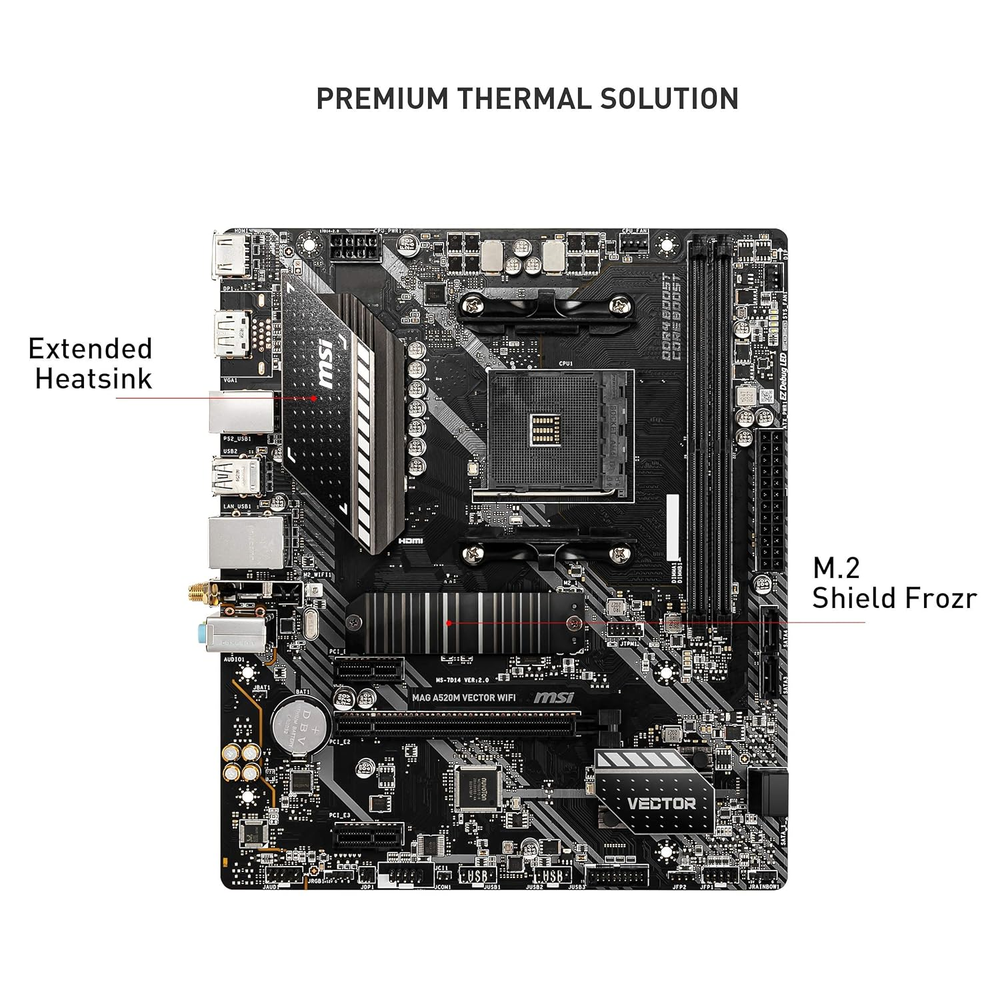

>Power Delivery: Core Boost, DDR4 Boost, Extended Heatsink Design, 1x 4-pin CPU connector

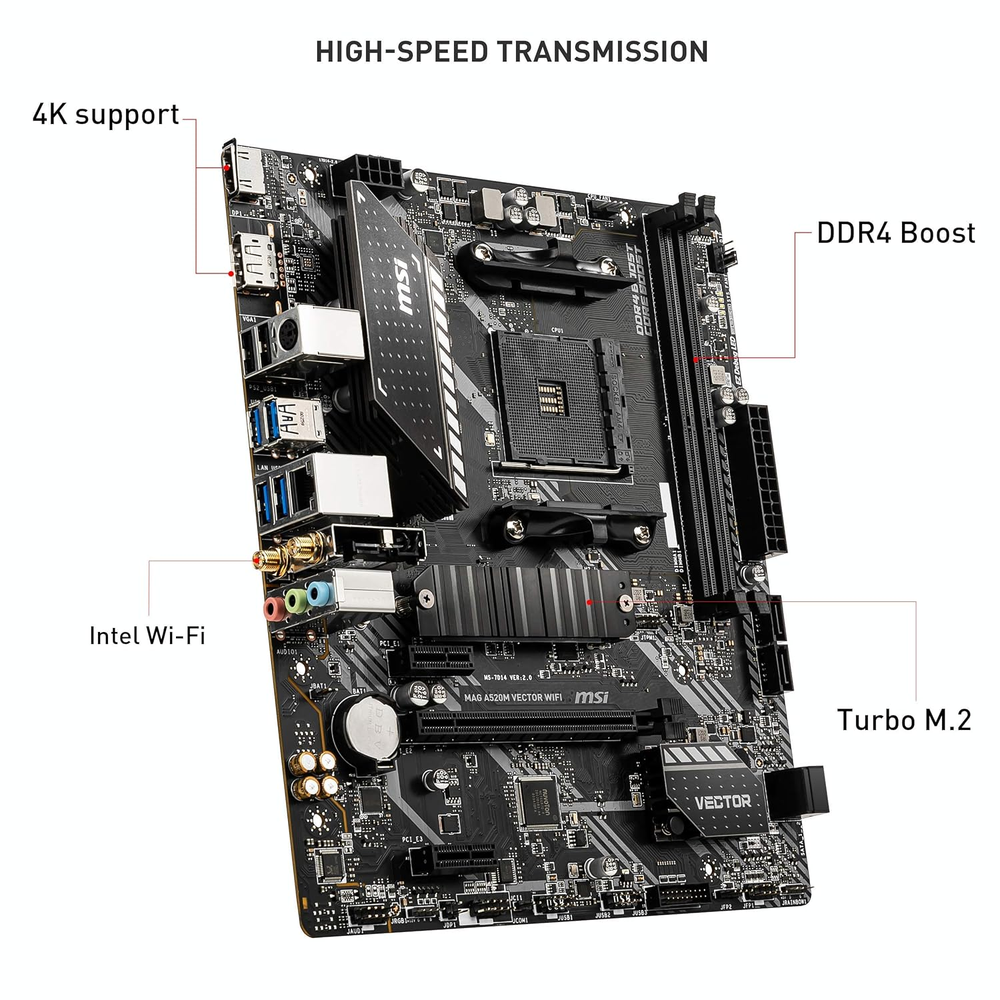

>Storage: M2_1: PCIe 3.0 x4 + SATA (CPU, 2242/2260/2280) — 1 slot only; 4x SATA 6G | RAID 0, 1, 10
>Connectivity: Wi-Fi 5 AC (802.11 a/b/g/n/ac, up to 433Mbps), Bluetooth 4.2; Realtek RTL8111H 1G LAN
>USB: Rear — 2x USB 2.0, 4x USB 5Gbps Gen 1 Type-A, 1x PS/2; Front — 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A
>PCIe: PCI_E1: PCIe 3.0 x16 (CPU); 2x PCIe 3.0 x1 (Chipset)
>Audio: Realtek ALC892/ALC897, 7.1-CH, Audio Boost, up to 192kHz
| Specification | Details |
|---|---|
| Chipset | AMD A520 |
| Socket | AM4 |
| Form Factor | mATX |
| Memory | 2x DDR4 UDIMM, up to 64GB; DDR4 4600+(OC) / 3200(JEDEC) MHz; Supports ECC UDIMM (non-ECC mode) |
| Memory Standard | A-XMP OC Mode, Dual Channel, Non-ECC & ECC (non-ECC mode) Unbuffered |
| PCIe Slots | PCI_E1: PCIe 3.0 x16 (CPU); 2x PCIe 3.0 x1 (Chipset) |
| M.2 Slots | M2_1: PCIe 3.0 x4 + SATA (CPU, 2242/2260/2280) — 1 slot only; No PCIe 4.0 M.2; No overclocking support (A520) |
| SATA | 4x SATA 6G | RAID 0, 1, 10 |
| LAN | Realtek RTL8111H 1G LAN |
| Wireless | Wi-Fi 5 AC (802.11 a/b/g/n/ac, up to 433Mbps), Bluetooth 4.2 |

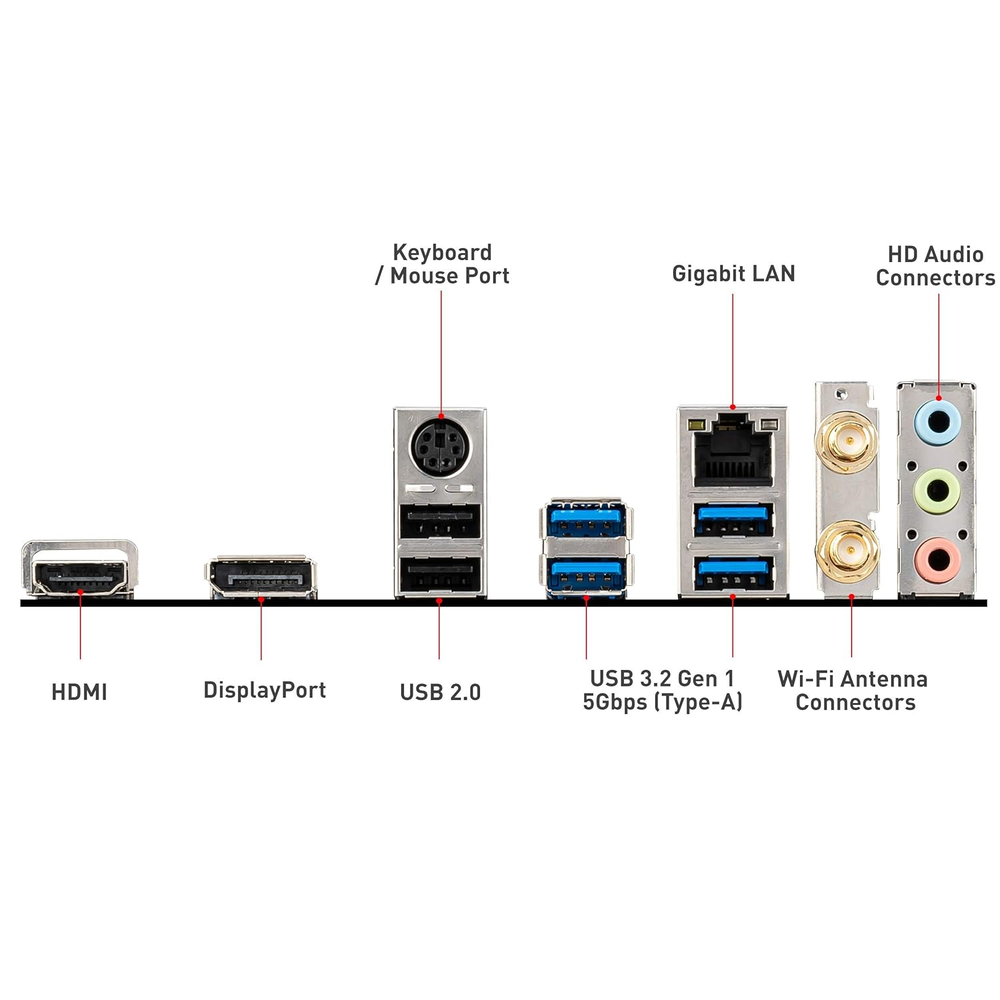

| Rear USB | 2x USB 2.0, 4x USB 5Gbps Gen 1 Type-A, 1x PS/2 |
| Front USB Headers | 4x USB 2.0, 2x USB 5Gbps Gen 1 Type-A |
| Video Output | 1x HDMI 1.4 (4K@24Hz) + 1x DisplayPort — iGPU only (G-Series) |
| Audio | Realtek ALC892/ALC897, Audio Boost, 7.1-CH, up to 192kHz |
| Fan Headers | 1x CPU Fan, 1x System Fan |
| RGB | None |

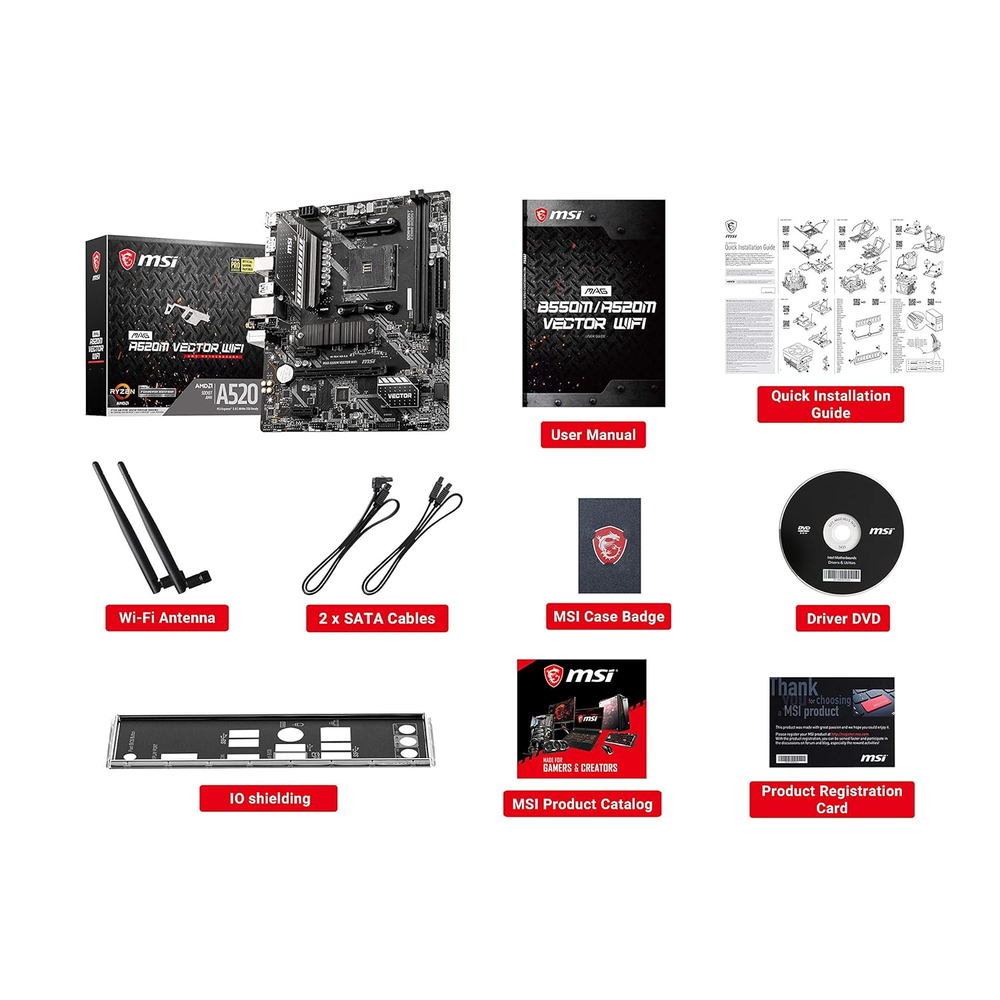

| Extras | Turbo M.2, Click BIOS 5, Game Boost, TPM header, Chassis Intrusion header, PS/2 combo port, I/O shield included |
| OS Support | Windows 10 64-bit |
