ASUS ProArt X870E-CREATOR WIFI ATX Motherboard
ASUS ProArt X870E-CREATOR WIFI ATX Motherboard
Vendor:
AsusSub total
Rs. 45,250.00Couldn't load pickup availability
Estimated deliver 5-7 days
Description
ASUS ProArt X870E-CREATOR WIFI is a high-end AMD X870E ATX motherboard for Ryzen 7000, 8000 and 9000 Series desktop processors on the AM5 socket, engineered for professional creators and advanced AI PC workstations. It delivers a 16+2+2 power stage design, DDR5 support up to 8000+ MT/s, PCIe 5.0 for graphics and storage, four M.2 slots, dual USB4 40Gbps ports, 10 GbE & 2.5 GbE LAN and Wi‑Fi 7, wrapped in a clean black-and-gold ProArt aesthetic.
Key Features:
-
>AMD X870E ATX motherboard with AM5 socket for Ryzen 9000 / 8000 / 7000 Series desktop processors.

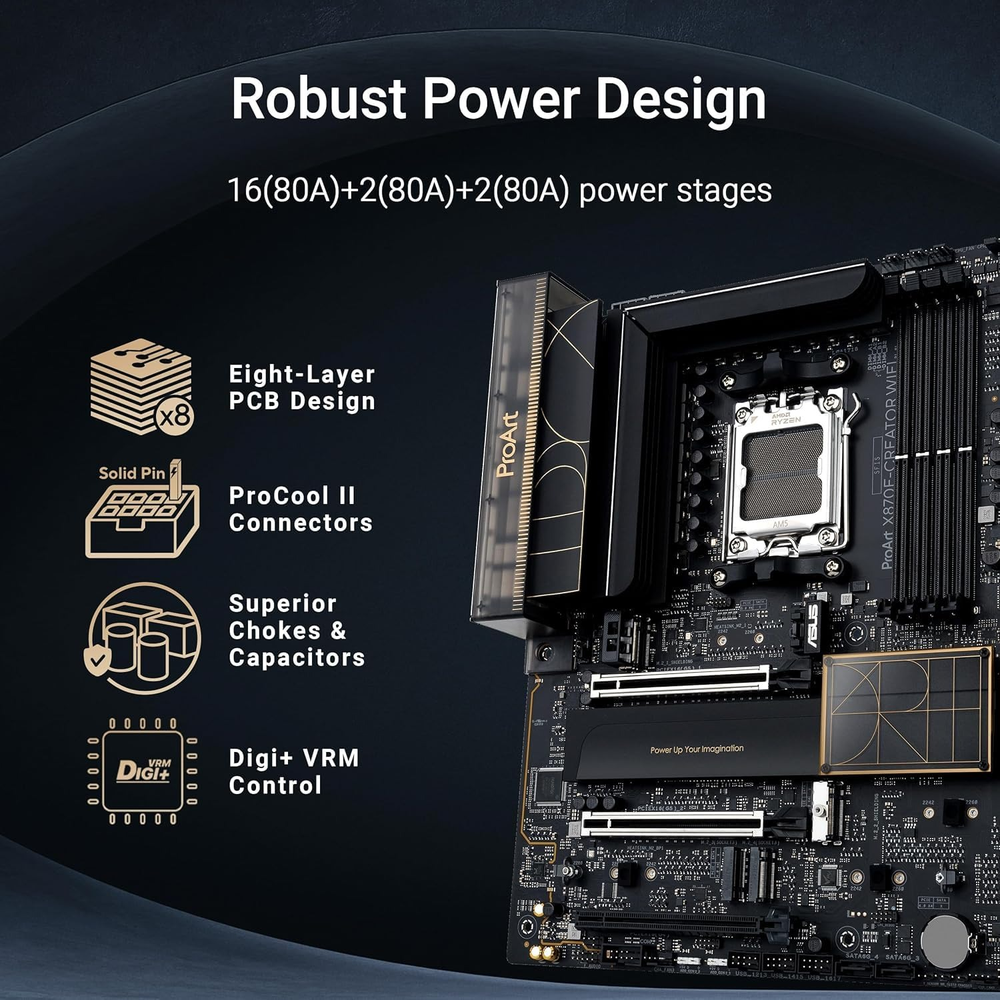

>16+2+2 teamed power stages with ProCool II power connectors, alloy chokes and durable capacitors for stable workloads.
>4 x DDR5 DIMM slots, up to 192–256GB dual-channel, supports high-speed DDR5 and AMD EXPO / ASUS AEMP for easy tuning.
>PCIe 5.0 x16 slot for next‑gen GPUs plus additional PCIe 5.0/4.0 slots for capture cards, RAID and add-in cards.

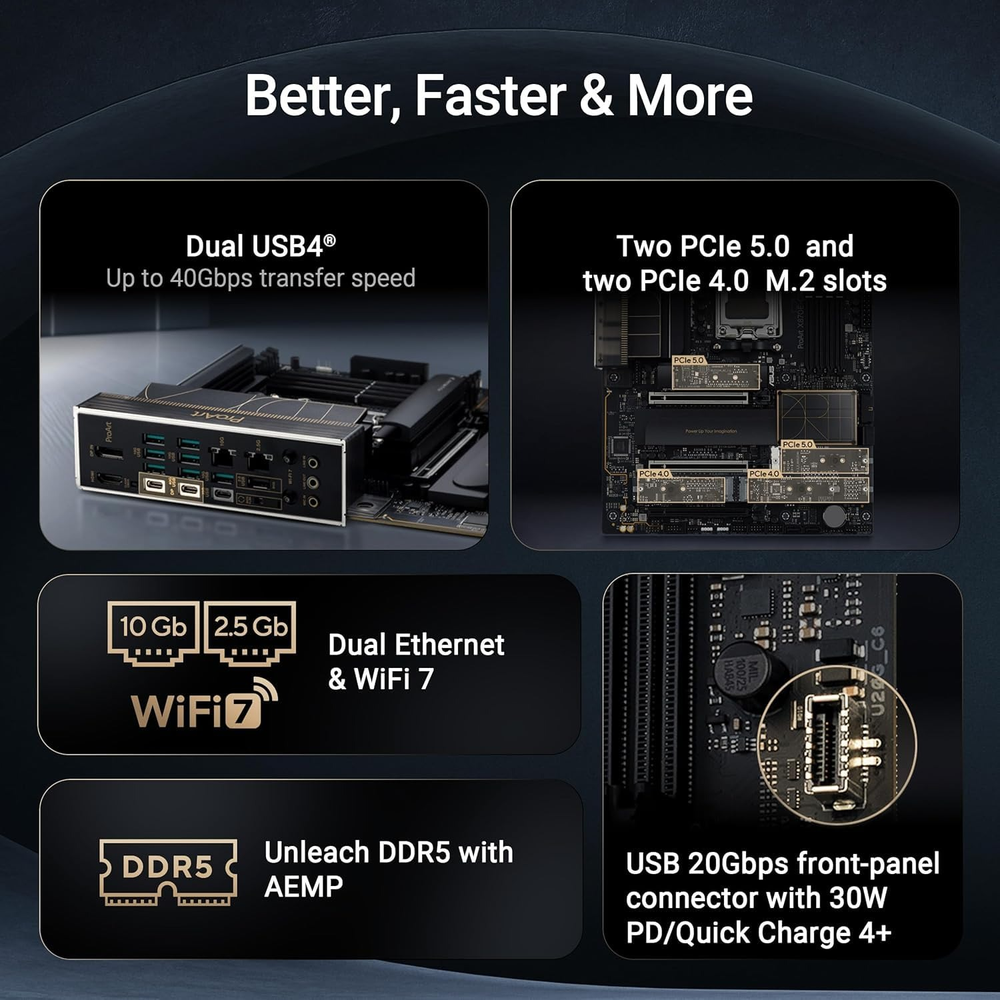

>Four M.2 slots: two PCIe 5.0 x4 and two PCIe 4.0 x4, all supporting NVMe RAID for ultra-fast storage arrays.
>Dual Ethernet: 1 x Marvell AQtion 10GbE & 1 x Intel 2.5GbE for flexible, high-bandwidth networking.
>Wi‑Fi 7 (2x2, 2.4/5/6GHz) with Bluetooth 5.4 for cutting-edge wireless performance and low latency.
>Dual USB4 40Gbps Type‑C ports on the rear I/O with DisplayPort Alt‑Mode for 8K or dual 4K monitors.
>Additional 20Gbps USB-C and multiple 10Gbps USB-A ports for fast external drives and peripherals.

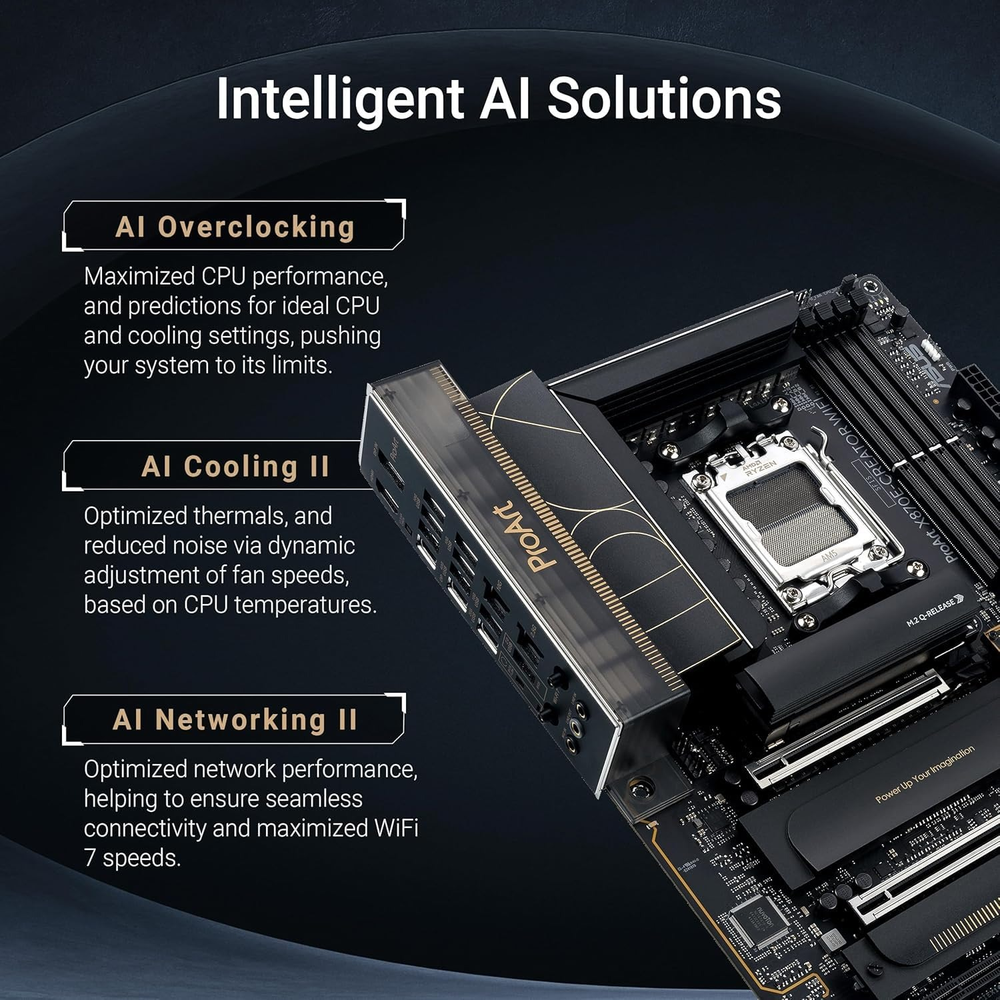

>ProArt Creator Hub, ASUS AI Overclocking, AI Cooling II and AI Networking II to optimize performance and stability.
>Elegant ProArt design with subtle black and gold styling suited for professional studio builds.
Specifications:
| Model | ProArt X870E-CREATOR WIFI |
| Chipset | AMD X870E |
| CPU Support | AMD Socket AM5 for Ryzen 9000, 8000 and 7000 Series desktop processors (see ASUS CPU support list). |
| Form Factor | ATX |
| Power Design | 16+2+2 teamed power stages, ProCool II connectors, high-quality alloy chokes, durable capacitors; AI Overclocking, Dynamic OC Switcher, Core Flex. |
| Memory | 4 x DDR5 DIMM slots, up to 192–256GB dual-channel; supports high-speed DDR5 (up to around 8000 MT/s OC depending on CPU), AMD EXPO and ASUS AEMP. |
| Expansion Slots |
PCIe x16 slots (CPU/chipset): - Up to 2 x PCIe 5.0 x16 slots (x16 or x8/x8 mode)* - 1 x PCIe 4.0 x16 (x4 mode) from chipset (*Exact lane sharing depends on CPU and installed Gen 5 SSDs.) |
| Storage |
Total: 4 x M.2 slots + 4 x SATA 6Gb/s ports - 2 x M.2 PCIe 5.0 x4 (up to 128 Gbps each) for Gen 5 NVMe SSDs - 2 x M.2 PCIe 4.0 x4 for additional NVMe SSDs 4 x SATA 6Gb/s for 2.5" SSDs and HDDs All M.2 support NVMe RAID via AMD RAIDXpert2. |
| Networking | 1 x Marvell AQtion 10Gb Ethernet 1 x Intel 2.5Gb Ethernet 2x2 Wi‑Fi 7 (802.11be, 2.4/5/6GHz, 320MHz channels) and Bluetooth 5.4. |
| Rear USB Ports |
2 x USB4 40Gbps Type‑C with DP Alt Mode 1 x USB 20Gbps Type‑C Up to 7 x USB 10Gbps Type‑A 1 x USB 2.0 Type‑A (for low‑speed peripherals). |
| Front USB Headers | 1 x USB 20Gbps Type‑C header (with up to 30W PD/Quick Charge 4+), USB 5Gbps and USB 2.0 headers for case I/O. |
| Audio | High-definition multi‑channel audio with premium capacitors and audio shielding (codec per ASUS spec), plus S/PDIF via GPU/USB where applicable. |
| Cooling & Fan Headers | Large VRM, chipset and M.2 heatsinks; multiple hybrid fan headers and AIO pump header; AI Cooling II and Fan Xpert for granular control. |
| Lighting | Subtle integrated RGB accents with Aura Sync and Addressable Gen 2 headers for optional lighting. |
| Operating System | Windows 11 / Windows 10 64‑bit (Windows 11 recommended to use all features). |
| Warranty | 3 years (ASUS India warranty, typical). |
Ideal For:
Perfect for professional content creation, video editing, 3D rendering, photography, audio production and AI/ML workloads where you need multiple ultra‑fast NVMe drives, 10G & 2.5G LAN, dual USB4, Wi‑Fi 7 and rock‑solid power delivery in a clean, studio‑friendly design.
