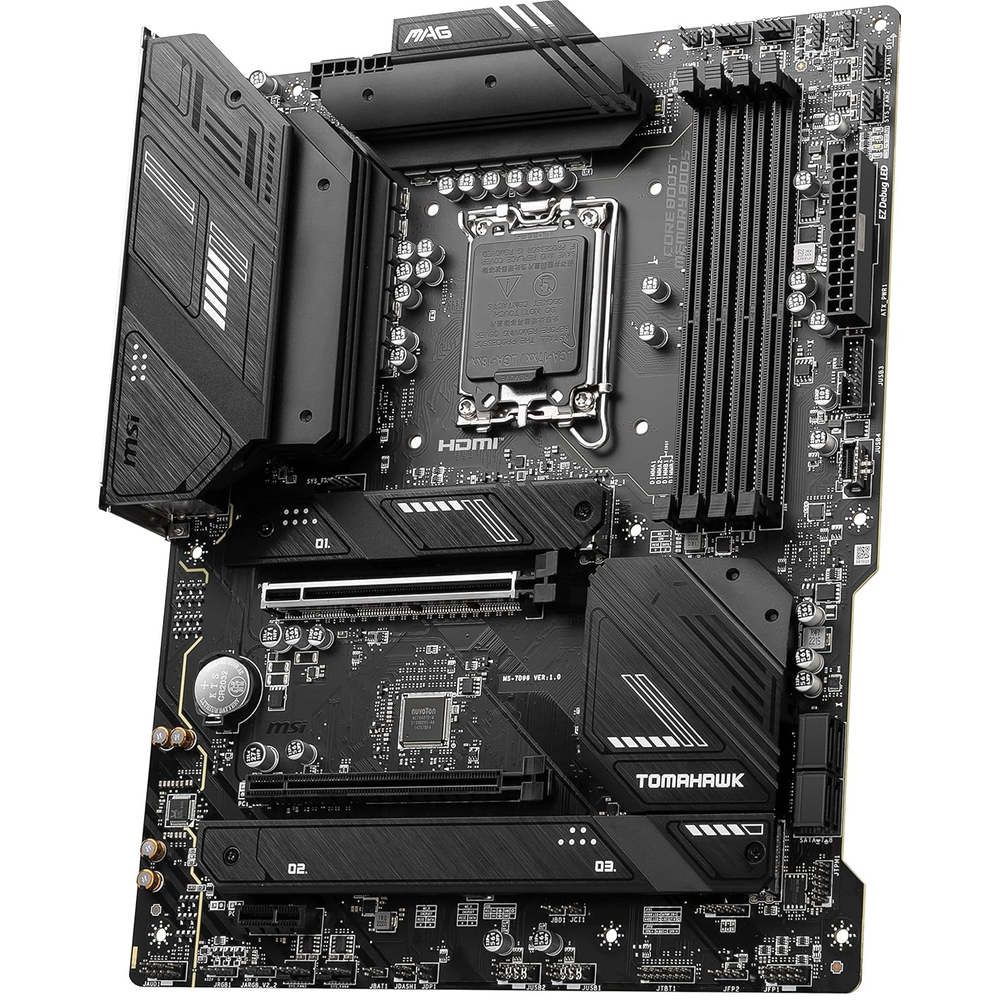

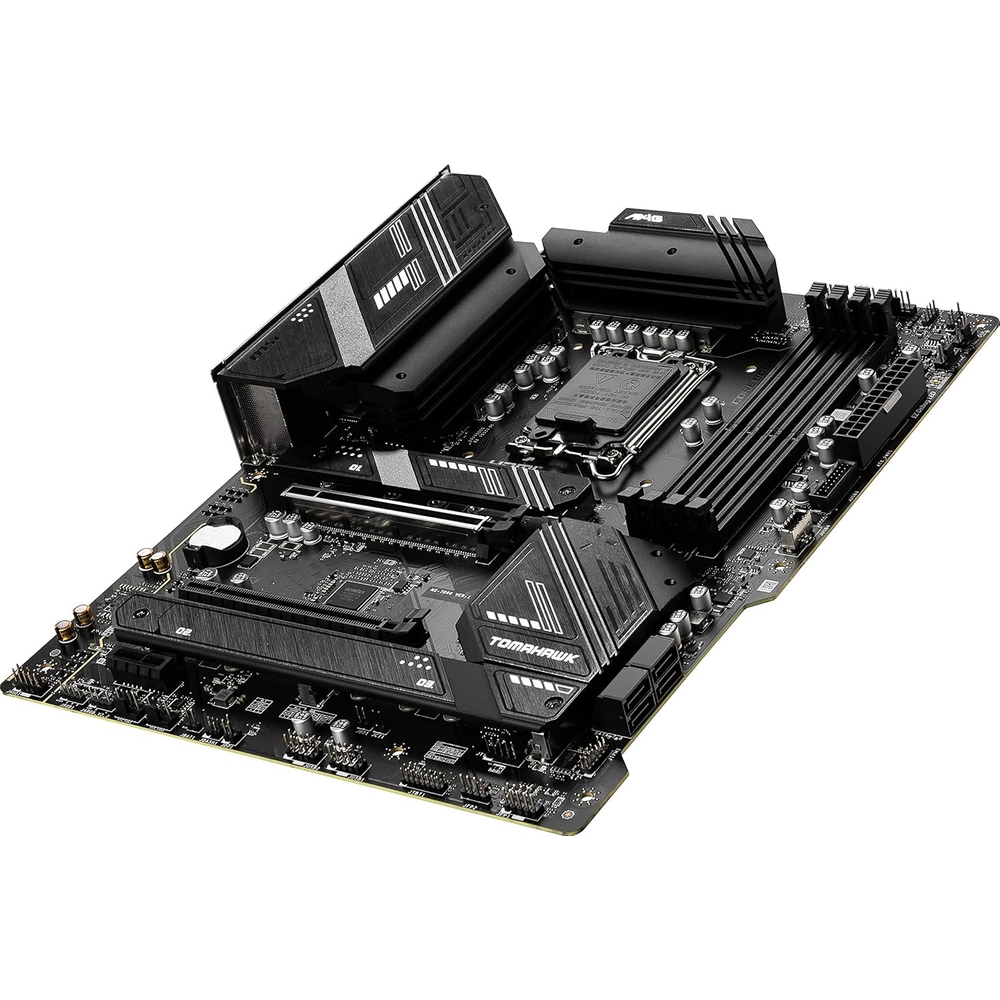

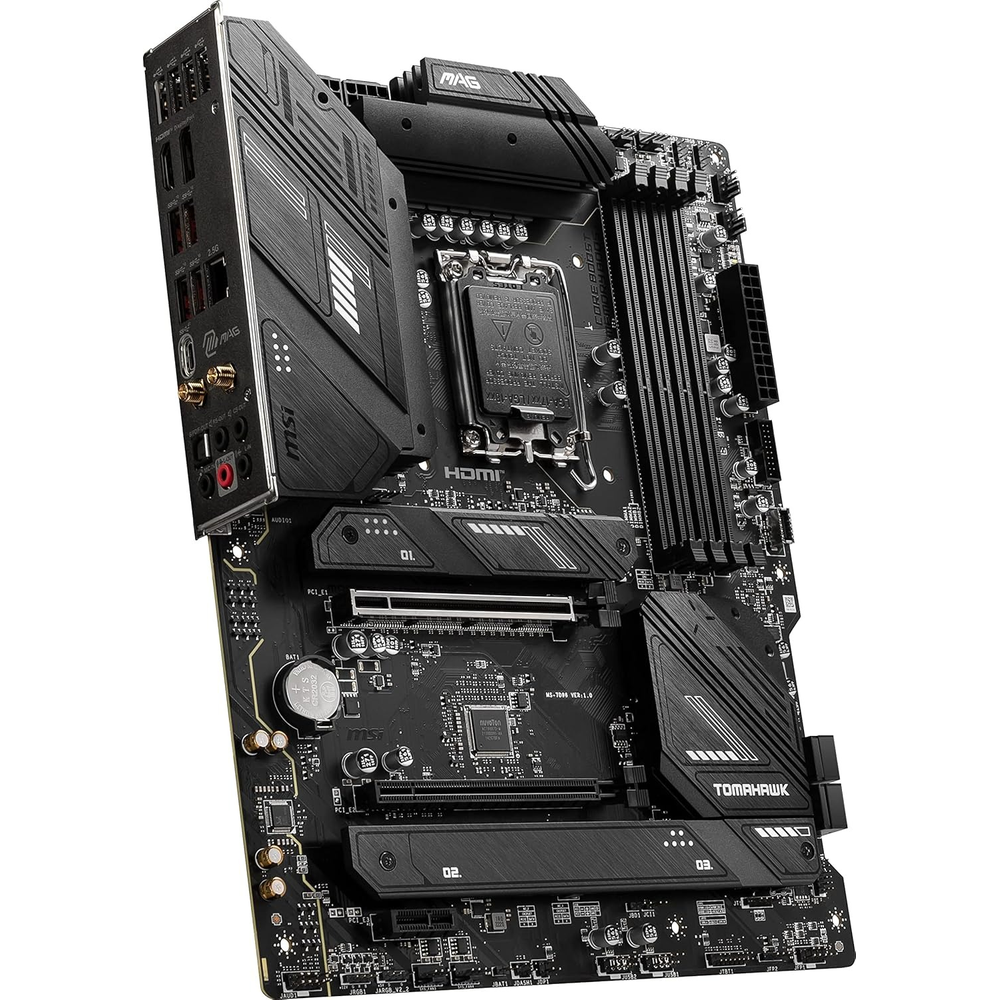

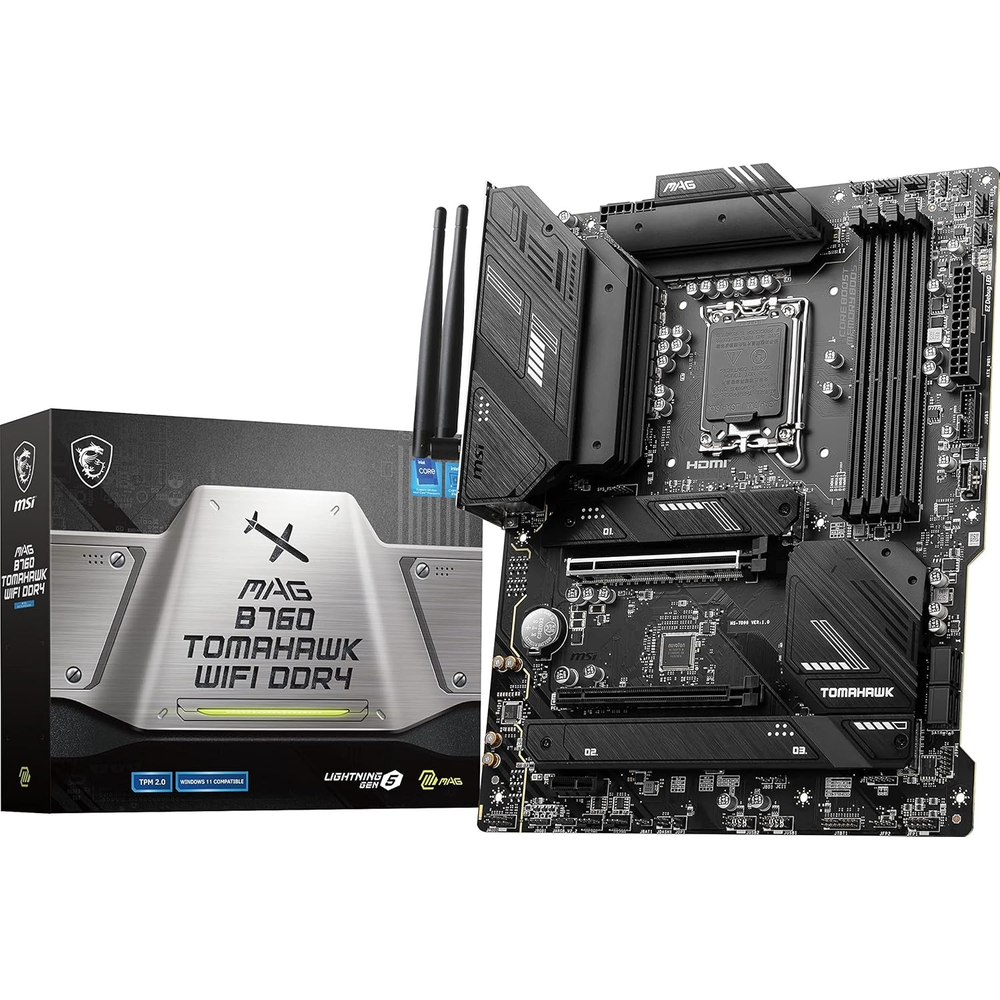

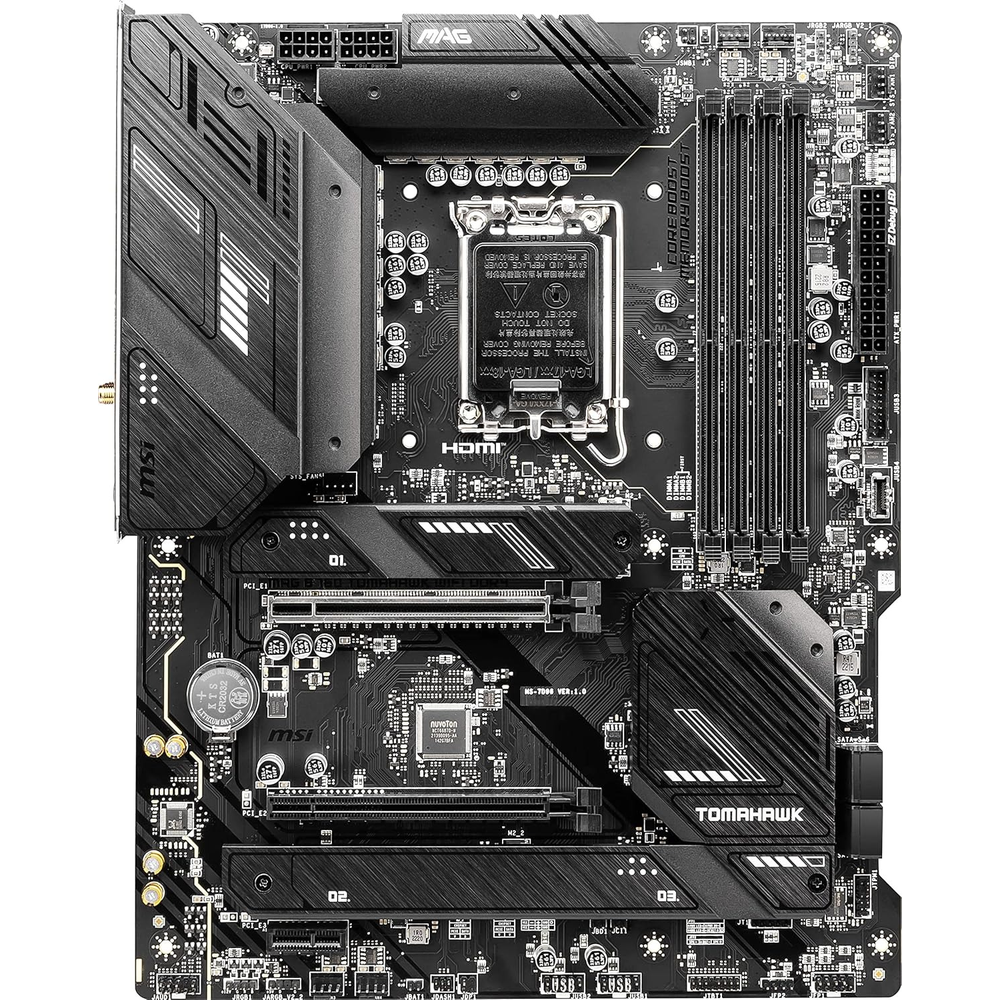

MSI MAG B760 TOMAHAWK WIFI DDR4 Motherboard

Flagship Intel B760 ATX DDR4 Motherboard — Wi-Fi 6E, PCIe 5.0, DDR4 5333+, and 3x M.2 Gen4 for Intel Core 12th, 13th & 14th Gen.

The MSI MAG B760 TOMAHAWK WIFI DDR4 is a premium ATX motherboard for Intel Core 12th, 13th, and 14th Gen processors on the LGA 1700 socket, designed for builders upgrading from existing DDR4 platforms. It delivers a 12+1+1 Duet Rail power system with dual 8-pin CPU connectors, Intel Wi-Fi 6E, Realtek 2.5G LAN, PCIe 5.0 x16, 3x M.2 PCIe 4.0 slots, USB 20Gbps Type-C, and Extended M.2 Shield Frozr — all the flagship Tomahawk features on DDR4 memory.

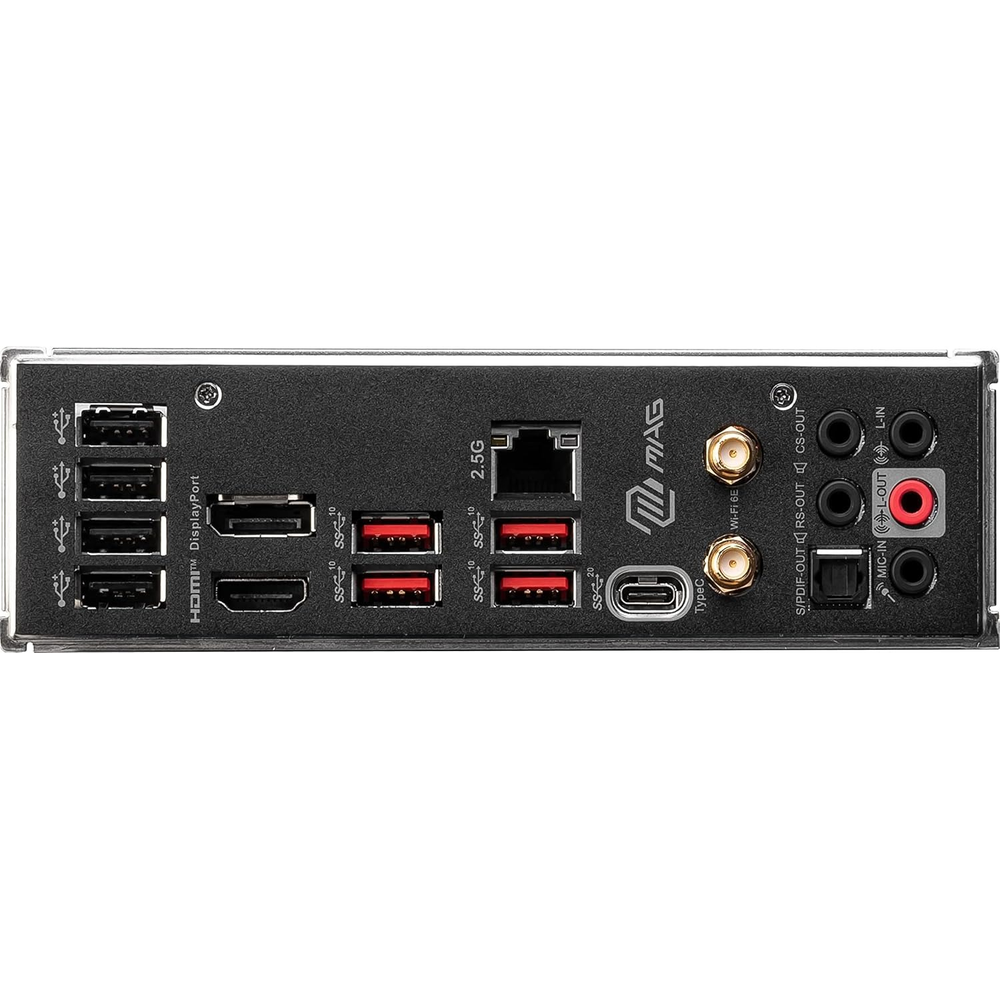

>CPU Support: Intel Core 14th / 13th / 12th Gen + Pentium Gold / Celeron, LGA 1700 socket >Power Delivery: 12+1+1 Duet Rail Power System, dual 8-pin CPU connectors, Core Boost, 6-layer 2oz copper PCB, Extended Heatsink >Storage: 3x M.2 — M.2_1: PCIe 4.0 x4 (CPU, 22110/2280/2260/2242); M.2_2: PCIe 4.0 x4 (Chipset, 2280/2260/2242); M.2_3: PCIe 4.0 x4 / SATA (Chipset, 2280/2260/2242); 4x SATA 6G | RAID 0/1/5/10 — Extended M.2 Shield Frozr on all slots >Connectivity: Intel Wi-Fi 6E (2.4/5/6GHz, 160MHz, up to 2.4Gbps), Realtek 2.5G LAN, Bluetooth 5.3 >USB: Rear — 4x USB 10Gbps Type-A, 1x USB 20Gbps Type-C, 4x USB 2.0; Front — 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C, 4x USB 2.0 >Memory: 4x DDR4 UDIMM, up to 128GB, DDR4 5333+ MT/s (OC) / 3200–2133 MT/s (JEDEC) — ideal for DDR4 platform upgrades >Audio: Realtek ALC897, 7.1-Channel HD Audio, S/PDIF output
