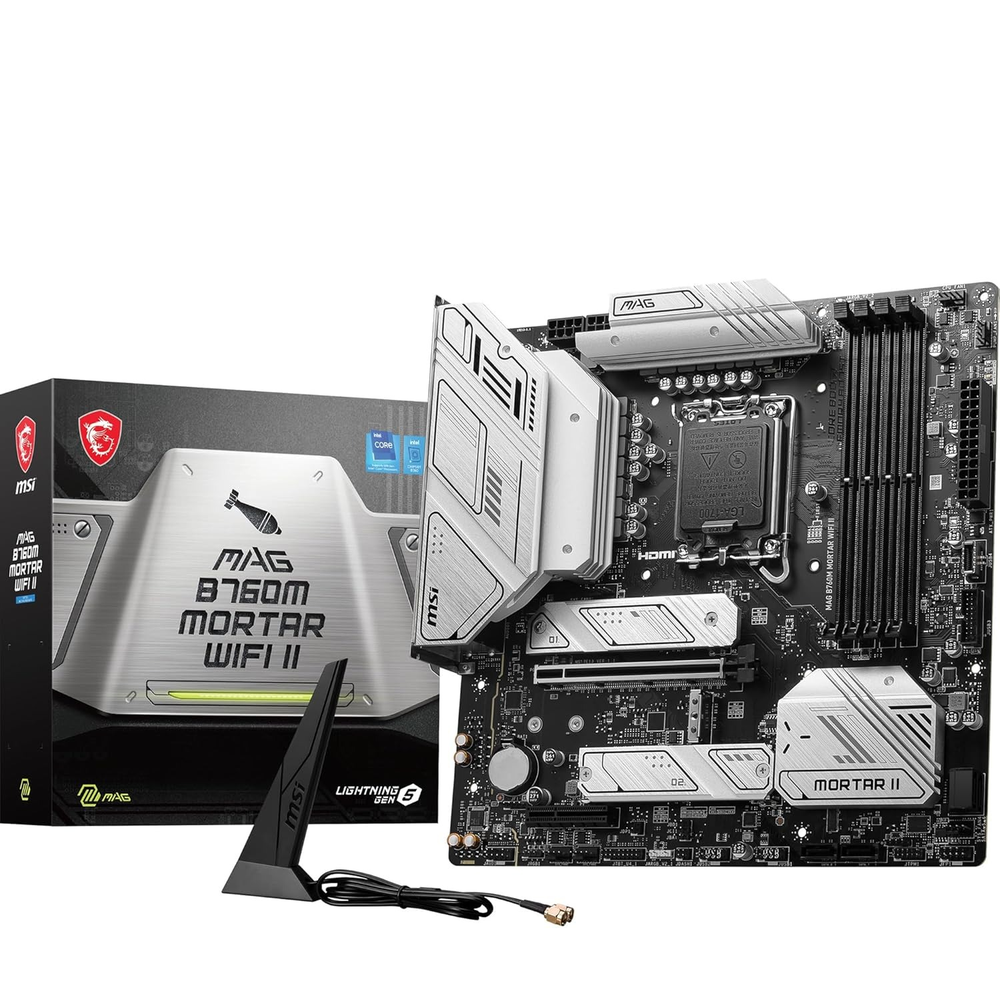

MSI MAG B760M MORTAR WIFI II Motherboard
Price inclusive of all taxes
Technical specification
Compact mATX Intel B760 Gaming Motherboard — Wi-Fi 6E, PCIe 5.0, DDR5 7800+, and 3x M.2 Gen4 for Intel Core 12th, 13th & 14th Gen.
The MSI MAG B760M MORTAR WIFI II is a feature-rich Micro-ATX gaming motherboard for Intel Core 12th, 13th, and 14th Gen processors on the LGA 1700 socket. It packs a 12+1+1 Duet Rail power system with dual 8-pin CPU connectors, Intel Wi-Fi 6E (up to 2.4Gbps), Realtek 2.5G LAN, PCIe 5.0 x16, 3x M.2 PCIe 4.0 slots, USB 20Gbps Type-C, and Extended M.2 Shield Frozr — all on a 6-layer 2oz copper server-grade PCB for compact high-performance builds.
- CPU Support: Intel Core 14th / 13th / 12th Gen + Pentium Gold / Celeron, LGA 1700 socket
- Power Delivery: 12+1+1 Duet Rail Power System, dual 8-pin CPU connectors, Core Boost, Memory Boost, 6-layer 2oz thickened copper PCB
- Storage: 3x M.2 — M.2_1: PCIe 4.0 x4 (CPU, 2280/2260/2242); M.2_2: PCIe 4.0 x4 (Chipset, 2280/2260); M.2_3: PCIe 4.0 x4 / SATA (Chipset, 2280); 4x SATA 6G — M.2 Shield Frozr on all slots
- Connectivity: Intel Wi-Fi 6E (2.4/5/6GHz, 160MHz, up to 2.4Gbps), Realtek 2.5G LAN, Bluetooth 5.3
- USB: Rear — 3x USB 10Gbps Type-A, 1x USB 20Gbps Type-C, 4x USB 2.0; Front — 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C, 4x USB 2.0
- EZ Features: EZ M.2 Clip, EZ Debug LED (4x), JDASH tuning controller connector, USB4 card header (JTBT_U4)
- Audio: Realtek ALC897, 7.1-Channel HD Audio, S/PDIF output
| Specification | Details |
|---|---|
| Chipset | Intel B760 |
| Socket | LGA 1700 |
| Form Factor | mATX (243.84 x 243.84 mm), 6-layer 2oz copper PCB |
| Memory | 4x DDR5 UDIMM, up to 256GB, DDR5 7800+ MT/s (OC) / 5600–4800 MT/s (JEDEC) |
| Memory Standard | XMP, Dual Channel, non-ECC unbuffered |
| PCIe Slots | PCI_E1: PCIe 5.0 x16 (CPU); PCI_E2: PCIe 3.0 x4 (Chipset) |
| M.2 Slots | 3x M.2 — M.2_1: PCIe 4.0 x4 (CPU, 2280/2260/2242); M.2_2: PCIe 4.0 x4 (Chipset, 2280/2260); M.2_3: PCIe 4.0 x4 / SATA (Chipset, 2280) |
| SATA | 4x SATA 6G | RAID 0, 1, 5, 10 |
| LAN | Realtek 2.5G LAN |
| Wireless | Intel Wi-Fi 6E (2.4/5/6GHz, 160MHz, up to 2.4Gbps), Bluetooth 5.3 |
| Thunderbolt | 1x USB4 card header (JTBT_U4, supports RTD3) |
| Rear USB | 3x USB 10Gbps Type-A, 1x USB 20Gbps Type-C, 4x USB 2.0 |
| Front USB Headers | 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C, 4x USB 2.0 |
| Video Output | 1x HDMI 2.1 (4K@60Hz), 1x DisplayPort 1.4 (4K@60Hz) |
| Audio | Realtek ALC897, 7.1-CH HD Audio, S/PDIF out |
| Fan Headers | 1x CPU Fan, 1x Pump Fan, 4x System Fan |
| RGB | 2x ARGB V2 headers, 1x RGB header, 4x EZ Debug LED |
| OS Support | Windows 11 / 10 64-bit |
