MSI MAG B860M MORTAR WIFI Motherboard

MSI MAG B860M MORTAR WIFI Motherboard

Compact mATX Intel B860 Motherboard — Wi-Fi 7, 5G LAN, PCIe 5.0, and DDR5 9200+ for Intel Core Ultra Series 2. The MSI MAG B860M MORTAR WIFI is a feature-packed...

Rs. 24,999.00
Rs. 24,999.00
OFF Sold out
Tax included. Shipping calculated at checkout.

Vendor:

MSI

Type:

Motherboard

Estimated deliver 5-7 days

People are viewing this right now

View full details
Let us know abour your query!
Description
Reviews

Compact mATX Intel B860 Motherboard — Wi-Fi 7, 5G LAN, PCIe 5.0, and DDR5 9200+ for Intel Core Ultra Series 2.

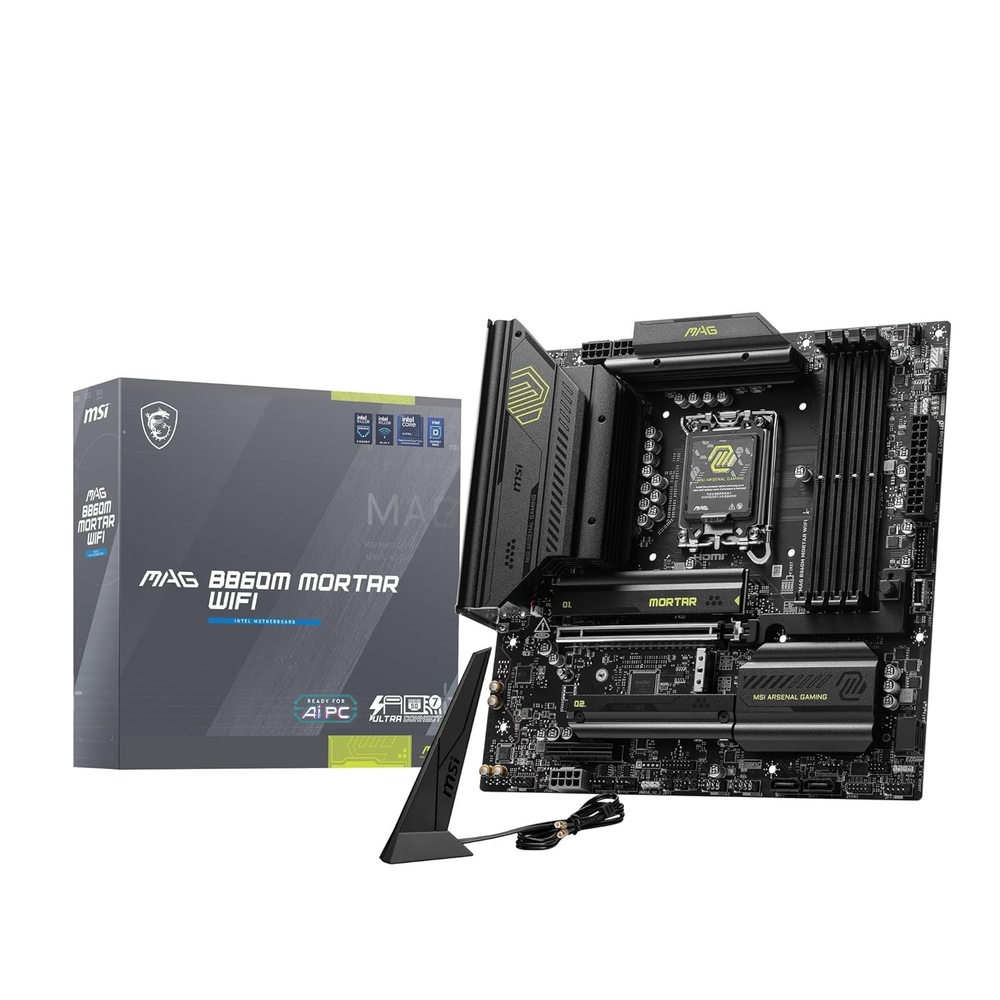

The MSI MAG B860M MORTAR WIFI is a feature-packed Micro-ATX motherboard for Intel Core Ultra Series 2 processors on the LGA 1851 socket. It offers remarkable value with Intel Killer Wi-Fi 7 (up to 5.8Gbps), 5G Killer LAN, PCIe 5.0 x16, 3x M.2 slots, 60A power stages, and DDR5 support up to 9200+ MT/s (OC) — all in a space-saving mATX form factor built for compact gaming and creator builds.

  • CPU Support: Intel Core Ultra Series 2, LGA 1851 socket

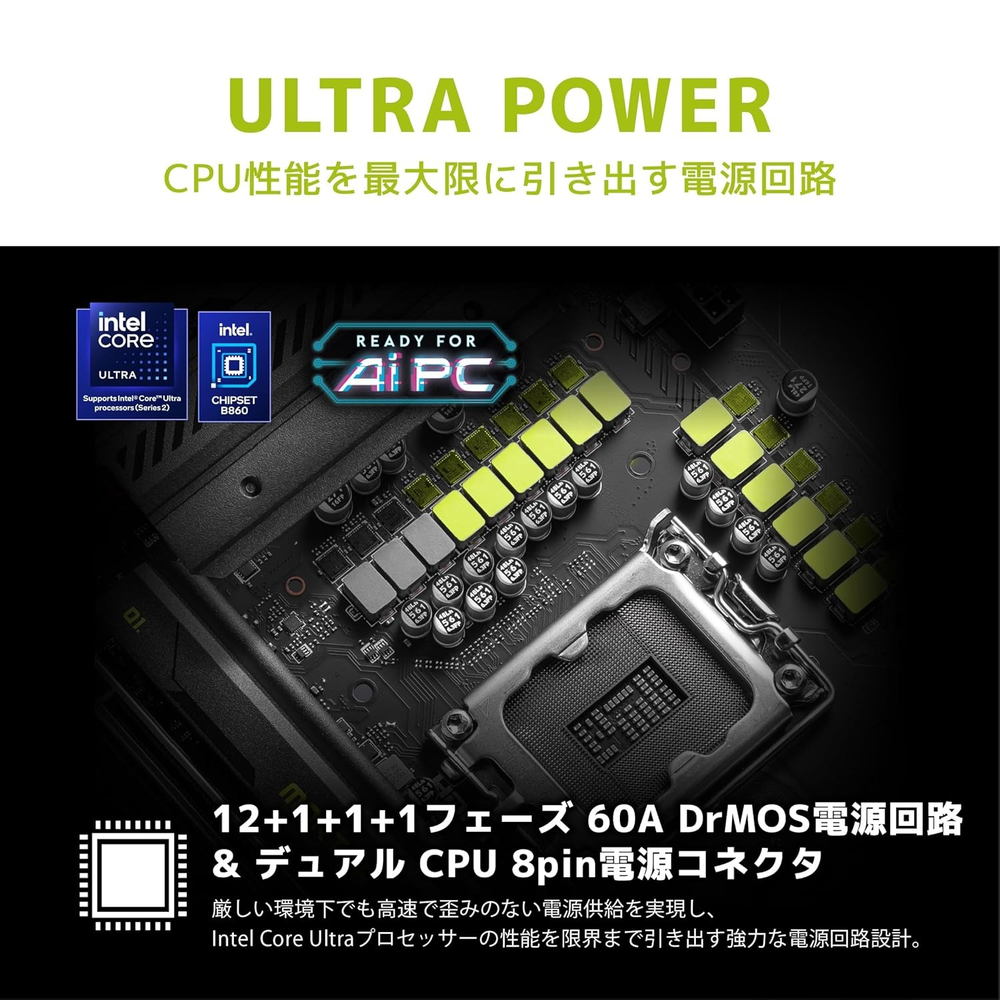

  • Power Delivery: 10+1+1+1 Duet Rail Power System, 60A SPS, dual 8-pin CPU connectors
  • Storage: 3x M.2 — M.2_1: PCIe 5.0 x4 (CPU); M.2_2: PCIe 4.0 x4 (Chipset); M.2_3: PCIe 4.0 x4 / SATA (Chipset); 4x SATA 6G
  • Connectivity: Intel Killer BE1750x Wi-Fi 7 (2.4/5/6GHz, 320MHz, up to 5.8Gbps), Intel Killer E5000 5G LAN, Bluetooth 5.4
  • USB: Rear — 2x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 2x USB 5Gbps Type-A, 4x USB 2.0; Front — 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C, 4x USB 2.0
  • EZ Features: EZ M.2 Clip, EZ PCIe Release, EZ Debug LED, single-sided DIMM latches
  • Audio: Realtek ALC897, 7.1-Channel HD Audio, S/PDIF output
Specification Details
Chipset Intel B860
Socket LGA 1851

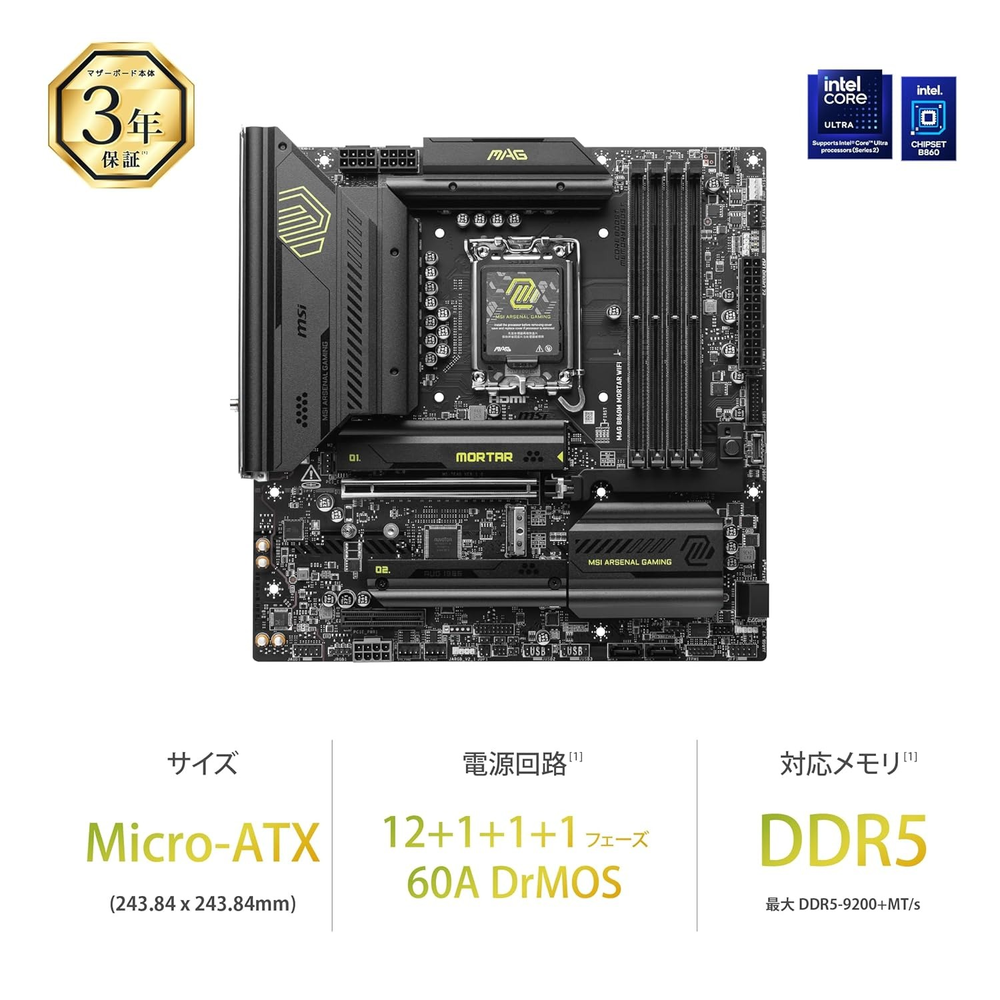

Form Factor mATX (243.84 x 243.84 mm)
Memory 4x DDR5 UDIMM, up to 256GB, DDR5 9200+ MT/s (OC) / 6400–4800 MT/s (JEDEC)
Memory Standard XMP 3.0, CUDIMM supported, Dual Channel
PCIe Slots PCI_E1: PCIe 5.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset); PCI_E3: PCIe 4.0 x4 (Chipset)
M.2 Slots 3x M.2 — M.2_1: PCIe 5.0 x4 (CPU, 2280/2260); M.2_2: PCIe 4.0 x4 (Chipset, up to 22110); M.2_3: PCIe 4.0 x4 / SATA (Chipset, 2280/2260/2242)
SATA 4x SATA 6G
LAN Intel Killer E5000 5G LAN
Wireless Intel Killer BE1750x Wi-Fi 7 (2.4/5/6GHz, 320MHz, up to 5.8Gbps), Bluetooth 5.4
Thunderbolt Not included

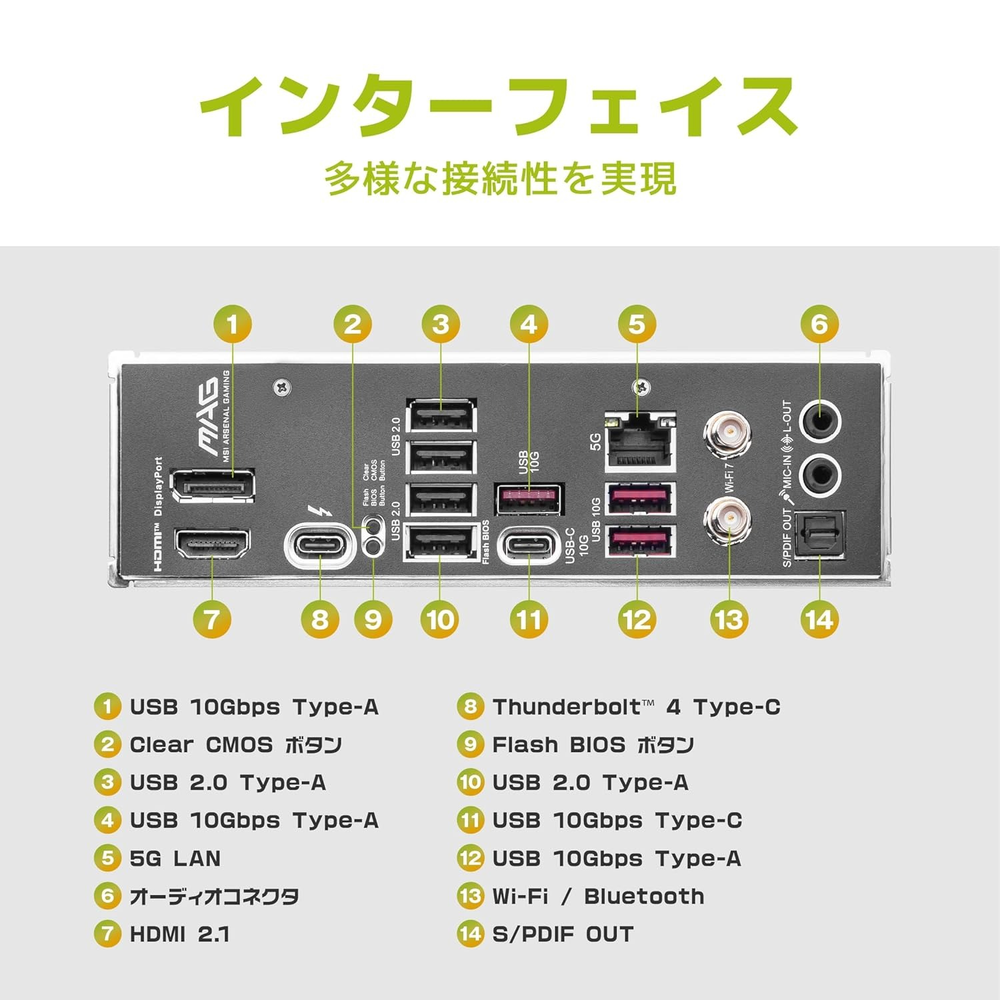

Rear USB 2x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 2x USB 5Gbps Type-A, 4x USB 2.0
Front USB Headers 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C, 4x USB 2.0
Video Output 1x HDMI 2.1 (4K@60Hz), 1x DisplayPort 1.4 (4K@60Hz)
Audio Realtek ALC897, 7.1-CH HD Audio, S/PDIF out
Fan Headers 1x CPU Fan, 1x Pump/SYS Fan, 4x System Fan
RGB 2x ARGB V2 headers, 1x RGB header, 4x EZ Debug LED
OS Support Windows 11 64-bit
