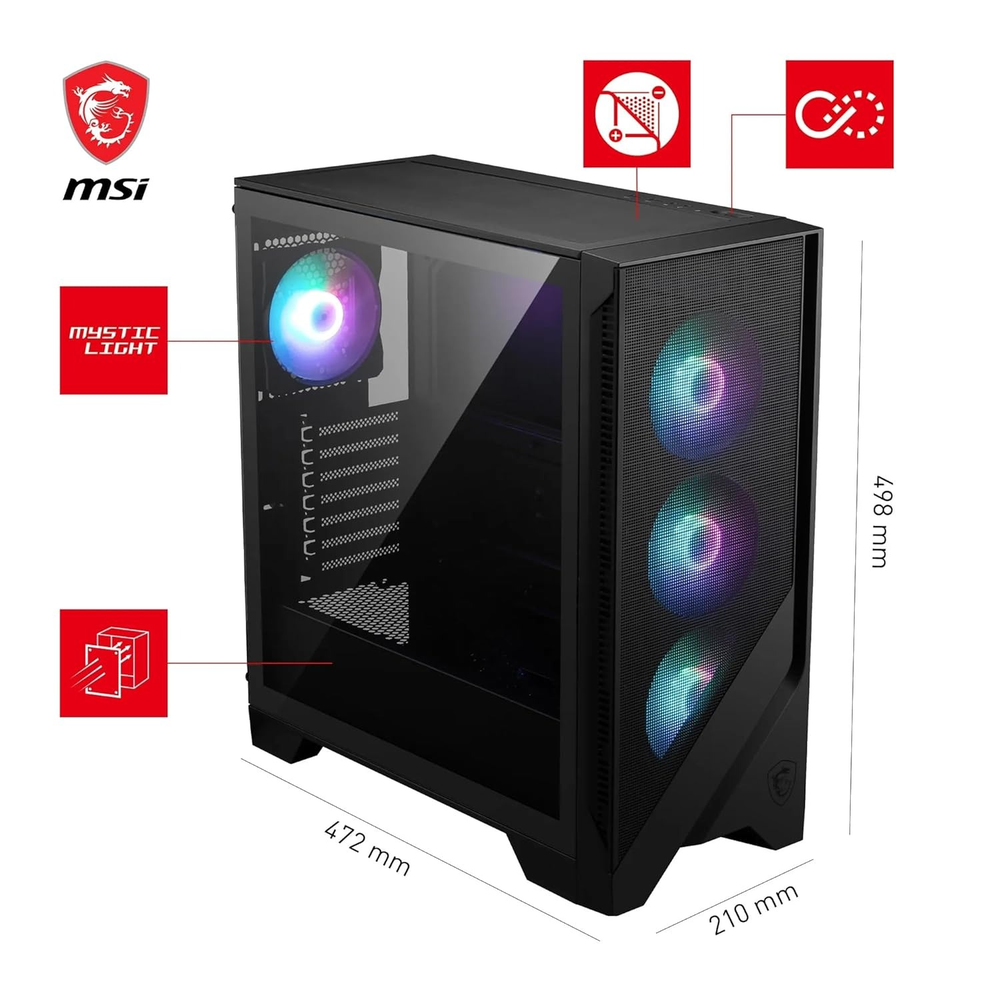

MSI MAG FORGE 320R AIRFLOW ARGB ATX Mid Tower PC Case
Technical specification
ATX Mid Tower Case — Mesh Front Panel, 4× 120mm ARGB Fans Pre-Installed (3 Front, 1 Rear), Supports up to 11× 120mm Fans, 360mm Top Radiator Support, Large 40-Series GPU Support up to 390mm, Dual USB 5Gbps Front I/O.
The MSI MAG FORGE 320R AIRFLOW is a premium airflow-focused ATX mid-tower gaming case designed to handle the latest high-wattage GPUs and multi-core CPUs. With a full mesh front panel, support for up to 11 × 120mm fans, and four pre-installed 120mm ARGB fans (three front intake and one rear exhaust), it delivers powerful cooling out of the box. The chassis supports ATX, Micro-ATX, and Mini-ITX motherboards, GPUs up to 390mm, CPU coolers up to 160mm, and up to a 360mm radiator at the top, making it ideal for high-end 1440p and 4K gaming systems.[web:198][web:199][web:200][web:203]
-
>High-Airflow Mesh Front Panel — Large mesh intake ensures maximum airflow to your GPU and CPU for lower temperatures and more stable performance.[web:198][web:200][web:204]
>Supports Up to 11 Fans — Fan mounts for Front: 3 × 120mm / 2 × 140mm, Top: 3 × 120mm / 2 × 140mm, Rear: 1 × 120mm, Side: 2 × 120mm, PSU Shroud: 2 × 120mm.[web:199][web:203]
>Four Pre-Installed ARGB Fans — 3 × 120mm ARGB at the front and 1 × 120mm ARGB at the rear from the factory, with built-in ARGB control board for easy lighting control.[web:199][web:203][web:204]
>Built-In ARGB Control Board — Dedicated ARGB hub and LED switch button on the front I/O provide up to 9 lighting effects without needing extra controllers.[web:198][web:200][web:203]
>360mm AIO Ready — Supports a 360mm radiator on the top (120/240/280/360mm) and up to 240mm on the front, plus 120mm at the rear.[web:199][web:203][web:206]
>Latest GPU Compatibility — Supports large 40-series GPUs with maximum length up to 390mm and maximum GPU height up to 150mm.[web:199][web:200][web:203]
>Tempered Glass Side Panel — 4mm tempered glass side panel showcases your components and RGB lighting in style.[web:198][web:204]
>Magnetic Top Dust Filter — Easily removable magnetic dust filter on the top, plus bottom PSU filter, keeps your build clean and airflow optimized.[web:198][web:204]
>DIY-Friendly Features — 1-to-6 ARGB control board, included fan cable, and simplified front-panel cable design make building and cable management easier.[web:198][web:205]
>Dual USB 5Gbps Front I/O — 2 × USB 3.2 Gen 1 Type-A, audio out, mic in, LED switch, and power/reset provide convenient connectivity.[web:199][web:203]
| Spec | Detail |
|---|---|
| Product Name | MAG FORGE 320R AIRFLOW[web:199][web:203] |
| Case Form Factor | Mid Tower[web:199][web:203] |
| Motherboard Support | ATX / Micro-ATX / Mini-ITX[web:199][web:200][web:203] |
| Color | Black[web:201][web:204] |
| Side Panel | Tempered Glass[web:198][web:204] |
| I/O Ports | 2 × USB 3.2 Gen 1 Type-A, 1 × Audio-Out, 1 × Mic-In, 1 × LED Switch, Power, Reset[web:199][web:203] |
| Drive Mount Support | 1 × 2.5" + 2 × 2.5"/3.5" combo[web:199][web:203] |
| Expansion Slots | 7[web:199][web:203] |
| Maximum GPU Length | 390 mm / 15.35 inches[web:199][web:203] |
| Maximum GPU Height | 150 mm / 5.91 inches[web:199] |
| Maximum CPU Cooler Height | 160 mm / 6.29 inches[web:199][web:203] |
| Power Supply Support | ATX[web:199][web:203] |
| Maximum PSU Length | 200 mm / 7.87 inches (without 2.5"/3.5" HDD tray installed)[web:199][web:203] |
| Front Fan Support | 3 × 120mm or 2 × 140mm[web:199][web:203] |
| Top Fan Support | 3 × 120mm or 2 × 140mm[web:199][web:203] |
| Rear Fan Support | 1 × 120mm[web:199][web:203] |
| Side Fan Support | 2 × 120mm[web:199][web:203] |
| PSU Shroud Fan Support | 2 × 120mm[web:199][web:203] |
| Maximum 120mm Fan Count | Up to 11 × 120mm fans[web:198][web:200][web:204] |
| Pre-Installed Fans | Front: 3 × 120mm ARGB; Rear: 1 × 120mm ARGB[web:199][web:203][web:204] |
| Radiator Support | Front: 120 / 140 / 240mm; Top: 120 / 240 / 280 / 360mm; Rear: 120mm[web:199][web:203][web:206] |
| Front Panel | Mesh front for optimized airflow[web:198][web:200][web:204] |
| Dust Filters | Top: Magnetic dust filter; Bottom: Removable PSU dust filter[web:198][web:204] |
| ARGB Control | Built-in ARGB control board with LED switch button (up to 9 effects)[web:198][web:203][web:205] |
| Warranty | 2 Years (cabinet, India)[web:203][web:205] |
