MSI MAG PANO 100R PZ ARGB ATX Panoramic Mid Tower PC Case

ATX Panoramic Mid Tower — 270° Tempered Glass, Back-Connect ATX Support, 4× 120mm ARGB Fans Pre-Installed (3 Side Reverse-Blade, 1 Rear), Supports up to 10× 120/140/160mm Fans, Triple 360mm Radiator Support (Top / Side / Bottom), GPU up to 380mm, USB 20Gbps Type‑C Front I/O.

The MSI MAG PANO 100R PZ is a full-size panoramic ATX case designed for custom water cooling and back‑connect motherboard builds. A 270‑degree tempered glass display wraps around the front and side, while side‑mounted reverse‑blade ARGB fans and extensive ventilation on the side, top, and bottom deliver high airflow. With support for regular and back‑connect ATX / Micro‑ATX / Mini‑ITX boards, GPUs up to 380mm, CPU coolers up to 166mm, and simultaneous support for three 360mm radiators (top, side, and bottom), the MAG PANO 100R PZ is built for high‑end RTX 40‑series gaming rigs and custom loop PCs.[web:298][web:305][web:302][web:306][web:308][web:303]

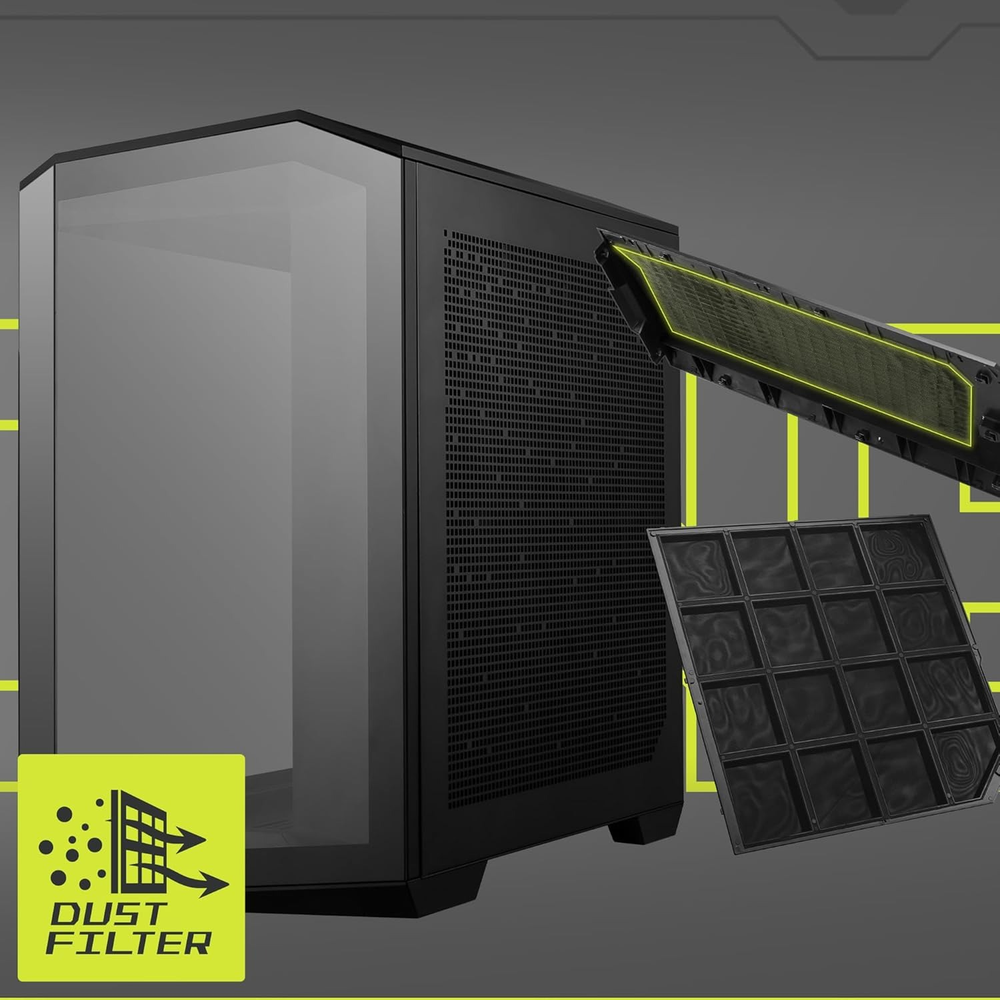

>270‑Degree Panoramic Glass — 4mm tempered glass cut with chamfered edges reduces gaps and provides a seamless 270° panoramic view of your components.[web:298][web:306] >Back‑Connect Motherboard Support — Compatible with regular ATX/mATX/mini‑ITX plus back‑connect ATX/mATX motherboards for ultra‑clean cable routing.[web:298][web:305][web:302][web:306] >Supports Up to 10 System Fans — Fan mounts for Top: 3 × 120mm / 3 × 140mm; Side: 3 × 120mm / 2 × 140mm; Rear: 1 × 120mm; Bottom: 3 × 120mm / 2 × 140mm / 2 × 160mm.[web:305][web:302][web:306] >Four Pre‑Installed ARGB Fans — 3 × 120mm ARGB reverse‑blade fans at the side and 1 × 120mm ARGB fan at the rear give strong intake/exhaust and clean visuals.[web:298][web:305][web:302][web:308] >Triple 360mm Radiator Capability — Supports up to 360mm radiators at the top, side, and bottom simultaneously, ideal for complex custom water cooling loops.[web:298][web:305][web:302] >Powerful Hardware Support — Handles GPUs up to 380mm long and CPU coolers up to 166mm tall, covering large triple‑fan 40‑series cards and high‑end air coolers.[web:305][web:302][web:306] >Dust Filters on Three Sides — Removable filters on the top, side (magnetic), and bottom protect internal components while maintaining airflow.[web:298][web:305][web:306] >1‑to‑4 ARGB Fan Control Board — Built‑in ARGB‑fan hub simplifies cable management and enables synchronized lighting via Mystic Light and LED button.[web:298][web:305][web:302] >USB 3.2 Gen 2×2 Type‑C Front I/O — Front panel features 1 × USB 20Gbps Type‑C, 2 × USB 5Gbps Type‑A, audio‑out/mic‑in, LED switch, and power button.[web:305][web:306][web:302] >UNI Front Panel Cable — Unified front I/O cable design and tool‑less panels make the DIY process faster and cleaner.[web:298][web:302][web:303]
