MSI MAG PANO 100R PZ WHITE ARGB ATX Panoramic Mid Tower PC Case
Technical specification
White ATX Panoramic Mid Tower — 270° Tempered Glass, Back-Connect ATX Support, 4× 120mm ARGB Fans Pre-Installed (3 Side Reverse-Blade, 1 Rear), Supports up to 10× 120/140/160mm Fans, Triple 360mm Radiator Support (Top / Side / Bottom), GPU up to 400mm, USB 20Gbps Type‑C Front I/O.
The MSI MAG PANO 100R PZ WHITE is a premium white panoramic ATX case built for high-end back‑connect and custom-loop gaming builds. It features a 270‑degree tempered glass display that wraps around the front and side, plus side‑mounted reverse‑blade ARGB fans and extensive ventilation on the side, top, and bottom for strong airflow. With support for regular and back‑connect ATX / Micro‑ATX / Mini‑ITX boards, GPUs up to 400mm, CPU coolers up to 166mm, and triple 360mm radiator support (top, side, bottom), the MAG PANO 100R PZ WHITE is ideal for RTX 40‑series white builds and advanced water‑cooled systems.[web:298][web:305][web:302][web:312][web:315][web:313]
-
>White 270‑Degree Panoramic Glass — 270‑degree panoramic tempered glass with chamfered edges gives a seamless, unobstructed view of your white‑themed components and ARGB lighting.[web:298][web:305][web:315][web:317]
>Back‑Connect Ready — Supports regular ATX/mATX/mini‑ITX and back‑connect ATX/mATX motherboards for ultra‑clean cable routing behind the board.[web:298][web:305][web:302][web:315][web:313]
>Up to 10 System Fans — Fan mounts for Top: 3 × 120mm / 3 × 140mm, Side: 3 × 120mm / 2 × 140mm, Rear: 1 × 120mm, Bottom: 3 × 120mm / 2 × 140mm / 2 × 160mm (up to 10 × 120mm total).[web:305][web:302][web:313]
>Four Pre‑Installed ARGB Fans — 3 × 120mm ARGB reverse‑blade fans at the side plus 1 × 120mm ARGB fan at the rear, all pre‑wired for easy lighting setup.[web:298][web:305][web:302][web:314][web:313]
>Triple 360mm Radiator Support — Supports up to 360mm radiators on the top, side, and bottom simultaneously, perfect for complex custom water‑cooling loops.[web:298][web:305][web:302][web:313]
>Large GPU & Cooler Clearance — Handles GPUs up to 400mm long and CPU coolers up to 166mm tall, covering big triple‑fan 40‑series cards and tall air coolers.[web:305][web:312][web:302]
>Dust Filters on Top / Side / Bottom — Removable filters at the top, side, and bottom are easy to clean and help keep your system dust‑free.[web:298][web:305][web:313]
>1‑to‑4 ARGB Fan Control Board — Integrated ARGB‑fan hub simplifies cable management and enables synchronized lighting via Mystic Light and the LED switch button.[web:298][web:305][web:302][web:313]

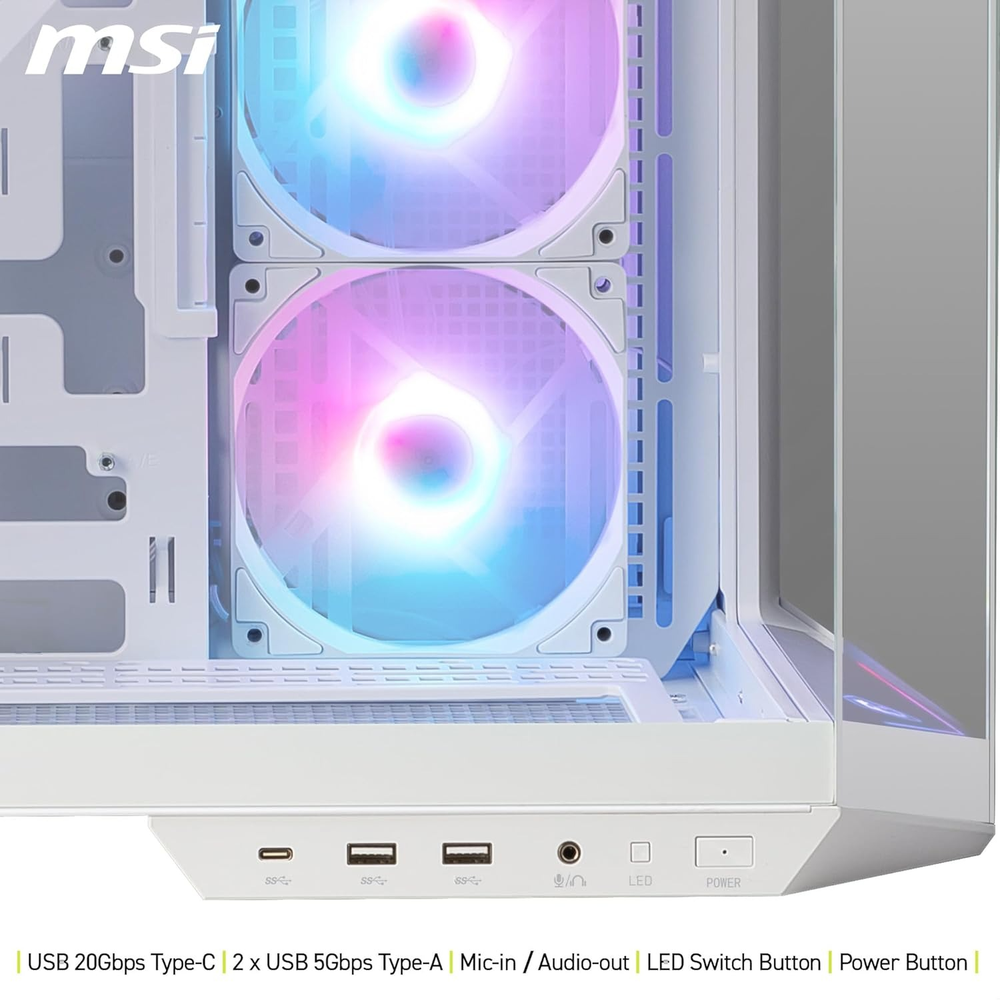

>USB 3.2 Gen 2×2 Type‑C Front I/O — Front I/O includes 1 × USB 20Gbps Type‑C, 2 × USB 5Gbps Type‑A, audio‑out/mic‑in combo, LED switch, and power buttons.[web:305][web:302][web:313][web:315]
>DIY‑Friendly UNI Front Cable — Unified front panel cable and tool‑less panels make installation and upgrades cleaner and faster.[web:298][web:302][web:303]
| Spec | Detail |
|---|---|
| Product Name | MAG PANO 100R PZ / WHITE[web:305][web:298][web:315] |
| Case Form Factor | Mid Tower[web:305][web:302][web:304] |
| Motherboard Form Factor Support | Regular: ATX / Micro‑ATX / Mini‑ITX; Back‑connect: ATX / Micro‑ATX[web:305][web:298][web:302][web:313] |
| Color | White[web:298][web:304][web:315] |
| Side / Front Panels | 270‑degree panoramic tempered glass with chamfered edges[web:298][web:305][web:315] |
| I/O Ports | 1 × USB 20Gbps Type‑C, 2 × USB 5Gbps Type‑A, 1 × Audio‑Out / Mic‑In, 1 × LED Switch Button, 1 × Power Button[web:305][web:302][web:313] |
| Drive Mount Support | 2 × 2.5", 2 × 3.5", 2 × 2.5"/3.5" combo (per MSI data sheet)[web:298][web:305] |
| Expansion Slots | 8[web:305][web:302][web:306] |
| Maximum GPU Length | 400 mm / 15.75 inches[web:305][web:312][web:315] |
| Maximum CPU Cooler Height | 166 mm / 6.54 inches[web:305][web:312] |
| Power Supply Support | ATX[web:305][web:302] |
| Maximum PSU Length | 200 mm / 7.87 inches[web:305][web:302][web:313] |
| Top Fan Support | 3 × 120mm or 3 × 140mm[web:305][web:302] |
| Front Fan Support | NA (front is solid; airflow via side/top/bottom)[web:305][web:302] |
| Rear Fan Support | 1 × 120mm[web:305][web:302] |
| Side Fan Support | 3 × 120mm or 2 × 140mm[web:305][web:302][web:313] |
| Bottom Fan Support | 3 × 120mm / 2 × 140mm / 2 × 160mm[web:305][web:302][web:313] |
| Maximum Fan Count | Up to 10 × 120mm fans[web:298][web:305][web:302][web:313] |
| Pre‑Installed Fan Size | Side: 3 × 120mm; Rear: 1 × 120mm[web:305][web:302][web:314] |
| Pre‑Installed Fan Type | Side: 3 × ARGB Reverse‑blade; Rear: 1 × ARGB[web:298][web:305][web:302][web:314] |
| Radiator Size Support | Top: 120 / 240 / 360mm; Side: 120 / 240 / 360mm; Bottom: 120 / 240 / 360mm; Rear: 120mm[web:298][web:305][web:302][web:313] |
| Dust Filters | Top: removable panel; Side: magnetic filter; Bottom: magnetic filter[web:298][web:305][web:313] |
| Dimensions (D × W × H) | 518.7 × 290 × 482 mm / 20.42 × 11.42 × 18.98 inches[web:305] |
| Warranty | 2 Years (cabinet, India)[web:304][web:318][web:308] |
