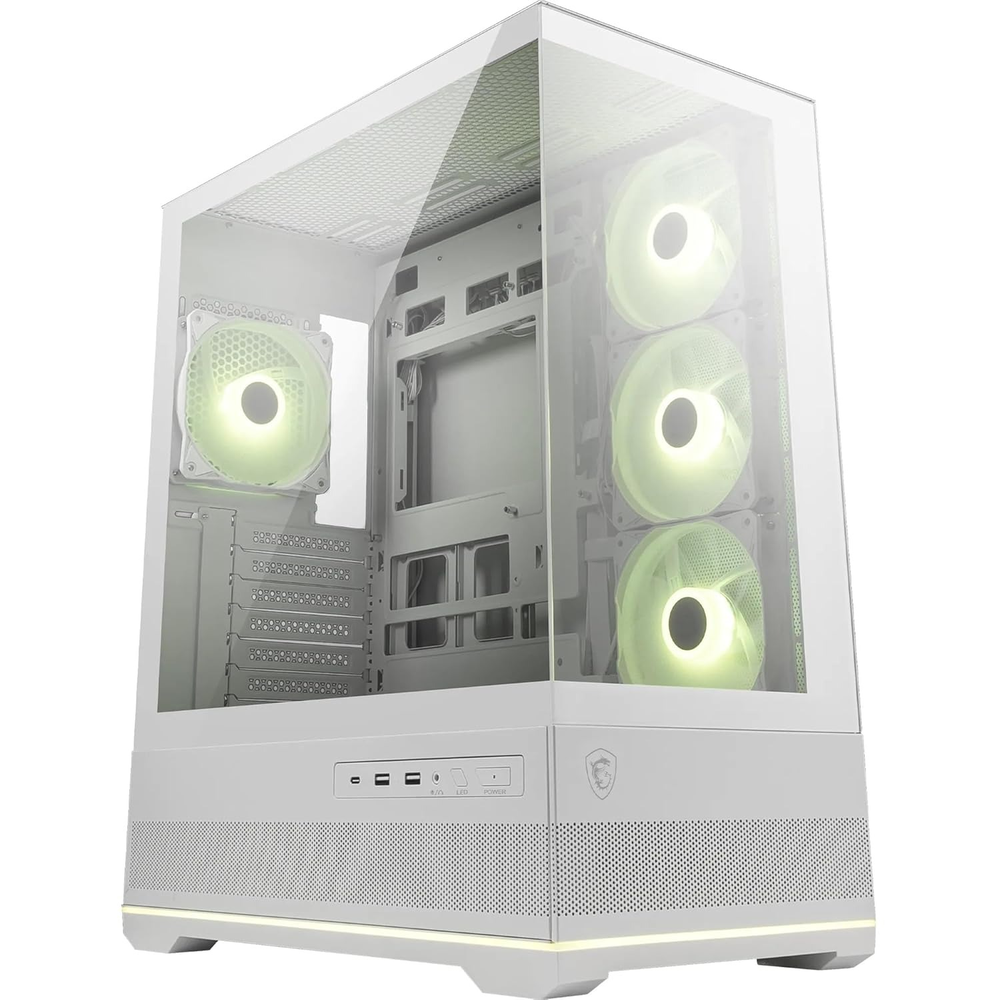

MSI MAG PANO 110R PZ WHITE ARGB ATX Mid Tower PC Case
Technical specification
White ATX Panoramic Mid Tower — 270° Tempered Glass Design, 4× 120mm ARGB Fans Pre-Installed (3 Side Reverse-Blade, 1 Rear), Supports up to 10× 120mm Fans, 360mm Top Radiator Support, Back‑Connect ATX Support, GPU up to 400mm, USB 20Gbps Type‑C Front I/O.
The MSI MAG PANO 110R PZ WHITE is a clean white panoramic mid tower engineered for high-end gaming builds and back‑connect motherboards. A 270‑degree tempered glass display and side‑mounted reverse‑blade ARGB fans create a showcase look, while extensive venting on the sides and bottom ensures strong airflow. The chassis supports regular and back‑connect ATX / Micro‑ATX / Mini‑ITX motherboards, GPUs up to 400mm, CPU coolers up to 160mm, and radiators up to 360mm on the top, making it an excellent choice for RTX 40‑series white builds and premium liquid‑cooled systems.[web:250][web:255][web:271][web:253][web:269][web:274]
-
>270‑Degree White Panoramic Design — White chassis with 270° tempered glass panels provides an expansive view of your components and lighting.[web:250][web:255][web:270][web:272]
>Back‑Connect Ready — Supports regular ATX/mATX/mini‑ITX and back‑connect ATX/mATX motherboards for ultra‑clean cable management behind the board.[web:250][web:255][web:271][web:253]
>Up to 10 Fan Support — Cooling layout supports up to 10 × 120mm fans across side, top, rear, and bottom positions for extreme airflow builds.[web:250][web:271][web:269][web:274]
>Four Pre‑Installed ARGB Fans — 3 × 120mm ARGB reverse‑blade fans on the side plus 1 × 120mm ARGB fan at the rear, pre-wired to an ARGB hub for easy setup.[web:271][web:253][web:269][web:274]
>Enhanced Venting — Increased vent areas on front edges, side, and bottom improve heat dissipation for GPU, CPU, and PSU chambers.[web:250][web:269][web:274]
>360mm Top Radiator Support — Supports 120/140/240/280/360mm radiators on the top and a 120mm radiator at the rear for high-performance AIO cooling.[web:271][web:253][web:274]
>High‑End GPU Compatibility — Accommodates GPUs up to 400mm long, ideal for large RTX 40‑series cards and triple‑fan designs.[web:271][web:253][web:269][web:274]
>1‑to‑5 ARGB Fan Hub — Built‑in ARGB fan control hub simplifies fan and lighting cabling and is fully compatible with MSI Mystic Light for synchronized effects.[web:250][web:255][web:272]
>USB 3.2 Gen 2×2 Type‑C Front I/O — Front panel offers 1 × USB 20Gbps Type‑C, 2 × USB 5Gbps Type‑A, audio out / mic in, LED button, and power.[web:271][web:253][web:269][web:274]
>Builder‑Friendly Layout — Removable glass panels, generous rear cable space, and an EZ PSU/cable cover make assembly and maintenance easier.[web:250][web:269][web:272][web:275]
| Spec | Detail |
|---|---|
| Product Name | MAG PANO 110R PZ / WHITE[web:271][web:253] |
| Case Form Factor | Mid-Tower[web:271][web:255][web:253][web:272] |
| Motherboard Form Factor Support | Regular: ATX / Micro‑ATX / Mini‑ITX; Back‑connect: ATX / Micro‑ATX[web:271][web:255][web:253][web:269] |
| Color | White[web:255][web:253][web:272][web:261] |
| Side / Front Panels | 270‑degree tempered glass panoramic display with MAG metal nameplate[web:250][web:255][web:271][web:272] |
| I/O Ports | 1 × USB 20Gbps (Type‑C), 2 × USB 5Gbps (Type‑A), 1 × Audio‑Out / Mic‑In, 1 × LED Button, 1 × Power Button[web:271][web:253][web:269][web:274] |
| Drive Mount Support | 2 × 2.5", 2 × 3.5", 2 × 2.5"/3.5" combo[web:271][web:253] |
| Expansion Slots | 7[web:271][web:253][web:274] |
| Maximum GPU Length | 400 mm / 15.75 inches[web:271][web:253][web:269][web:274] |
| Maximum CPU Cooler Height | 160 mm / 6.30 inches[web:271][web:253][web:274] |
| Power Supply Support | ATX[web:271][web:253][web:274] |
| Maximum PSU Length | 200 mm / 7.87 inches[web:271][web:253][web:261][web:274] |
| Top Fan Support | 3 × 120mm or 2 × 140mm[web:271][web:253][web:261][web:274] |
| Front Fan Support | NA (front is solid; airflow via side/bottom)[web:271][web:253][web:261][web:274] |
| Side Fan Support | 3 × 120mm or 2 × 140mm[web:271][web:253][web:261][web:274] |
| Bottom Fan Support | 3 × 120mm (above the power shroud)[web:271][web:253][web:261][web:274] |
| Rear Fan Support | 1 × 120mm[web:271][web:253][web:261][web:274] |
| Maximum Fan Count | Up to 10 × 120mm fans[web:250][web:271][web:269][web:274] |
| Pre‑Installed Fan Type | Side: 3 × ARGB reverse‑blade fans; Rear: 1 × ARGB fan[web:271][web:253][web:269][web:274] |
| Pre‑Installed Fan Size | Side: 3 × 120mm; Rear: 1 × 120mm[web:271][web:253] |
| Radiator Size Support | Top: 120 / 140 / 240 / 280 / 360mm; Rear: 120mm; Front/Side/Bottom: NA[web:271][web:253][web:274] |
| ARGB Hub | Pre‑installed 1‑to‑5 ARGB fan control hub (Mystic Light compatible)[web:250][web:255][web:272] |
| Dimensions (D × W × H) | 420 × 225 × 485 mm / 16.54 × 8.86 × 19.09 inches[web:271][web:253] |
| Warranty | 2 Years (cabinet, India)[web:253][web:269][web:261][web:274] |
