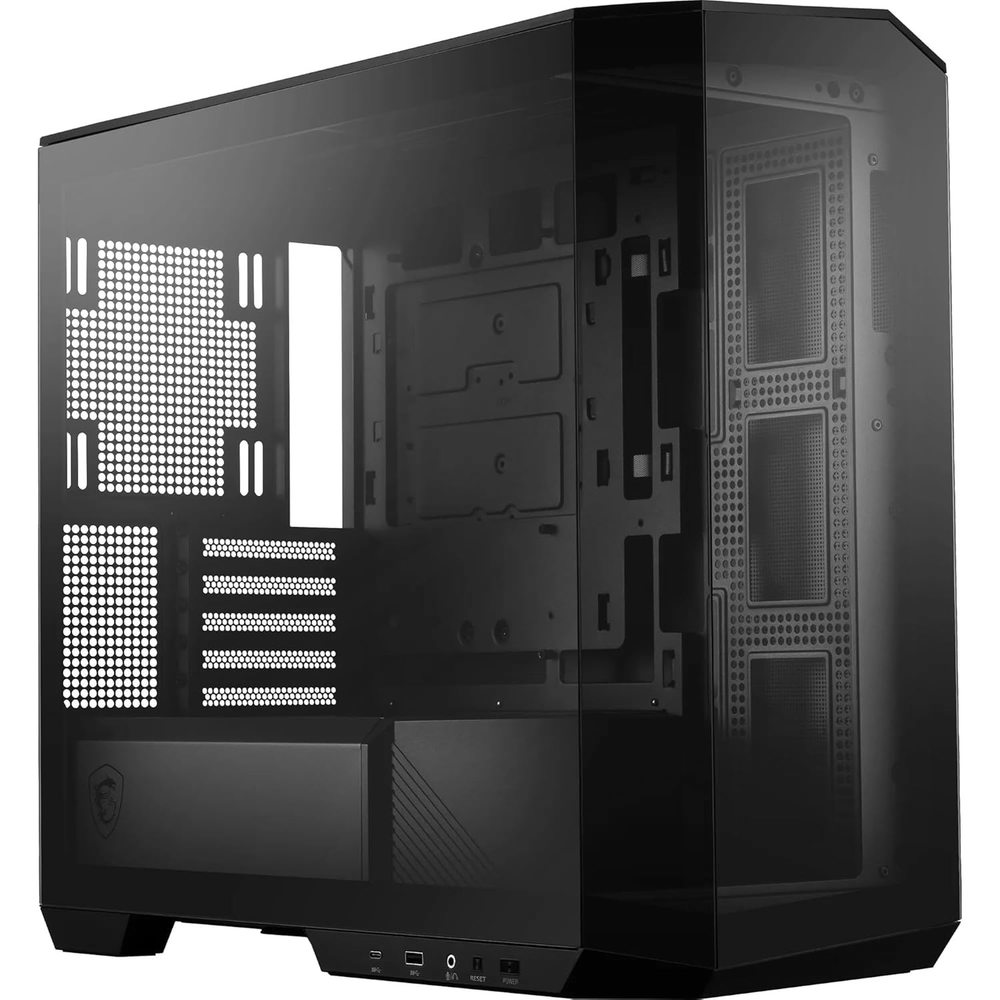

MSI MAG PANO M100R PZ ARGB Micro-ATX Panoramic PC Case

Micro-ATX Panoramic Case — 270° Tempered Glass Display, Back-Connect mATX Support, 4× 120mm ARGB Fans Pre-Installed (3 Side Reverse-Blade, 1 Rear), Supports up to 10× 120mm Fans, 360mm Top Radiator Support, GPU up to 390mm, USB 20Gbps Type‑C Front I/O.

The MSI MAG PANO M100R PZ is a compact Micro‑ATX panoramic tower built for clean, modern gaming rigs and PROJECT ZERO back‑connect motherboards. With a 270‑degree tempered glass design, side‑mounted reverse‑blade ARGB fans, and a spacious dual‑chamber layout, it shows off your components while keeping cables hidden. The chassis supports back‑connect Micro‑ATX and ITX motherboards, GPUs up to 390mm, CPU coolers up to 175mm, and radiators up to 360mm on the top, making it a powerful yet space‑efficient case for high‑end 1080p/1440p builds.[web:277][web:278][web:280][web:281][web:283]

>270‑Degree Panoramic Glass — Wrap-around tempered glass front/side window offers a seamless view of your GPU, fans, and lighting.[web:277][web:283] >Back‑Connect Ready — Supports Micro‑ATX back‑connect PROJECT ZERO motherboards for ultra‑clean cable routing behind the board.[web:277][web:283][web:280] >Up to 10 Fan Support — Fan mounts for Top: 3 × 120mm / 2 × 140mm, Side: 3 × 120mm, Rear: 1 × 120/140mm, Bottom: 1 × 120mm, PSU shroud: 2 × 120mm (up to 10 × 120mm fans total).[web:278][web:280][web:283] >Four Pre‑Installed ARGB Fans — 3 × 120mm ARGB reverse‑blade fans on the side and 1 × 120mm ARGB fan at the rear provide strong intake and exhaust plus clean visuals through the glass.[web:278][web:280][web:281] >1‑to‑4 ARGB‑PWM Control Board — Built‑in ARGB‑PWM hub makes it easy to sync fan lighting and speeds, controlled via Mystic Light and the Insta‑Light Loop button.[web:277][web:283][web:280] >Top‑Mounted 360mm AIO Support — Supports 120/240/360mm radiators on the top and 120/140mm on the rear for high‑performance liquid cooling.[web:278][web:280][web:283] >Next‑Gen GPU Clearance — Supports horizontal GPUs up to 390mm in length (40‑series ready).[web:278][web:280] >Tall Air Cooler Support — CPU air coolers up to 175mm tall fit easily for high‑performance tower coolers.[web:278][web:280] >Bottom Magnetic Dust Filter — Full‑length magnetic dust filter on the bottom is easy to remove and clean, protecting PSU and bottom fans.[web:277][web:283] >USB 3.2 Gen 2×2 Type‑C Front I/O — Front panel offers USB 20Gbps Type‑C, USB 5Gbps Type‑A, audio out / mic in, LED switch, and power buttons.[web:280][web:278][web:283]
