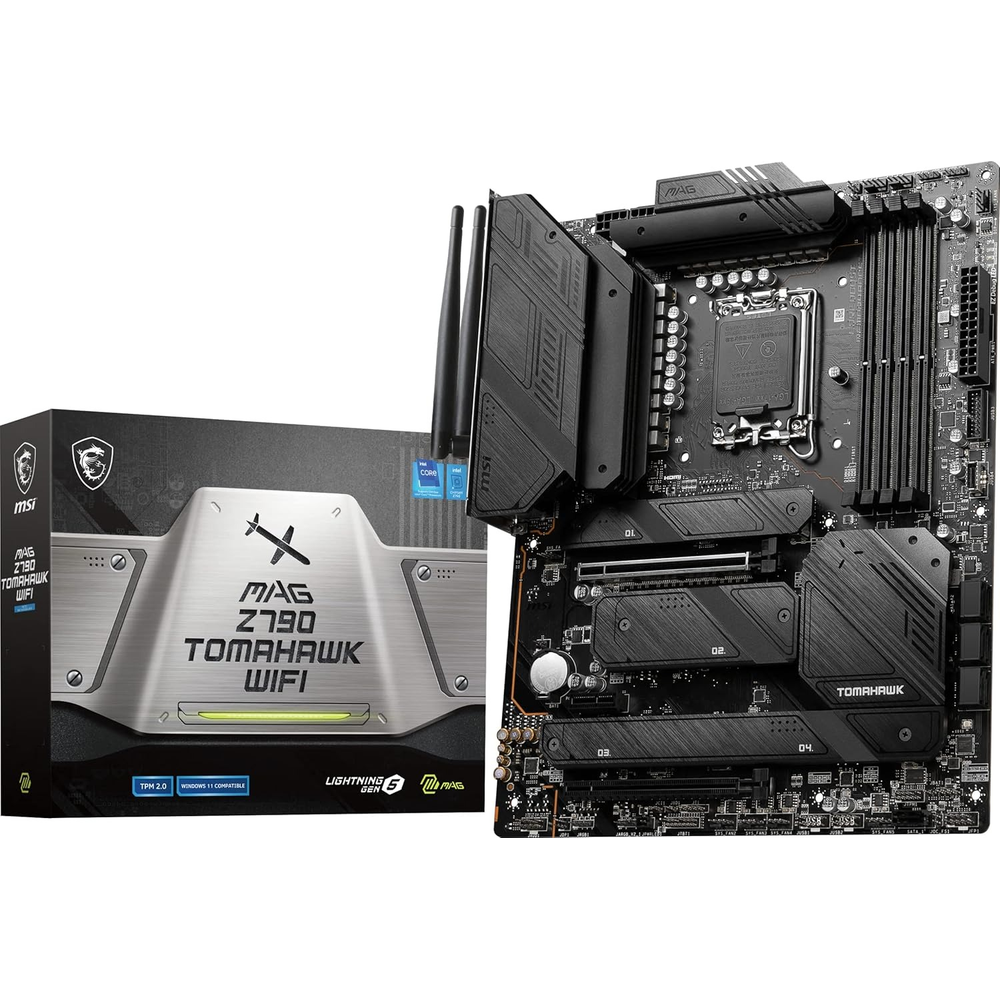

MSI MAG Z790 TOMAHAWK WIFI Motherboard
Price inclusive of all taxes
Technical specification
Battle-Hardened Intel Z790 ATX Motherboard — Built for Intel 12th, 13th & 14th Gen Core Processors.
The MSI MAG Z790 TOMAHAWK WIFI is a proven, high-performance ATX motherboard for Intel Core 12th, 13th, and 14th Gen processors on the LGA 1700 socket. It combines a 16+1+1 Duet Rail power system, Wi-Fi 6E, 2.5G LAN, 5x M.2 slots with PCIe 5.0, M.2 Shield Frozr thermal covers, and EZ DIY features — delivering exceptional value for gaming and performance builds.
-
>CPU Support: Intel Core 14th / 13th / 12th Gen + Pentium Gold / Celeron, LGA 1700 socket
>Power Delivery: 16+1+1 Duet Rail Power Design, 105A Smart Power Stage, dual 8-pin CPU connectors, 6-layer PCB
>Storage: 5x M.2 slots (1x PCIe 5.0 CPU, 4x PCIe 4.0), 6x SATA 6G — all M.2 with M.2 Shield Frozr
>Connectivity: Intel Wi-Fi 6E (802.11ax, up to 2.4Gbps), Intel 2.5G LAN, Bluetooth 5.3
>USB: Rear — 4x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 1x USB 20Gbps Type-C, 4x USB 5Gbps Type-A, 2x USB 2.0
>EZ Features: EZ M.2 Clip, EZ PCIe Release, EZ Debug LED, EZ Digit Debug LED, single-sided DIMM latches
>Audio: Realtek ALC4080, 7.1-Channel HD Audio, S/PDIF output, Audio Boost 5
| Specification | Details |
|---|---|
| Chipset | Intel Z790 |
| Socket | LGA 1700 |
| Form Factor | ATX (243.84 x 304.8 mm) |
| Memory | 4x DDR5 UDIMM, up to 128GB, DDR5 7200+ MT/s (OC) / 5600 MT/s (JEDEC) |
| Memory Standard | XMP 3.0, Dual Channel |
| PCIe Slots | 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x16 (x4 mode, Chipset), 1x PCIe 3.0 x1 (Chipset) |
| M.2 Slots | 5x M.2 — M.2_1: PCIe 5.0 x4 (CPU); M.2_2: PCIe 4.0 x4 (CPU); M.2_3/4/5: PCIe 4.0 x4 (Chipset); all with M.2 Shield Frozr |
| SATA | 6x SATA 6G | RAID 0, 1, 5, 10 |
| LAN | Intel I226-V 2.5G LAN |
| Wireless | Intel Wi-Fi 6E (AX211, 2.4/5/6GHz, 160MHz, up to 2.4Gbps), Bluetooth 5.3 |
| Thunderbolt | Not included |
| Rear USB | 4x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 1x USB 20Gbps Type-C, 4x USB 5Gbps Type-A, 2x USB 2.0 |
| Front USB Headers | 1x USB 10Gbps Type-C, 2x USB 5Gbps Type-A, 4x USB 2.0 |
| Video Output | 1x HDMI 2.1 (4K@60Hz), 1x DisplayPort 1.4 (4K@60Hz) |
| Audio | Realtek ALC4080, 7.1-CH HD Audio, S/PDIF out, Audio Boost 5 |
| Fan Headers | 1x CPU Fan, 1x CPU Water Pump, 6x System Fan |
| RGB | 3x ARGB V2 headers, 1x RGB header, 4x EZ Debug LED |
| OS Support | Windows 11 / 10 64-bit |
