Motherboard // MSI
MSI MEG Z890 ACE Motherboard
Rs. 130,999.00
10g lan
atx
core ultra series 2
cudimm
Genuine & warrantedAuthorised stock, brand warranty
83560 26438Contact for querries
Secure checkoutUPI · cards · EMI
Fast shippingTracked · 5–7 days
01 — Datasheet
Technical specification
MSI's High-End Intel Z890 Powerhouse — Precision Engineering for Serious Builders.
The MSI MEG Z890 ACE is a premium ATX motherboard built for Intel Core Ultra Series 2 processors on the LGA 1851 socket. It delivers flagship-grade connectivity including Wi-Fi 7, 10G LAN, dual Thunderbolt 4 ports, 5x M.2 slots with PCIe 5.0 support, and audiophile-grade sound — all in a refined, performance-focused package.
- Intel Z890 Chipset — LGA 1851, Supports Intel Core Ultra Series 2
- 4x DDR5 DIMM — Up to 256GB, XMP 3.0, CUDIMM support, up to 9200+ MT/s (OC)
- 5x M.2 Slots — PCIe 5.0 x4 (CPU) + PCIe 4.0 x4 / SATA options
- Wi-Fi 7 (Intel Killer BE1750x) + Bluetooth 5.4 — up to 5.8Gbps
- 10G LAN (Marvell AQC113CS) for ultra-fast wired networking
- 2x Thunderbolt 4 Rear Ports — 40Gbps transfer, up to 8K display output
- Realtek ALC4082 + ESS9219Q DAC — 7.1-Channel Hi-Res Audio, 32-Bit/384kHz
| Spec | Detail |
|---|---|
| Chipset | Intel Z890 |
| Socket | LGA 1851 |
| Form Factor | ATX (243.84 x 304.8mm) |
| Memory | 4x DDR5 DIMM, Max 256GB, up to 9200+ MT/s (OC), XMP 3.0, CUDIMM support |
| PCIe Slots | PCIe 5.0 x16 (x2), PCIe 4.0 x4 (x1) |
| M.2 Slots | 5x — M.2_1: PCIe 5.0 x4 (CPU), M.2_2: PCIe 4.0 x4 (CPU), M.2_3/4/5: PCIe 4.0 / SATA |
| SATA Ports | 4x SATA 6Gb/s |
| RAID | 0, 1, 5, 10 (SATA & NVMe) |

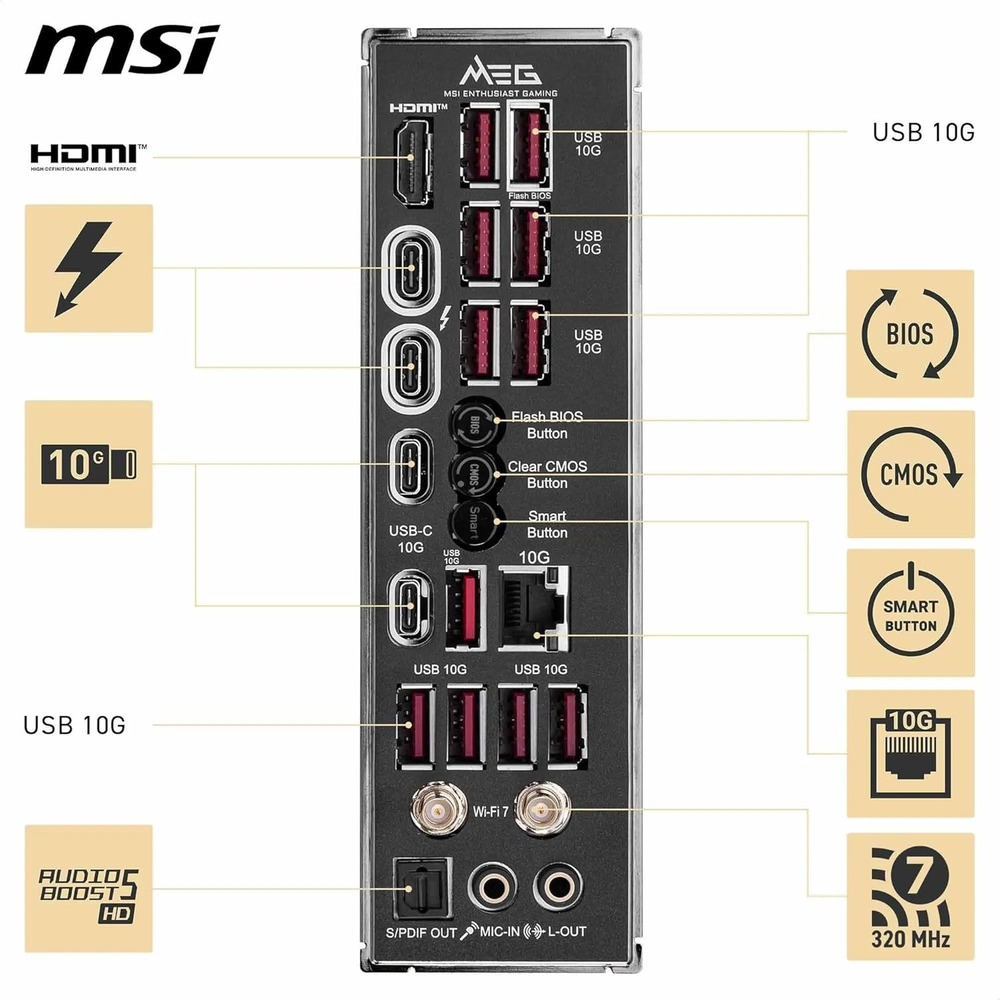

| USB Rear | 11x USB 10Gbps Type-A, 2x USB 10Gbps Type-C, 2x Thunderbolt 4 (40Gbps) |
| USB Front | 4x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 20Gbps Type-C |
| LAN | 10G LAN — Marvell AQC113CS |
| Wi-Fi | Wi-Fi 7 — Intel Killer BE1750x (2.4 / 5 / 6GHz, up to 5.8Gbps) |
| Bluetooth | Bluetooth 5.4 |
| Audio | Realtek ALC4082 + ESS9219Q DAC — 7.1-Channel, 32-Bit/384kHz |
| Display Output | 1x HDMI 2.1 (8K@60Hz), 2x Thunderbolt 4 Type-C (DisplayPort 2.1) |
| OS Support | Windows 11 64-bit |
