Description
MSI's Ultimate Intel Z890 Flagship — Built for Enthusiasts Who Accept No Compromise.

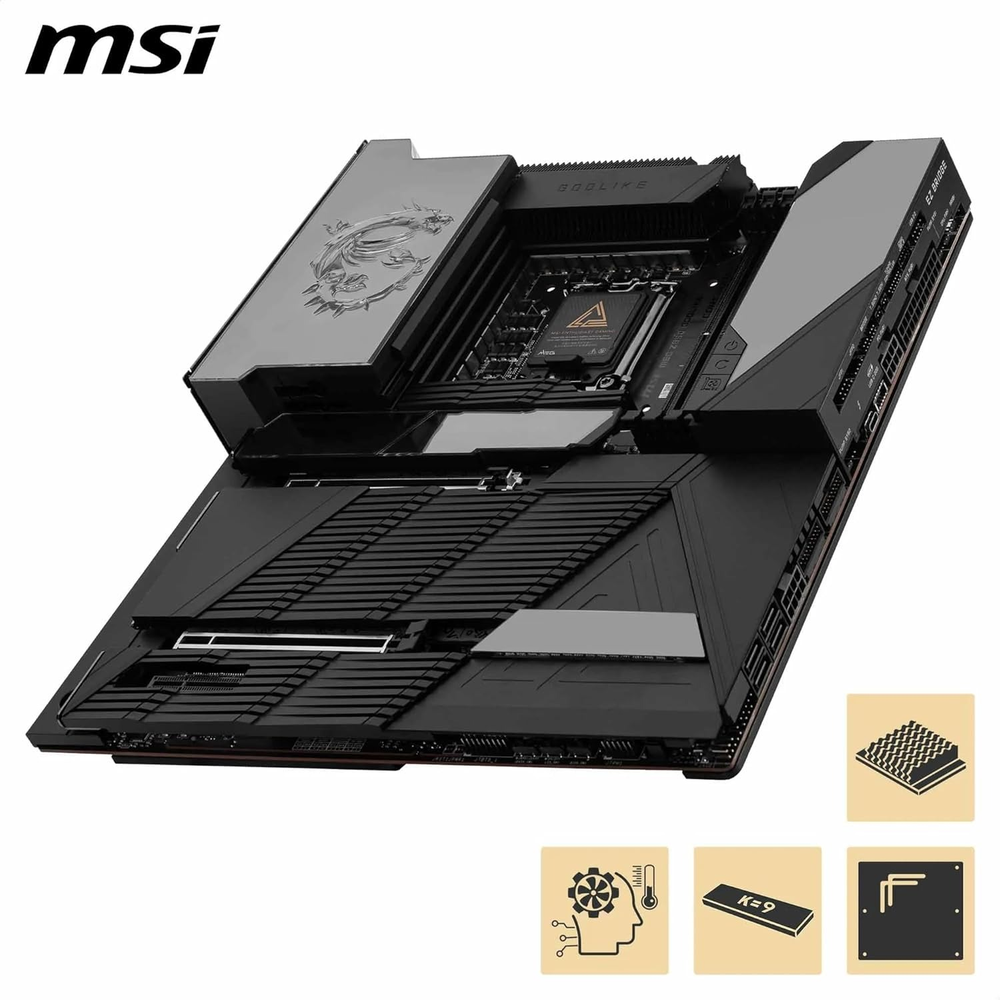

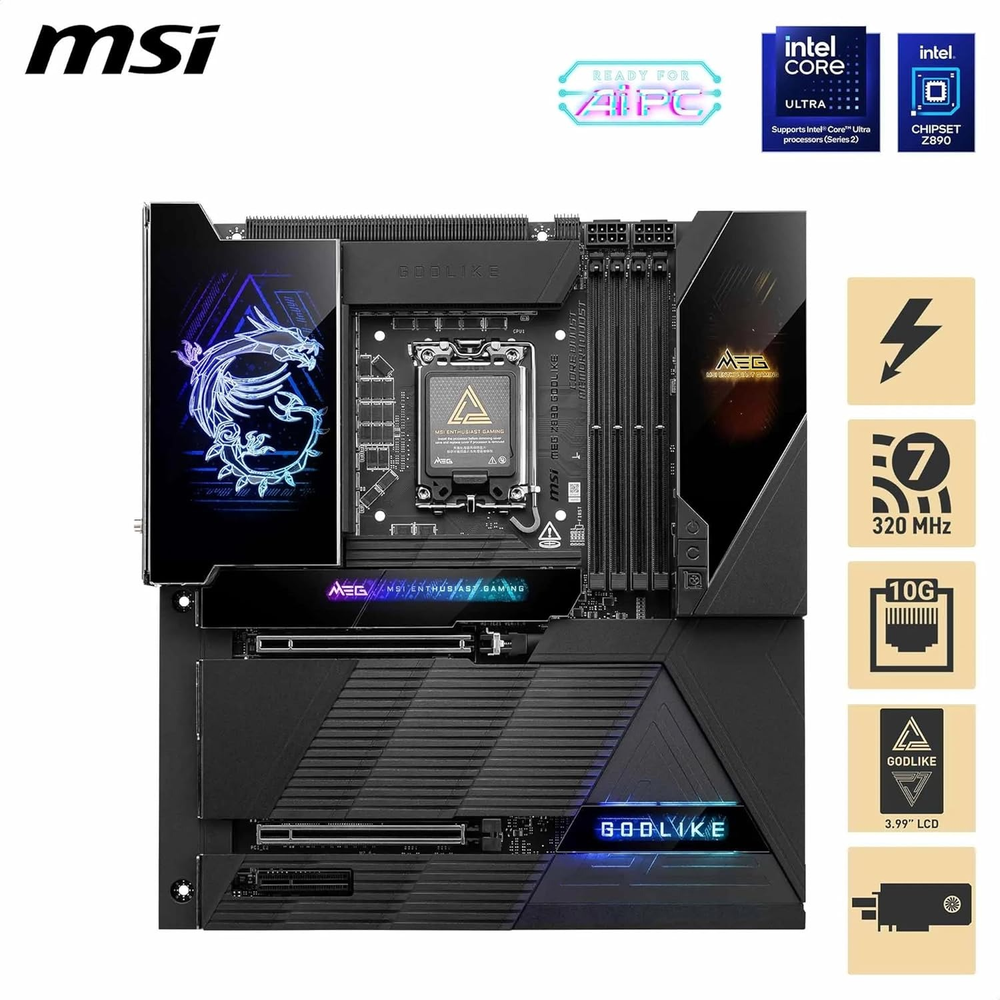

The MSI MEG Z890 GODLIKE is the pinnacle of MSI's motherboard lineup, engineered for Intel Core Ultra Series 2 processors on the LGA 1851 socket. It packs Wi-Fi 7, dual LAN (10G + 5G), Thunderbolt 4, 8x M.2 slots, and PCIe 5.0 across storage and GPU slots — making it the definitive platform for extreme builds, overclocking, and content creation.
- Intel Z890 Chipset — LGA 1851, Supports Intel Core Ultra Series 2
- 4x DDR5 DIMM — Up to 256GB, XMP 3.0, up to 9200+ MT/s (OC)

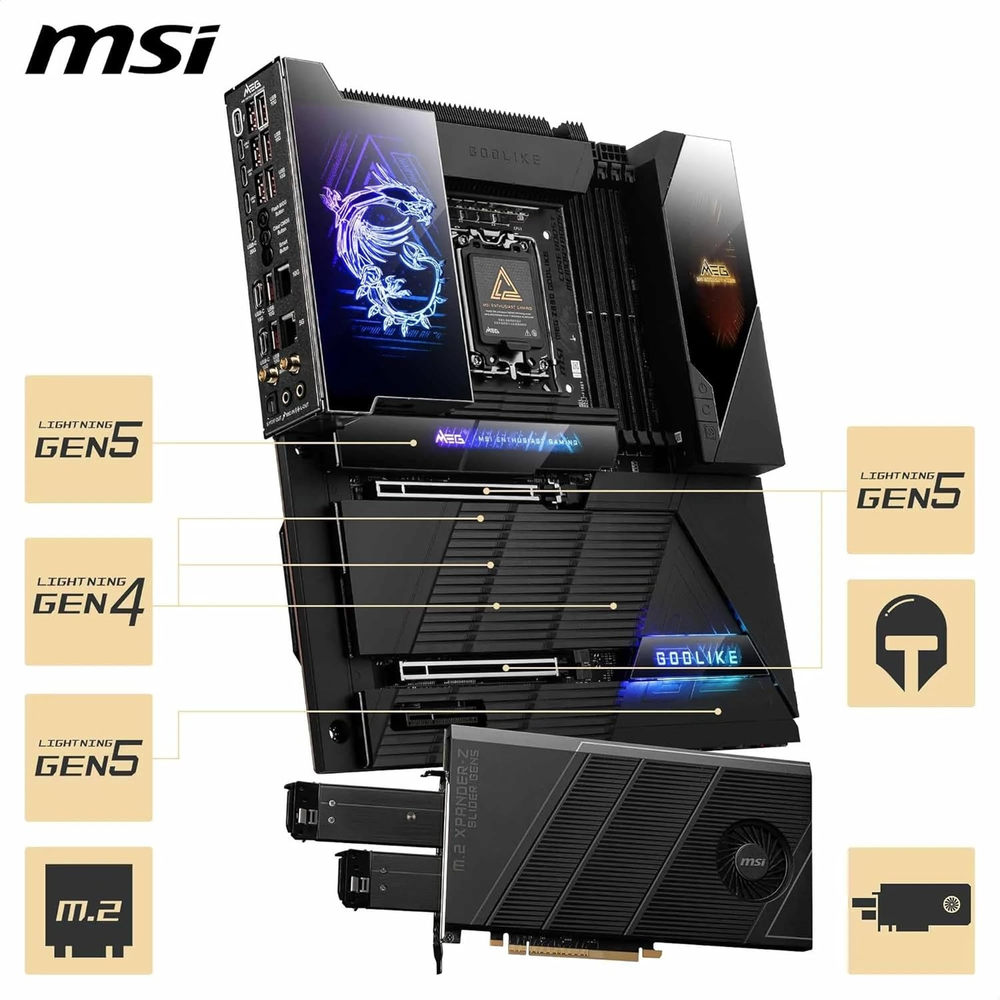

- 8x M.2 Slots (6 onboard + 2 via XPANDER card) — PCIe 5.0 & 4.0
- Wi-Fi 7 (Intel Killer BE1750x) + Bluetooth 5.4 — up to 5.8Gbps
- Dual LAN — 10G (Marvell AQC113CS) + 5G (Intel Killer E5000B)
- Realtek ALC4082 + ESS9219Q DAC — 7.1-Channel Hi-Res Audio
- 2x Thunderbolt 4 (Rear + Front) — 40Gbps, 8K Display Support
| Spec | Detail |
|---|---|
| Chipset | Intel Z890 |
| Socket | LGA 1851 |
| Form Factor | E-ATX (277 x 304.8mm) |
| Memory | 4x DDR5 DIMM, Max 256GB, up to 9200+ MT/s (OC), XMP 3.0 |
| PCIe Slots | 2x PCIe 5.0 x16, 1x PCIe 4.0 x4 |
| M.2 Slots | 8x Total — PCIe 5.0 x4 / PCIe 4.0 x4 / SATA |
| SATA Ports | 4x SATA 6Gb/s |
| RAID | 0, 1, 5, 10 (SATA & NVMe) |

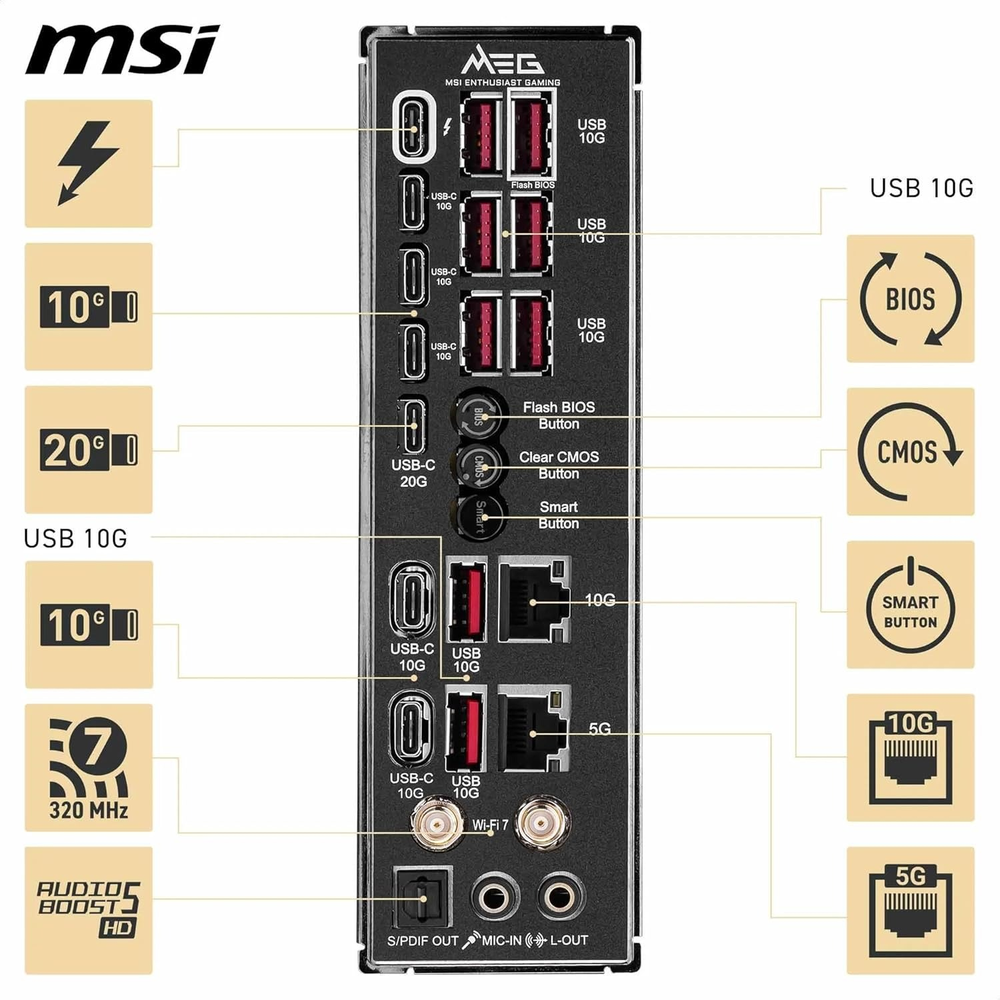

| USB (Rear) | 8x USB 10Gbps Type-A, 5x USB 10Gbps Type-C, 1x USB 20Gbps Type-C, 2x Thunderbolt 4 |
| LAN | 10G LAN (Marvell AQC113CS) + 5G LAN (Intel Killer E5000B) |
| Wi-Fi | Wi-Fi 7 — Intel Killer BE1750x (2.4 / 5 / 6GHz, up to 5.8Gbps) |
| Bluetooth | Bluetooth 5.4 |
| Audio | Realtek ALC4082 + ESS9219Q DAC — 7.1-Channel, 32-Bit/384kHz |
| Display Output | 2x Type-C DisplayPort via Thunderbolt 4 — up to 8K@60Hz |
| OS Support | Windows 11 64-bit |
