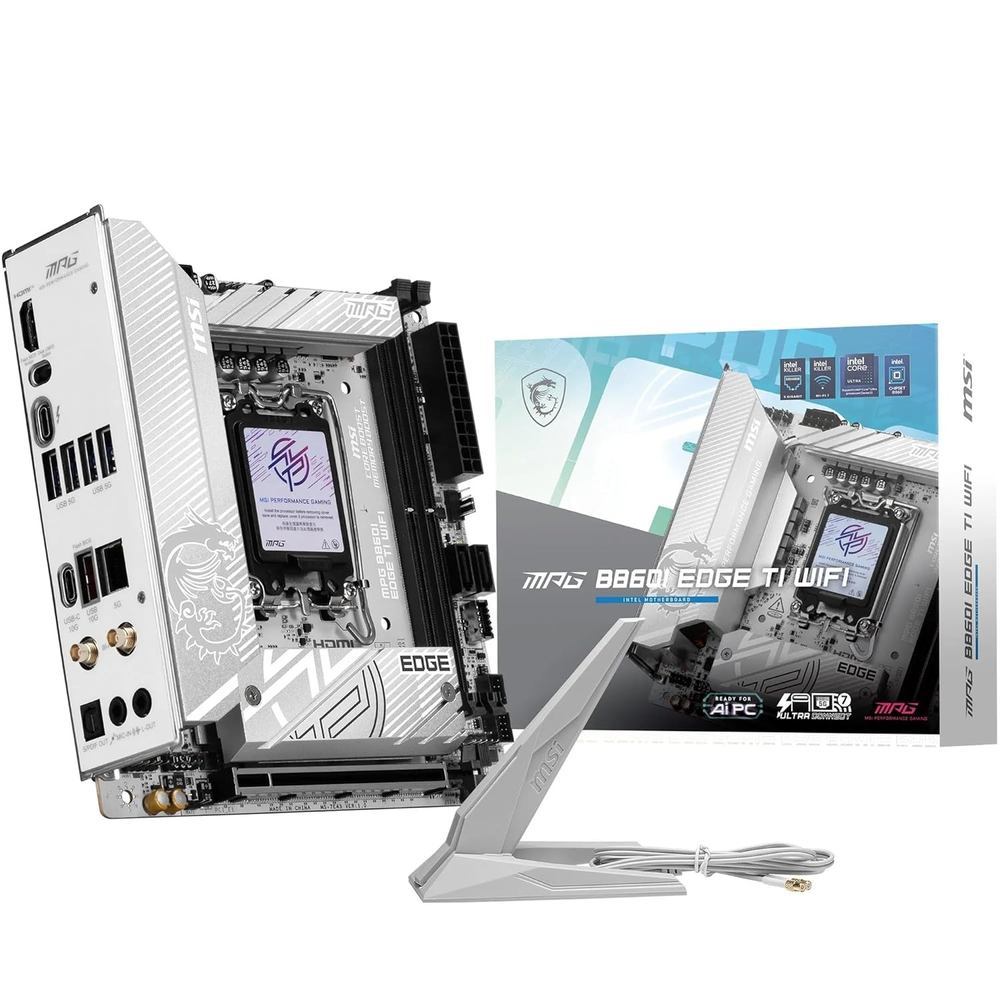

MSI MPG B860I EDGE TI WIFI Motherboard
Price inclusive of all taxes
Technical specification
Titanium Mini-ITX Intel B860 Motherboard — Wi-Fi 7, 5G LAN, PCIe 5.0, and 12-Layer Server-Grade PCB in Compact Form.
The MSI MPG B860I EDGE TI WIFI is a premium Mini-ITX motherboard for Intel Core Ultra Series 2 processors on the LGA 1851 socket. Built on a 12-layer server-grade 1oz thickened copper PCB, it packs an 8+1+1+1 Duet Rail power system, Intel Killer Wi-Fi 7 (up to 5.8Gbps), 5G Killer LAN, PCIe 5.0 x16, 3x M.2 slots, USB 20Gbps Type-C, and supplemental PCIe power — making it the most powerful B860 Mini-ITX board for compact high-performance builds.
- CPU Support: Intel Core Ultra Series 2, LGA 1851 socket
- Power Delivery: 8+1+1+1 Duet Rail Power System, 12-layer server-grade PCB (1oz thickened copper), supplemental PCIe power, single 8-pin CPU connector
- Storage: 3x M.2 — M.2_1: PCIe 5.0 x4 (CPU); M.2_2: PCIe 4.0 x4 (Chipset); M.2_3: PCIe 4.0 x4 / SATA (Chipset)
- Connectivity: Intel Killer BE1750x Wi-Fi 7 (2.4/5/6GHz, 320MHz, up to 5.8Gbps), Intel Killer E5000B 5G LAN, Bluetooth 5.4
- USB: Rear — 4x USB 5Gbps Type-A, 1x USB 10Gbps Type-A, 1x USB 10Gbps Type-C; Front — 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C, 2x USB 2.0
- EZ Features: EZ Debug LED, EZ Memory Detection LED, Flash BIOS Button, Clear CMOS Button, pre-installed I/O shield
- Audio: Realtek ALC897, 7.1-Channel HD Audio
| Specification | Details |
|---|---|
| Chipset | Intel B860 |
| Socket | LGA 1851 |
| Form Factor | Mini-ITX (170 x 170 mm), 12-layer PCB |
| Memory | 2x DDR5 UDIMM, up to 128GB, DDR5 8600+ MT/s (OC) / 6400–4800 MT/s (JEDEC) |
| Memory Standard | XMP 3.0, CUDIMM supported, Dual Channel, single-sided DIMM latches |
| PCIe Slots | 1x PCIe 5.0 x16 (CPU) |
| M.2 Slots | 3x M.2 — M.2_1: PCIe 5.0 x4 (CPU, 2280); M.2_2: PCIe 4.0 x4 (Chipset); M.2_3: PCIe 4.0 x4 / SATA (Chipset) |
| SATA | Via M.2_3 SATA mode only |
| LAN | Intel Killer E5000B 5G LAN |
| Wireless | Intel Killer BE1750x Wi-Fi 7 (2.4/5/6GHz, 320MHz, up to 5.8Gbps), Bluetooth 5.4 |
| Thunderbolt | Not included |
| Rear USB | 4x USB 5Gbps Type-A, 1x USB 10Gbps Type-A, 1x USB 10Gbps Type-C |
| Front USB Headers | 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C, 2x USB 2.0 |
| Video Output | 1x HDMI 2.1, 1x DisplayPort 1.4 |
| Audio | Realtek ALC897, 7.1-CH HD Audio |
| Fan Headers | 1x CPU Fan, 1x Combo Fan (Pump/SYS), 1x System Fan |
| RGB | 1x ARGB V2 header, 1x RGB header, 4x EZ Debug LED, 1x EZ Memory Detection LED |
| OS Support | Windows 11 64-bit |
