MSI MPG Z890 EDGE TI WIFI Motherboard (White)
MSI MPG Z890 EDGE TI WIFI Motherboard (White)
Premium White ATX Motherboard for Intel Core Ultra Series 2 — Style Meets High-End Performance. The MSI MPG Z890 EDGE TI WIFI is a striking white ATX motherboard engineered for...
Vendor:
MSIType:
MotherboardCouldn't load pickup availability
Estimated deliver 5-7 days
People are viewing this right now
Description
Premium White ATX Motherboard for Intel Core Ultra Series 2 — Style Meets High-End Performance.
The MSI MPG Z890 EDGE TI WIFI is a striking white ATX motherboard engineered for Intel Core Ultra Series 2 processors on the LGA 1851 socket. It features Intel Killer Wi-Fi 7, 5G Killer LAN, dual Thunderbolt 4 ports, 5x M.2 slots including PCIe 5.0, and a robust 16+1+1+1 Duet Rail power stage — delivering a premium white-themed build platform without compromise.
-
>CPU Support: Intel Core Ultra Series 2, LGA 1851 socket
>Power Delivery: 16+1+1+1 Duet Rail Power Design

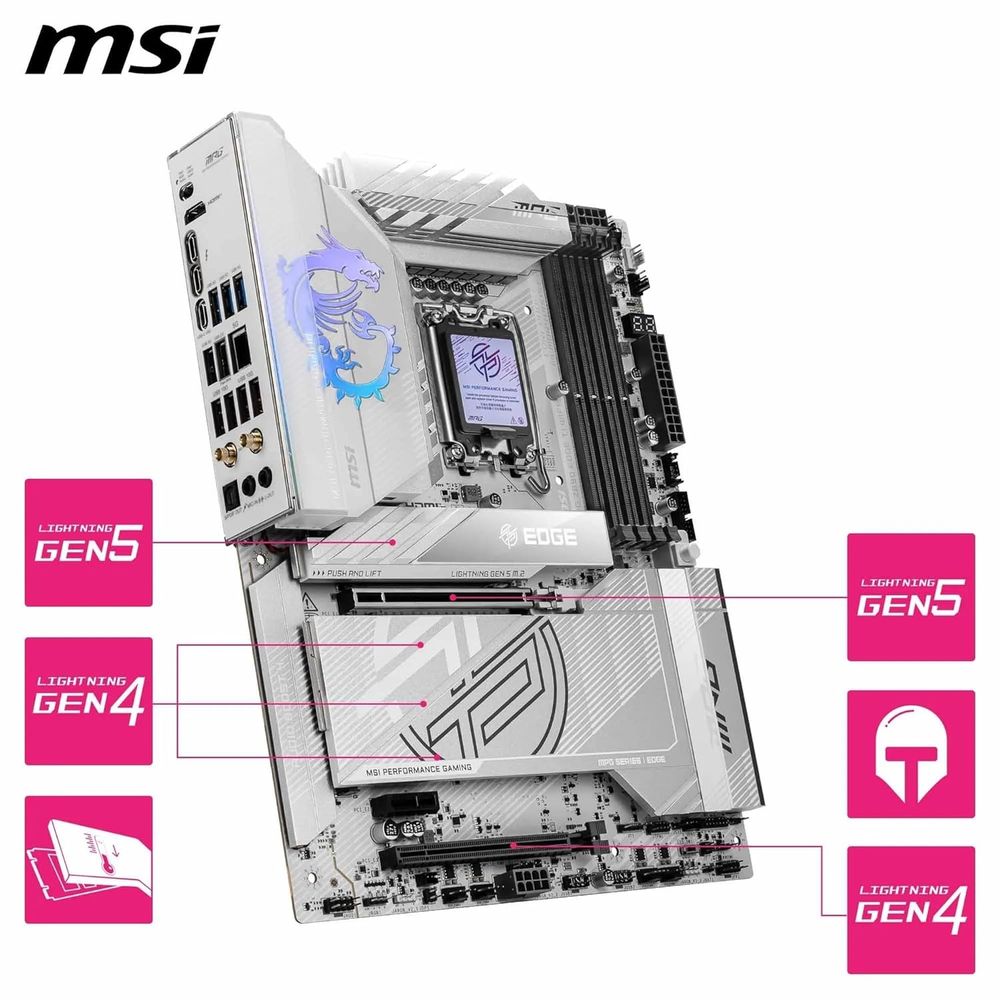

>Storage: 5x M.2 slots (1x PCIe 5.0 from CPU, 4x PCIe 4.0), 4x SATA 6G
>Connectivity: Intel Killer Wi-Fi 7 (BE1750x), 5G Killer LAN, 2x Thunderbolt 4

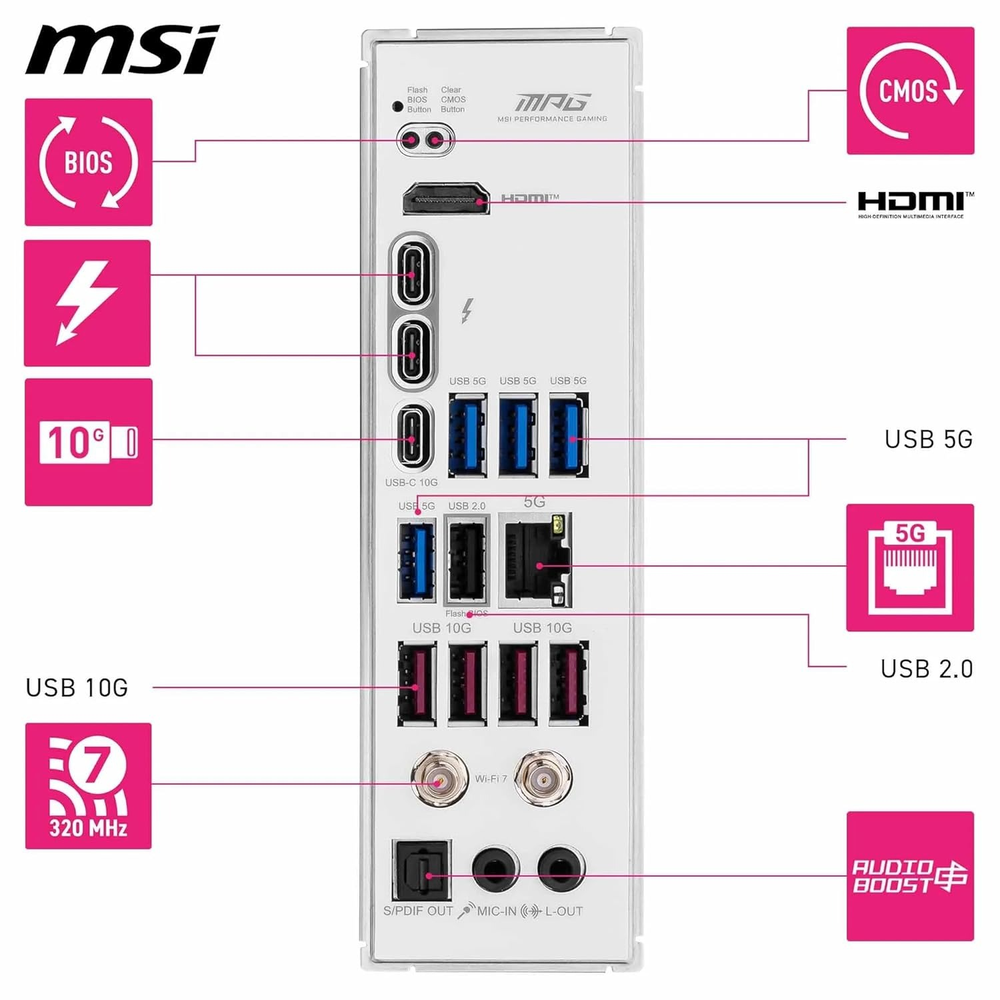

>USB: Rear — 4x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 4x USB 5Gbps, 1x USB 2.0
>Audio: Realtek ALC1220P 7.1-Channel HD Audio with S/PDIF output
>Lighting: 3x ARGB V2 headers, 1x RGB header, 4x EZ Debug LED, EZ Digit Debug LED
>Design: Premium white PCB with ARGB accents — built for white/clean aesthetic builds
| Specification | Details |
|---|---|
| Chipset | Intel Z890 |
| Socket | LGA 1851 |
| Form Factor | ATX (243.84 x 304.8 mm) |
| Memory | 4x DDR5 UDIMM, up to 256GB, DDR5 9200+ MT/s (OC) / 6400 MT/s (JEDEC) |
| Memory Standard | XMP 3.0, CUDIMM supported |
| PCIe Slots | 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4, 1x PCIe 4.0 x1 |
| M.2 Slots | 5x M.2 — M.2_1: PCIe 5.0 x4 (CPU); M.2_2: PCIe 4.0 x4 (CPU); M.2_3/4: PCIe 4.0 x4 (Chipset); M.2_5: PCIe 4.0 x4/SATA (Chipset) |
| SATA | 4x SATA 6G | RAID 0, 1, 5, 10 |
| LAN | Intel Killer E5000B 5G LAN |
| Wireless | Intel Killer BE1750x Wi-Fi 7 (2.4/5/6GHz, up to 5.8Gbps), Bluetooth 5.4 |
| Thunderbolt | 2x Thunderbolt 4 (rear, up to 40Gbps, DP 2.1) |
| Rear USB | 4x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 4x USB 5Gbps Type-A, 1x USB 2.0 |
| Front USB Headers | 1x USB 20Gbps Type-C, 2x USB 5Gbps Type-A, 4x USB 2.0 |
| Video Output | 1x HDMI 2.1 (8K), 2x Thunderbolt 4 Type-C (DP 2.1, 4K@120Hz/8K@60Hz) |
| Audio | Realtek ALC1220P, 7.1-CH HD Audio, S/PDIF out |
| Fan Headers | 1x CPU Fan, 1x Pump/SYS, 6x System Fan, 1x ARGB+FAN+USB2.0 combo |
| RGB | 3x ARGB V2, 1x RGB header |
| OS Support | Windows 11 64-bit |
