Flagship Mini-ITX Intel Z890 Motherboard — Maximum Power in a Compact Form.

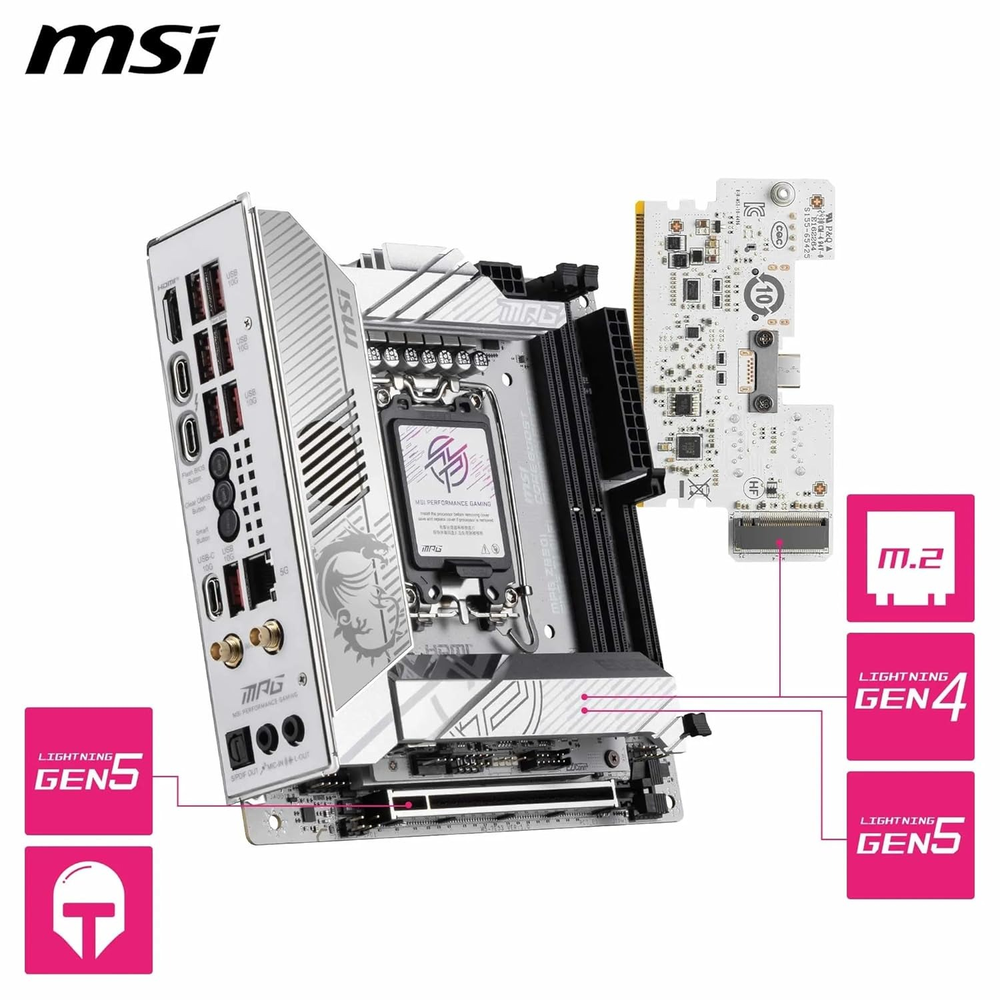

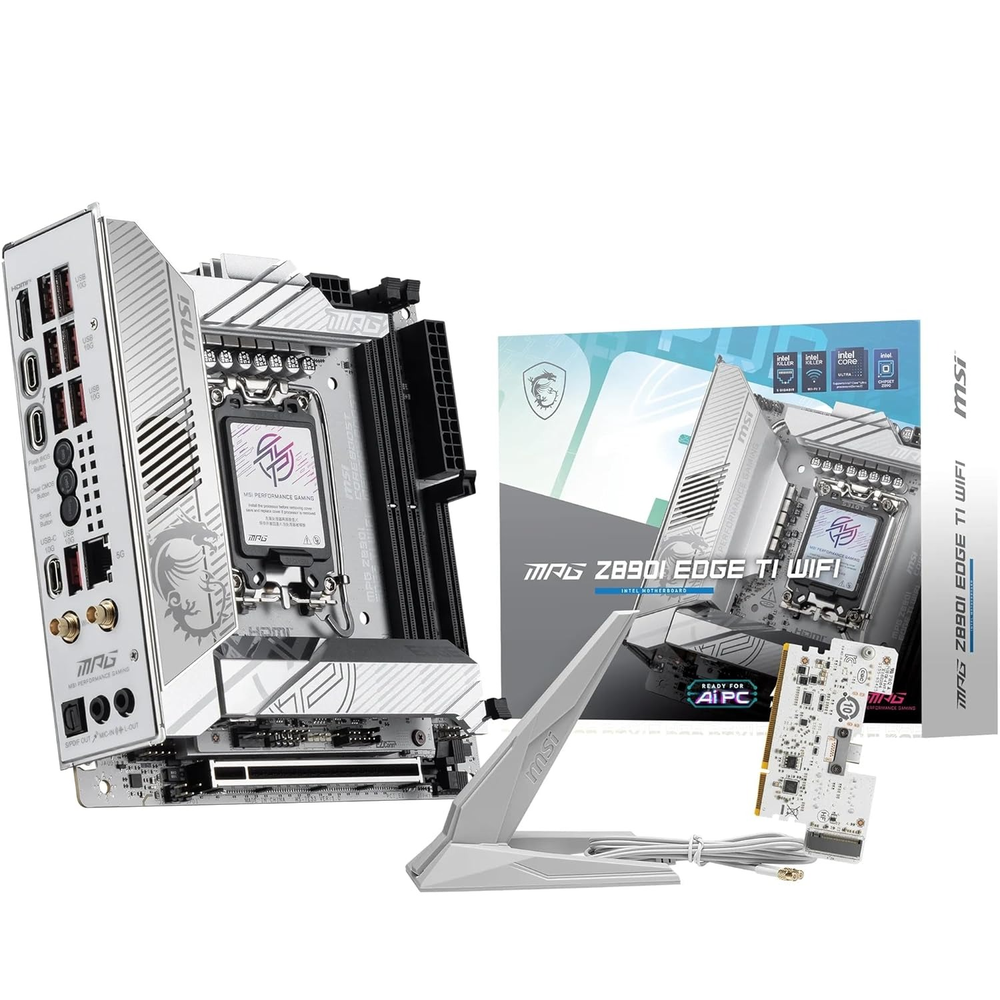

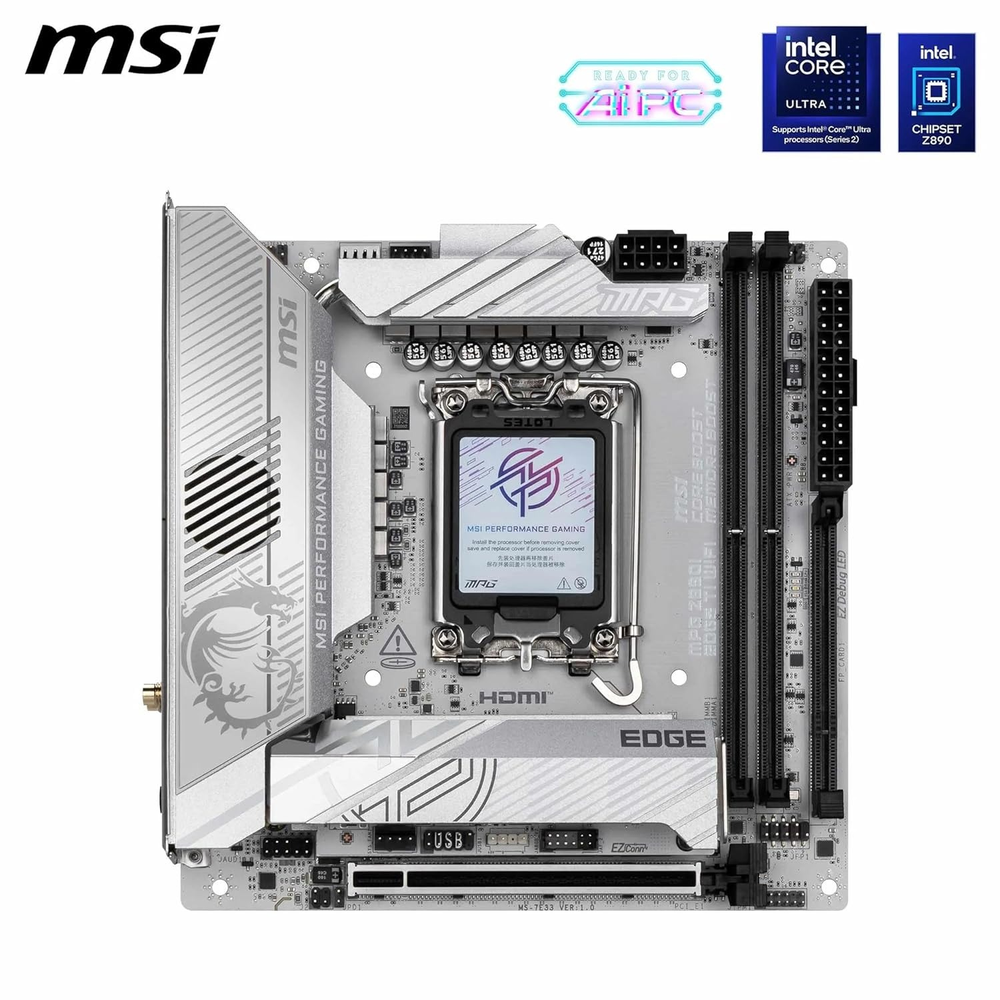

The MSI MPG Z890I EDGE TI WIFI is MSI's top-tier Mini-ITX motherboard for Intel Core Ultra Series 2 processors on the LGA 1851 socket. Despite its compact size, it packs a 10+1+1+1 Duet Rail power system, Intel Killer Wi-Fi 7, 5G Killer LAN, dual Thunderbolt 4 ports, 4x M.2 slots including PCIe 5.0, and a 5-in-1 Xpander — making it the most capable Mini-ITX Z890 board available.
-
>CPU Support: Intel Core Ultra Series 2, LGA 1851 socket

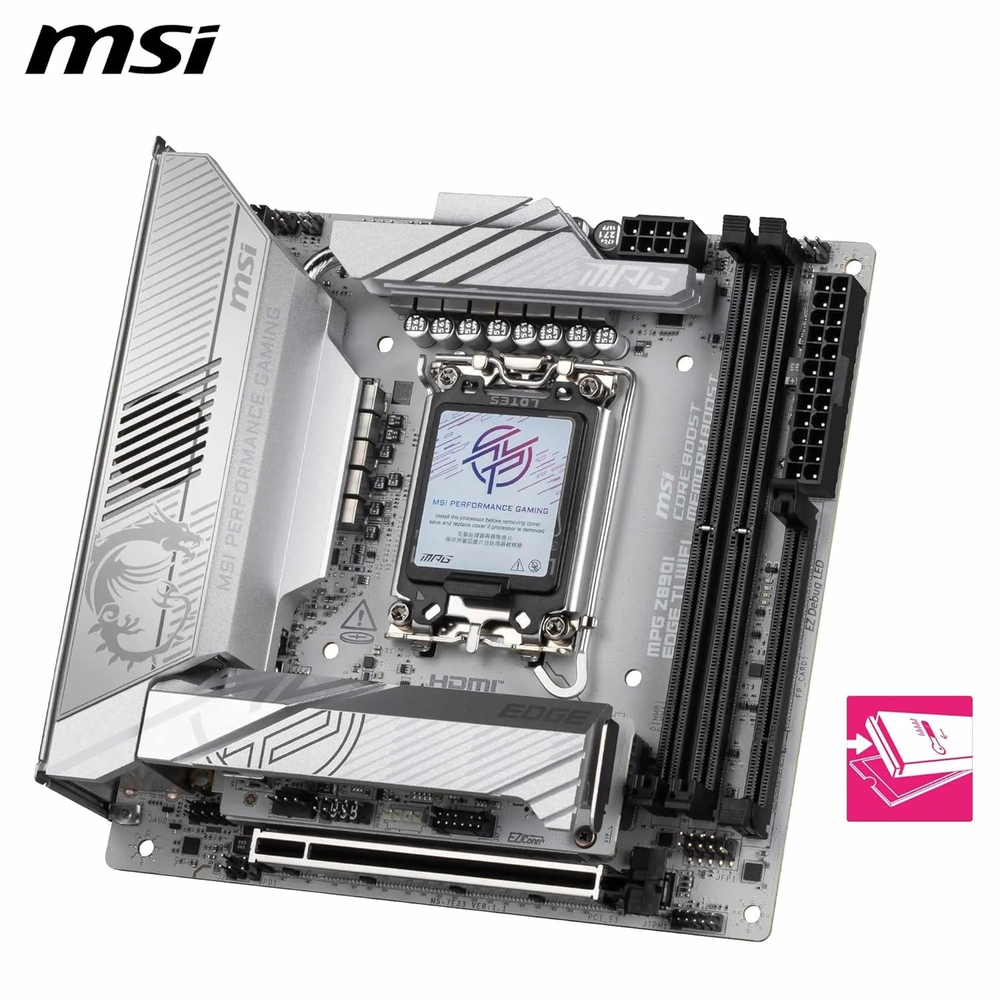

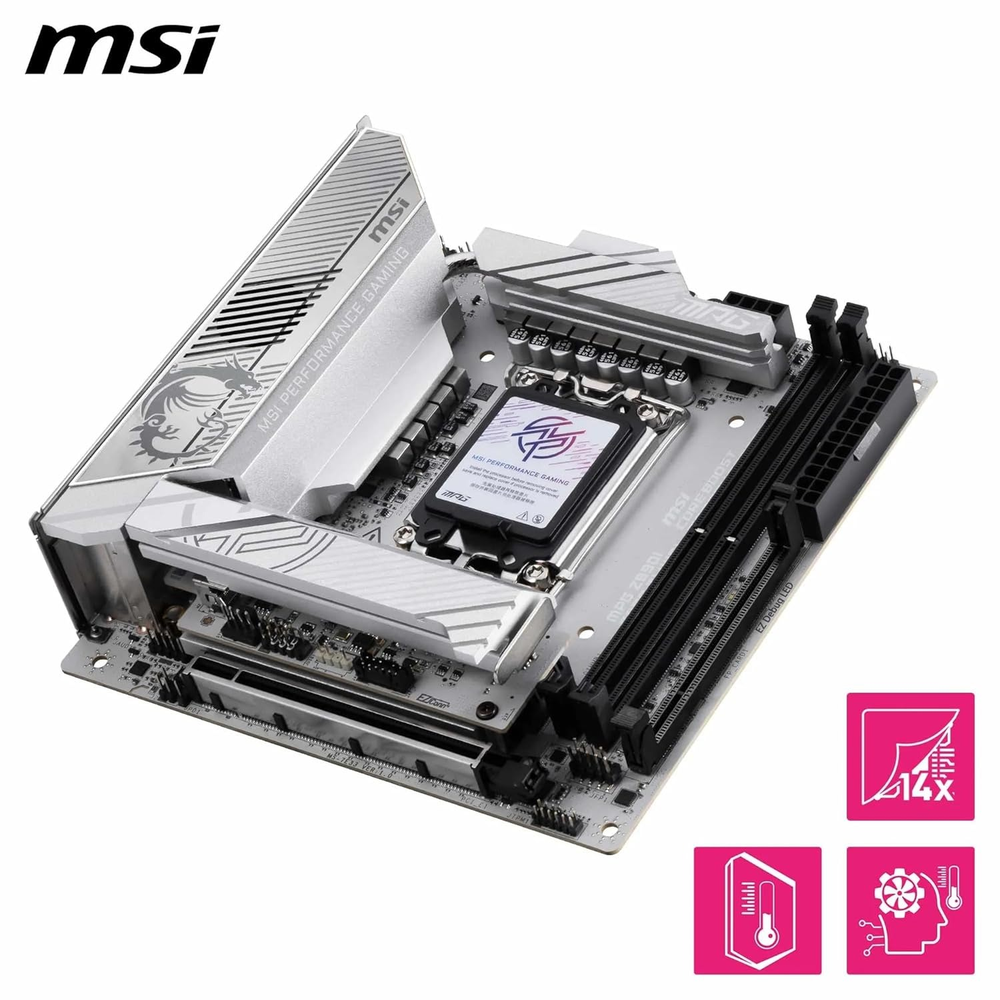

>Power Delivery: 10+1+1+1 Duet Rail Power System, 110A Smart Power Stage, 14-layer PCB
>Storage: 4x M.2 slots (1x PCIe 5.0 CPU, 3x PCIe 4.0), SATA via Xpander
>Connectivity: Intel Killer BE1750x Wi-Fi 7, Intel Killer E5000B 5G LAN, 2x Thunderbolt 4

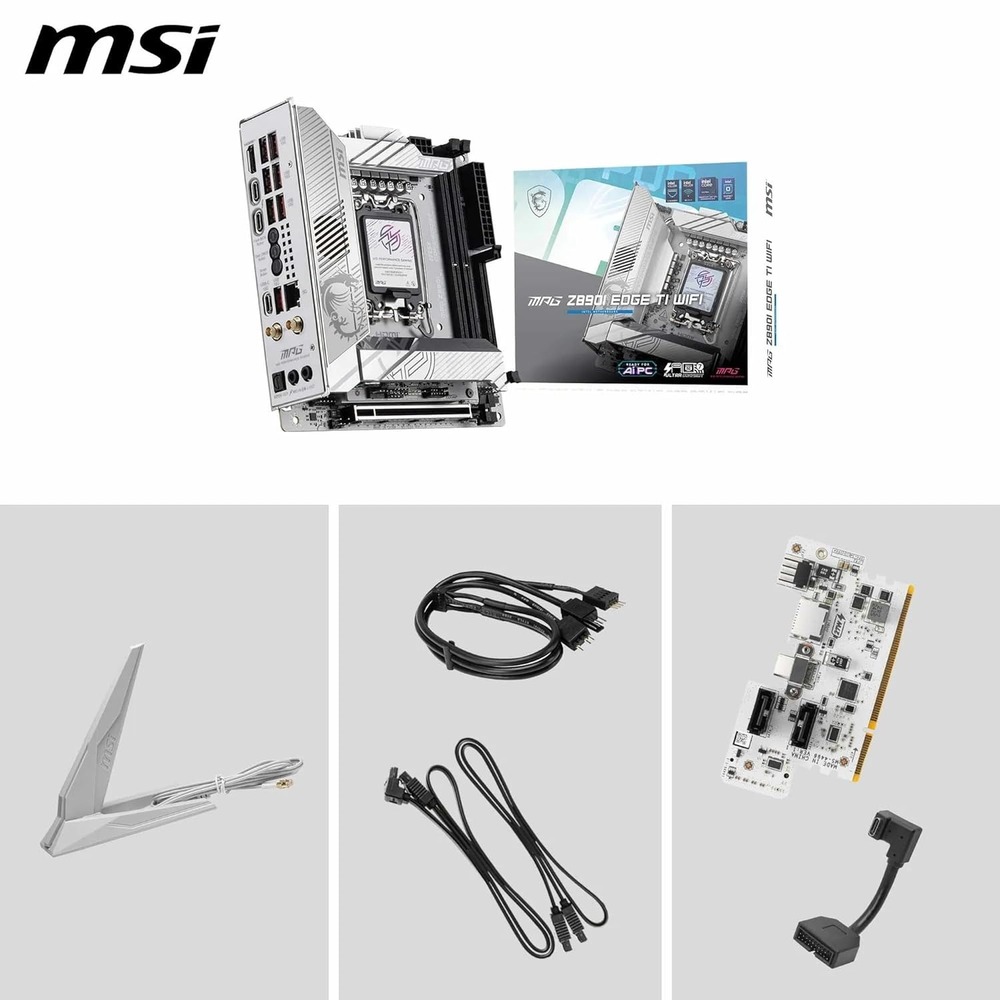

>Expansion: 5-in-1 Xpander adds extra M.2, SATA, and USB connectivity
>Audio: Realtek ALC1220P Audio Boost 5, 7.1-CH HD Audio
>Design: White PCB with ARGB header, EZ Debug LED, pre-installed I/O shield
| Specification | Details |
|---|---|
| Chipset | Intel Z890 |
| Socket | LGA 1851 |
| Form Factor | Mini-ITX (170 x 170 mm) |
| Memory | 2x DDR5 UDIMM, up to 128GB, DDR5 8600+ MT/s (OC) / 6400 MT/s (JEDEC) |
| Memory Standard | XMP 3.0, CUDIMM supported, Dual Channel |
| PCIe Slots | 1x PCIe 5.0 x16 (CPU) |
| M.2 Slots | 4x M.2 — M.2_1: PCIe 5.0 x4 (CPU); M.2_2: PCIe 4.0 x4 (CPU); M.2_3/4: PCIe 4.0 x4 (Chipset) |
| SATA | Via 5-in-1 Xpander | RAID 0, 1, 5 |
| LAN | Intel Killer E5000B 5G LAN |
| Wireless | Intel Killer BE1750x Wi-Fi 7 (2.4/5/6GHz, up to 5.8Gbps), Bluetooth 5.4 |
| Thunderbolt | 2x Thunderbolt 4 rear (40Gbps, DP 2.1, up to 8K display) |

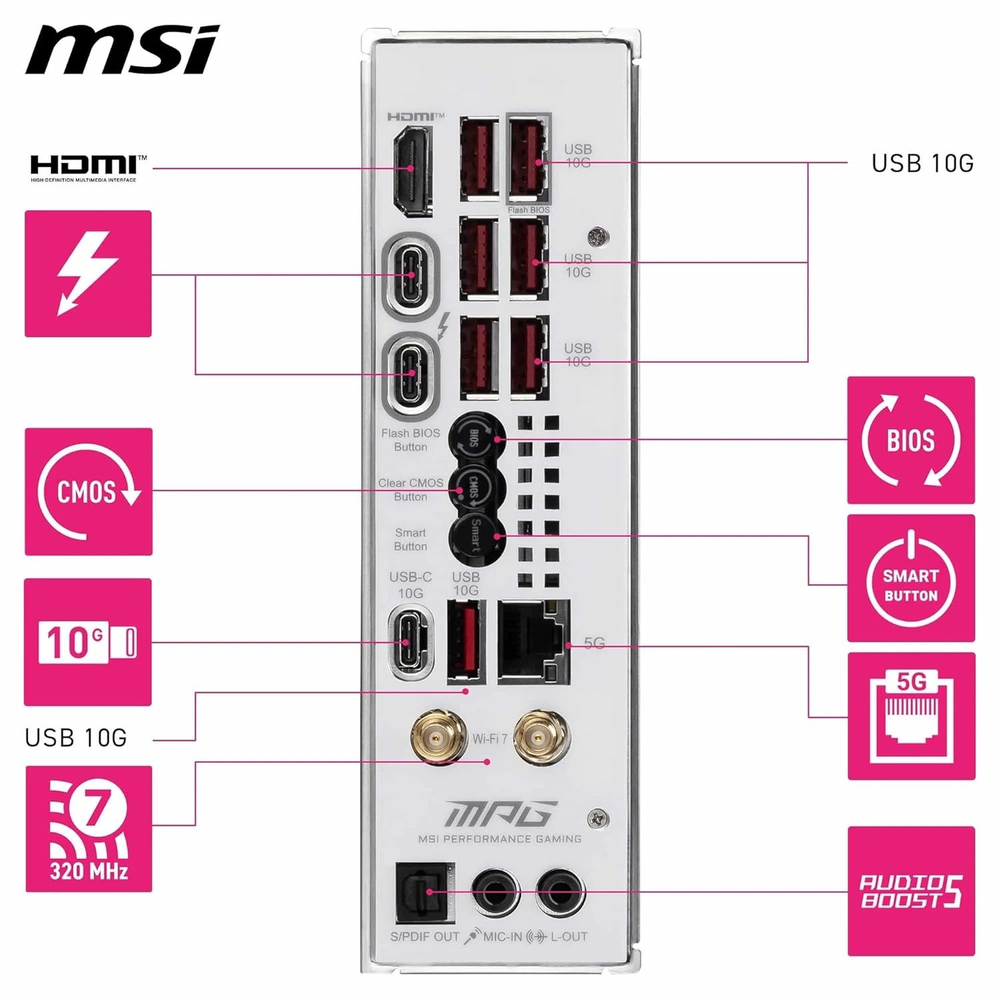

| Rear USB | 2x USB 10Gbps Type-A, 2x USB 5Gbps Type-A, 2x Thunderbolt 4 Type-C, 1x USB 2.0 |
| Front USB Headers | 1x USB 20Gbps Type-C, 2x USB 5Gbps Type-A, 2x USB 2.0 |
| Video Output | 1x HDMI 2.1 (8K@60Hz), 2x Thunderbolt 4 Type-C (DP 2.1) |
| Audio | Realtek ALC1220P, 7.1-CH HD Audio |
| RGB | 1x ARGB V2 header |
| OS Support | Windows 11 64-bit |
