Cabinet // MSI

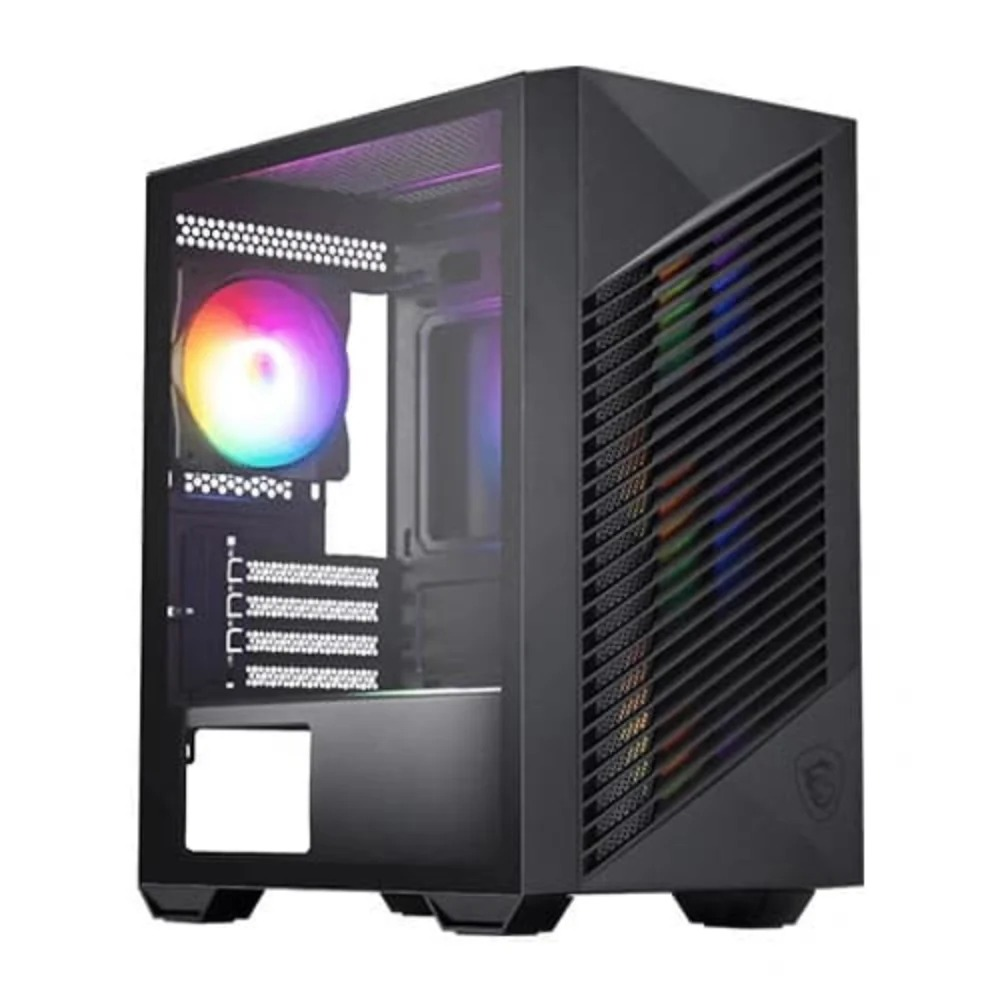

MSI PAG SHIELD M500A Auto RGB M-ATX Mini Tower PC Case
Technical specification
Micro-ATX Mini Tower Case — Tempered Glass Side Panel, 4× 120mm Auto-RGB Fans Pre-Installed (3 Front, 1 Rear), Supports GPUs up to 300mm and CPU Coolers up to 160mm, 240mm Top Radiator Support, Front USB 5Gbps (Type-A).
The MSI PAG SHIELD M500A is a compact M-ATX mini tower PC case built for modern business and budget gaming rigs. It includes four pre-installed 120mm Auto-RGB fans (three front intake and one rear exhaust), a 3mm tempered glass side panel, and a 1–6 fan control board that powers and controls up to six 12V Auto-RGB fans via the front LED On/Off button. With support for micro-ATX and mini-ITX motherboards, GPUs up to 300mm, CPU coolers up to 160mm, and a 240mm radiator on top, the PAG SHIELD M500A offers strong airflow, clean aesthetics, and easy cable management at an affordable price.[web:164][web:166]
- Auto RGB Showroom — Pre-installed Auto-RGB fans light up out of the box, with a front LED On/Off button to quickly toggle lighting.[web:164]
- Tempered Glass Window — 3mm tempered glass side panel provides durability and a clear view of your build.[web:164][web:166]
- 1–6 Fan Control Board — Included hub supports up to six 12V Auto-RGB fans, powered via SATA, simplifying fan power and lighting wiring.[web:164]
- Compact Mini Tower — Designed for M-ATX and M-ITX motherboards in a smaller footprint, ideal for desks and tight spaces.[web:164]
- Good Cooling Support — Up to 6 case fans: 3 × 120mm or 2 × 140mm front; 2 × 120mm top; 1 × 120mm rear.[web:164][web:166]
- 240mm Radiator Ready — Supports up to a 240mm radiator on the top, plus 120mm radiator at the rear for compact water-cooled setups.[web:164]
- Hardware Compatibility — Supports GPUs up to 300mm, CPU coolers up to 160mm, and PSUs up to 170mm.[web:164]
- Dust Filters — Top and bottom dust filters help keep your system clean and maintain airflow.[web:164]
- Front I/O with USB 5Gbps — Power, Reset, Audio Out, Mic In, 2 × USB, 1 × USB 5Gbps (Type-A), and LED On/Off.[web:164]
- Business & Gaming Ready — A practical choice for office PCs and entry-level gaming builds needing pre-installed fans and easy installation.[web:164][web:165]
| Spec | Detail |
|---|---|
| Product Name | PAG SHIELD M500A[web:164] |
| Cabinet Size | Mini-Tower[web:164] |
| Case Form Factor | Micro-ATX / Mini-ITX[web:164][web:166] |
| Color | Black[web:164] |
| Side Panel | 3mm Tempered Glass[web:164] |
| Expansion Slots | 4[web:164][web:166] |
| Max GPU Length | 300 mm[web:164] |
| Max CPU Cooler Height | 160 mm[web:164][web:165] |
| Max PSU Length | 170 mm[web:164][web:166] |
| Drive Bays | 2 × 3.5" HDD (max), 2 × 2.5" SSD (max)[web:164] |
| Pre-Installed Fans | Front: 3 × 120mm Auto-RGB, Rear: 1 × 120mm Auto-RGB[web:164] |
| Max Fan Support | Front: 3 × 120mm / 2 × 140mm; Top: 2 × 120mm; Rear: 1 × 120mm[web:164][web:166] |
| Radiator Support | Top: 120 / 240mm, Rear: 120mm; Front: N/A[web:164] |
| Dust Filters | Top, Bottom[web:164] |
| Fan Control Board | 1–6 Auto-RGB fan hub, SATA-powered, LED On/Off control[web:164] |
| Front I/O Panel | Power Button, Reset Button, Audio Out, Mic In, 2 × USB, 1 × USB 5Gbps, LED On/Off Button[web:164] |
| Case Type (alt listing) | Mid-Tower, ATX / mATX / ITX (varies by reseller description)[web:165] |
| Warranty | 1 Year (cabinet, India)[web:164] |
