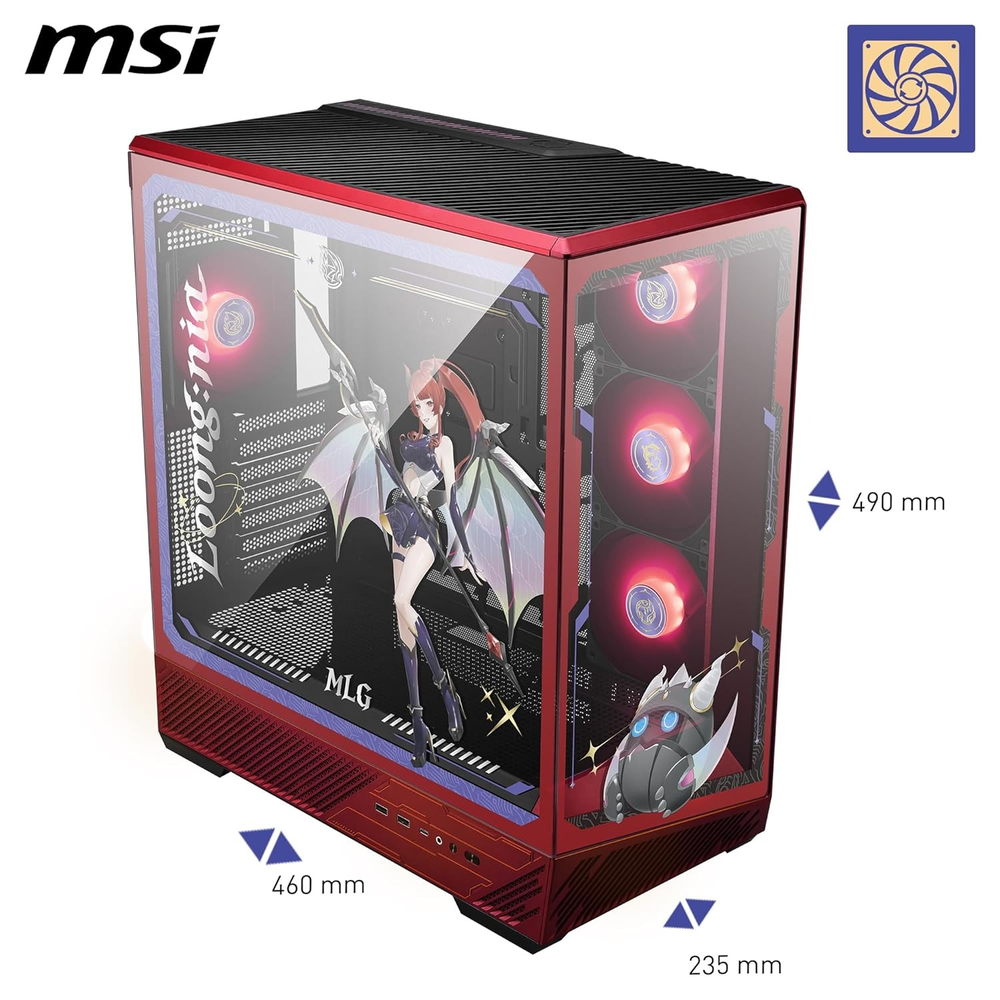

MSI PANO 130R MLG EDITION ARGB ATX Panoramic Mid Tower PC Case
Technical specification
Armored Crimson ATX Panoramic Case — 270° Tempered Glass Design in Loong Nia “MLG” Red, Back-Connect ATX Support, 4× 120mm ARGB Fans Pre-Installed (3 Side Reverse-Blade, 1 Rear), Supports up to 10× 120mm Fans, Dual 360mm Radiator Support (Top & Side + Bottom 360mm), GPU up to 400mm, USB 20Gbps Type‑C Front I/O.
The MSI PANO 130R MLG EDITION is a special Loong Nia themed panoramic ATX mid‑tower case finished in armored crimson, designed for gamers who want both high airflow and a showcase build. It features a 270‑degree tempered glass panoramic design and an upgraded airflow layout that supports up to 10 × 120mm fans and dual 360mm radiators on the top and side, plus an additional 360mm at the bottom. With support for standard ATX / Micro‑ATX / Mini‑ITX as well as back‑connect ATX / Micro‑ATX motherboards, GPUs up to 400mm, and CPU coolers up to 165mm, the PANO 130R MLG EDITION delivers style, cooling, and PROJECT ZERO readiness in one compact panoramic chassis.[web:364][web:372][web:373][web:370]
- Armored Crimson Loong Nia Theme — Electroplated‑like red finish inspired by MSI’s Loong Nia character, giving a bold, glossy crimson look that stands out on the desk.[web:364][web:365][web:371]
- Back‑Connect PROJECT ZERO Support — Supports regular ATX/mATX/mini‑ITX and back‑connect ATX/mATX motherboards for clean cable routing behind the board and a clutter‑free showcase interior.[web:364][web:372][web:375]
- Panoramic Glass & Reverse‑Blade Fans — 270° tempered glass panoramic design combined with pre‑installed reverse‑blade ARGB fans on the side so the ARGB faces the viewer with no visible fan frame obstruction.[web:364][web:372][web:373]
- Upgrade Airflow Layout — Supports up to 10 × 120mm fans, with top, side, and bottom intake/exhaust plus vents around the lower chamber for strong GPU and PSU cooling.[web:364][web:372][web:373]
- Dual 360mm + Bottom 360mm Radiator Support — Supports 360mm radiators on the top and side simultaneously, plus an additional 360mm radiator above the PSU shroud at the bottom.[web:372][web:373][web:374]
- High Compatibility Interior — Fits GPUs up to 400mm in length, CPU air coolers up to 165mm tall, and PSUs up to 180mm, making it suitable for high‑end RTX 40‑series builds.[web:372][web:373][web:370]
- Magnetic Top & Bottom Dust Filters — Magnetic top dust filter and removable bottom PSU/filter section help keep the system clean while maintaining airflow.[web:364][web:372][web:373]
- Loong Nia MLG Styling — Red accents and branding tie into MSI’s Loong Nia character, reinforcing the “MLG EDITION” identity for themed setups and limited‑edition builds.[web:364][web:371][web:376]
- Front USB Type‑C with PD Support — Front Type‑C supports USB 20Gbps (USB 3.2 Gen 2×2) and, in regions where available, PD power delivery with compatible devices.[web:364][web:372][web:373]
| Spec | Detail |
|---|---|
| Product Name | PANO 130R MLG EDITION[web:372][web:373] |
| Case Form Factor | Mid‑Tower[web:372][web:373][web:374] |
| Motherboard Support | Regular: ATX / Micro‑ATX / Mini‑ITX; Back‑connect: ATX / Micro‑ATX[web:372][web:373][web:370] |
| Color | Armored Crimson Red (MLG Edition)[web:364][web:369][web:371] |
| Side / Front Panels | 270° tempered glass panoramic design[web:372][web:373][web:371] |
| I/O Ports | 2 × USB 5Gbps (Type‑A), 1 × USB 20Gbps (Type‑C), 1 × Audio‑Out / Mic‑In, 1 × Reset Button, 1 × Power Button[web:372][web:370][web:373] |
| Drive Mount Support | Up to 3 × 2.5" SSD, up to 2 × 3.5" HDD (maximum 3 drives total depending on configuration)[web:372][web:373] |
| Expansion Slots | 7[web:372][web:373][web:370] |
| Maximum GPU Length | 400 mm / 15.75 inches[web:372][web:373][web:369] |
| Maximum CPU Cooler Height | 165 mm / 6.50 inches[web:372][web:373][web:370] |
| Power Supply Support | ATX (PSU not included)[web:372][web:373][web:370] |
| Maximum PSU Length | 180 mm / 7.09 inches[web:372][web:373][web:370] |
| Top Fan Support | 3 × 120mm or 2 × 140mm[web:372][web:373][web:370] |
| Front Fan Support | N/A (front is closed panel; airflow via side/top/bottom)[web:372][web:373][web:370] |
| Rear Fan Support | 1 × 120mm[web:372][web:373][web:370] |
| Side Fan Support | 3 × 120mm[web:372][web:373][web:370] |
| Bottom Fan Support | 3 × 120mm (above PSU shroud)[web:372][web:373][web:370] |
| Maximum Fan Count | Up to 10 × 120mm fans[web:364][web:372][web:373] |
| Pre‑Installed Fans | Side: 3 × 120mm ARGB Reverse‑Blade; Rear: 1 × 120mm ARGB Fan[web:372][web:373][web:364] |
| Radiator Support (Top) | 120 / 140 / 240 / 280 / 360 mm[web:372][web:373][web:374] |
| Radiator Support (Side) | 120 / 240 / 360 mm[web:372][web:373][web:374] |
| Radiator Support (Bottom) | 1 × 360 mm (above PSU shroud)[web:372][web:373][web:374] |
| Radiator Support (Front) | N/A (no front radiator)[web:372][web:373][web:374] |
| Dimensions (D × W × H) | 460 × 232 × 490 mm / 18.11 × 9.25 × 19.29 inches[web:373][web:374] |
| Net Weight | 8.38 kg / 18.47 lbs[web:373][web:374] |
| Gross Weight | 10.5 kg / 23.15 lbs[web:373] |
| Warranty | 2 Years (cabinet, India)[web:373][web:369] |
