Motherboard // MSI

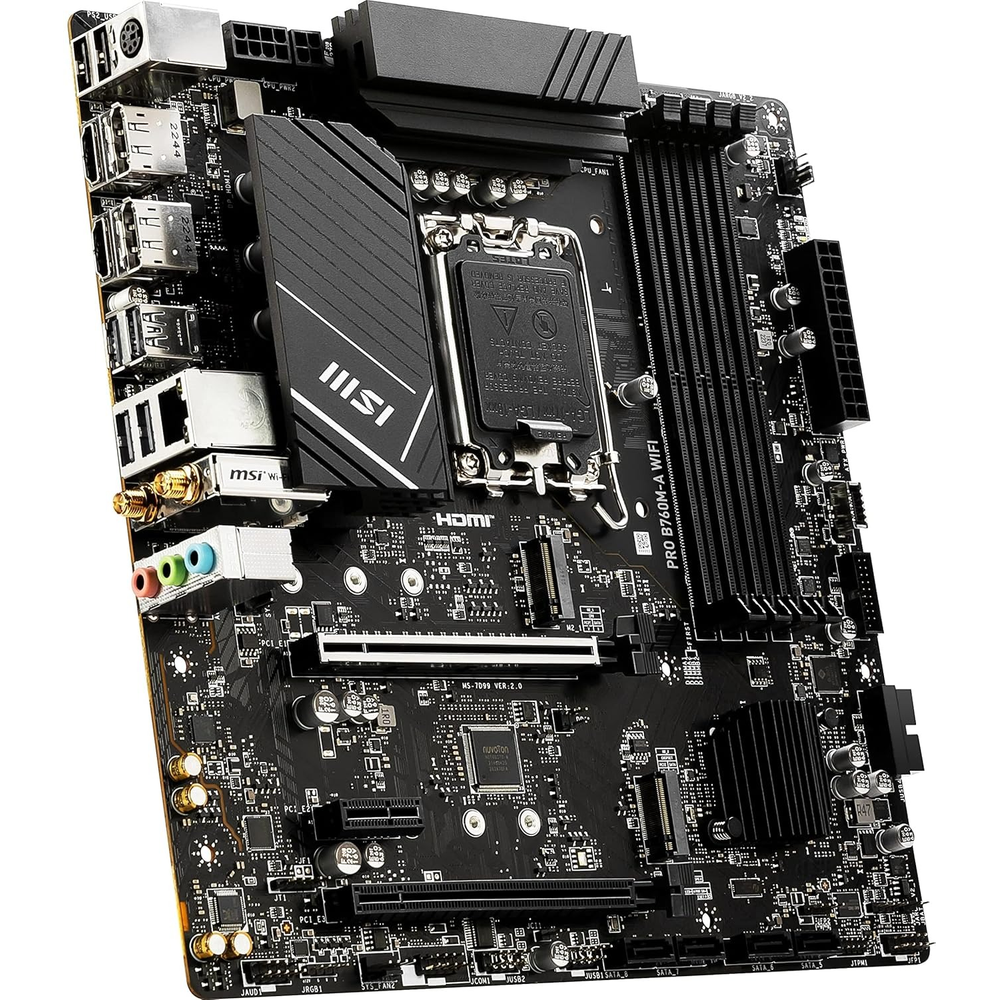

MSI PRO B760M-A WIFI Motherboard (DDR5)
Price inclusive of all taxes
Technical specification
Reliable mATX Intel B760M-A PRO Motherboard — Wi-Fi 6E, PCIe 4.0, DDR5 6800+, and Dual M.2 Gen4 for Intel Core 12th, 13th & 14th Gen.
The MSI PRO B760M-A WIFI (DDR5) is a dependable Micro-ATX motherboard for Intel Core 12th, 13th, and 14th Gen processors on the LGA 1700 socket. It delivers professional-grade reliability with a 12+1 Duet Rail power system, Intel Wi-Fi 6E (up to 2.4Gbps), Realtek 2.5G LAN, PCIe 4.0 x16, 2x M.2 PCIe 4.0 slots, and DDR5 6800+ OC — making it a popular choice for both productivity workstations and entry gaming builds.
- >
CPU Support:
- Intel Core 14th / 13th / 12th Gen + Pentium Gold / Celeron, LGA 1700 socket >
Power Delivery:
- 12+1 Duet Rail Power System with P-PAK, 8+4-pin CPU connectors, Core Boost, Memory Boost >
Storage:
- 2x M.2 PCIe 4.0 x4 — M.2_1: CPU (2280/2260/2242); M.2_2: Chipset PCIe/SATA (2280/2260/2242); 4x SATA 6G | RAID 0/1/5/10 >
Connectivity:
- Intel Wi-Fi 6E (2.4/5/6GHz, 160MHz, up to 2.4Gbps), Realtek RTL8125BG 2.5G LAN, Bluetooth 5.3 >
USB:
- Rear — 2x USB 10Gbps Type-A, 2x USB 5Gbps Type-A, 2x USB 2.0; Front — 4x USB 5Gbps Type-A, 1x USB 5Gbps Type-C, 4x USB 2.0 >
EZ Features:
- 4x EZ Debug LED, Extended Heatsink Design >
Audio:
- Realtek ALC897, 7.1-Channel HD Audio
| Specification | Details |
|---|---|
| Chipset | Intel B760 |
| Socket | LGA 1700 |
| Form Factor | mATX (243.84 x 243.84 mm) |
| Memory | 4x DDR5 UDIMM, up to 256GB, DDR5 6800+ MT/s (OC) / 5600–4800 MT/s (JEDEC) |
| Memory Standard | XMP 3.0, Dual Channel, non-ECC unbuffered |
| PCIe Slots | PCI_E1: PCIe 4.0 x16 (CPU); PCI_E2: PCIe 3.0 x1 (Chipset); PCI_E3: PCIe 4.0 x4 (Chipset) |
| M.2 Slots | 2x M.2 PCIe 4.0 x4 — M.2_1: CPU (2280/2260/2242); M.2_2: Chipset PCIe/SATA (2280/2260/2242) |
| SATA | 4x SATA 6G | RAID 0, 1, 5, 10 |
| LAN | Realtek RTL8125BG 2.5G LAN |
| Wireless | Intel Wi-Fi 6E (2.4/5/6GHz, 160MHz, up to 2.4Gbps), Bluetooth 5.3 |
| Thunderbolt | Not included |
| Rear USB | 2x USB 10Gbps Type-A, 2x USB 5Gbps Type-A, 2x USB 2.0 |
| Front USB Headers | 4x USB 5Gbps Type-A, 1x USB 5Gbps Type-C, 4x USB 2.0 |
| Video Output | 1x HDMI 2.1 (4K@60Hz), 1x DisplayPort 1.4 (4K@60Hz) |
| Audio | Realtek ALC897, 7.1-CH HD Audio |
| Fan Headers | 1x CPU Fan, 1x Pump Fan, 2x System Fan |
| RGB | 1x ARGB V2 header, 1x RGB header, 4x EZ Debug LED |
| OS Support | Windows 11 / 10 64-bit |
