MSI PRO B760M-E DDR4 Motherboard
MSI PRO B760M-E DDR4 Motherboard
Most Affordable mATX Intel B760 PRO DDR4 Motherboard — PCIe 4.0, DDR4 4800+, Single M.2 Gen4, and Audio Boost for Intel Core 12th, 13th & 14th Gen. The MSI PRO...
Vendor:
MSIType:
MotherboardCouldn't load pickup availability
Estimated deliver 5-7 days
People are viewing this right now
Description
Most Affordable mATX Intel B760 PRO DDR4 Motherboard — PCIe 4.0, DDR4 4800+, Single M.2 Gen4, and Audio Boost for Intel Core 12th, 13th & 14th Gen.

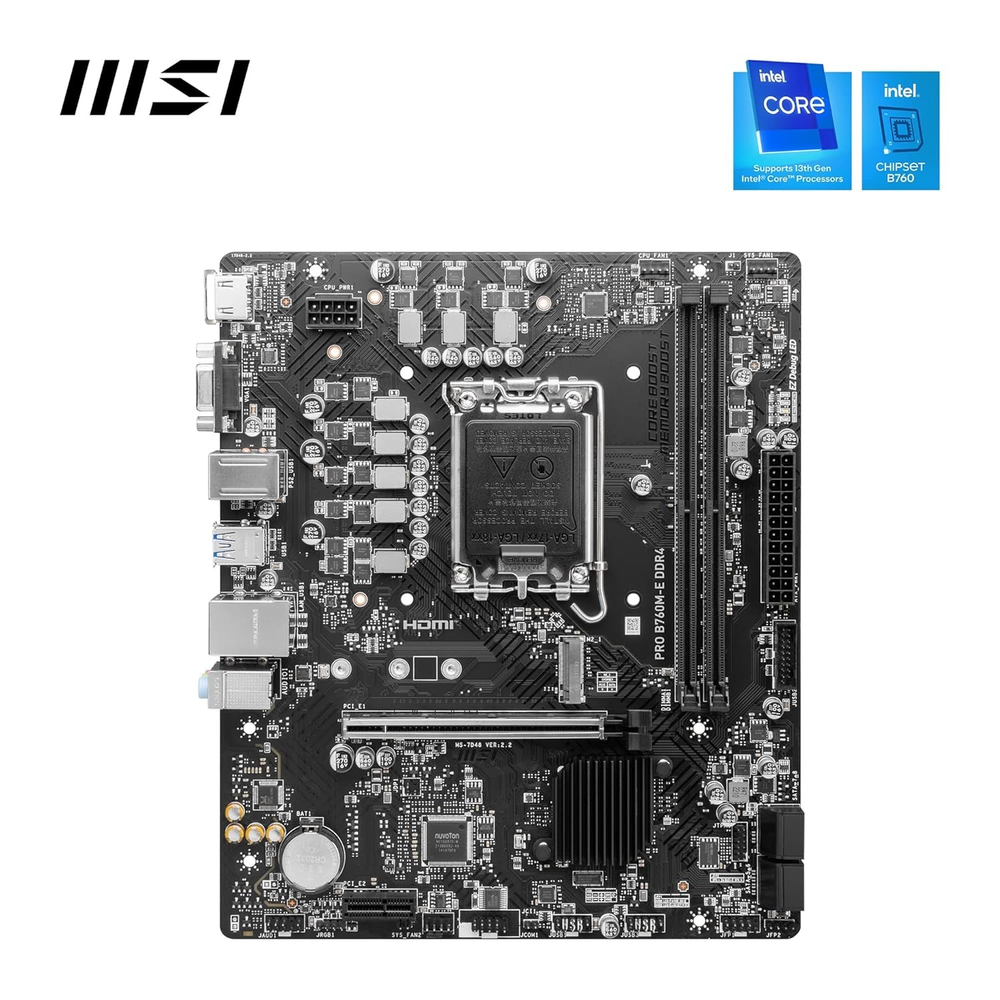

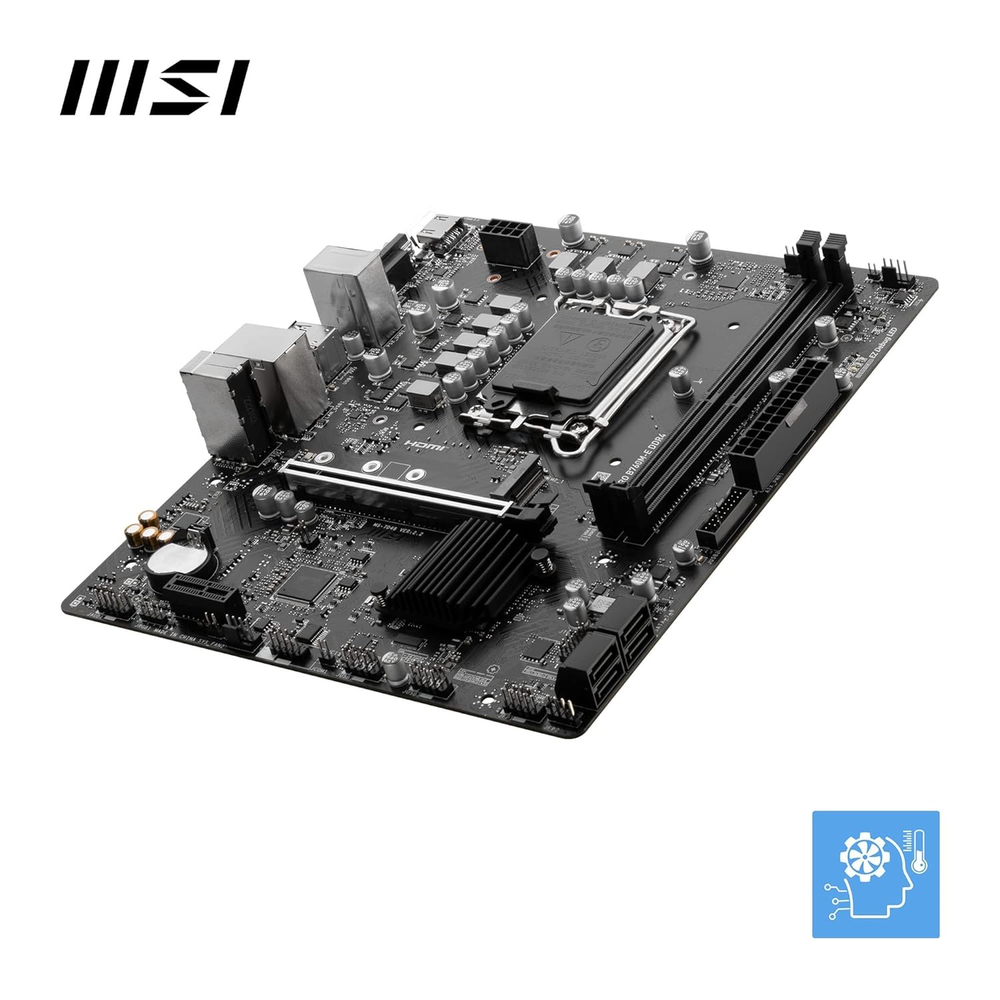

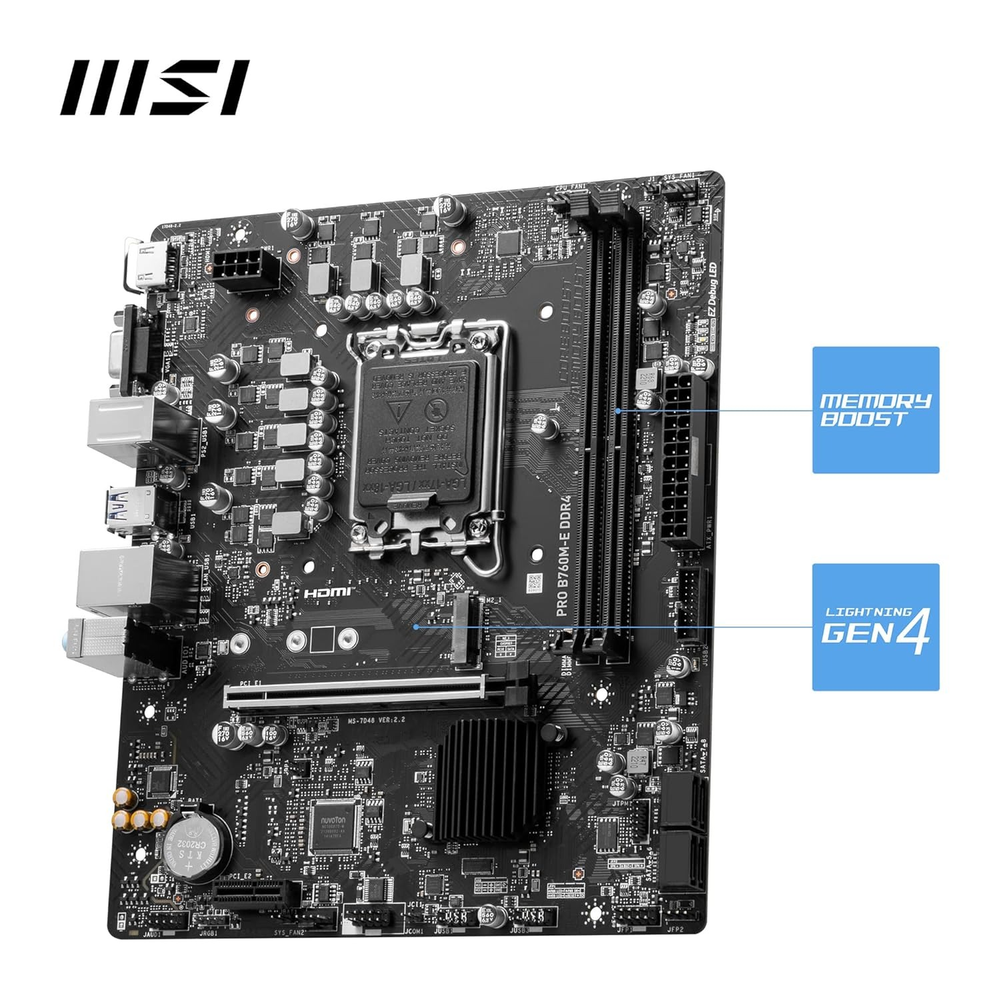

The MSI PRO B760M-E DDR4 is the most accessible Intel B760 mATX board in MSI's PRO DDR4 lineup for LGA 1700 socket. It features Core Boost, Memory Boost, Steel Armor PCIe slot, PCIe 4.0 x16, 1x M.2 PCIe 4.0 / SATA slot, DDR4 4800+ OC, Gigabit LAN, and a compact 200mm x 236mm footprint — the no-frills, most budget-friendly Intel B760 board for DDR4 builds and productivity desktops.
-
>CPU Support: Intel Core 14th / 13th / 12th Gen + Pentium Gold / Celeron, LGA 1700 socket
>Power Delivery: Single 8-pin CPU connector, Core Boost, Memory Boost
>Storage: 1x M.2_1: PCIe 4.0 x4 / SATA (Chipset, 2280/2260/2242); 4x SATA 6G | RAID 0/1/5/10
>Connectivity: Realtek RTL8111H Gigabit LAN — no built-in Wi-Fi
>USB: Rear — 2x USB 5Gbps Type-A, 4x USB 2.0; Front — 2x USB 5Gbps Type-A, 4x USB 2.0
>Note: 2x DDR4 slots (up to 64GB), 1DPC 1R up to 4800+ MT/s — single M.2 slot only
>Audio: Realtek ALC897, 7.1-Channel HD Audio
| Specification | Details |
|---|---|
| Chipset | Intel B760 |
| Socket | LGA 1700 |
| Form Factor | mATX (200 x 236.16 mm) |
| Memory | 2x DDR4 UDIMM, up to 64GB, DDR4 4800+ MT/s (OC) / 3200–2133 MT/s (JEDEC) |
| Memory Standard | Intel XMP, Dual Channel, non-ECC unbuffered |

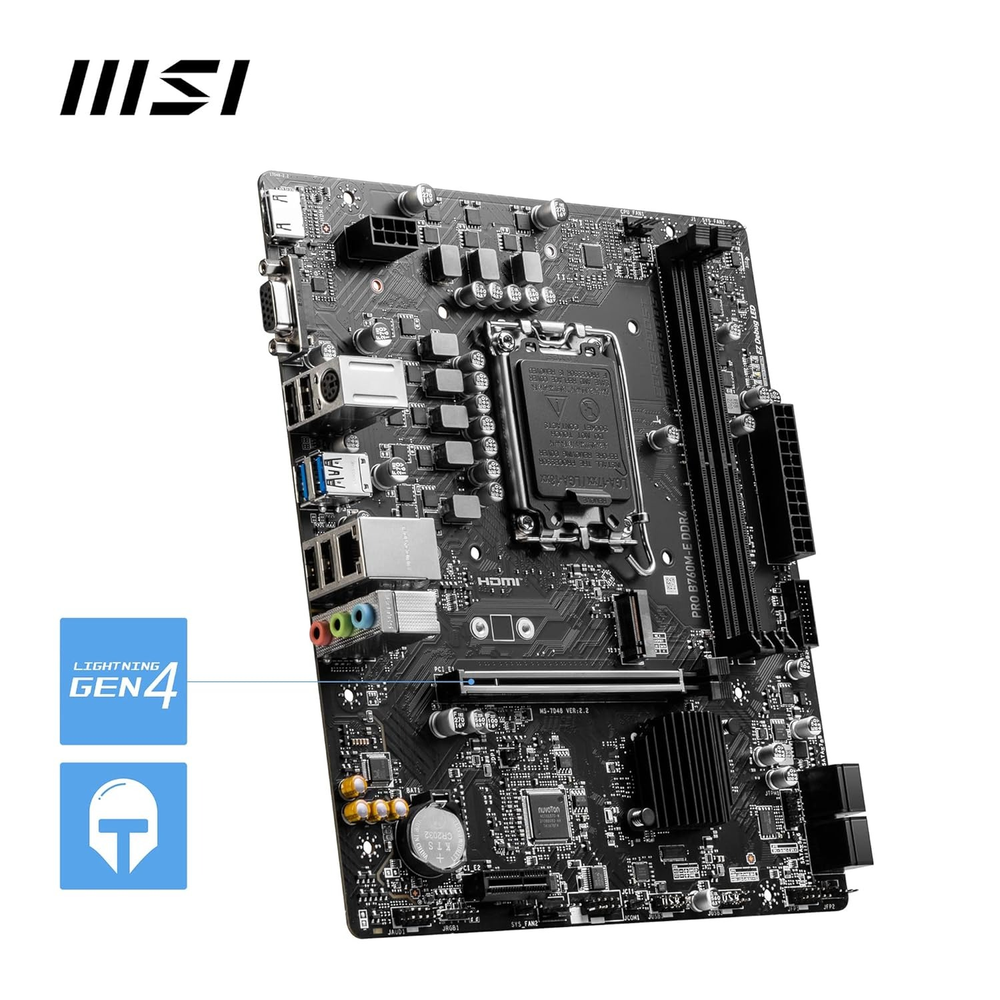

| PCIe Slots | PCI_E1: PCIe 4.0 x16 (CPU, Steel Armor); PCI_E2: PCIe 3.0 x1 (Chipset) |
| M.2 Slots | 1x M.2_1: PCIe 4.0 x4 / SATA (Chipset, 2280/2260/2242) |
| SATA | 4x SATA 6G | RAID 0, 1, 5, 10 |
| LAN | Realtek RTL8111H Gigabit LAN |
| Wireless | Not included |
| Thunderbolt | Not included |

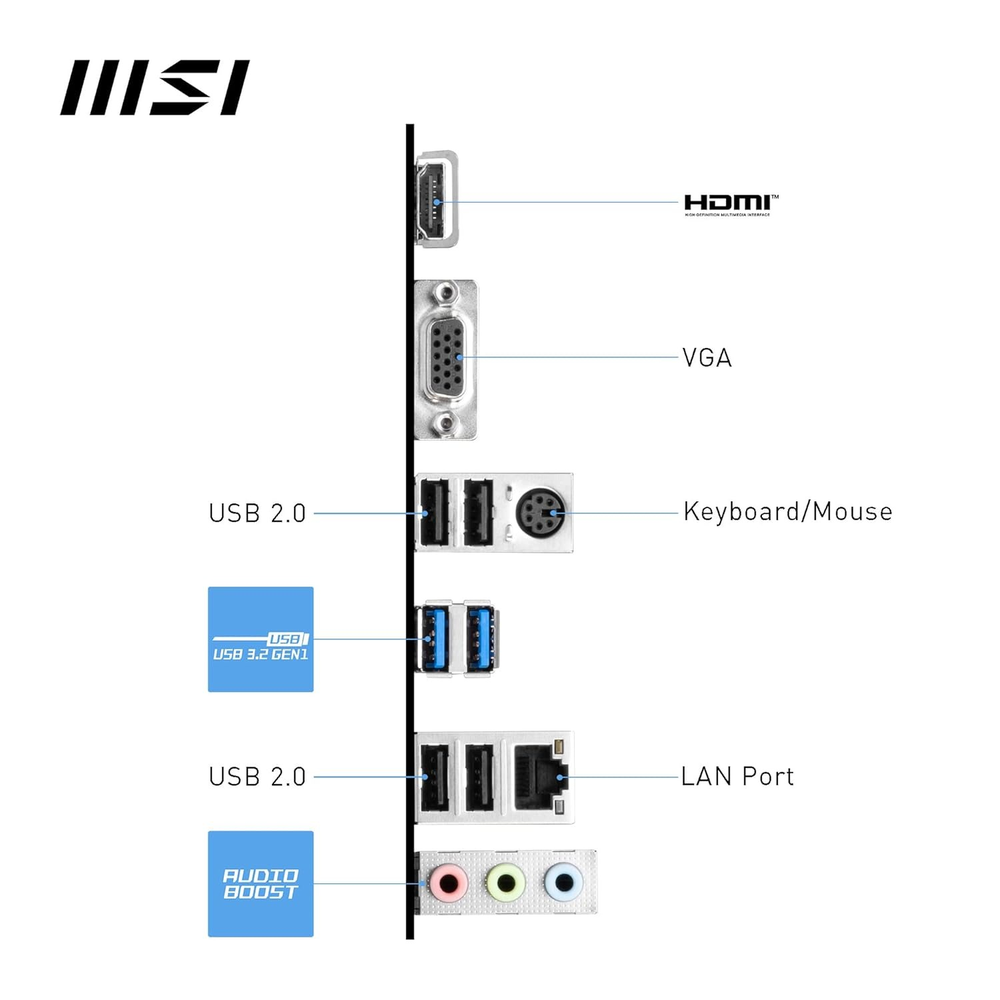

| Rear USB | 2x USB 5Gbps Type-A, 4x USB 2.0 |
| Front USB Headers | 2x USB 5Gbps Type-A, 4x USB 2.0 |
| Video Output | 1x HDMI 1.4 (4K@30Hz), 1x VGA (1920x1200@60Hz) |
| Audio | Realtek ALC897, 7.1-CH HD Audio |
| Fan Headers | 1x CPU Fan, 2x System Fan |
| RGB | 1x RGB header, 4x EZ Debug LED |
| OS Support | Windows 11 / 10 64-bit |
